Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-31 - THERMOSTAT AND HOUSING
▶
0-31 — THERMOSTAT AND HOUSING
(#138014) — 32 parça
Tümü
A - 4JA1-TC ENG
B - 4JK1-TCX ENG
◀

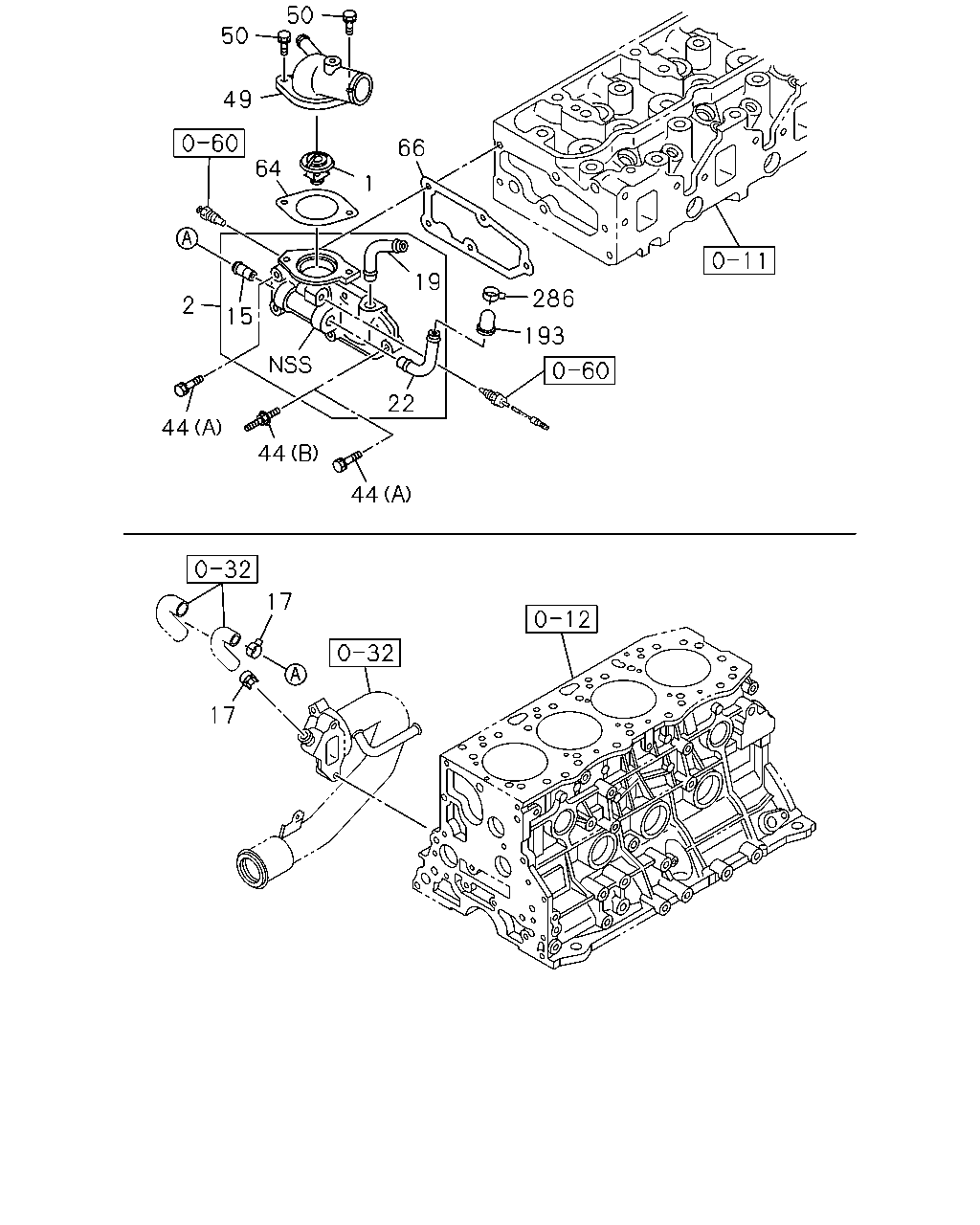

[031A] 4JK1 (13 parça)

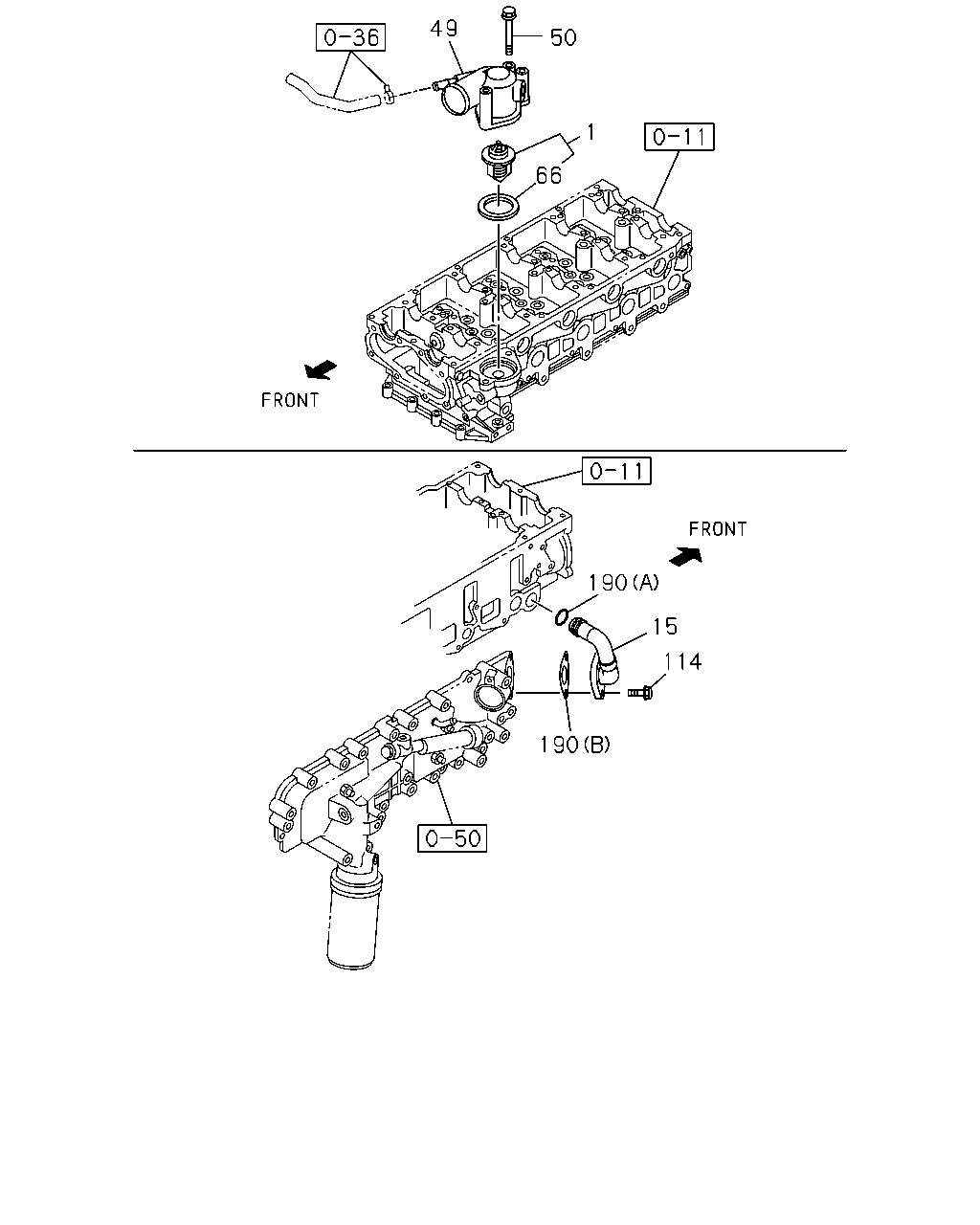

[031A] 4JA1 (19 parça)
▶
49
50
1
66
190
15
114
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
82 CELSIUS IND
8-97448-008-0
01
1
1510-
●
1
THERMOSTAT
85 CELSIUS IMA
8-98017-027-2
01
1
1405-
●
15
PIPE; BYPASS
IMA
8-94343-211-1
01
1
1510-
●
15
PIPE; BYPASS
8-97318-732-2
01
1
1405-
●
49
PIPE; WATER OUTLET
IMA
8-97306-461-2
01
1
1510-
●
49
PIPE; WATER OUTLET
8-98120-945-0
01
1
1405-
●
50
BOLT; OUTLET PIPE
M8X35 W/LK&PL WASHER IND
8-97446-877-0
02
1
1510-
●
50
BOLT; OUTLET PIPE
M8X80 FLANGE IMA
0-28050-880-0
02
1
1405-
●
66
GASKET; THERMOSTAT HSG
IND
8-97447-973-0
01
1
1510-
●
66
GASKET; THERMOSTAT HSG
IMA
8-98114-587-0
01
1
1405-
●
114
BOLT; BYPASS PIPE
M8X25 FLANGE IMA
0-28650-825-0
02
1
1405-
●
190
GASKET; BYPASS PIPE
(A) IMA
0-95690-226-0
01
1
1405-
●
190
GASKET; BYPASS PIPE
(B)
8-97318-494-2
01
1
1405-
●
50
50
49
64
66
1
15
2
22
44
44
44
19
286
193
17
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
THERMOSTAT
82 CELSIUS IND
8-97448-008-0
01
1
1510-
●
1
THERMOSTAT
85 CELSIUS IMA
8-98017-027-2
01
1
1405-
●
2
HOUSING; THERMOSTAT
IMA
8-97372-994-1
01
1
1510-
●
15
PIPE; BYPASS
IMA
8-94343-211-1
01
1
1510-
●
15
PIPE; BYPASS
8-97318-732-2
01
1
1405-
●
17
CLIP; WATER HOSE
ID=24 IND
8-97447-407-0
02
1
1510-
●
19
PIPE; HSG TO HTR
IMA
8-94478-870-1
01
1
1510-
●
22
PIPE; HTR,RETURN
IMA
8-94478-869-2
01
1
1510-
●
44
BOLT; HSG TO HD
(B) M8X28,M8X34 L=69 IMA
8-94479-011-1
01
1
1510-
●
44
BOLT; HSG TO HD
(A) M8X30 FLANGE IND
8-97446-852-0
04
1
1510-
●
49
PIPE; WATER OUTLET
IMA
8-97306-461-2
01
1
1510-
●
49
PIPE; WATER OUTLET
8-98120-945-0
01
1
1405-
●
50
BOLT; OUTLET PIPE
M8X35 W/LK&PL WASHER IND
8-97446-877-0
02
1
1510-
●
50
BOLT; OUTLET PIPE
M8X80 FLANGE IMA
0-28050-880-0
02
1
1405-
●
64
GASKET; OUTLET PIPE TO HSG
IND
8-97447-927-0
01
1
1510-
●
66
GASKET; THERMOSTAT HSG
IND
8-97447-973-0
01
1
1510-
●
66
GASKET; THERMOSTAT HSG
IMA
8-98114-587-0
01
1
1405-
●
193
CAP; RUBBER
VENTILATION RAM AIR(6TN) IND
8-97447-947-0
01
1
1510-
●
286
CLIP; HOSE
VENTILATION RAM AIR(6TN) ID=20.8 IND
8-97447-909-0
01
1
1510-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
