Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#138012) — 40 parça
Tümü
A - 4JA1-TC ENG
B - 4JK1-TCX ENG
◀
[027A] 4JK1 (16 parça)

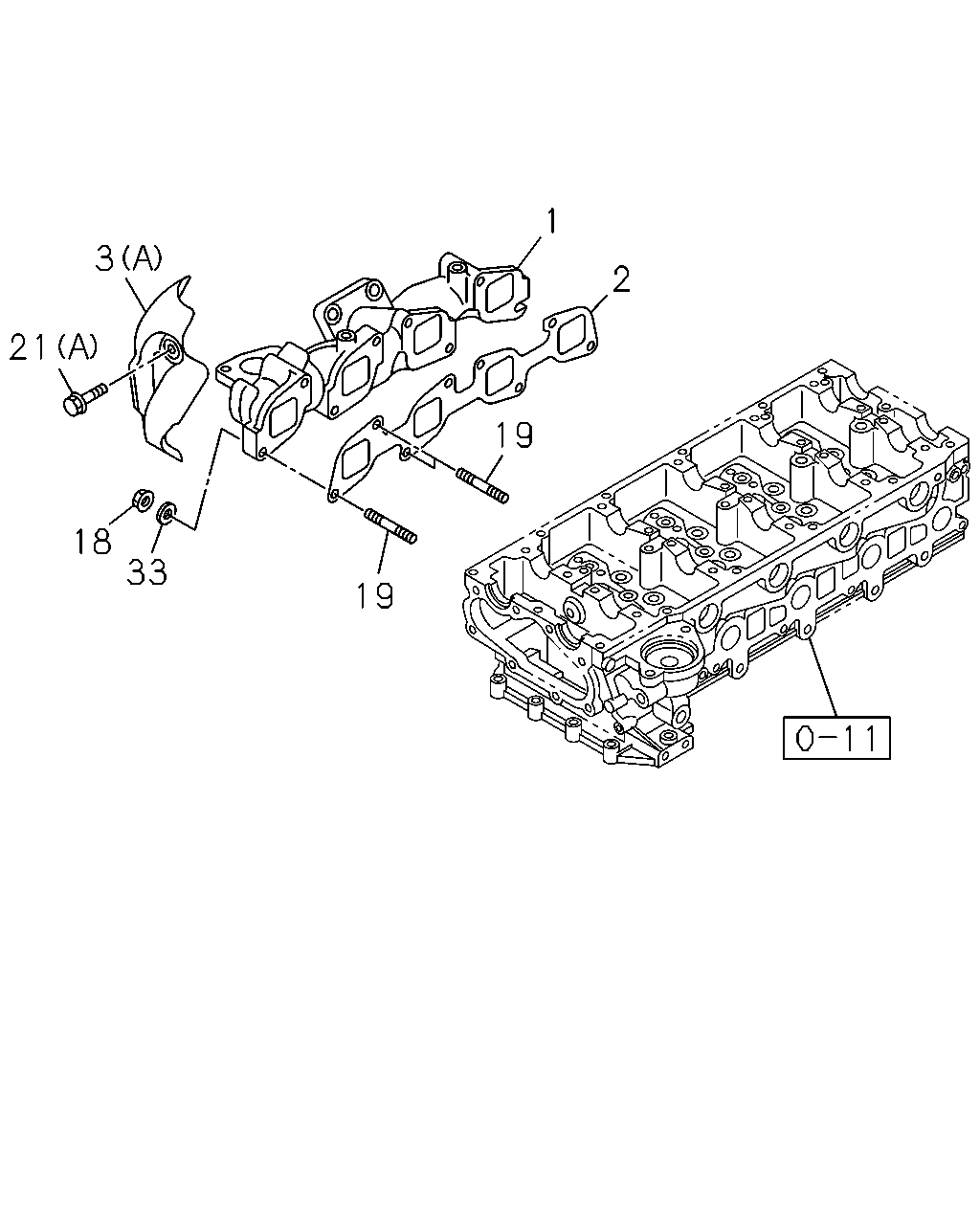

[027A] 4JA1 (24 parça)
▶
2
1
19
19
33
18
21
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
IMA
8-97289-434-0
01
1
1510-
●
1
MANIFOLD; EXHAUST
IMA
8-98132-039-2
01
1
1405-
●
2
GASKET; EXH MANIF TO HD
IND
8-97447-955-0
01
1
1510-
●
2
GASKET; EXH MANIF TO HD
8-97356-028-2
01
1
1405-1406
●
2
GASKET; EXH MANIF TO HD
IMA
8-98229-782-0
01
1
1407-
●
3
PROTECTOR; HEAT,EXH MANIF
(B) IMA
8-97252-525-1
01
1
1510-
●
3
PROTECTOR; HEAT,EXH MANIF
(C) IND
8-97447-987-0
01
1
1510-
●
3
PROTECTOR; HEAT,EXH MANIF
(A)
8-98011-523-0
01
1
1405-
●
18
NUT; EXH MANIF
M8 FLANGE IND
8-97446-880-0
02
1
1510-
●
18
NUT; EXH MANIF
M10 FLANGE IMA
8-97381-617-0
08
1
1405-
●
19
STUD; MANIF TO CYL HD
M8X35 L=46 IND
8-97446-797-0
02
1
1510-
●
19
STUD; MANIF TO CYL HD
M10X33 L=48 IMA
8-97379-383-0
08
1
1405-
●
21
BOLT; HEAT PROTECTOR
(A) M8X12 FLANGE IND
8-97446-849-0
03
1
1510-
●
21
BOLT; HEAT PROTECTOR
(B) M6X12 FLANGE IND
8-97447-885-0
01
1
1510-
●
21
BOLT; HEAT PROTECTOR
(A) M8X12 FLANGE IMA
0-28050-812-0
03
1
1405-
●
33
WASHER; EXH MANIF
ID=10.5 IMA
5-09500-013-0
08
1
1405-
●
2
1
3
21
3
21
21
15
14
18
19
25
23
26
27
23
35
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
IMA
8-97289-434-0
01
1
1510-
●
1
MANIFOLD; EXHAUST
IMA
8-98132-039-2
01
1
1405-
●
2
GASKET; EXH MANIF TO HD
IND
8-97447-955-0
01
1
1510-
●
2
GASKET; EXH MANIF TO HD
8-97356-028-2
01
1
1405-1406
●
2
GASKET; EXH MANIF TO HD
IMA
8-98229-782-0
01
1
1407-
●
3
PROTECTOR; HEAT,EXH MANIF
(B) IMA
8-97252-525-1
01
1
1510-
●
3
PROTECTOR; HEAT,EXH MANIF
(C) IND
8-97447-987-0
01
1
1510-
●
3
PROTECTOR; HEAT,EXH MANIF
(A)
8-98011-523-0
01
1
1405-
●
14
WASHER; PL,EXH MANIF
IND
8-97448-028-0
02
1
1510-
●
15
BOLT; EXH MANIF
IND
8-97447-936-0
06
1
1510-
●
18
NUT; EXH MANIF
M8 FLANGE IND
8-97446-880-0
02
1
1510-
●
18
NUT; EXH MANIF
M10 FLANGE IMA
8-97381-617-0
08
1
1405-
●
19
STUD; MANIF TO CYL HD
M8X35 L=46 IND
8-97446-797-0
02
1
1510-
●
19
STUD; MANIF TO CYL HD
M10X33 L=48 IMA
8-97379-383-0
08
1
1405-
●
21
BOLT; HEAT PROTECTOR
(A) M8X12 FLANGE IND
8-97446-849-0
03
1
1510-
●
21
BOLT; HEAT PROTECTOR
(B) M6X12 FLANGE IND
8-97447-885-0
01
1
1510-
●
21
BOLT; HEAT PROTECTOR
(A) M8X12 FLANGE IMA
0-28050-812-0
03
1
1405-
●
22
SPACER; EXH MANIF BRKT
IND
8-97447-999-0
01
1
1510-
●
23
WASHER; PL EXH MANIF BRKT
(A) IND
8-97446-793-0
01
1
1510-
●
23
WASHER; PL EXH MANIF BRKT
(B) IND
8-97447-917-0
01
1
1510-
●
25
BRACKET; EXH MANIF
IND
8-97446-443-0
01
1
1510-
●
26
BOLT; BRKT TO EXH MANIF
IND
8-97446-855-0
01
1
1510-
●
27
NUT; BRKT,EXH MANIF
M8 FLANGE IND
8-97446-880-0
01
1
1510-
●
35
STUD; BRKT
IND
8-97448-003-0
01
1
1510-
●
