◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#138010) — 76 parça

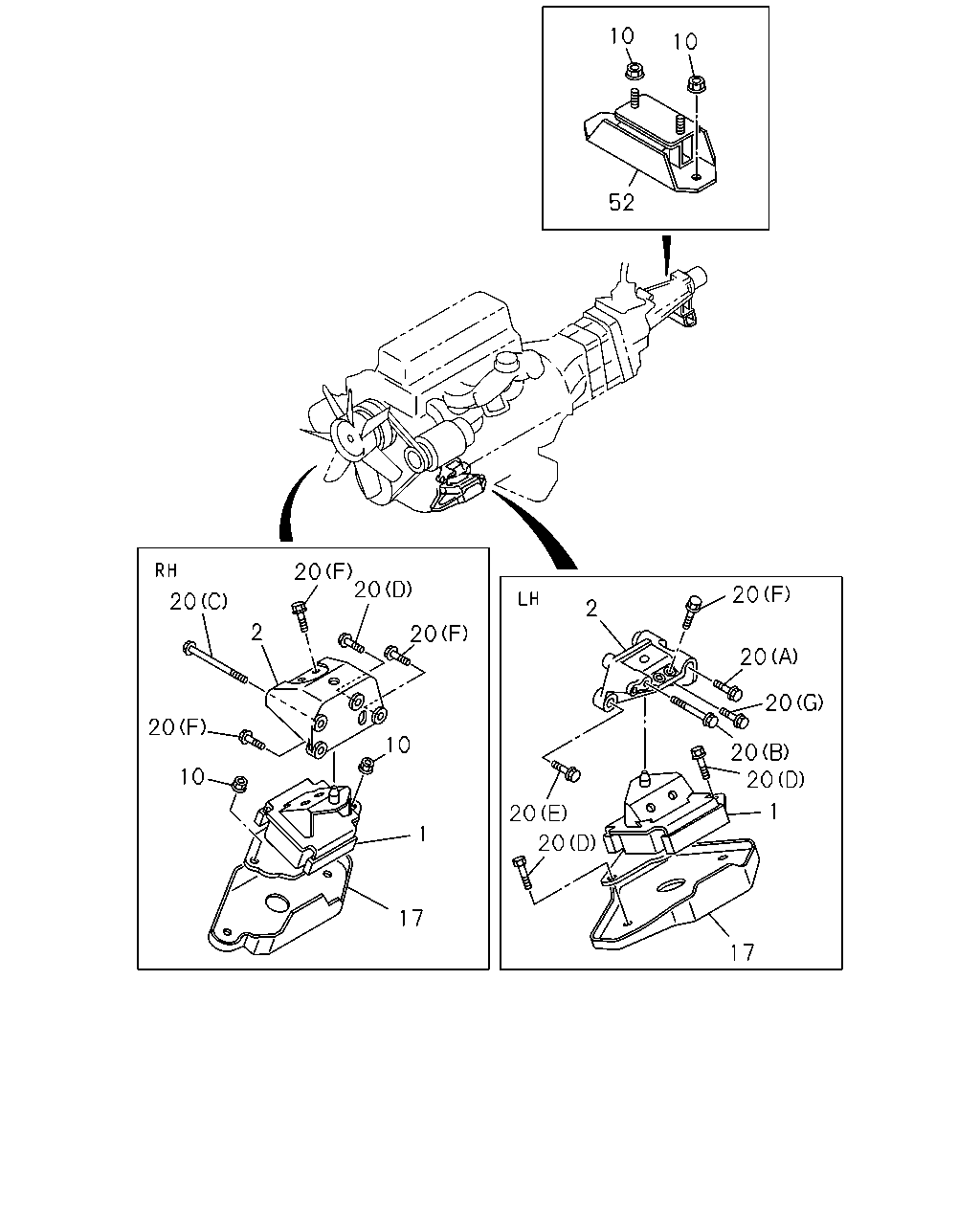

çizim 417013
20 20 20 20 20 1 17 2 20 20 1 17 10 20 20 20 20 2 20 10 10 52 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 1510- ●
1 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 1405- ●
1 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 1405-1509 ●
1 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 1510- ● ●
2 FOOT; ENG
IND 		8-97445-756-0 01 1 1510- ●
2 FOOT; ENG 8-97943-686-0 01 1 1510- ●
2 FOOT; ENG 8-97355-476-0 01 1 1405- ●
2 FOOT; ENG 8-97355-478-1 01 1 1405- ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1405-1509 ● ●
10 NUT; MTG RUBBER
M/T MUA 5 SPEED 5H(MWQ) M10 FLANGE IMA 		0-91180-210-0 02 1 1405-1509 ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1405-1509 ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1510- ● ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1510- ● ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1510- ● ●
17 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 1405-1509 ●
17 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 1510- ● ●
17 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 1405-1509 ●
17 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(H) M10X90 FLANGE 		0-28051-090-0 01 1 1510- ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE 		0-28051-000-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE 		0-28051-000-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE IMA 		0-28051-020-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE IMA 		0-28051-020-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28051-080-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28051-080-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 02 1 1405-1509 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 02 1 1510- ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 1405-1509 ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 1510- ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 1405-1509 ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 1510- ● ●
20 BOLT; ENG FOOT
(A) M10X40 FLANGE 		0-28651-040-0 01 1 1405- ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 1510- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-98051-340-0 01 1 1510- ●
52 RUBBER; CUSHION,ENG MTG,RR 8-98051-338-0 01 1 1405- ●

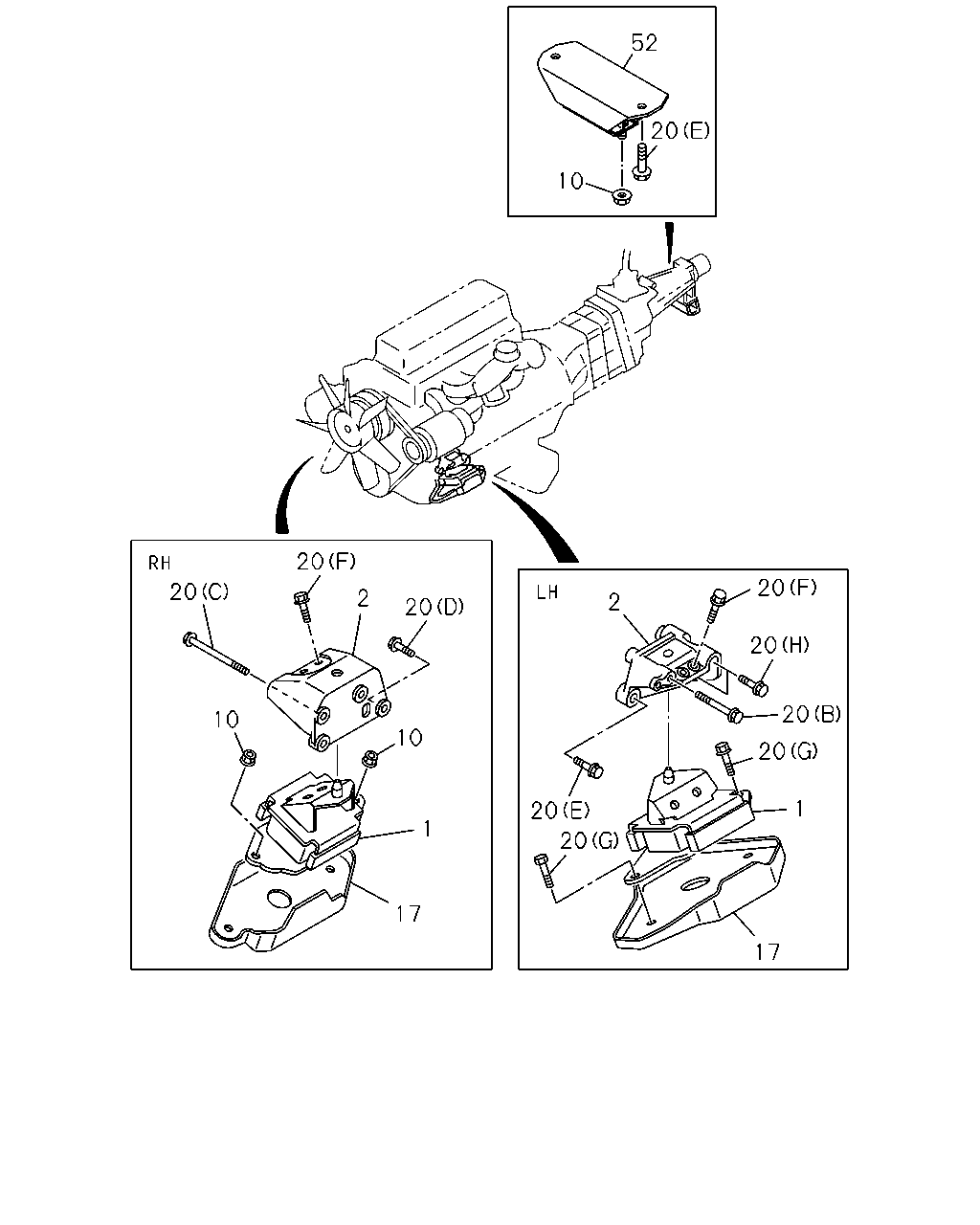

çizim 498030
20 20 2 20 20 17 1 20 10 1 20 20 2 20 20 10 17 10 20 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 1510- ●
1 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 1405- ●
1 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 1405-1509 ●
1 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 1510- ● ●
2 FOOT; ENG
IND 		8-97445-756-0 01 1 1510- ●
2 FOOT; ENG 8-97943-686-0 01 1 1510- ●
2 FOOT; ENG 8-97355-476-0 01 1 1405- ●
2 FOOT; ENG 8-97355-478-1 01 1 1405- ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1405-1509 ● ●
10 NUT; MTG RUBBER
M/T MUA 5 SPEED 5H(MWQ) M10 FLANGE IMA 		0-91180-210-0 02 1 1405-1509 ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1405-1509 ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1510- ● ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1510- ● ●
10 NUT; MTG RUBBER
M10 FLANGE IMA 		0-91180-210-0 02 1 1510- ● ●
17 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 1405-1509 ●
17 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 1510- ● ●
17 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 1405-1509 ●
17 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(H) M10X90 FLANGE 		0-28051-090-0 01 1 1510- ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE 		0-28051-000-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(B) M10X100 FLANGE 		0-28051-000-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE IMA 		0-28051-020-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(G) M10X20 FLANGE IMA 		0-28051-020-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28051-080-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28051-080-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 01 1 1510- ● ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 02 1 1405-1509 ●
20 BOLT; ENG FOOT
(D) M10X25 FLANGE IMA 		0-28651-025-0 02 1 1510- ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 1405-1509 ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 1510- ● ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 1405-1509 ●
20 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 1510- ● ●
20 BOLT; ENG FOOT
(A) M10X40 FLANGE 		0-28651-040-0 01 1 1405- ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 1405-1509 ●
20 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 1510- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-98051-340-0 01 1 1510- ●
52 RUBBER; CUSHION,ENG MTG,RR 8-98051-338-0 01 1 1405- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
