0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#138009) — 83 parça

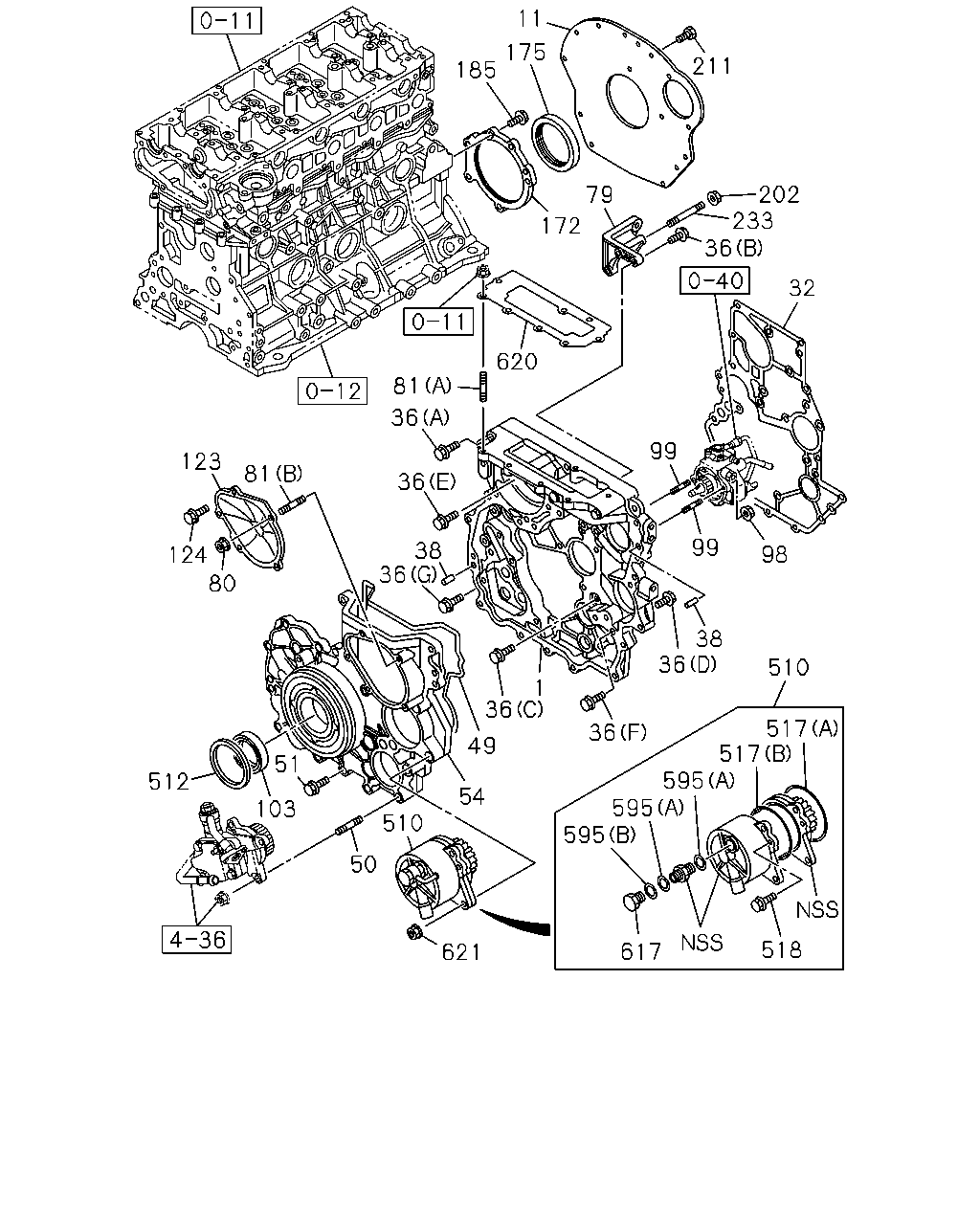

çizim 417213
617 518 595 517 517 595 595 621 510 36 36 38 50 510 54 98 99 32 99 36 233 202 211 79 172 36 103 512 51 49 36 38 80 124 123 81 36 36 81 1 620 185 175 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR
IMA 		8-97239-983-2 01 1 1510- ●
1 CASE; TIMING GEAR 8-98074-747-1 01 1 1405- ●
11 PLATE; RR,C/BL
IND 		8-97446-442-0 01 1 1510- ●
11 PLATE; RR,C/BL 8-98020-515-1 01 1 1405- ●
32 GASKET; GEAR CASE TO C/BL 8-97312-221-2 01 1 1405- ●
36 BOLT; GEAR CASE
(H) M8X20 W/LK WASHER IND 		8-97446-871-0 06 1 1510- ●
36 BOLT; GEAR CASE
(I) M8X45 W/LK WASHER IND 		8-97446-873-0 02 1 1510- ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE IMA 		0-28050-816-0 01 1 1405- ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE IMA 		0-28050-820-0 01 1 1405- ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE IMA 		0-28050-835-0 01 1 1405- ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE IMA 		0-28050-845-0 02 1 1405- ●
36 BOLT; GEAR CASE
(A) M8X60 FLANGE IMA 		0-28050-860-0 01 1 1405- ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE IMA 		0-28650-825-0 15 1 1405- ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE IMA 		0-28650-830-0 03 1 1405- ●
38 PIN; GEAR CASE COVER
OD=10 L=20 IND 		8-97446-796-0 02 1 1510- ●
38 PIN; GEAR CASE COVER
OD=10 L=20 IMA 		9-08151-020-0 02 1 1405- ●
49 GASKET; GEAR CASE TO COVER
IMA 		8-97945-298-0 01 1 1405- ●
50 STUD
M8X27,M8X14 L=64.5 IMA 		8-97354-808-2 06 1 1405- ●
51 BOLT; GEAR CASE COVER
IMA 		8-97354-697-1 14 1 1405- ●
54 COVER; GEAR CASE
IMA 		8-98214-059-2 01 1 1510- ●
54 COVER; GEAR CASE 8-98170-215-0 01 1 1405-1411 ●
54 COVER; GEAR CASE
IMA 		8-98228-336-1 01 1 1412- ●
79 BRACKET; GEAR CASE COVER
IMA 		8-98107-106-0 01 1 1405- ●
80 NUT; COVER
M6 FLANGE IMA 		0-91180-206-0 02 1 1405- ●
81 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 IMA 		0-41010-616-0 02 1 1405- ●
81 STUD; GEAR CASE COVER FIX
(A) M8X30 L=48 IMA 		0-49140-830-0 02 1 1405- ●
98 NUT; STUD,INJ PUMP
M8 FLANGE IMA 		0-91180-208-0 02 1 1405- ●
99 STUD; INJ PUMP
M8X30 L=48 IMA 		0-49140-830-0 02 1 1405- ●
103 SEAL; OIL,CR/SHF,FRT
IMA 		8-97351-704-0 01 1 1510- ●
103 SEAL; OIL,CR/SHF,FRT
IMA 		8-97943-951-0 01 1 1405- ●
123 COVER; TIMING,LWR 8-98158-145-0 01 1 1405- ●
124 BOLT; TIMING COVER
M6X16 FLANGE IMA 		0-28050-616-0 03 1 1405- ●
172 RETAINER; CR/SHF
IMA 		8-97379-826-0 01 1 1405- ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 1405-1509 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 1510- ● ●
185 BOLT; RET TO C/BL
M8X25 FLANGE IMA 		0-28650-825-0 05 1 1405- ●
202 NUT; BRKT
M8 FLANGE IMA 		0-91180-208-0 01 1 1405- ●
211 BOLT; HSG
M12X25 IMA 		8-97916-324-1 03 1 1405- ●
233 STUD; BRKT
M8X71 L=83 IMA 		8-97367-083-0 01 1 1405- ●
510 PUMP ASM; VACUUM
IMA 		8-98251-765-0 01 1 1405- ●
512 RUBBER; SPACE
IMA 		8-97373-716-0 01 1 1405- ●
517 GASKET; VAC PUMP
(A) IMA 		0-95690-271-0 01 1 1405- ●
517 GASKET; VAC PUMP
(B) IMA 		8-98251-768-0 01 1 1405- ●
518 BOLT; VAC PUMP
IMA 		8-97184-180-0 03 1 1405- ●
595 GASKET; VLV
(A) ID=18 OD=24 IMA 		5-19679-002-0 02 1 1405- ●
595 GASKET; VLV
(B) ID=12 OD=24 IMA 		5-19679-003-0 01 1 1405- ●
617 BOLT; CHECK VLV
IMA 		8-97376-402-0 01 1 1405- ●
620 GASKET; GEAR CASE
T=1.40 1-NOTCH IMA 		8-97328-828-2 01 1 1405- ●
620 GASKET; GEAR CASE
T=1.45 2-NOTCH IMA 		8-97331-631-2 01 1 1405- ●
620 GASKET; GEAR CASE
T=1.50 3-NOTCH IMA 		8-97331-632-2 01 1 1405- ●
621 NUT; VAC PUMP
M8 FLANGE IMA 		0-91180-208-0 03 1 1405- ●
çizim 498025
57 65 54 60 60 103 65 57 58 56 60 58 57 65 60 60 175 11 15 65 36 36 38 1 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR
IMA 		8-97239-983-2 01 1 1510- ●
1 CASE; TIMING GEAR 8-98074-747-1 01 1 1405- ●
11 PLATE; RR,C/BL
IND 		8-97446-442-0 01 1 1510- ●
11 PLATE; RR,C/BL 8-98020-515-1 01 1 1405- ●
15 BOLT; RR PLATE TO C/BL
IND 		8-97447-892-0 03 1 1510- ●
36 BOLT; GEAR CASE
(H) M8X20 W/LK WASHER IND 		8-97446-871-0 06 1 1510- ●
36 BOLT; GEAR CASE
(I) M8X45 W/LK WASHER IND 		8-97446-873-0 02 1 1510- ●
36 BOLT; GEAR CASE
(C) M8X16 FLANGE IMA 		0-28050-816-0 01 1 1405- ●
36 BOLT; GEAR CASE
(D) M8X20 FLANGE IMA 		0-28050-820-0 01 1 1405- ●
36 BOLT; GEAR CASE
(E) M8X35 FLANGE IMA 		0-28050-835-0 01 1 1405- ●
36 BOLT; GEAR CASE
(F) M8X45 FLANGE IMA 		0-28050-845-0 02 1 1405- ●
36 BOLT; GEAR CASE
(A) M8X60 FLANGE IMA 		0-28050-860-0 01 1 1405- ●
36 BOLT; GEAR CASE
(G) M8X25 FLANGE IMA 		0-28650-825-0 15 1 1405- ●
36 BOLT; GEAR CASE
(B) M8X30 FLANGE IMA 		0-28650-830-0 03 1 1405- ●
38 PIN; GEAR CASE COVER
OD=10 L=20 IND 		8-97446-796-0 02 1 1510- ●
38 PIN; GEAR CASE COVER
OD=10 L=20 IMA 		9-08151-020-0 02 1 1405- ●
54 COVER; GEAR CASE
IMA 		8-98214-059-2 01 1 1510- ●
54 COVER; GEAR CASE 8-98170-215-0 01 1 1405-1411 ●
54 COVER; GEAR CASE
IMA 		8-98228-336-1 01 1 1412- ●
56 GASKET; GEAR CASE TO COVER
IND 		8-97448-032-0 01 1 1510- ●
57 COVER; TIMING CHECK HOLE
IND 		8-97447-901-0 03 1 1510- ●
58 BOLT; CHECK HOLE COVER
M6X12 FLANGE IND 		8-97447-885-0 06 1 1510- ●
60 BOLT; COVER TO CASE
(A) M8X30 FLANGE IND 		8-97446-852-0 08 1 1510- ●
60 BOLT; COVER TO CASE
(B) M8X70 W/LK WASHER IND 		8-97446-874-0 06 1 1510- ●
60 BOLT; COVER TO CASE
(C) M12X55 HEX SOCKET IND 		8-97446-878-0 01 1 1510- ●
60 BOLT; COVER TO CASE
(D) M8X58 FLANGE IND 		8-97448-037-0 01 1 1510- ●
65 GASKET; COVER,TIMING CHECK HOLE
(B) IMA 		8-97118-698-1 03 1 1510- ●
65 GASKET; COVER,TIMING CHECK HOLE
(A) IND 		8-97447-971-0 01 1 1510- ●
103 SEAL; OIL,CR/SHF,FRT
IMA 		8-97351-704-0 01 1 1510- ●
103 SEAL; OIL,CR/SHF,FRT
IMA 		8-97943-951-0 01 1 1405- ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 1405-1509 ●
175 SEAL; OIL,CR/SHF,RR
ID=95 OD=118 IMA 		8-97071-561-1 01 1 1510- ● ●
