0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#138008) — 133 parça

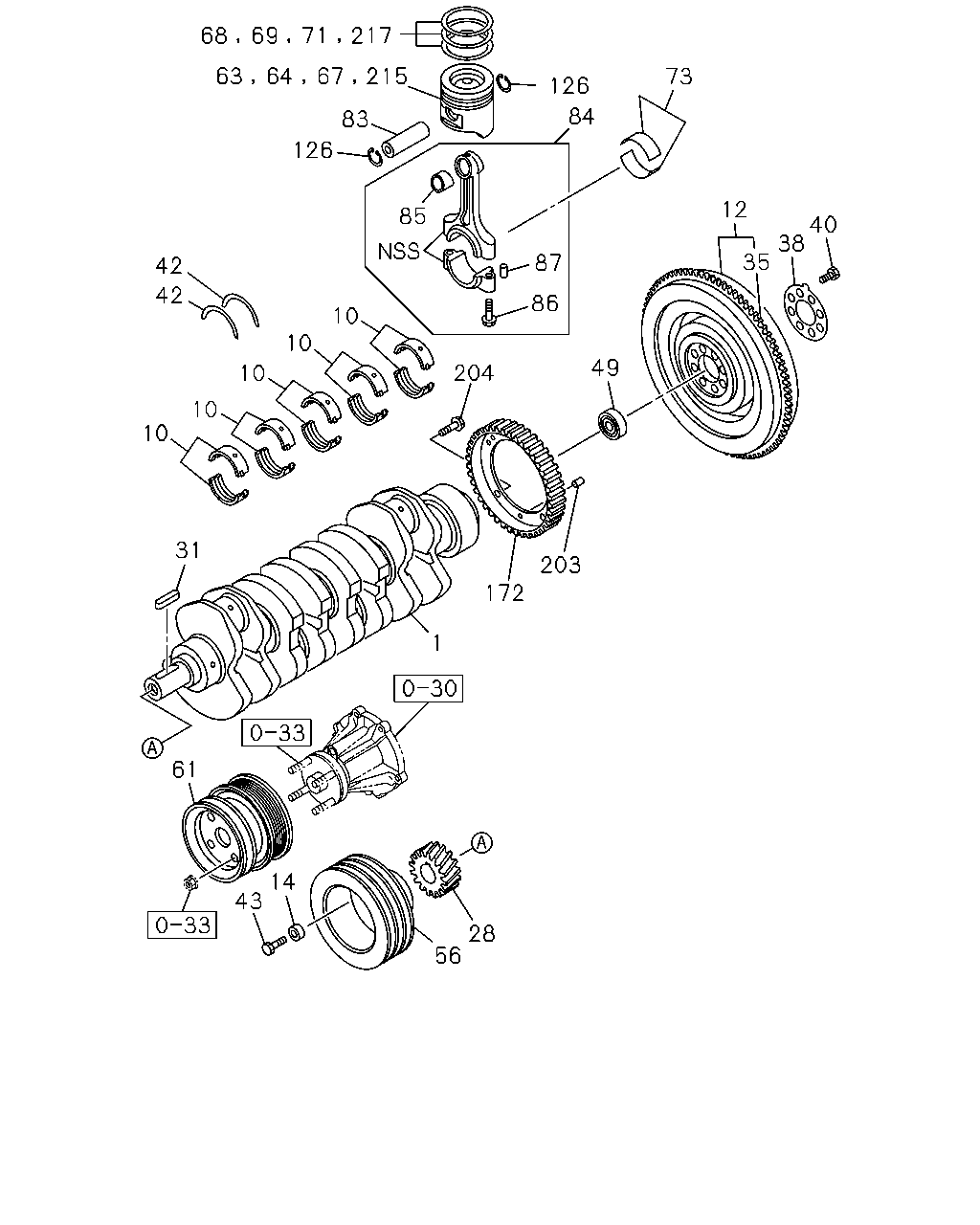

68 69 71 217 63 64 67 215 126 73 83 84 126 85 87 86 12 35 38 40 49 204 10 10 10 10 10 42 42 203 172 1 31 61 43 14 56 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT IND	8-97445-054-0	01	1	1510-	●
1	CRANKSHAFT IMA	8-98131-999-1	01	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 1 IND	8-97447-579-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 2 IND	8-97447-580-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 3 IND	8-97447-581-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 4 IND	8-97447-582-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 5 IND	8-97447-583-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN IMA	8-97388-502-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK IMA	8-97388-503-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE IMA	8-97388-504-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW IMA	8-97388-505-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD RED IMA	8-97388-506-0	05	1	1405-		●
12	FLYWHEEL IND	8-97445-063-0	01	1	1510-	●
12	FLYWHEEL IMA	8-98077-180-0	01	1	1405-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IND	8-97446-440-0	01	1	1510-	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	1405-		●
28	GEAR; CR/SHF Z=30 IND	8-97447-966-0	01	1	1510-	●
28	GEAR; CR/SHF Z=44 IMA	8-97312-199-1	01	1	1405-		●
31	KEY; FEATHER,CR/SHF IND	8-97448-038-0	01	1	1510-	●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	1405-		●
35	GEAR; RING Z=108 IND	8-97445-083-0	01	1	1510-	●
35	GEAR; RING Z=108 IMA	8-97912-516-1	01	1	1405-		●
38	WASHER; FLYWHEEL IND	8-97446-767-0	01	1	1510-	●
38	WASHER; FLYWHEEL IMA	8-94133-970-1	01	1	1405-		●
40	BOLT; FLYWHEEL IND	8-97448-014-0	08	1	1510-	●
40	BOLT; FLYWHEEL M13X36 IMA	8-97941-069-0	08	1	1405-		●
42	WASHER; THRUST,CR/SHF IND	8-97447-935-0	02	1	1510-	●
42	WASHER; THRUST,CR/SHF IMA	8-97354-055-1	02	1	1405-		●
43	BOLT; CR/SHF PULLEY M16X43 IMA	5-09000-273-2	01	1	1510-	●
43	BOLT; CR/SHF PULLEY M16X43 IMA	8-97373-852-1	01	1	1405-		●
49	BEARING; PILOT NSK IMA	8-97920-344-2	01	1	1405-		●
49	BEARING; PILOT NACHI IMA	8-97922-552-1	01	1	1405-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE IMA	8-97306-533-5	01	1	1510-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	1405-		●
61	PULLEY; FAN DRIVE 1-GROOVE IMA	8-94146-638-2	01	1	1510-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1405-		●
63	PISTON GRADE=CX IMA	8-98279-303-0	04	1	1510-	●
63	PISTON GRADE=AX IMA	8-98279-304-0	04	1	1510-	●
63	PISTON GRADE=A	8-97355-671-2	04	1	1405-		●
63	PISTON GRADE=B	8-97355-672-2	04	1	1405-		●
63	PISTON GRADE=C	8-97355-673-2	04	1	1405-		●
64	PISTON; O/S=0.50	8-97388-330-0	04	1	1405-		●
67	PISTON; O/S=0.25	8-97388-329-0	04	1	1405-		●
68	RING SET; PISTON,STANDARD GRADE=X-1 IND	8-97447-584-0	04	1	1510-	●
68	RING SET; PISTON,STANDARD GRADE=X-2 IND	8-97447-585-0	04	1	1510-	●
68	RING SET; PISTON,STANDARD STANDARD SPEC	8-98096-676-1	04	1	1405-		●
68	RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS	8-98173-004-0	04	1	1405-		●
69	RING SET; PISTON,O/S=0.50 STANDARD SPEC	8-98096-562-1	04	1	1405-		●
69	RING SET; PISTON,O/S=0.50 FOR TRUCK-BUS USERS	8-98173-006-0	04	1	1405-		●
71	RING SET; PISTON,O/S=0.25 STANDARD SPEC	8-98096-561-1	04	1	1405-		●
71	RING SET; PISTON,O/S=0.25 FOR TRUCK-BUS USERS	8-98173-005-0	04	1	1405-		●
73	METAL SET; CONN ROD,STANDARD IND	8-97447-586-0	04	1	1510-	●
73	METAL SET; CONN ROD,STANDARD IMA	8-97388-735-0	04	1	1405-		●
83	PIN; PISTON	8-94454-479-0	04	1	1510-1510	●
83	PIN; PISTON IND	8-97448-282-0	04	1	1510-	●
83	PIN; PISTON IMA	8-98150-333-0	04	1	1405-		●
84	ROD ASM; CONN IND	8-97445-055-0	04	1	1510-	●
84	ROD ASM; CONN IMA	8-97357-716-3	04	1	1405-		●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IND	8-97447-946-0	04	1	1510-	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-97383-066-0	04	1	1405-		●
86	BOLT; CONNROD M11X59 IND	8-97447-903-0	08	1	1510-	●
86	BOLT; CONNROD M11X44.5 IMA	8-98048-538-0	08	1	1405-		●
87	PIN; CONNROD BIG END OD=5 L=8 IMA	9-08160-508-0	08	1	1405-		●
126	RING; SNAP,PISTON PIN ID=33.9	8-94133-969-0	08	1	1510-1510	●
126	RING; SNAP,PISTON PIN IND	8-97448-283-0	08	1	1510-	●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	1405-		●
172	ROTOR; CRANK SENSOR	8-97312-337-0	01	1	1405-		●
203	PIN; ROTOR OD=5 L=8 IMA	9-08160-508-0	01	1	1405-		●
204	BOLT; ROTOR IMA	8-97944-142-1	03	1	1405-		●
215	PISTON; O/S=0.75	8-97388-331-0	04	1	1405-		●
217	RING SET; PISTON,O/S=0.75 STANDARD SPEC	8-98096-563-1	04	1	1405-		●
217	RING SET; PISTON,O/S=0.75 FOR TRUCK-BUS USERS	8-98173-007-0	04	1	1405-		●

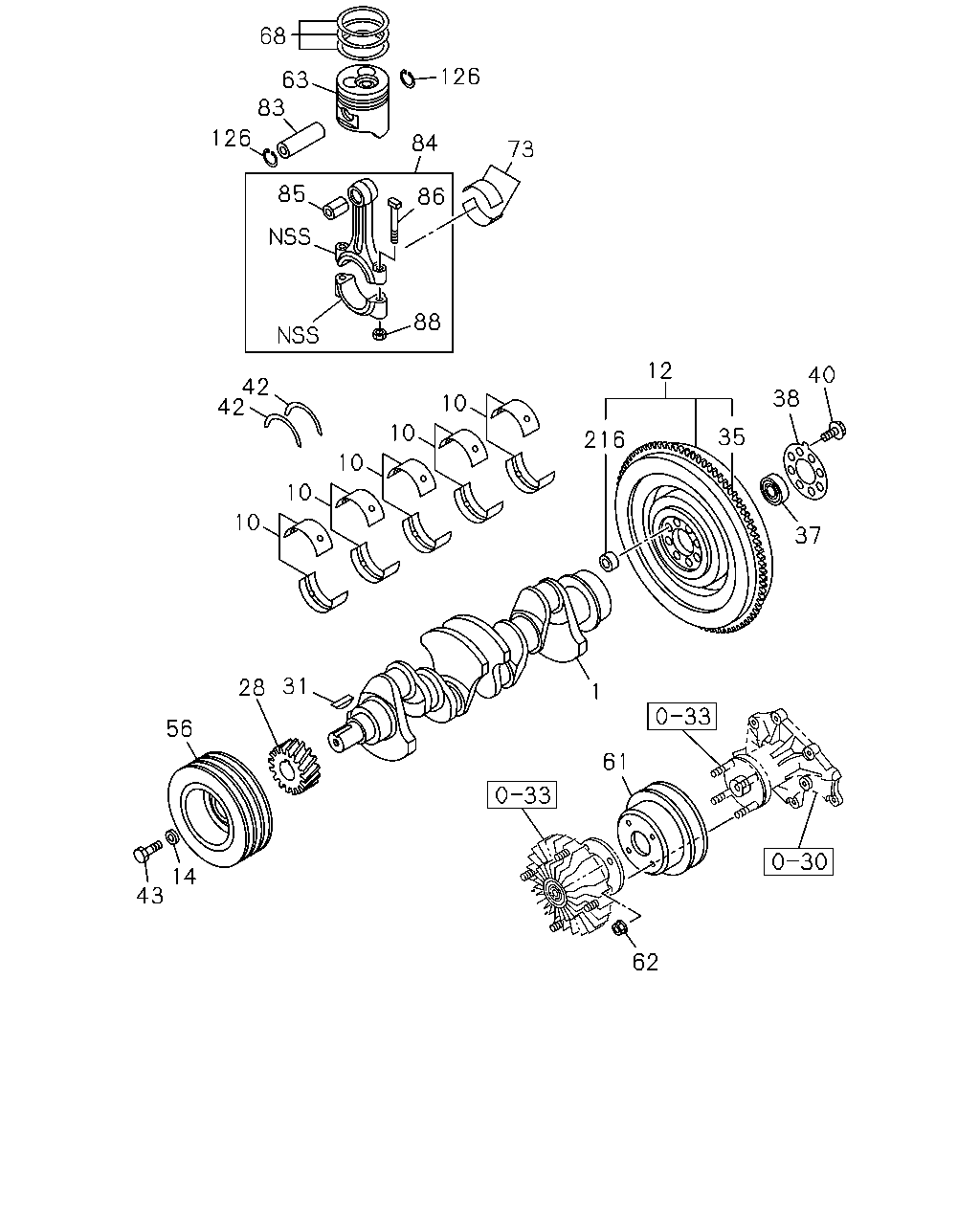

62 43 14 56 28 31 1 61 37 35 38 40 12 216 10 10 10 10 10 42 42 88 86 73 84 126 83 63 126 68 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT IND	8-97445-054-0	01	1	1510-	●
1	CRANKSHAFT IMA	8-98131-999-1	01	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 1 IND	8-97447-579-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 2 IND	8-97447-580-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 3 IND	8-97447-581-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 4 IND	8-97447-582-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD STAMP 5 IND	8-97447-583-0	05	1	1510-	●
10	METAL SET; CRANKSHAFT,STANDARD GREEN IMA	8-97388-502-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK IMA	8-97388-503-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE IMA	8-97388-504-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW IMA	8-97388-505-0	05	1	1405-		●
10	METAL SET; CRANKSHAFT,STANDARD RED IMA	8-97388-506-0	05	1	1405-		●
12	FLYWHEEL IND	8-97445-063-0	01	1	1510-	●
12	FLYWHEEL IMA	8-98077-180-0	01	1	1405-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IND	8-97446-440-0	01	1	1510-	●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12 IMA	5-09503-127-1	01	1	1405-		●
28	GEAR; CR/SHF Z=30 IND	8-97447-966-0	01	1	1510-	●
28	GEAR; CR/SHF Z=44 IMA	8-97312-199-1	01	1	1405-		●
31	KEY; FEATHER,CR/SHF IND	8-97448-038-0	01	1	1510-	●
31	KEY; FEATHER,CR/SHF IMA	9-08030-743-0	01	1	1405-		●
35	GEAR; RING Z=108 IND	8-97445-083-0	01	1	1510-	●
35	GEAR; RING Z=108 IMA	8-97912-516-1	01	1	1405-		●
37	BEARING; PILOT,TOP GEAR SHAFT IND	8-97447-934-0	01	1	1510-	●
38	WASHER; FLYWHEEL IND	8-97446-767-0	01	1	1510-	●
38	WASHER; FLYWHEEL IMA	8-94133-970-1	01	1	1405-		●
40	BOLT; FLYWHEEL IND	8-97448-014-0	08	1	1510-	●
40	BOLT; FLYWHEEL M13X36 IMA	8-97941-069-0	08	1	1405-		●
42	WASHER; THRUST,CR/SHF IND	8-97447-935-0	02	1	1510-	●
42	WASHER; THRUST,CR/SHF IMA	8-97354-055-1	02	1	1405-		●
43	BOLT; CR/SHF PULLEY M16X43 IMA	5-09000-273-2	01	1	1510-	●
43	BOLT; CR/SHF PULLEY M16X43 IMA	8-97373-852-1	01	1	1405-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE IMA	8-97306-533-5	01	1	1510-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	1405-		●
61	PULLEY; FAN DRIVE 1-GROOVE IMA	8-94146-638-2	01	1	1510-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1405-		●
62	NUT; FAN PULLEY IND	8-97448-043-0	04	1	1510-	●
63	PISTON GRADE=CX IMA	8-98279-303-0	04	1	1510-	●
63	PISTON GRADE=AX IMA	8-98279-304-0	04	1	1510-	●
63	PISTON GRADE=A	8-97355-671-2	04	1	1405-		●
63	PISTON GRADE=B	8-97355-672-2	04	1	1405-		●
63	PISTON GRADE=C	8-97355-673-2	04	1	1405-		●
68	RING SET; PISTON,STANDARD GRADE=X-1 IND	8-97447-584-0	04	1	1510-	●
68	RING SET; PISTON,STANDARD GRADE=X-2 IND	8-97447-585-0	04	1	1510-	●
68	RING SET; PISTON,STANDARD STANDARD SPEC	8-98096-676-1	04	1	1405-		●
68	RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS	8-98173-004-0	04	1	1405-		●
73	METAL SET; CONN ROD,STANDARD IND	8-97447-586-0	04	1	1510-	●
73	METAL SET; CONN ROD,STANDARD IMA	8-97388-735-0	04	1	1405-		●
83	PIN; PISTON	8-94454-479-0	04	1	1510-1510	●
83	PIN; PISTON IND	8-97448-282-0	04	1	1510-	●
83	PIN; PISTON IMA	8-98150-333-0	04	1	1405-		●
84	ROD ASM; CONN IND	8-97445-055-0	04	1	1510-	●
84	ROD ASM; CONN IMA	8-97357-716-3	04	1	1405-		●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IND	8-97447-946-0	04	1	1510-	●
85	BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. IMA	8-97383-066-0	04	1	1405-		●
86	BOLT; CONNROD M11X59 IND	8-97447-903-0	08	1	1510-	●
86	BOLT; CONNROD M11X44.5 IMA	8-98048-538-0	08	1	1405-		●
88	NUT; CONNROD IND	8-97447-894-0	08	1	1510-	●
126	RING; SNAP,PISTON PIN ID=33.9	8-94133-969-0	08	1	1510-1510	●
126	RING; SNAP,PISTON PIN IND	8-97448-283-0	08	1	1510-	●
126	RING; SNAP,PISTON PIN OD=37.5 IMA	8-94460-687-0	08	1	1405-		●
216	DOWEL IMA	8-97378-354-0	01	1	1510-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
