0-14 — CAMSHAFT AND VALVE (#138007) — 123 parça

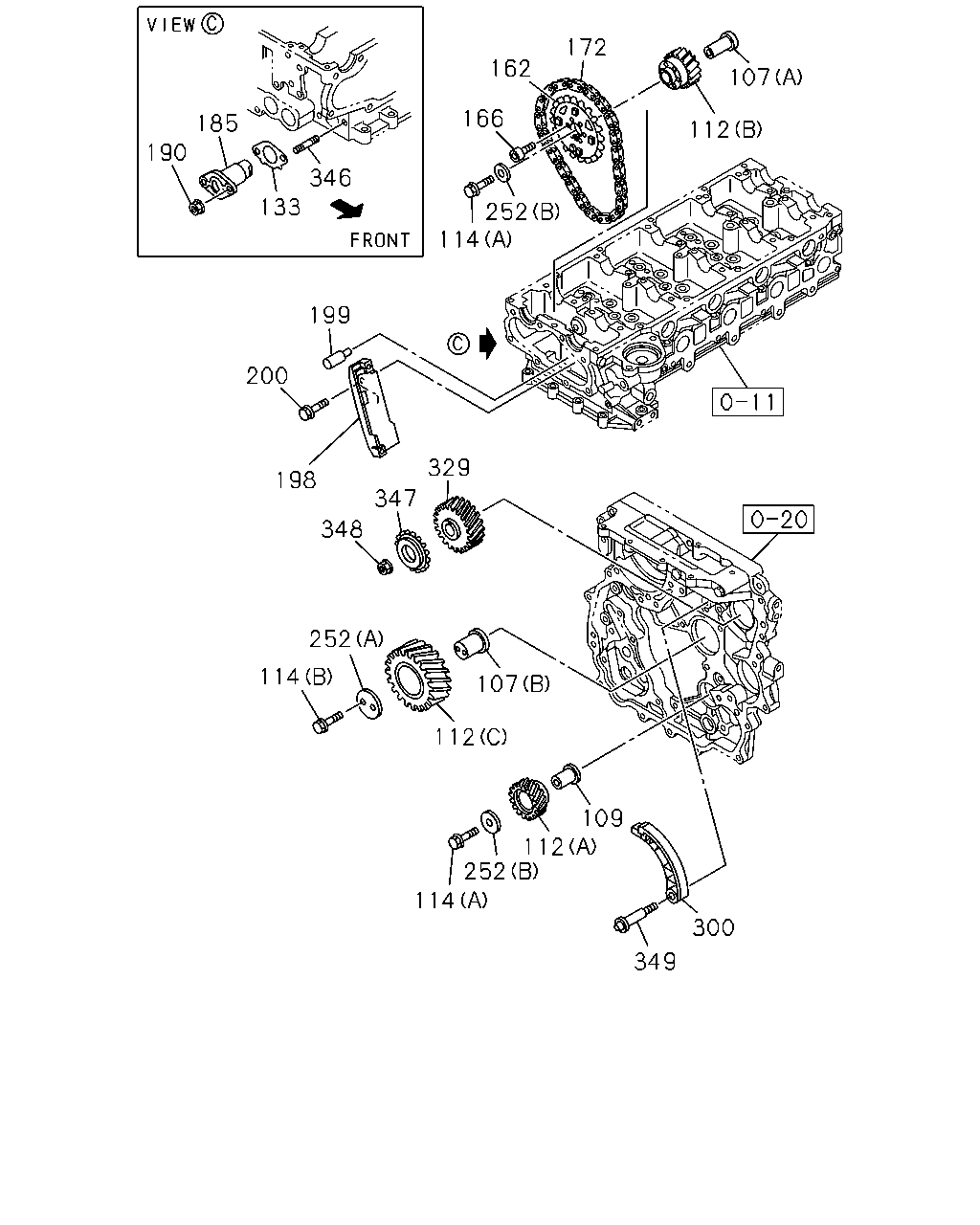

185 190 133 346 114 252 166 162 172 107 112 199 200 198 348 347 329 252 114 112 107 114 252 112 109 300 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	SHAFT; IDLE GEAR (C) IND	8-97447-995-0	01	1	1510-	●
107	SHAFT; IDLE GEAR (B) IMA	8-97312-315-2	01	1	1405-		●
107	SHAFT; IDLE GEAR (A)	8-97312-322-1	01	1	1405-		●
109	SHAFT; IDLE GEAR IND	8-97447-996-0	01	1	1510-	●
109	SHAFT; IDLE GEAR IMA	8-97312-319-1	01	1	1405-		●
112	GEAR; IDLE (D) Z=43 IND	8-97446-448-0	01	1	1510-	●
112	GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	1405-		●
112	GEAR; IDLE (A) Z=34 IMA	8-98021-052-1	01	1	1405-		●
112	GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	1405-		●
114	BOLT; IDLE GEAR (B) M10X60 FLANGE IMA	0-28061-060-0	02	1	1405-		●
114	BOLT; IDLE GEAR (A) M12X60 FLANGE IMA	0-28161-260-0	02	1	1405-		●
133	GASKET; CHAIN TENSIONER IMA	8-97312-336-0	01	1	1405-		●
162	SPROCKET; IDLE IMA	8-97312-331-1	01	1	1405-		●
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET IMA	0-58330-616-0	06	1	1405-		●
172	CHAIN; TIMING,CM/SHF IMA	8-98119-279-1	01	1	1405-		●
185	TENSIONER; CHAIN	8-97945-068-1	01	1	1405-		●
190	NUT; CHAIN TENSIONER M6 FLANGE IMA	0-91180-206-0	02	1	1405-		●
198	GUIDE; TIMING CHAIN IMA	8-98173-188-0	01	1	1405-		●
199	JET; OIL,TIMING CHAIN IMA	8-97356-061-1	01	1	1405-		●
200	BOLT; CHAIN GUIDE,LWR M8X20 IMA	1-09070-120-1	02	1	1405-		●
252	FLANGE; IDLE SHAFT (A) IMA	8-97312-316-1	01	1	1405-		●
252	FLANGE; IDLE SHAFT (B) IMA	8-97312-323-1	02	1	1405-		●
300	LEVER; TENSION,TIMING CHAIN IMA	8-98119-278-1	01	1	1405-		●
329	GEAR; INJ PUMP Z=44 IMA	8-97312-298-3	01	1	1405-		●
346	STUD; CHAIN M6X18 L=27 IMA	0-41010-618-0	02	1	1405-		●
347	SPROCKET; I/PUMP	8-97312-330-1	01	1	1405-		●
348	NUT; SPROCKET M14 FLANGE IMA	8-97312-423-2	01	1	1405-		●
349	PIVOT; CHAIN LEVER IMA	8-97312-328-0	01	1	1405-		●

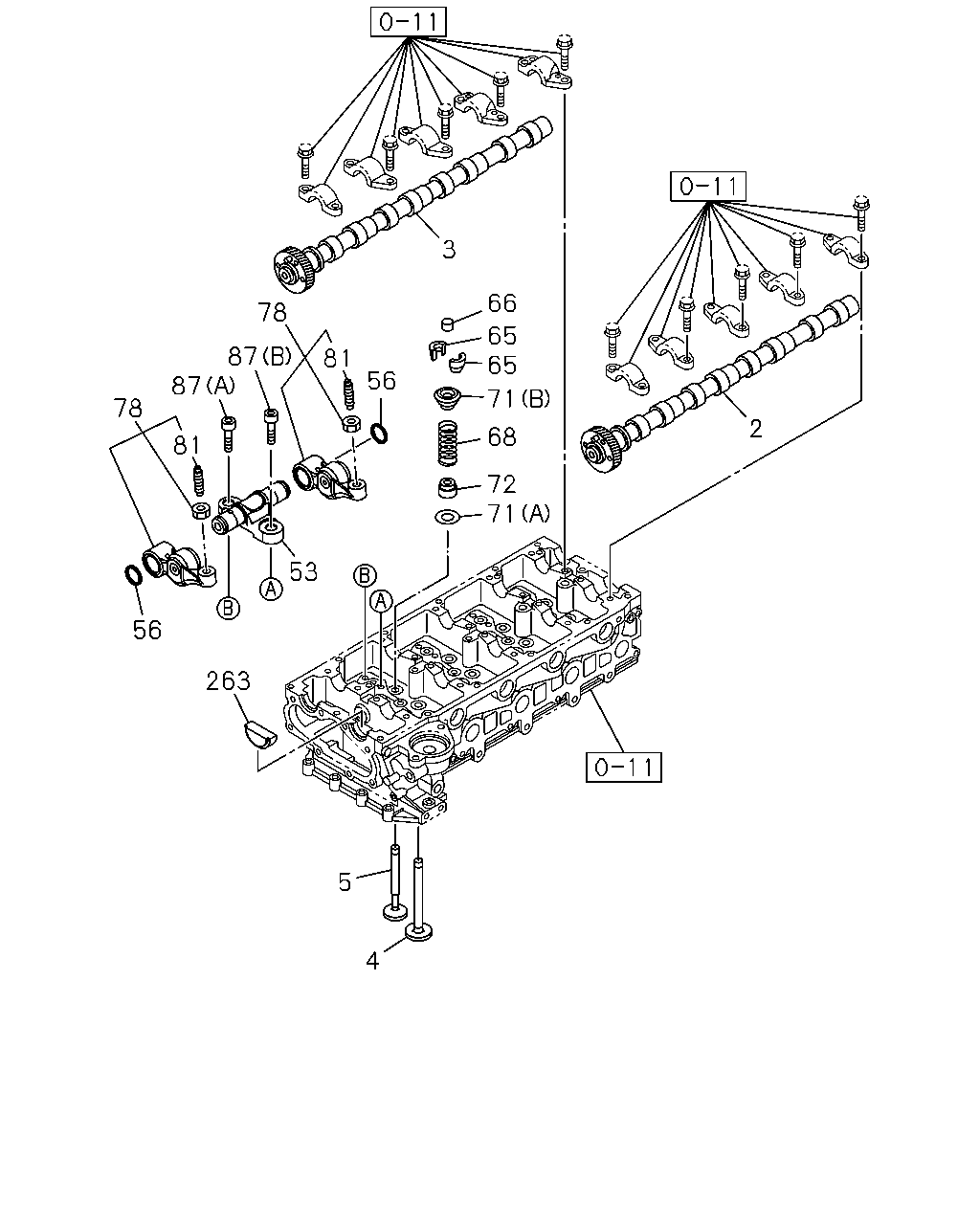

4 5 71 72 68 71 65 65 66 56 2 81 53 263 56 81 78 87 87 78 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CAMSHAFT; INL	8-97328-642-8	01	1	1405-		●
3	CAMSHAFT; EXH	8-97328-644-8	01	1	1405-		●
4	VALVE; INL IMA	8-97131-729-2	04	1	1510-	●
4	VALVE; INL IMA	8-97309-675-1	08	1	1405-		●
5	VALVE; EXH IMA	8-97043-861-2	04	1	1510-	●
5	VALVE; EXH IMA	8-97309-677-1	08	1	1405-		●
53	SHAFT; ROCKER ARM IND	8-97447-926-0	01	1	1510-	●
53	SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	1405-		●
53	SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	1405-		●
56	RING; SNAP,ROCKER ARM IND	8-97447-989-0	02	1	1510-	●
56	RING; SNAP,ROCKER ARM	8-98109-470-0	16	1	1405-		●
65	COLLAR; SPLIT IND	8-97448-020-0	16	1	1510-	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	1405-		●
66	CAP; VLV STEM END IMA	8-98147-945-0	16	1	1405-		●
68	SPRING; VLV H=48 NATURAL IND	8-97448-002-0	08	1	1510-	●
68	SPRING; VLV H=49 NATURAL IMA	8-97311-669-0	16	1	1405-		●
71	SEAT; SPR (C) OD=34 IND	8-97447-905-0	08	1	1510-	●
71	SEAT; SPR (D) OD=32.8 IND	8-97448-027-0	08	1	1510-	●
71	SEAT; SPR (A) OD=31 IMA	8-97144-584-0	16	1	1405-		●
71	SEAT; SPR (B) OD=29.5 IMA	8-97311-668-0	16	1	1405-		●
72	SEAL; VLV GUIDE IMA	8-97120-307-0	08	1	1510-	●
72	SEAL; VLV GUIDE IMA	8-97328-647-0	16	1	1405-		●
78	ARM; ROCKER IND	8-97447-913-0	08	1	1510-	●
78	ARM; ROCKER	8-98029-537-6	16	1	1405-		●
81	SCREW; ADJ,ROCKER ARM M8 L=30 IND	8-97447-912-0	08	1	1510-	●
81	SCREW; ADJ,ROCKER ARM M8 L=22 IMA	8-98029-893-0	16	1	1405-		●
87	BOLT; ROCKER SHAFT (C) M10X60 IND	8-97447-937-0	01	1	1510-	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1405-		●
87	BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1405-		●
263	GASKET; CAM END	8-97947-079-0	04	1	1405-		●

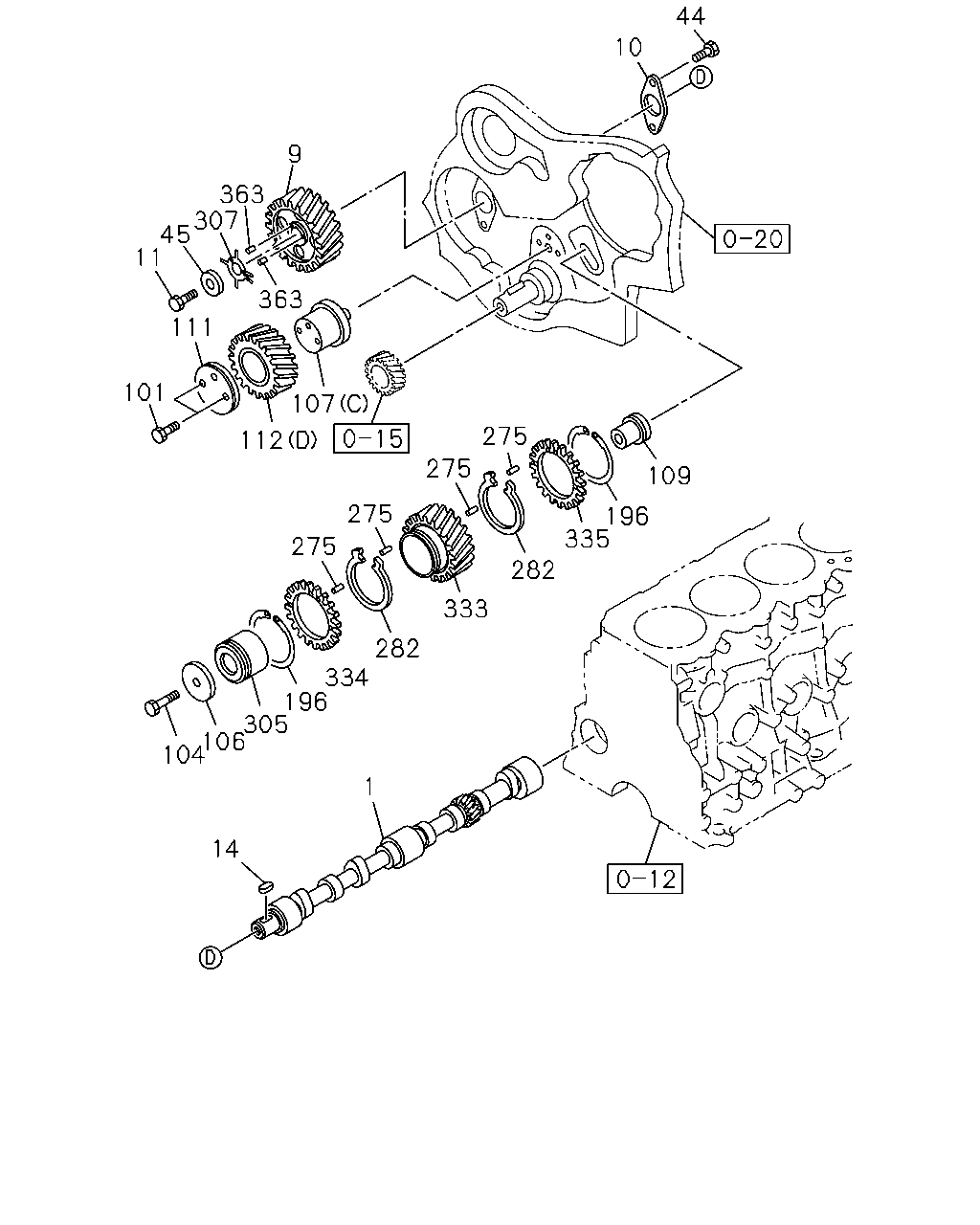

14 1 104 106 305 196 334 282 333 282 335 196 109 275 275 275 275 112 107 101 111 363 11 45 307 363 9 10 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT IND	8-97446-447-0	01	1	1510-	●
9	GEAR; CM/SHF IND	8-97445-067-0	01	1	1510-	●
10	PLATE; THRUST IND	8-97447-907-0	01	1	1510-	●
11	BOLT; THRUST PLATE TO C/BL IND	8-97447-941-0	01	1	1510-	●
14	KEY; CM/SHF IND	8-97448-013-0	01	1	1510-	●
44	BOLT M8X16 FLANGE IND	8-97446-850-0	02	1	1510-	●
45	WASHER; GEAR CAM IND	8-97447-904-0	01	1	1510-	●
101	BOLT; THRUST COLLAR IND	8-97448-035-0	02	1	1510-	●
104	BOLT; SHAFT IDLE IND	8-97446-882-0	01	1	1510-	●
106	WASHER; IDLE GEAR SHAFT IND	8-97447-904-0	01	1	1510-	●
107	SHAFT; IDLE GEAR (C) IND	8-97447-995-0	01	1	1510-	●
107	SHAFT; IDLE GEAR (B) IMA	8-97312-315-2	01	1	1405-		●
107	SHAFT; IDLE GEAR (A)	8-97312-322-1	01	1	1405-		●
109	SHAFT; IDLE GEAR IND	8-97447-996-0	01	1	1510-	●
109	SHAFT; IDLE GEAR IMA	8-97312-319-1	01	1	1405-		●
111	COLLAR; THRUST,IDLE GEAR IND	8-97448-021-0	01	1	1510-	●
112	GEAR; IDLE (D) Z=43 IND	8-97446-448-0	01	1	1510-	●
112	GEAR; IDLE (C) Z=80	8-98021-050-2	01	1	1405-		●
112	GEAR; IDLE (A) Z=34 IMA	8-98021-052-1	01	1	1405-		●
112	GEAR; IDLE (B) Z=35	8-98021-053-3	01	1	1405-		●
196	RING; SNAP IND	8-97447-998-0	02	1	1510-	●
275	PIN; IDLE GEAR IND	8-97447-978-0	04	1	1510-	●
282	SPRING; GEAR IND	8-97448-001-0	02	1	1510-	●
305	BEARING; IDLE GEAR IMA	8-97240-019-1	01	1	1510-	●
307	ROTOR; CAM ANGLE SENSOR IMA	8-98178-259-1	01	1	1510-	●
333	GEAR; IDLE,MAIN IND	8-97448-348-0	01	1	1510-	●
334	GEAR; IDLE,FRT IND	8-97448-349-0	01	1	1510-	●
335	GEAR; IDLE,RR IND	8-97448-350-0	01	1	1510-	●
363	PIN IMA	9-08150-306-0	02	1	1510-	●

89 88 5 4 71 72 68 71 65 55 56 78 84 78 54 54 53 78 78 78 78 56 55 87 84 86 78 78 95 86 81 83 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	VALVE; INL IMA	8-97131-729-2	04	1	1510-	●
4	VALVE; INL IMA	8-97309-675-1	08	1	1405-		●
5	VALVE; EXH IMA	8-97043-861-2	04	1	1510-	●
5	VALVE; EXH IMA	8-97309-677-1	08	1	1405-		●
53	SHAFT; ROCKER ARM IND	8-97447-926-0	01	1	1510-	●
53	SHAFT; ROCKER ARM INLET	8-97364-809-2	04	1	1405-		●
53	SHAFT; ROCKER ARM EXHAUST	8-97364-811-2	04	1	1405-		●
54	WASHER; ROCKER SPR IND	8-97447-925-0	06	1	1510-	●
55	PLUG; ROCKER SHAFT END IND	8-97447-986-0	02	1	1510-	●
56	RING; SNAP,ROCKER ARM IND	8-97447-989-0	02	1	1510-	●
56	RING; SNAP,ROCKER ARM	8-98109-470-0	16	1	1405-		●
65	COLLAR; SPLIT IND	8-97448-020-0	16	1	1510-	●
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	1405-		●
68	SPRING; VLV H=48 NATURAL IND	8-97448-002-0	08	1	1510-	●
68	SPRING; VLV H=49 NATURAL IMA	8-97311-669-0	16	1	1405-		●
71	SEAT; SPR (C) OD=34 IND	8-97447-905-0	08	1	1510-	●
71	SEAT; SPR (D) OD=32.8 IND	8-97448-027-0	08	1	1510-	●
71	SEAT; SPR (A) OD=31 IMA	8-97144-584-0	16	1	1405-		●
71	SEAT; SPR (B) OD=29.5 IMA	8-97311-668-0	16	1	1405-		●
72	SEAL; VLV GUIDE IMA	8-97120-307-0	08	1	1510-	●
72	SEAL; VLV GUIDE IMA	8-97328-647-0	16	1	1405-		●
78	ARM; ROCKER IND	8-97447-913-0	08	1	1510-	●
78	ARM; ROCKER	8-98029-537-6	16	1	1405-		●
81	SCREW; ADJ,ROCKER ARM M8 L=30 IND	8-97447-912-0	08	1	1510-	●
81	SCREW; ADJ,ROCKER ARM M8 L=22 IMA	8-98029-893-0	16	1	1405-		●
83	NUT; ADJ SCREW,LK IND	8-97447-889-0	08	1	1510-	●
84	BRACKET; ROCKER SHAFT,INTER IND	8-97447-914-0	04	1	1510-	●
85	BOLT; BRKT (A) IND	8-97447-943-0	02	1	1510-	●
85	BOLT; BRKT (B) IND	8-97447-944-0	01	1	1510-	●
86	WASHER; ROCKER ARM FIX IND	8-97448-011-0	04	1	1510-	●
87	BOLT; ROCKER SHAFT (C) M10X60 IND	8-97447-937-0	01	1	1510-	●
87	BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	1405-		●
87	BOLT; ROCKER SHAFT (A) M8X40 HEX SOCKET	0-58330-840-0	08	1	1405-		●
88	ROD; PUSH IND	8-97446-438-0	08	1	1510-	●
89	TAPPET; VLV IND	8-97448-004-0	08	1	1510-	●
95	SPRING; ROCKER SHAFT IND	8-97447-923-0	03	1	1510-	●
