◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#138005) — 109 parça

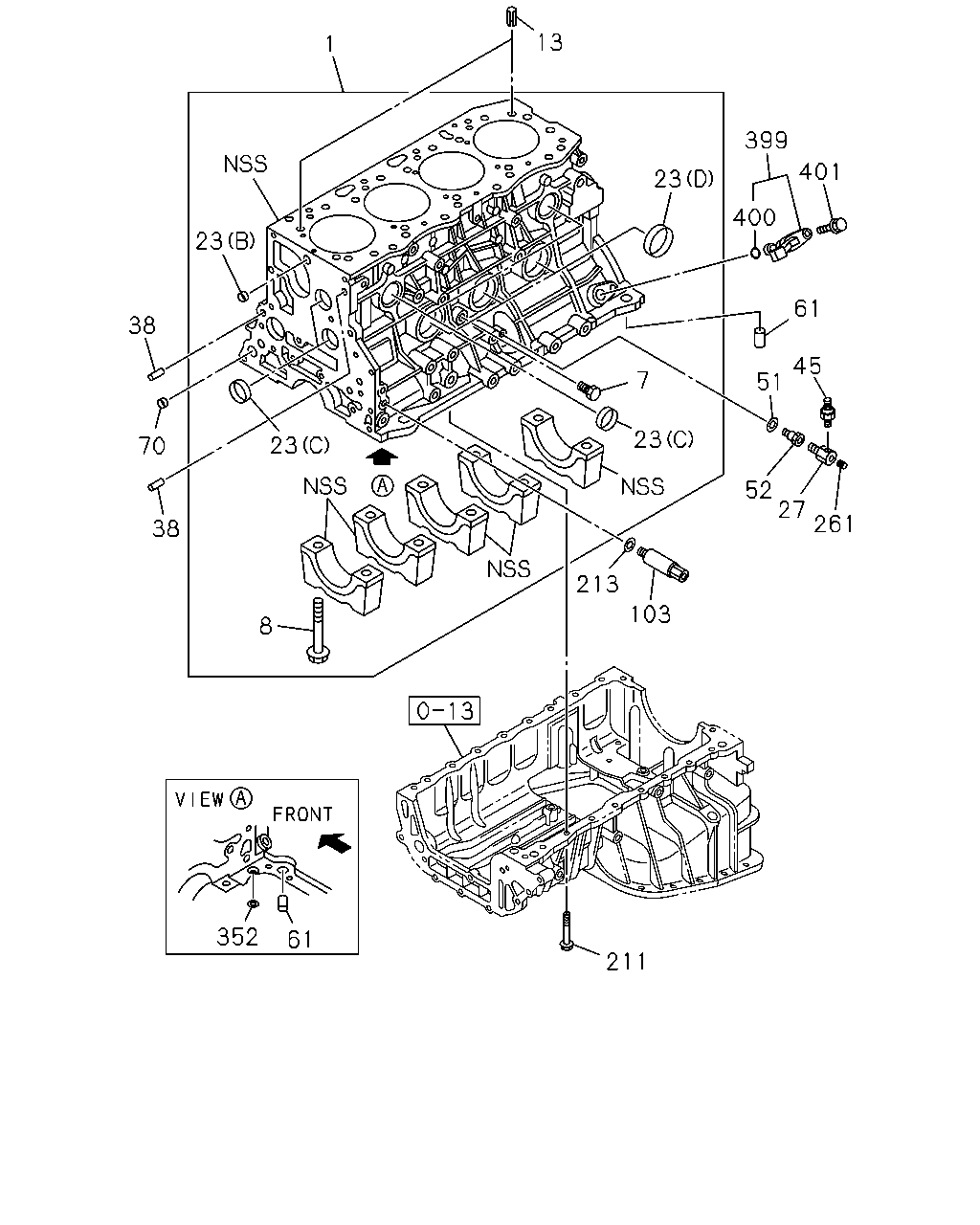

çizim 417007
103 211 61 352 8 38 70 38 23 213 23 7 1 13 399 400 61 401 45 51 52 27 261 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL
IND 		8-97448-117-0 01 1 1510- ●
1 BLOCK ASM; CYL 8-97386-618-5 01 1 1405-1405 ●
1 BLOCK ASM; CYL 8-98239-517-2 01 1 1406- ●
7 PLUG; WATER DRAIN
PT1/4 IND 		8-97447-985-0 01 1 1510- ●
7 PLUG; WATER DRAIN
PT1/4 IND 		9-09664-001-0 01 1 1405- ●
8 BOLT; BRG CAP
M14X89 FLANGE IND 		8-97447-884-0 10 1 1510- ●
8 BOLT; BRG CAP
M14X89 FLANGE IND 		8-94432-642-0 10 1 1405- ●
13 DOWEL; C/BL TO HD
OD=14 IND 		8-97447-952-0 02 1 1510- ●
13 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IND 		8-97447-898-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 IND 		8-97447-900-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IND 		8-97447-951-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IND 		8-97036-550-1 03 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IND 		5-11219-008-0 02 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-98258-386-0 03 1 1406- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1405- ●
27 NIPPLE; OIL GALLERY 8-98005-299-1 01 1 1405- ●
38 PIN; TIMING GEAR CASE
OD=10 L=20 IMA 		9-08151-020-0 02 1 1405- ●
45 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1405- ●
51 GASKET; OIL PRESS WARNING SW,C/BL 8-97912-498-0 01 1 1405- ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL
IND 		8-97445-035-1 01 1 1510- ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-98084-434-0 01 1 1405- ●
61 PIN; STRAIGHT
OD=10 L=20 IND 		8-97446-796-0 01 1 1510- ●
61 PIN; STRAIGHT
L=31 		8-97920-964-1 02 1 1405- ●
70 CUP; SEALING,FRT & RR
OD=16 IND 		8-97447-897-0 02 1 1510- ●
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 06 1 1405- ●
103 NIPPLE; OIL FEED 8-97316-983-4 01 1 1405- ●
211 BOLT; CRANKCASE
M8X30 FLANGE IMA 		0-28050-830-0 05 1 1405- ●
211 BOLT; CRANKCASE
M8X25 FLANGE IMA 		0-28650-825-0 14 1 1405- ●
211 BOLT; CRANKCASE
M8X40 FLANGE IMA 		0-28650-840-0 01 1 1405- ●
213 GASKET; NIPPLE,OIL FEED
ID=10.2 OD=16.0 IMA 		9-09571-410-0 01 1 1405- ●
261 PLUG; OIL PRESS UNIT
PT1/8 		1-09605-050-0 01 1 1405- ●
352 GASKET; C/BL TO CRANKCASE 9-09566-116-0 01 1 1405- ●
399 SENSOR; CRANKSHAFT POSITION
IMA 		8-97312-108-1 01 1 1405- ●
400 GASKET; CRANKSHAFT POSITION SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1405- ●
401 BOLT; SENSOR
M6X16 FLANGE IMA 		0-28050-616-0 01 1 1405- ●

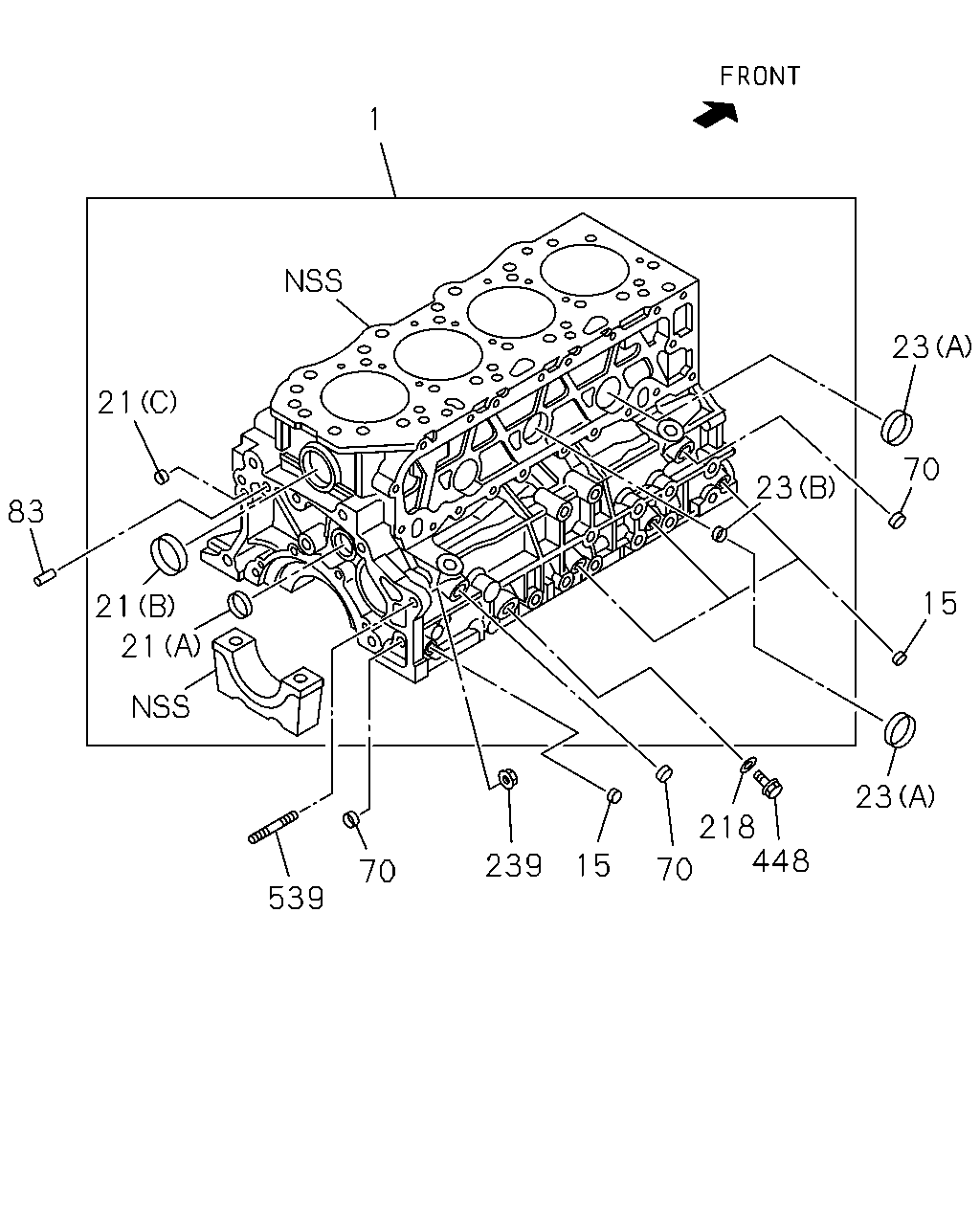

çizim 417008
23 448 218 70 15 239 70 539 21 21 83 21 1 23 23 15 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL
IND 		8-97448-117-0 01 1 1510- ●
1 BLOCK ASM; CYL 8-97386-618-5 01 1 1405-1405 ●
1 BLOCK ASM; CYL 8-98239-517-2 01 1 1406- ●
15 PLUG; OIL GALLERY
PT1/8 IND 		8-97447-890-0 03 1 1510- ●
15 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 1405- ●
21 CUP; SEALING,RR
(A) OD=38 IND 		8-97447-899-0 01 1 1510- ●
21 CUP; SEALING,RR
(B) OD=36 IND 		8-97447-900-0 01 1 1510- ●
21 CUP; SEALING,RR
(C) OD=12.3 		5-09600-013-0 01 1 1405- ●
21 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1405- ●
21 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IND 		8-97447-898-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 IND 		8-97447-900-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IND 		8-97447-951-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IND 		8-97036-550-1 03 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IND 		5-11219-008-0 02 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-98258-386-0 03 1 1406- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1405- ●
70 CUP; SEALING,FRT & RR
OD=16 IND 		8-97447-897-0 02 1 1510- ●
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 06 1 1405- ●
83 PIN; FLYWHEEL HSG
OD=10 L=32 		9-08161-032-0 01 1 1405- ●
218 GASKET; PLUG,C/BL SIDE
ID=14.2 OD=20.0 IMA 		9-09571-414-0 01 1 1405- ●
239 NUT; STUD,C/BL
M10 FLANGE IMA 		0-91180-110-0 01 1 1405- ●
448 PLUG; C/BL 8-97379-656-1 01 1 1405- ●
539 STUD; REAMER
M10X40 L=75.5 		8-97371-842-1 01 1 1405- ●

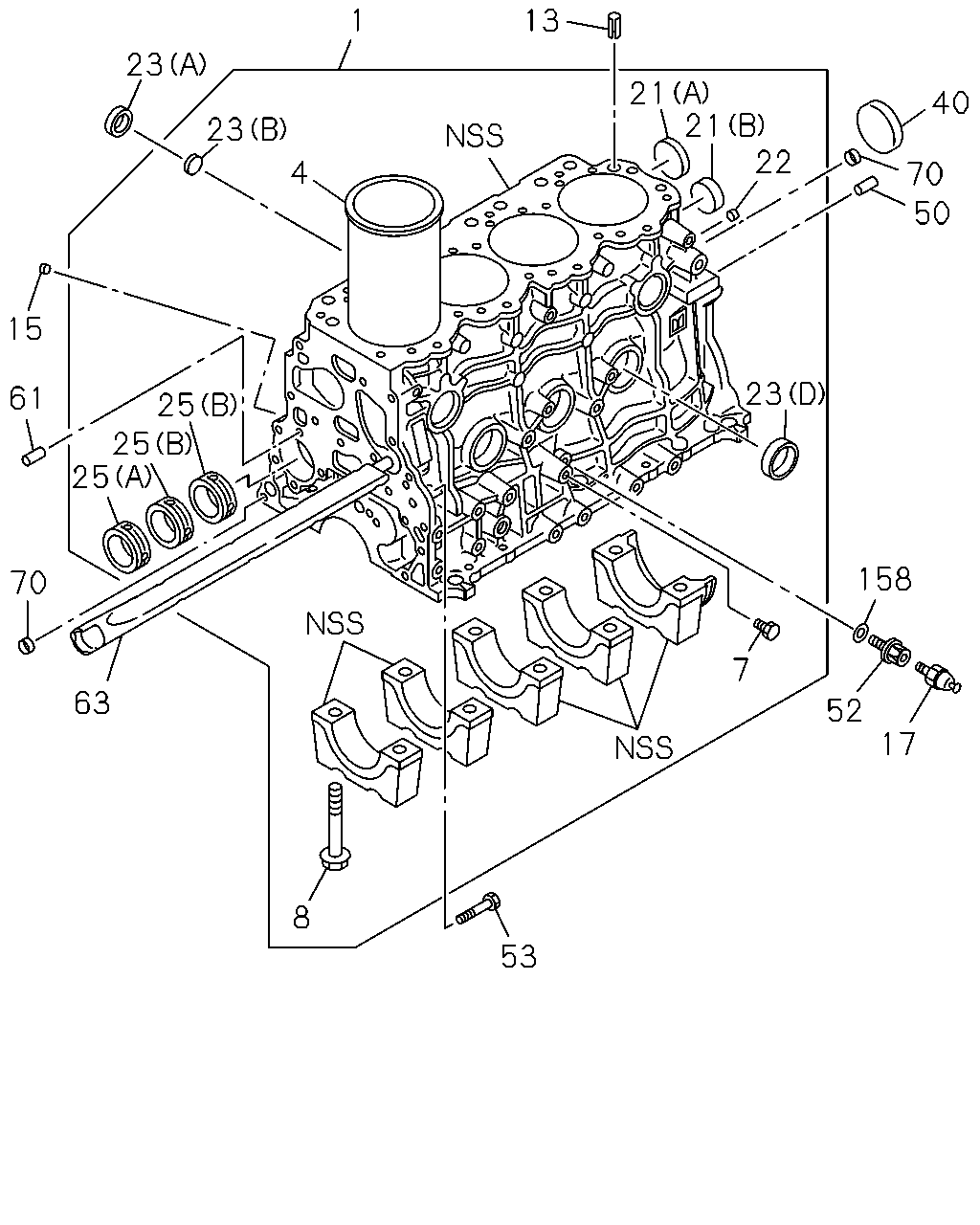

çizim 498020
17 52 158 7 53 8 63 70 61 15 23 23 1 4 13 21 22 70 40 21 50 25 25 25 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL
IND 		8-97448-117-0 01 1 1510- ●
1 BLOCK ASM; CYL 8-97386-618-5 01 1 1405-1405 ●
1 BLOCK ASM; CYL 8-98239-517-2 01 1 1406- ●
4 LINER; C/BL
OD GRADE=1,ID GRADE=AX IND 		8-97448-513-0 04 1 1510- ●
4 LINER; C/BL
OD GRADE=1,ID GRADE=CX IND 		8-97448-514-0 04 1 1510- ●
4 LINER; C/BL
OD GRADE=2,ID GRADE=AX IND 		8-97448-515-0 04 1 1510- ●
4 LINER; C/BL
OD GRADE=2,ID GRADE=CX IND 		8-97448-516-0 04 1 1510- ●
4 LINER; C/BL
OD GRADE=3,ID GRADE=AX IND 		8-97448-517-0 04 1 1510- ●
4 LINER; C/BL
OD GRADE=3,ID GRADE=CX IND 		8-97448-518-0 04 1 1510- ●
4 LINER; C/BL
OD GRADE=4,ID GRADE=AX IND 		8-97448-519-0 04 1 1510- ●
4 LINER; C/BL
OD GRADE=4,ID GRADE=CX IND 		8-97448-520-0 04 1 1510- ●
7 PLUG; WATER DRAIN
PT1/4 IND 		8-97447-985-0 01 1 1510- ●
7 PLUG; WATER DRAIN
PT1/4 IND 		9-09664-001-0 01 1 1405- ●
8 BOLT; BRG CAP
M14X89 FLANGE IND 		8-97447-884-0 10 1 1510- ●
8 BOLT; BRG CAP
M14X89 FLANGE IND 		8-94432-642-0 10 1 1405- ●
13 DOWEL; C/BL TO HD
OD=14 IND 		8-97447-952-0 02 1 1510- ●
13 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1405- ●
15 PLUG; OIL GALLERY
PT1/8 IND 		8-97447-890-0 03 1 1510- ●
15 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 04 1 1405- ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1510- ●
21 CUP; SEALING,RR
(A) OD=38 IND 		8-97447-899-0 01 1 1510- ●
21 CUP; SEALING,RR
(B) OD=36 IND 		8-97447-900-0 01 1 1510- ●
21 CUP; SEALING,RR
(C) OD=12.3 		5-09600-013-0 01 1 1405- ●
21 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1405- ●
21 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1405- ●
22 CUP; SEALING,DUCT HOLE
IND 		8-97447-895-0 01 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IND 		8-97447-898-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 IND 		8-97447-900-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IND 		8-97447-951-0 03 1 1510- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IND 		8-97036-550-1 03 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IND 		5-11219-008-0 02 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1405- ●
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 		8-98258-386-0 03 1 1406- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 		5-11219-018-0 02 1 1405- ●
25 METAL; CM/SHF
(B) IND 		8-97448-500-0 02 1 1510- ●
25 METAL; CM/SHF
(A) IND 		8-97448-494-0 01 1 1510- ●
40 CUP; SEALING,C/BL RR
IND 		8-97446-518-0 01 1 1510- ●
50 PIN; STRAIGHT,RR PLATE
IND 		8-97447-982-0 01 1 1510- ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL
IND 		8-97445-035-1 01 1 1510- ●
52 NIPPLE; OIL PRESS WARNING SW,C/BL 8-98084-434-0 01 1 1405- ●
53 BOLT; REAMER
IND 		8-97448-015-0 01 1 1510- ●
61 PIN; STRAIGHT
OD=10 L=20 IND 		8-97446-796-0 01 1 1510- ●
61 PIN; STRAIGHT
L=31 		8-97920-964-1 02 1 1405- ●
63 DUCT; WATER,C/BL
IND 		8-97446-423-0 01 1 1510- ●
70 CUP; SEALING,FRT & RR
OD=16 IND 		8-97447-897-0 02 1 1510- ●
70 CUP; SEALING,FRT & RR
OD=16 		5-11129-006-0 06 1 1405- ●
158 GASKET; OIL PRESS UNIT
ID=8.2 IMA 		8-97251-046-0 01 1 1510- ●
