0-11 — CYLINDER HEAD (#138004) — 70 parça

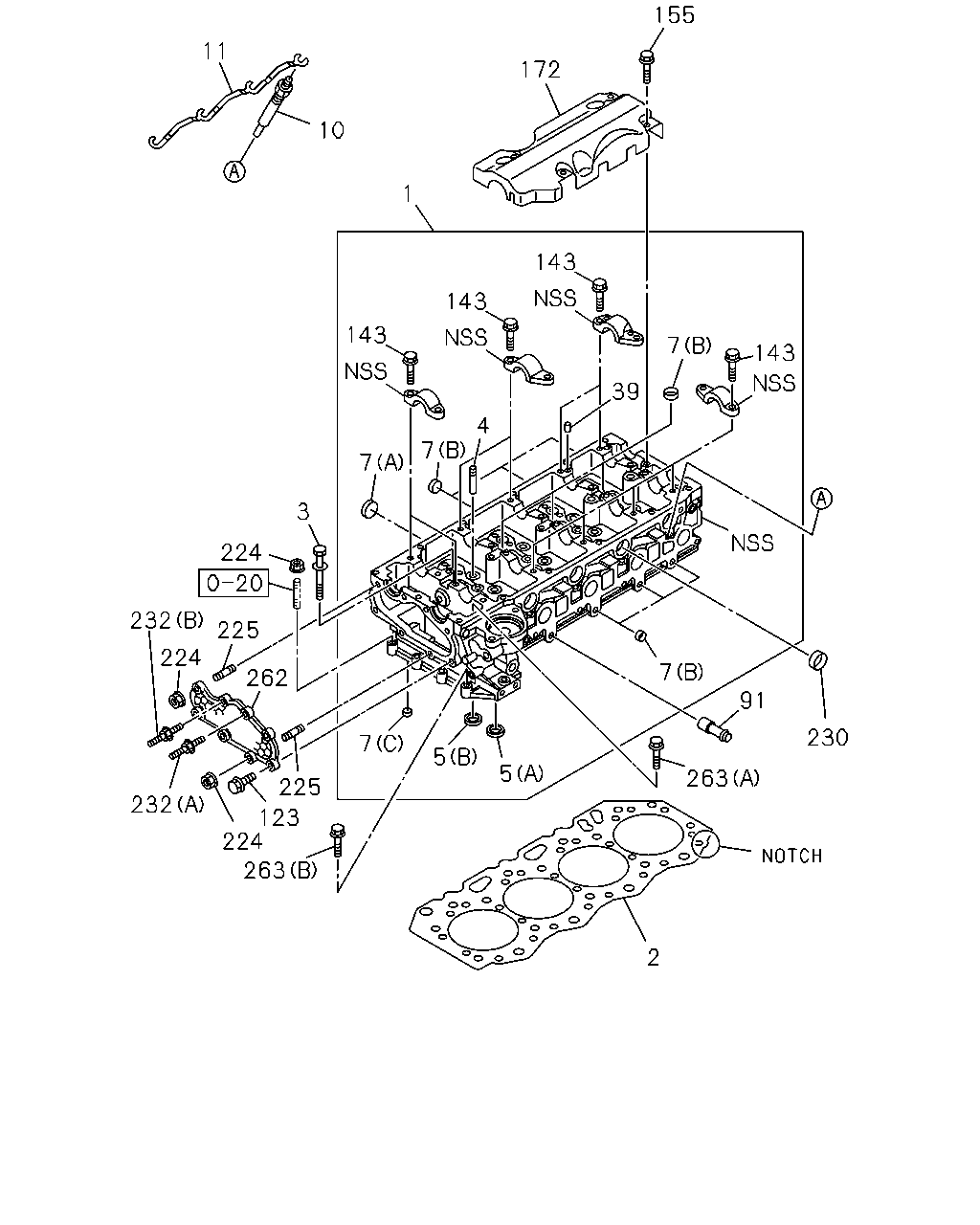

çizim 417006
2 263 230 91 7 5 5 7 225 123 224 263 232 262 224 232 225 224 3 143 7 39 143 143 143 4 7 7 1 172 155 10 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL
IMA 		8-98277-060-0 01 1 1510- ●
1 HEAD ASM; CYL 8-98223-019-2 01 1 1405- ●
2 GASKET; CYL HD
T=1.60 1-NOTCH IMA 		8-97350-318-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.65 2-NOTCH IMA 		8-97350-319-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.70 3-NOTCH IMA 		8-97350-320-0 01 1 1510- ●
2 GASKET; CYL HD
OVER SIZE 		8-97388-314-0 01 1 1405- ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH 		8-98241-037-0 01 1 1405- ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH 		8-98241-038-0 01 1 1405- ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH 		8-98241-039-0 01 1 1405- ●
3 BOLT; CYL HD TO BLOCK
M11X122 IND 		8-97448-016-0 18 1 1510- ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER 		8-98201-019-0 18 1 1405- ●
4 GUIDE; VLV
L=50 IMA 		5-11721-016-0 08 1 1510- ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1405- ●
5 SEAT; VLV INSERT
(C) EXHAUST OD=36.7 IMA 		8-97231-229-0 04 1 1510- ●
5 SEAT; VLV INSERT
(D) INLET OD=42.7 IMA 		8-97378-030-0 04 1 1510- ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1405- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1405- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 IMA 		1-09600-005-2 01 1 1510- ●
7 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 1510- ●
7 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 1510- ●
7 CUP; SEALING,CYL HEAD
(G) OD=22 IMA 		8-97209-609-0 06 1 1510- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-2 02 1 1405- ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IND 		5-11219-008-0 13 1 1405- ●
7 CUP; SEALING,CYL HEAD
(C) OD=14 		5-11219-011-0 07 1 1405- ●
10 PLUG; GLOW
BOSCH IND 		8-97445-418-0 04 1 1510- ●
10 PLUG; GLOW
BOSCH 		8-98200-051-0 04 1 1405- ●
11 CONNECTOR; GLOW PLUG
IMA 		8-97146-517-0 01 1 1510- ●
11 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1405- ●
39 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 1405- ●
91 PIPE; HTR
IMA 		8-94343-211-1 01 1 1405- ●
123 BOLT; COVER
M8X20 FLANGE IMA 		0-28050-820-0 04 1 1405- ●
143 BOLT; FIX
M8X40 FLANGE IMA 		0-28650-840-0 20 1 1405- ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 1405- ●
172 PLATE; BAFFLE,CYL HD 8-98049-103-0 01 1 1405- ●
224 NUT; COVER
M8 FLANGE IMA 		0-91180-208-0 04 1 1405- ●
225 STUD; COVER
M8X20 L=31 		8-97945-022-0 02 1 1405- ●
230 GASKET; SLEEVE,INJECTOR 8-97943-955-0 04 1 1405- ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 1405- ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97945-023-0 01 1 1405- ●
262 COVER; CYL HEAD 8-97355-516-4 01 1 1405- ●
263 BOLT; CYL HD
(A) M8X60 FLANGE IMA 		0-28050-860-0 01 1 1405- ●
263 BOLT; CYL HD
(B) M8X35 FLANGE IMA 		0-28650-835-0 03 1 1405- ●

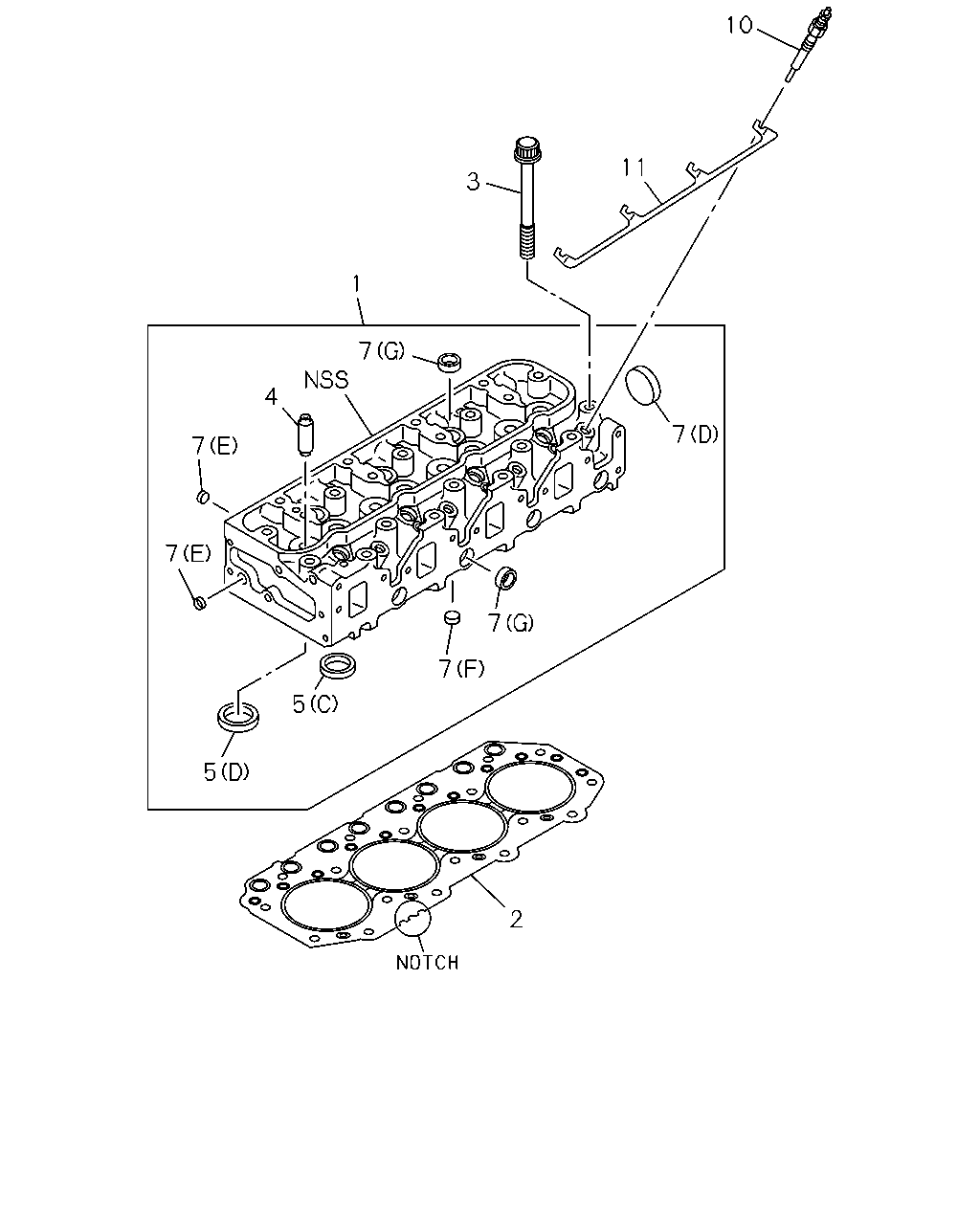

çizim 498019
2 7 7 7 4 7 5 5 1 7 3 7 11 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL
IMA 		8-98277-060-0 01 1 1510- ●
1 HEAD ASM; CYL 8-98223-019-2 01 1 1405- ●
2 GASKET; CYL HD
T=1.60 1-NOTCH IMA 		8-97350-318-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.65 2-NOTCH IMA 		8-97350-319-0 01 1 1510- ●
2 GASKET; CYL HD
T=1.70 3-NOTCH IMA 		8-97350-320-0 01 1 1510- ●
2 GASKET; CYL HD
OVER SIZE 		8-97388-314-0 01 1 1405- ●
2 GASKET; CYL HD
STD T=1.05 1-NOTCH 		8-98241-037-0 01 1 1405- ●
2 GASKET; CYL HD
STD T=1.10 2-NOTCH 		8-98241-038-0 01 1 1405- ●
2 GASKET; CYL HD
STD T=1.15 3-NOTCH 		8-98241-039-0 01 1 1405- ●
3 BOLT; CYL HD TO BLOCK
M11X122 IND 		8-97448-016-0 18 1 1510- ●
3 BOLT; CYL HD TO BLOCK
M11X114 W/WASHER 		8-98201-019-0 18 1 1405- ●
4 GUIDE; VLV
L=50 IMA 		5-11721-016-0 08 1 1510- ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 1405- ●
5 SEAT; VLV INSERT
(C) EXHAUST OD=36.7 IMA 		8-97231-229-0 04 1 1510- ●
5 SEAT; VLV INSERT
(D) INLET OD=42.7 IMA 		8-97378-030-0 04 1 1510- ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 1405- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 1405- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 IMA 		1-09600-005-2 01 1 1510- ●
7 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 1510- ●
7 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 1510- ●
7 CUP; SEALING,CYL HEAD
(G) OD=22 IMA 		8-97209-609-0 06 1 1510- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		1-09600-012-2 02 1 1405- ●
7 CUP; SEALING,CYL HEAD
(B) OD=18 IND 		5-11219-008-0 13 1 1405- ●
7 CUP; SEALING,CYL HEAD
(C) OD=14 		5-11219-011-0 07 1 1405- ●
10 PLUG; GLOW
BOSCH IND 		8-97445-418-0 04 1 1510- ●
10 PLUG; GLOW
BOSCH 		8-98200-051-0 04 1 1405- ●
11 CONNECTOR; GLOW PLUG
IMA 		8-97146-517-0 01 1 1510- ●
11 CONNECTOR; GLOW PLUG 8-98209-370-0 01 1 1405- ●
