0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#138) — 71 parça

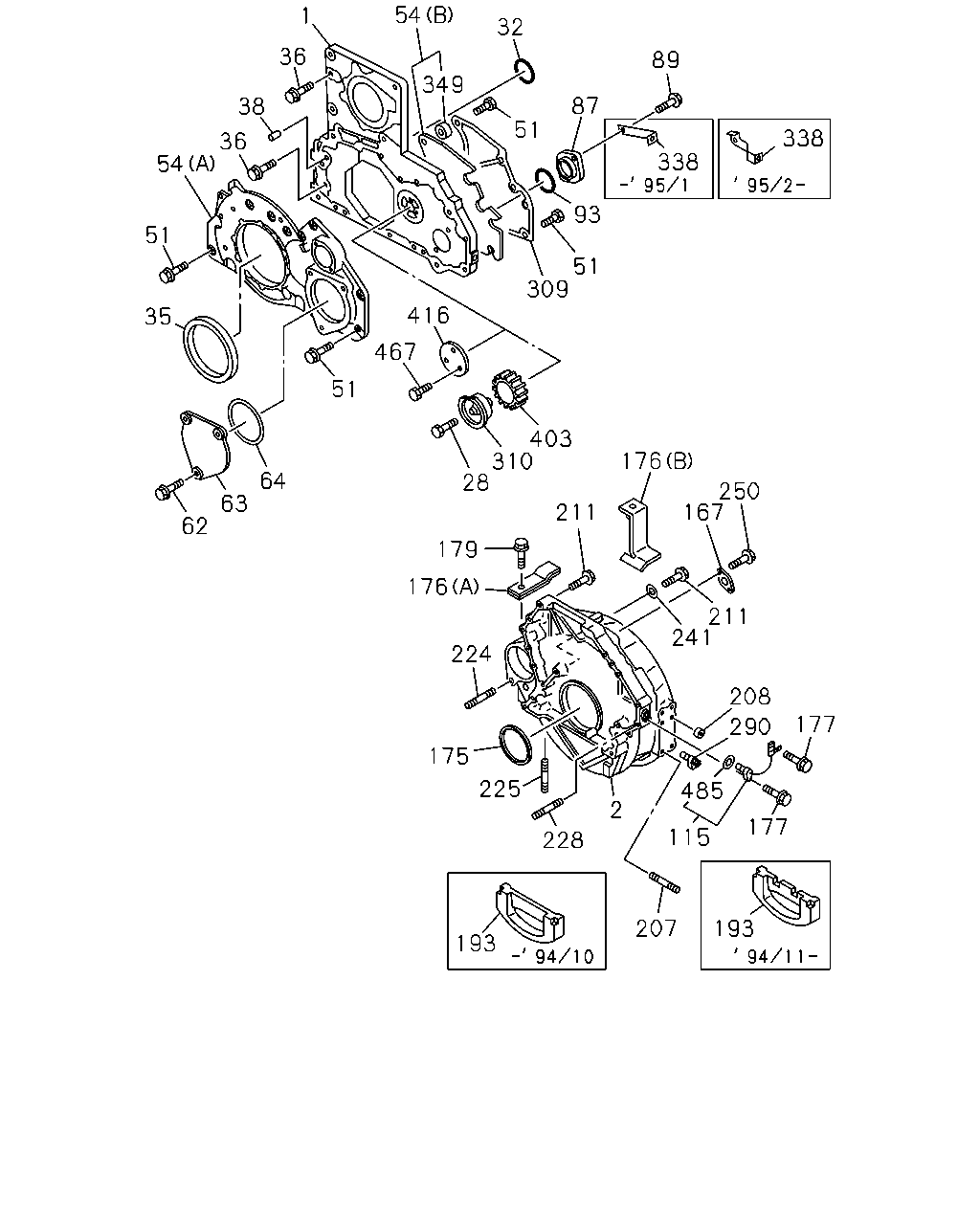

çizim 28331
54 1 32 36 89 349 87 38 51 338 36 338 54 93 51 51 309 416 35 467 51 403 310 28 176 64 250 167 63 211 62 179 176 211 241 224 208 177 290 175 225 485 2 177 115 228 207 193 193
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TIMING GEAR 8-94393-110-2 01 1 9212- ● ●
2 HOUSING; FLYWHEEL
MBG5 M/T<X9W>,MBG6 M/T<X9X> 		8-94396-101-9 01 1 9212-9505 ● ●
2 HOUSING; FLYWHEEL
MBG5 M/T<X9W>,MBG6 M/T<X9X> 		8-94390-036-0 01 1 9506- ● ●
2 HOUSING; FLYWHEEL
MLD6 M/T<X9Y> 		8-94396-732-7 01 1 9212- ● ●
28 BOLT; DRIVE GEAR
POWER STEERING(N40) M8X28 		8-94399-256-0 03 1 9212- ● ●
32 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		8-94397-364-0 01 1 9212- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137 		8-94396-199-1 01 1 9212- ● ●
36 BOLT; GEAR CASE
M8X28 FLANGE 		0-28080-828-0 02 1 9212- ● ●
36 BOLT; GEAR CASE
M8X32 FLANGE 		0-28080-832-0 04 1 9212- ● ●
38 PIN; GEAR CASE COVER
L=22 		8-94483-674-0 02 1 9212- ● ●
51 BOLT; GEAR CASE COVER
ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE 		0-28080-820-0 06 1 9212- ●
51 BOLT; GEAR CASE COVER
M8X18 FLANGE 		0-28080-818-0 06 1 9212-9412 ● ●
51 BOLT; GEAR CASE COVER
M8X20 FLANGE 		0-28680-820-0 06 1 9501- ● ●
51 BOLT; GEAR CASE COVER
M8X40 FLANGE 		0-28080-840-0 10 1 9212- ● ●
51 BOLT; GEAR CASE COVER
M8X45 FLANGE 		0-28080-845-0 01 1 9212- ● ●
54 COVER; GEAR CASE
ANTI NOISE EQUIPMENT VAR2<TAK> (B) 		8-94397-449-0 01 1 9212- ●
54 COVER; GEAR CASE
(A) 		8-94396-085-3 01 1 9212- ● ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X25 FLANGE 		0-28181-025-0 01 1 9212- ● ●
62 BOLT; COVER
EXC. POWER STEERING(N40) M10X55 FLANGE 		8-94399-863-1 02 1 9212- ● ●
63 COVER; P/S
EXC. POWER STEERING(N40) 		8-94399-436-0 01 1 9212- ● ●
64 GASKET; COVER,P/S
EXC. POWER STEERING(N40) 		8-94396-678-0 01 1 9212- ● ●
87 COVER; TACHOMETER DRIVE 8-94396-370-0 01 1 9212- ● ●
89 BOLT; ELBOW
M8X18 FLANGE 		0-28080-818-0 02 1 9212- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7 		1-09623-180-0 01 1 9212- ● ●
115 SENSOR; REVOLUTION,ENG SPD
TACHOMETER<UD7> 		1-81510-343-2 01 1 9212- ● ●
167 COVER; OIL
MBG5 M/T<X9W>,MBG6 M/T<X9X> 		1-11219-163-0 01 1 9212- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9212- ● ●
176 BRACKET; HARNESS
(A) 		1-82699-402-3 01 1 9212- ● ●
176 BRACKET; HARNESS
(B) 		1-82699-412-1 01 1 9212- ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28280-616-0 02 1 9212-9305 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 02 1 9306-9506 ● ●
177 BOLT; SENSOR
M6X16 FLANGE 		0-28080-616-0 01 1 9507- ● ●
177 BOLT; SENSOR
TACHOMETER<UD7> M6X16 FLANGE 		0-28080-616-0 02 1 9309- ● ●
179 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 02 1 9212- ● ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT VAR2<TAK> EXC. RLD GOV ADR,VAR14(Q2D) 		8-94396-829-2 01 1 9212-9410 ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT VAR2<TAK> EXC. RLD GOV ADR,VAR14(Q2D) 		8-94395-674-0 01 1 9411- ●
207 STUD; ENG FOOT
MLD6 M/T<X9Y> M12X10 L=55 		9-94321-255-0 08 1 9212- ● ●
208 DOWEL; ENG FOOT
MBG5 M/T<X9W>,MBG6 M/T<X9X> 		8-94396-208-0 04 1 9212- ● ●
208 DOWEL; ENG FOOT
MLD6 M/T<X9Y> 		9-43269-009-1 04 1 9212- ● ●
211 BOLT; HSG
M10X50 FLANGE 		0-28181-050-0 02 1 9212- ● ●
211 BOLT; HSG
M14X70 FLANGE W/PL WASHER 		8-94396-095-0 01 1 9212- ● ●
211 BOLT; HSG
M12X70 		9-01666-270-0 09 1 9212- ● ●
211 BOLT; HSG
MBG5 M/T<X9W>,MBG6 M/T<X9X> M12X65 		9-01666-265-0 03 1 9212- ● ●
211 BOLT; HSG
MBG5 M/T<X9W>,MBG6 M/T<X9X> M12X70 		9-01666-270-0 01 1 9212- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y> M12X153 		1-09020-054-1 01 1 9212- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y> M12X128 		8-94399-252-0 02 1 9212- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y> M12X65 		9-01666-265-0 01 1 9212- ● ●
211 BOLT; HSG
MLD6 M/T<X9Y> M12X130 FLANGE 		0-28196-213-0 01 1 9408- ● ●
224 STUD; STARTER
M14X40 L=61 		9-04411-440-0 02 1 9212-9407 ● ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 02 1 9408- ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 01 1 9212-9501 ● ●
225 STUD; OIL PAN
M8X28 L=38 		8-94396-512-0 04 1 9502- ● ●
228 STUD; AIR CMPR
M12X60 L=78 		9-94411-260-0 01 1 9212- ● ●
241 WASHER; PL,HSG
ID=12.5 OD=22 		8-94393-140-1 13 1 9212-9407 ● ●
241 WASHER; PL,HSG
MLD6 M/T<X9Y> ID=12.5 OD=22 		8-94393-140-1 12 1 9408- ● ●
241 WASHER; PL,HSG
MBG5 M/T<X9W>,MBG6 M/T<X9X> ID=12.5 OD=22 		8-94393-140-1 13 1 9408- ● ●
250 BOLT; COVER,OIL
MBG5 M/T<X9W>,MBG6 M/T<X9X> M8X18 FLANGE 		0-28080-818-0 02 1 9212- ● ●
290 PLUG; SENSOR HOLE
EXC. TACHOMETER<UD7> 		1-11349-157-0 01 1 9212- ● ●
309 FLANGE; GEAR CASE COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94397-448-0 01 1 9212- ●
310 SHAFT; IDLE GEAR
POWER STEERING(N40) 		8-94311-160-4 01 1 9212-9412 ● ●
310 SHAFT; IDLE GEAR
POWER STEERING(N40) 		8-94394-806-0 01 1 9501- ● ●
338 BRACKET; CLIP,HARNESS 8-94396-520-0 01 1 9212-9307 ● ●
338 BRACKET; CLIP,HARNESS 8-94394-412-0 01 1 9308-9501 ● ●
338 BRACKET; CLIP,HARNESS 1-82699-867-0 01 1 9502-9506 ● ●
338 BRACKET; CLIP,HARNESS 1-82699-889-0 01 1 9507- ● ●
349 SPACER; GEAR CASE COVER
ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94397-312-0 02 1 9212- ●
403 GEAR; IDLE,FRONT
POWER STEERING(N40) Z=33 		8-94396-955-2 01 1 9212-9412 ● ●
403 GEAR; IDLE,FRONT
POWER STEERING(N40) Z=33 		8-94395-943-1 01 1 9501- ● ●
416 COVER; IDLE GEAR
EXC. POWER STEERING(N40) 		8-94399-420-0 01 1 9212- ● ●
467 BOLT; PLATE
EXC. POWER STEERING(N40) M8X28 		8-94399-256-0 03 1 9212- ● ●
485 GASKET; SENSOR
TACHOMETER<UD7> 		9-09565-212-0 01 1 9212- ● ●
