Isuzu WW
▶
TRUCKS
▶
FRR
▶
11122 - FRR THAILAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

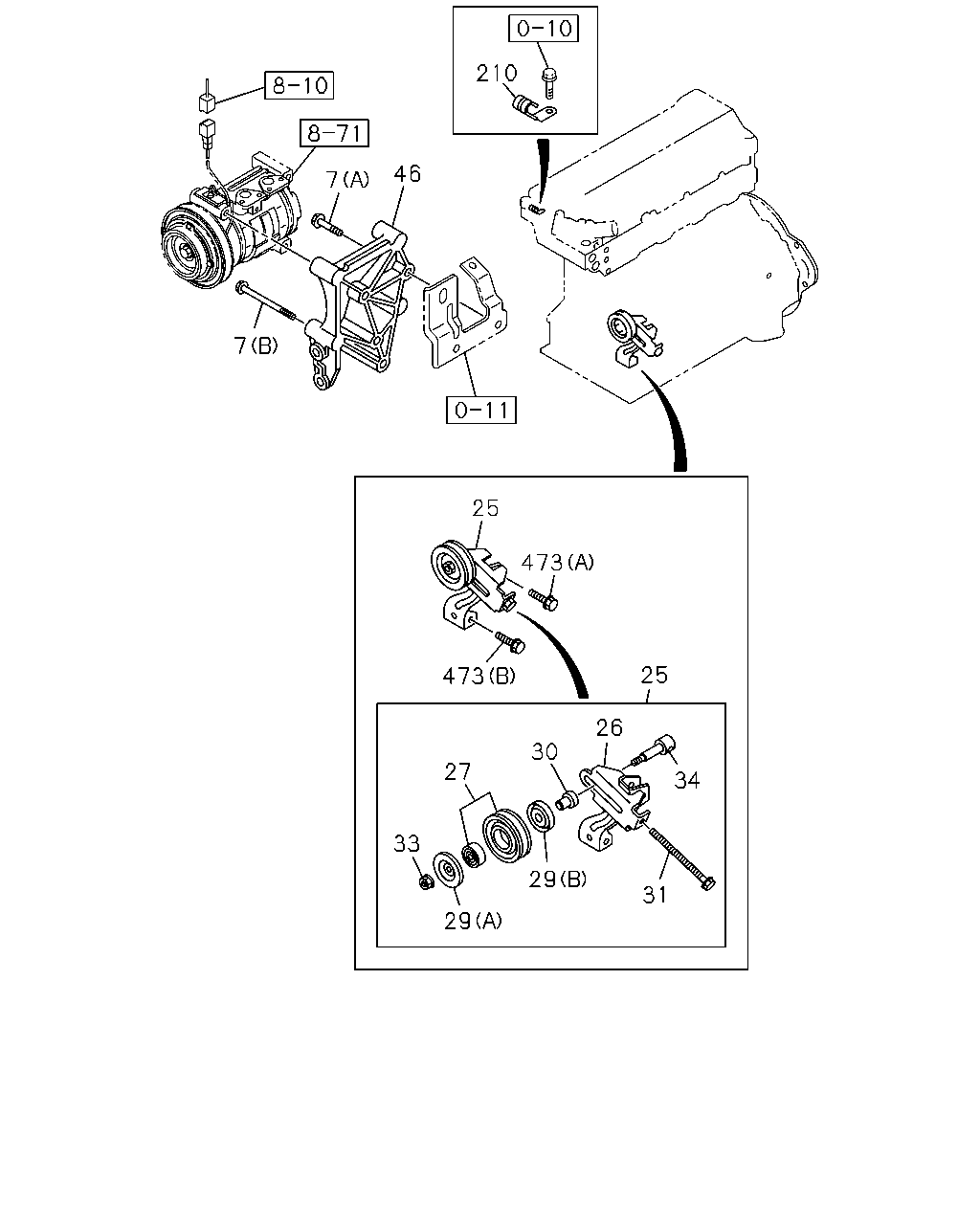

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#13794) — 22 parça
◀

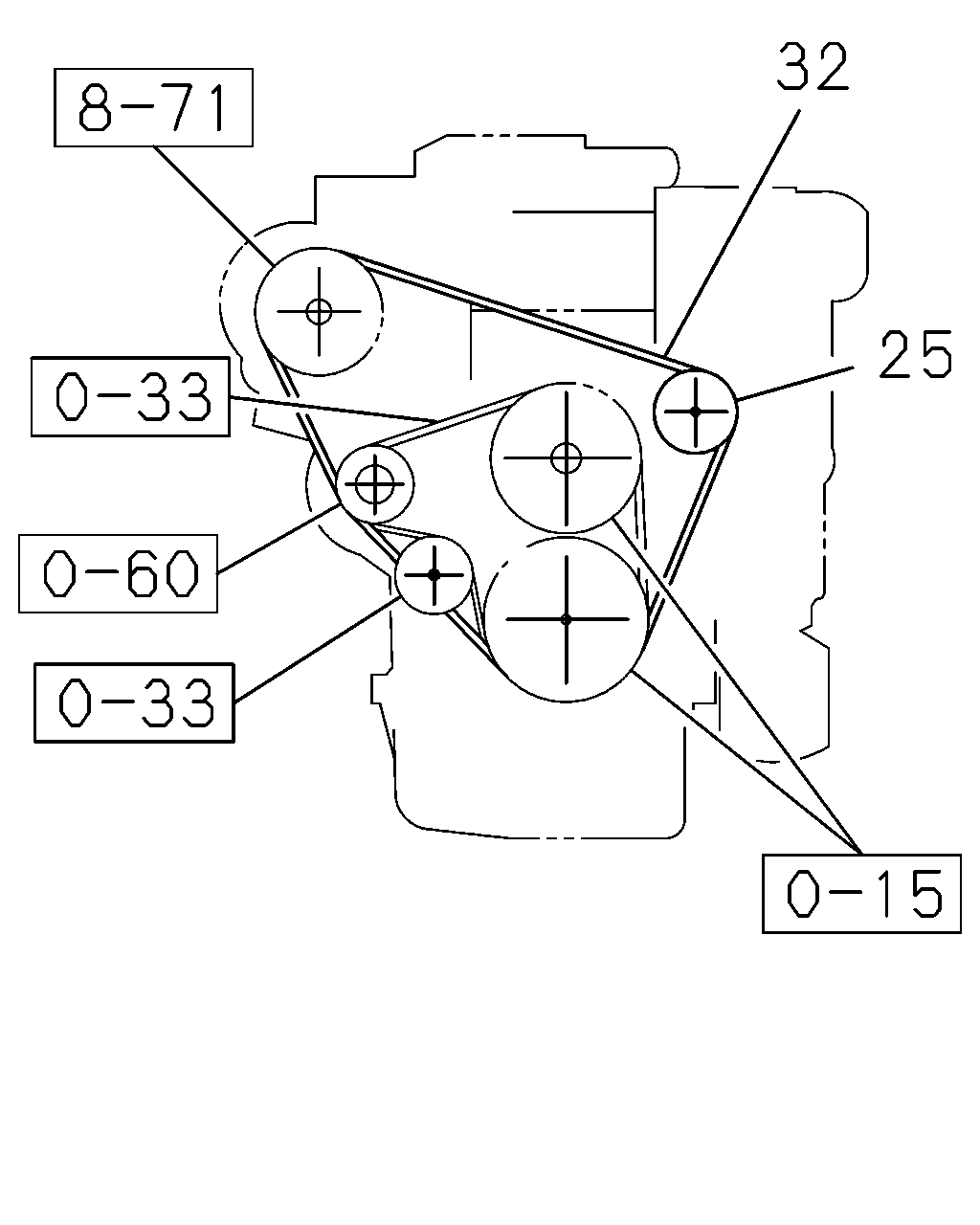

[850A] A/C CMPR BELT (3 parça)
[850A] A/C CMPR FIXING AND IDLE PULLEY (15 parça)
[850A] DRAIN HOSE (4 parça)
▶
32
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 1-GROOVE
8-97161-198-1
01
1
0808-
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> BEST VALUE PARTS
1-87610-100-0
01
1
0808-
32
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=1594
8-97383-577-1
01
1
0808-
210
46
7
7
25
473
25
473
26
30
27
34
33
29
31
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
BOLT; BRKT
(A) M10X45 FLANGE THA
0-28151-045-0
02
1
0808-
7
BOLT; BRKT
(B) M10X80 FLANGE THA
0-28151-080-0
02
1
0808-
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 1-GROOVE
8-97161-198-1
01
1
0808-
26
BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97161-031-1
01
1
0808-
27
PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97386-869-0
01
1
0808-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A)
8-97384-114-0
01
1
0808-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-97384-115-0
01
1
0808-
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97384-117-0
01
1
0808-
31
BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97384-113-0
01
1
0808-
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97384-118-0
01
1
0808-
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>
8-97384-116-0
01
1
0808-
46
BRACKET; CMPR
8-98101-364-0
01
1
0808-
210
CLIP; HARNESS
ID=12 VINYL CHLORIDE
8-97367-984-1
01
1
1103-
473
BOLT; TENSIONER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M8X50 FLANGE THA
0-28050-850-0
01
1
0808-
473
BOLT; TENSIONER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M10X65 FLANGE
8-94344-540-1
01
1
0808-
71
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
71
COVER; EVAP,A/C
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98017-234-1
01
1
1305-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98041-759-0
01
1
0808-1111
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B)
8-98204-846-0
01
1
1112-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
8-98041-428-0
01
1
0808-
