◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#13792) — 40 parça
çizim 142960
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR 8-98080-998-1 01 1 0808-0910
50 VALVE ASM; HTR
THA 		8-97925-112-0 01 1 0911-
206 GROMMET; A/C PIPE TO BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98019-649-0 01 1 0808-
206 GROMMET; A/C PIPE TO BLOWER UNIT
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97037-392-0 01 1 0808-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 0808-
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-758-0 01 1 0808-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 0808-

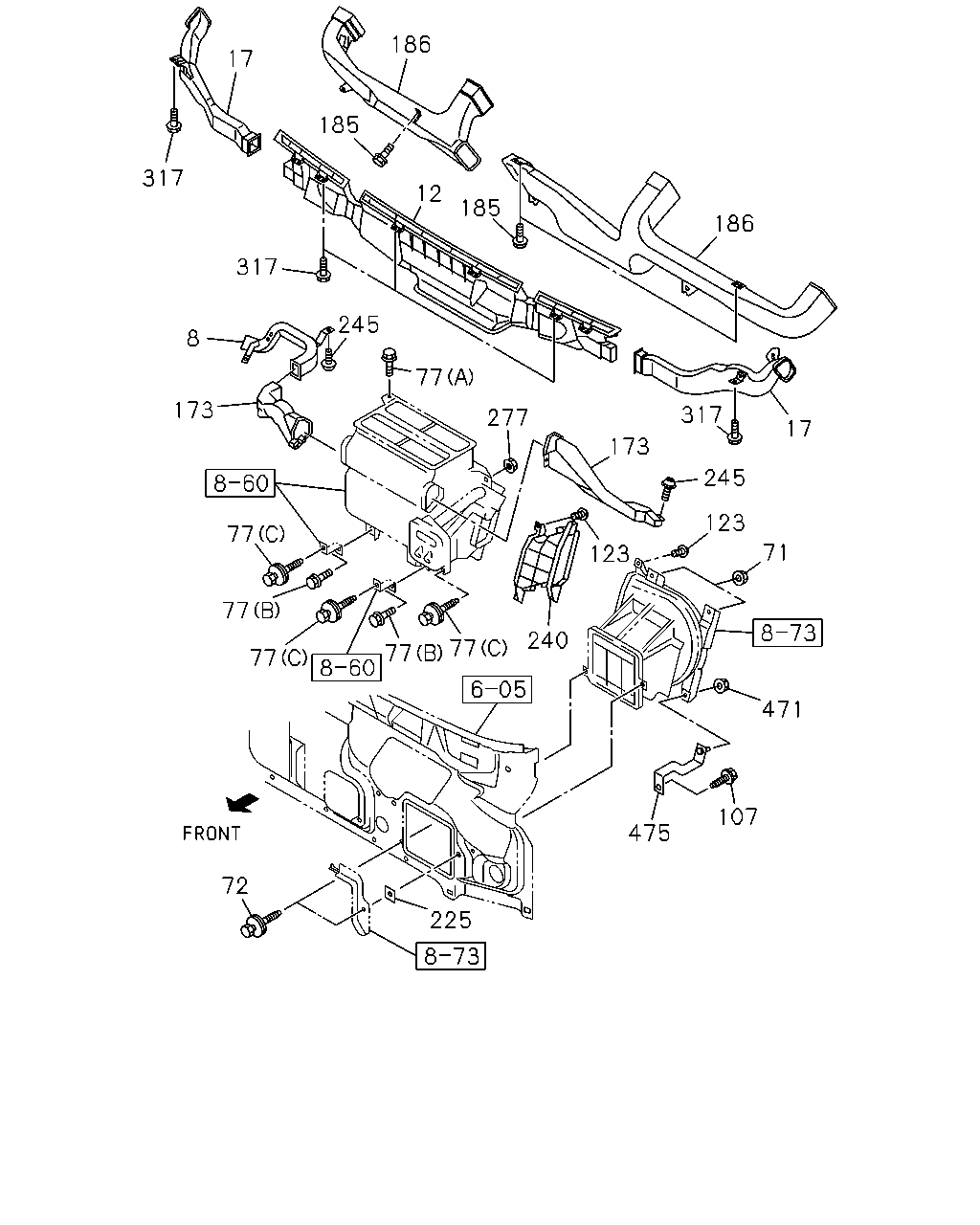

çizim 142990
186 17 185 317 12 185 186 317 245 8 77 173 317 277 17 173 245 123 77 71 123 77 240 77 77 77 471 475 72 225 107
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 8-97585-499-1 01 1 0808-1410
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1411-
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 0808-
17 NOZZLE; DEFROSTER,SIDE 8-98040-011-1 01 1 0808-
17 NOZZLE; DEFROSTER,SIDE 8-98040-016-1 01 1 0808-
71 NUT; BLOWER UNIT TO DASH
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA 		0-91180-106-0 02 1 0808-
72 BOLT; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 0808-
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1302-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 0808-1301
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1302-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) M6X16 FLANGE THA 		0-28650-616-0 01 1 0808-
77 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M6X20 FLANGE THA 		0-28650-620-0 02 1 0808-
107 BOLT; STAY,HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0808-
123 SCREW; DUCT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0808-
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 0808-
173 DUCT; FOOT,HTR 8-98011-459-2 01 1 0808-1410
173 DUCT; FOOT,HTR 8-98290-096-0 01 1 1411-
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 05 1 0808-1008
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-
186 DUCT; VENTILATOR 8-97585-488-4 01 1 0808-1410
186 DUCT; VENTILATOR 8-98285-576-0 01 1 1411-
186 DUCT; VENTILATOR 8-98035-579-2 01 1 0808-1007
186 DUCT; VENTILATOR 8-98174-737-0 01 1 1008-1410
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1411-
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK THA 		1-76798-019-0 01 1 1305-
225 SEAL; WATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97856-616-0 01 1 0808-
240 DUCT; AIR,HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-402-1 01 1 0808-
245 CLIP; FOOT DUCT 8-98056-059-0 03 1 0808-1410
245 CLIP; FOOT DUCT 8-98056-059-0 04 1 1411-
277 NUT; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA 		0-91180-106-0 01 1 0808-
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0808-
471 NUT; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE THA 		0-91180-106-0 01 1 0808-
475 BRACKET; BLOWER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98043-500-1 01 1 0808-
