Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

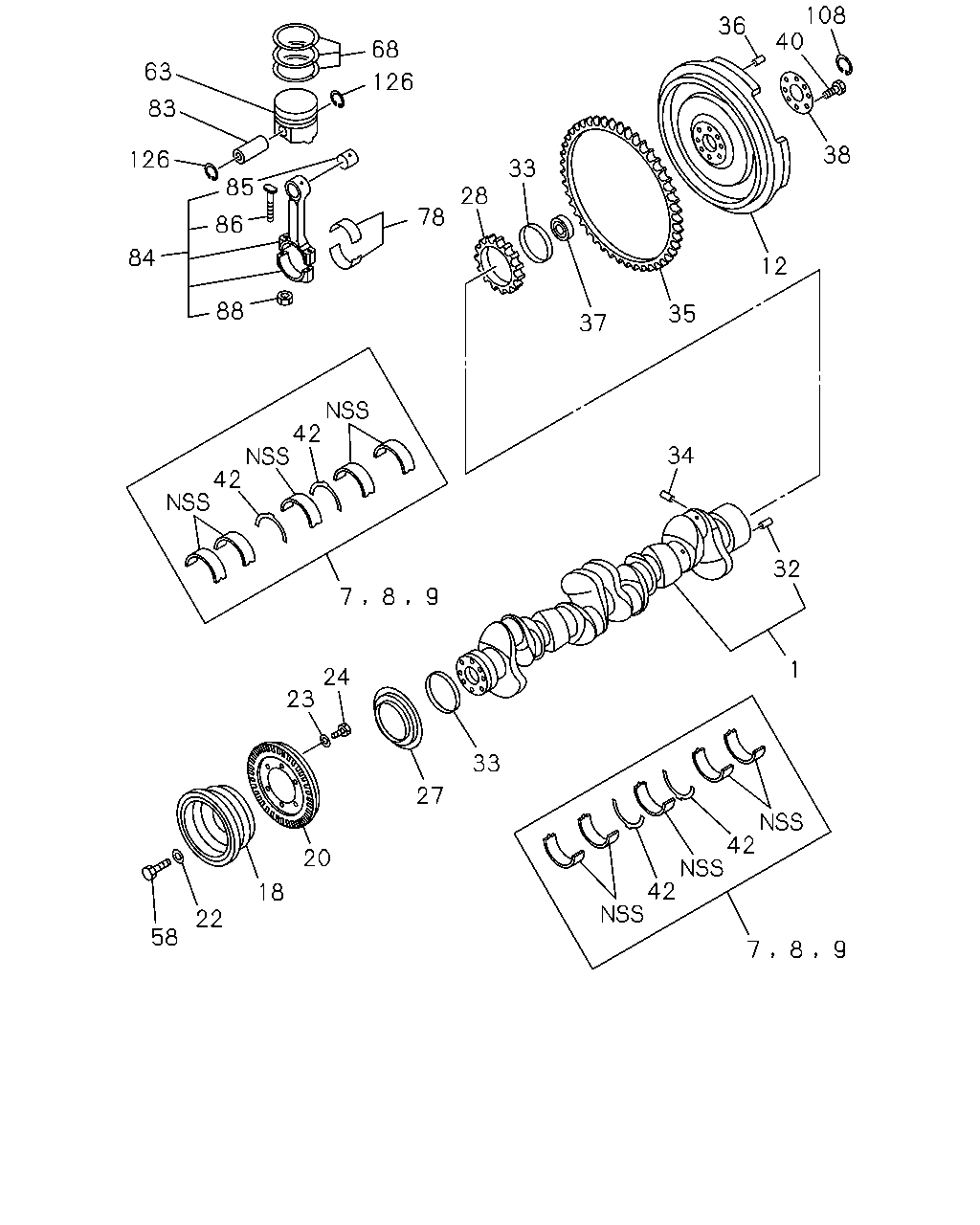

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#1379) — 37 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
108
40
36
68
63
126
83
38
126
33
85
28
78
86
84
12
88
35
37
42
42
34
32
7
8
9
1
24
23
33
27
42
42
20
18
22
58
7
8
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CRANKSHAFT
1-12310-568-0
01
1
9203-
●
1
CRANKSHAFT
1-12310-569-0
01
1
9203-
●
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-087-0
01
1
9203-
●
●
8
METAL KIT; CRANKSHAFT,U/S=0.25
1-11520-087-0
01
1
9203-
●
9
METAL KIT; CRANKSHAFT,U/S=0.50
1-11530-087-0
01
1
9203-
●
12
FLYWHEEL
1-12331-162-4
01
1
9203-
●
●
18
PULLEY; CR/SHF
3-GROOVE
1-12371-405-0
01
1
9203-
●
18
PULLEY; CR/SHF
3-GROOVE
1-12371-270-5
01
1
9203-
●
20
DAMPER; CR/SHF
1-12375-116-0
01
1
9203-
●
20
DAMPER; CR/SHF
1-12375-118-0
01
1
9203-
●
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
9203-
●
●
23
WASHER; DAMPER
ID=10.5
9-09851-950-0
06
1
9203-
●
●
24
BOLT; DAMPER
M10X22
9-02361-022-0
06
1
9203-
●
●
27
THROWER; DUST
1-12362-004-0
01
1
9203-
●
28
GEAR; CR/SHF
Z=46
1-12521-021-1
01
1
9203-
●
●
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
9203-
●
●
33
RING; WEAR,CR/SHF
1-12315-077-0
02
1
9203-
●
●
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
9203-
●
●
35
GEAR; RING
Z=140
1-12333-016-0
01
1
9203-
●
●
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
9203-
●
●
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-214-0
01
1
9203-
●
●
38
WASHER; FLYWHEEL
1-12336-005-0
01
1
9203-
●
●
40
BOLT; FLYWHEEL
1-09000-183-1
08
1
9203-
●
●
42
WASHER; THRUST,CR/SHF
1-11599-007-0
02
1
9203-
●
●
58
BOLT; CR/SHF PULLEY
M16X45
9-92061-645-0
04
1
9203-
●
●
63
PISTON
ALSO INCLUDED IN LINER SET.
1-12111-424-1
06
1
9203-
●
63
PISTON
ALSO INCLUDED IN LINER SET.
1-12111-459-2
06
1
9203-
●
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-113-0
06
1
9203-
●
●
78
METAL; CONNROD
1-12271-050-0
06
1
9203-
●
●
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-008-0
06
1
9203-
●
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-025-0
06
1
9203-
●
84
ROD ASM; CONN
1-12230-096-0
06
1
9203-
●
●
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-016-2
06
1
9203-
●
●
86
BOLT; CONNROD
1-12235-023-2
12
1
9203-
●
●
88
NUT; CONNROD
1-09840-003-1
12
1
9203-
●
●
108
RING; SNAP,BRG SET
OD=59.2
9-09180-155-0
01
1
9203-
●
●
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-050-0
12
1
9203-
●
●
