Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#13787) — 245 parça

150 139 139 377 386 38 38 93 139 38 313 139 38 150 139 313 38 139 139 127 515 219 524 294 525 515 219 524 294 47 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

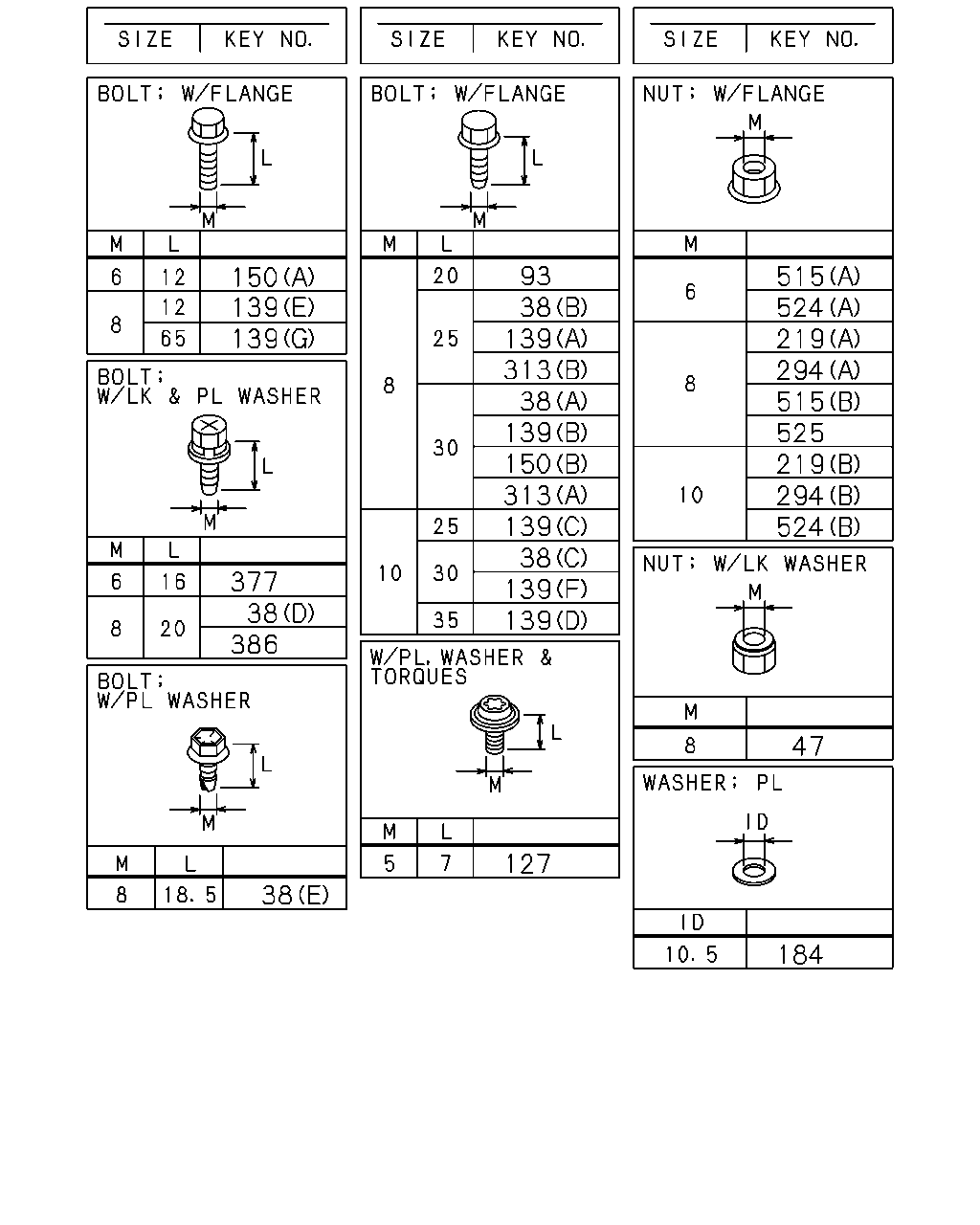

38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0808-1202
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1203-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	02	1	0808-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-1001
38	BOLT; CLIP,HARNESS (C) M10X30 FLANGE THA	0-28651-030-0	01	1	0808-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE THA	0-28650-820-0	02	1	0808-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0808-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (G) M8X65 FLANGE	1-09044-072-1	01	1	1304-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	0808-1102
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	0808-
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	0808-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	02	1	0808-
139	BOLT; BRKT (F) M10X30 FLANGE THA	0-28651-030-0	01	1	0808-
139	BOLT; BRKT (F) M10X30 FLANGE THA	0-28651-030-0	02	1	0808-1102
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1103-
139	BOLT; BRKT (D) M10X35 FLANGE THA	0-28651-035-0	01	1	0808-
150	BOLT; CLIP VIN MODEL YEAR 2010<VZA> (A) M6X12 FLANGE THA	0-28050-612-0	01	1	1004-1102
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-1102
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1103-
150	BOLT; CLIP (A) M6X12 FLANGE THA	0-28050-612-0	02	1	1401-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0808-
219	NUT MLD6S M/T<X7W> (B) M10 FLANGE THA	0-91180-210-0	01	1	0808-1102
219	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	0808-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	0808-1207
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	0808-1207
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1208-1301
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1208-1301
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1208-1301
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1208-1301
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-
294	NUT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1302-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	05	1	0808-1207
294	NUT (A) M8 FLANGE THA	0-91180-108-0	03	1	1208-1301
294	NUT (A) M8 FLANGE THA	0-91180-108-0	04	1	1302-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	01	1	0808-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	0808-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
313	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	01	1	0808-
313	BOLT; BRKT (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0808-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0808-
386	BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0808-
515	NUT; BRKT (A) M6 FLANGE THA	0-91180-106-0	02	1	0808-0809
515	NUT; BRKT (B) M8 FLANGE THA	0-91180-108-0	01	1	0808-
524	NUT; HARNESS (B) M10 FLANGE THA	0-91180-110-0	01	1	0808-
524	NUT; HARNESS (A) M6 FLANGE THA	0-91180-106-0	04	1	0808-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0808-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1311-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1311-

14 22 102 305 14 16 48 206 208 217 225 305 171 225 178 178 305 16 48 102 305 48 530 14 305 14 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

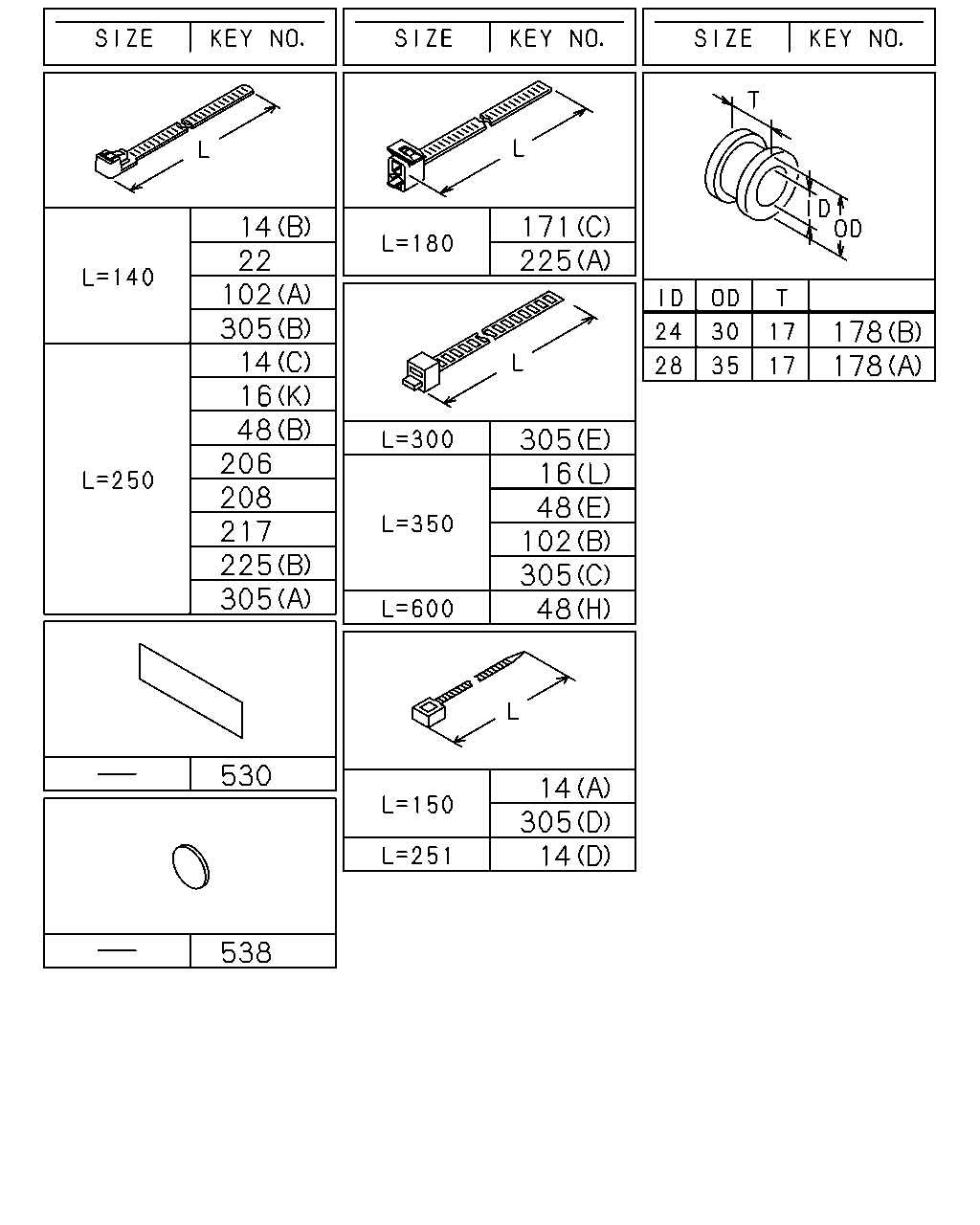

14	CLIP; BAND,HARNESS (C) L=250 THA	5-09707-030-1	02	1	0808-
14	CLIP; BAND,HARNESS (B) L=140 THA	5-09707-031-1	04	1	0808-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	01	1	0808-
14	CLIP; BAND,HARNESS (B) L=140 THA	5-09707-031-1	02	1	0808-0808
14	CLIP; BAND,HARNESS 4HK1-TCS ENG<RJS> AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=140 THA	5-09707-031-1	02	1	0809-1102
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=140 THA	5-09707-031-1	02	1	1103-1107
14	CLIP; BAND,HARNESS (B) L=140 THA	5-09707-031-1	02	1	1108-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0808-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=5-12 L=18 THA	1-09709-287-0	02	1	0809-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=41	1-09700-403-0	02	1	0808-
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	0808-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0808-
16	CLIP; HARNESS (K) L=250	1-09707-126-0	02	1	0808-0812
16	CLIP; HARNESS (L) L=350	1-09707-183-0	02	1	0901-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0808-0911
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	02	1	0808-0911
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0808-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
22	CLIP; ENG HARNESS L=140 THA	5-09707-031-1	02	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W> (A) ID=14 L=44	9-09917-427-0	10	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM<43W> (A) ID=14 L=44	9-09917-427-0	16	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM<49W> (A) ID=14 L=44	9-09917-427-0	19	1	0808-
48	CLIP; FRAME HARNESS (C) ID=5.5X2 L=35	1-09700-974-0	01	1	0808-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	0808-
48	CLIP; FRAME HARNESS (H) L=600	1-09707-107-1	01	1	0808-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0808-
48	CLIP; FRAME HARNESS (G) OD=9 H=9.5 THA	1-09709-179-0	01	1	0808-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	03	1	0808-
48	CLIP; FRAME HARNESS (B) L=250 THA	5-09707-030-1	03	1	0808-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0808-1201
48	CLIP; FRAME HARNESS (A) ID=14 L=44	9-09917-427-0	02	1	1202-
102	CLIP; BAND VIN MODEL YEAR 2010<VZA> (A) L=140 THA	5-09707-031-1	01	1	1004-1102
102	CLIP; BAND (A) L=140 THA	5-09707-031-1	01	1	1103-
102	CLIP; BAND (B) L=350	1-09707-183-0	01	1	0808-0911
171	CLIP; STARTER HARNESS MZW6P M/T<RSZ> (B) OD=8 H=3.8	1-09709-309-0	01	1	1001-1102
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (C) L=180	1-09707-162-1	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (D) OD=9 H=6	1-09709-178-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (E) L=36	8-94224-891-1	01	1	0808-1102
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0808-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0808-
178	GROMMET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0808-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0808-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0808-0808
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0809-
178	GROMMET; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0809-
206	CLIP; FUEL TANK HARNESS L=250 THA	5-09707-030-1	02	1	0808-
208	CLIP; HARNESS,MAG VLV L=250 THA	5-09707-030-1	01	1	0810-
217	CLIP; RR BODY HARNESS L=250 THA	5-09707-030-1	02	1	0808-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0808-
225	CLIP; AIR TANK HARNESS (B) L=250 THA	5-09707-030-1	01	1	0808-
305	CLIP; ENG HARNESS (B) L=140 THA	5-09707-031-1	01	1	0808-0905
305	CLIP; ENG HARNESS (B) L=140 THA	5-09707-031-1	02	1	0906-1409
305	CLIP; ENG HARNESS L=140 THA	5-09707-031-1	01	1	1410-
305	CLIP; ENG HARNESS (C) L=350	8-94152-256-1	01	1	0808-0905
305	CLIP; ENG HARNESS (E) L=300	1-09707-001-1	01	1	0906-
305	CLIP; ENG HARNESS (D) L=150	8-97355-273-0	01	1	0808-0905
305	CLIP; ENG HARNESS 4HK1-TCS ENG<RJS> (A) L=250 THA	5-09707-030-1	01	1	0808-0809
305	CLIP; ENG HARNESS (A) L=250 THA	5-09707-030-1	01	1	0808-0809
305	CLIP; ENG HARNESS (A) L=250 THA	5-09707-030-1	01	1	0810-1004
530	SEAL; HARNESS 180X40	1-72498-019-1	19	1	0808-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	0808-

16 483 48 483 49 483 16 16 48 213 48 116 16 16 483 171 483 48 16 171 171 223 470 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

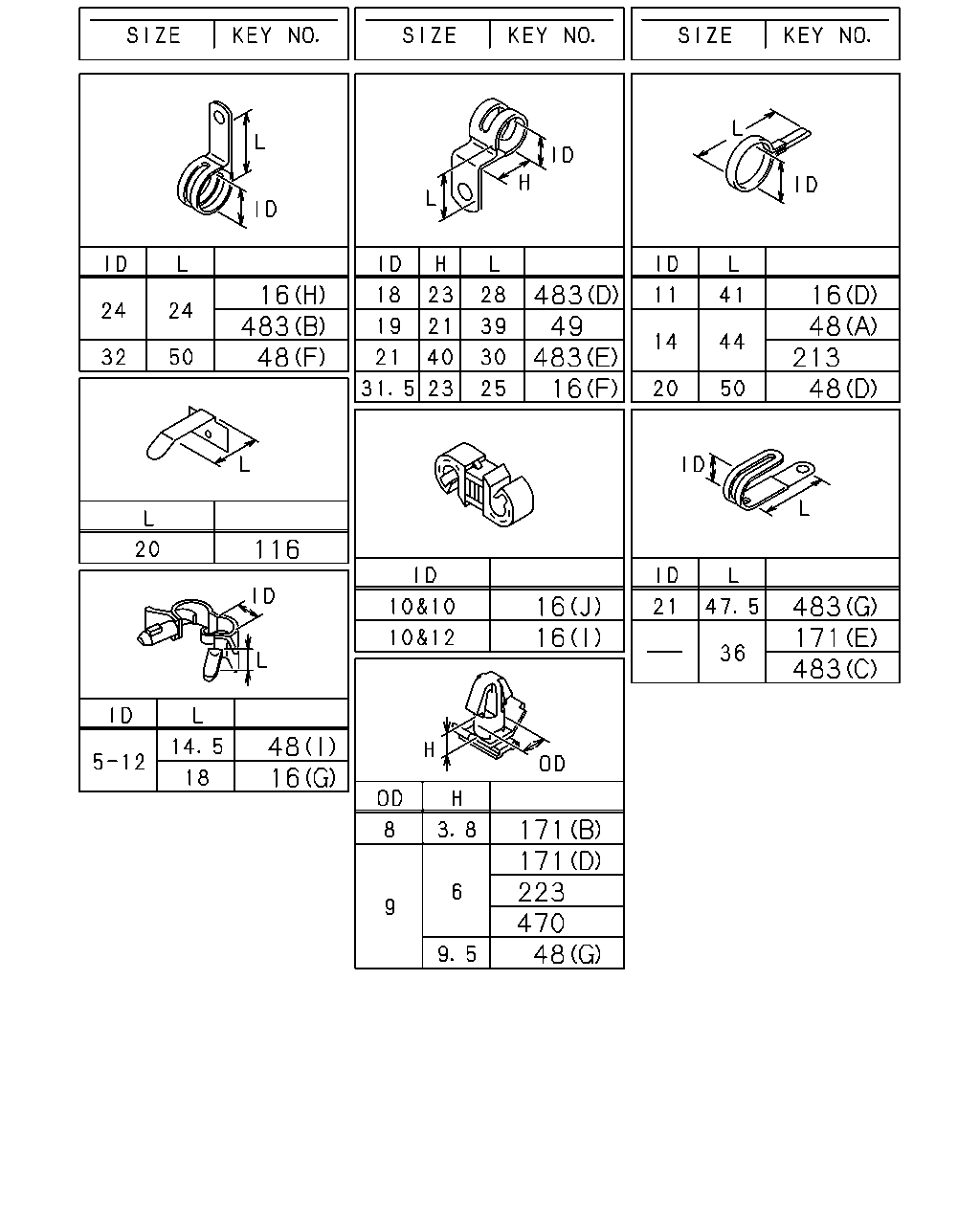

16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=5-12 L=18 THA	1-09709-287-0	02	1	0809-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=41	1-09700-403-0	02	1	0808-
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	0808-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0808-
16	CLIP; HARNESS (K) L=250	1-09707-126-0	02	1	0808-0812
16	CLIP; HARNESS (L) L=350	1-09707-183-0	02	1	0901-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0808-0911
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	02	1	0808-0911
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0808-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W> (A) ID=14 L=44	9-09917-427-0	10	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM<43W> (A) ID=14 L=44	9-09917-427-0	16	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM<49W> (A) ID=14 L=44	9-09917-427-0	19	1	0808-
48	CLIP; FRAME HARNESS (C) ID=5.5X2 L=35	1-09700-974-0	01	1	0808-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	0808-
48	CLIP; FRAME HARNESS (H) L=600	1-09707-107-1	01	1	0808-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0808-
48	CLIP; FRAME HARNESS (G) OD=9 H=9.5 THA	1-09709-179-0	01	1	0808-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	03	1	0808-
48	CLIP; FRAME HARNESS (B) L=250 THA	5-09707-030-1	03	1	0808-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0808-1201
48	CLIP; FRAME HARNESS (A) ID=14 L=44	9-09917-427-0	02	1	1202-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	0808-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0808-
171	CLIP; STARTER HARNESS MZW6P M/T<RSZ> (B) OD=8 H=3.8	1-09709-309-0	01	1	1001-1102
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (C) L=180	1-09707-162-1	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (D) OD=9 H=6	1-09709-178-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (E) L=36	8-94224-891-1	01	1	0808-1102
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0808-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0808-
223	CLIP; AIR TANK HARNESS OD=9 H=6	1-09709-178-0	02	1	0808-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0808-
483	CLIP; ENG HARNESS VIN MODEL YEAR 2010<VZA> (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1004-1102
483	CLIP; ENG HARNESS (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1103-
483	CLIP; ENG HARNESS (F)	1-09987-281-0	01	1	1004-
483	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1004-1312
483	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	02	1	1401-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0808-1003
483	CLIP; ENG HARNESS EXC. VIN MODEL YEAR 2010<VZA> (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1004-1005
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1006-
483	CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0808-
483	CLIP; ENG HARNESS (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0808-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	0808-

16 16 483 16 16 171 48 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (G) ID=5-12 L=18 THA	1-09709-287-0	02	1	0809-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=41	1-09700-403-0	02	1	0808-
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	0808-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0808-
16	CLIP; HARNESS (K) L=250	1-09707-126-0	02	1	0808-0812
16	CLIP; HARNESS (L) L=350	1-09707-183-0	02	1	0901-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0808-0911
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	02	1	0808-0911
16	CLIP; HARNESS (I) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0808-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 THA	8-97173-307-0	18	1	0808-1003
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6 THA	8-97229-357-0	02	1	0808-1003
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1004-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) THA	8-98052-679-0	02	1	0808-1003
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1004-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM<34W> (A) ID=14 L=44	9-09917-427-0	10	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM<43W> (A) ID=14 L=44	9-09917-427-0	16	1	0808-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM<49W> (A) ID=14 L=44	9-09917-427-0	19	1	0808-
48	CLIP; FRAME HARNESS (C) ID=5.5X2 L=35	1-09700-974-0	01	1	0808-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	0808-
48	CLIP; FRAME HARNESS (H) L=600	1-09707-107-1	01	1	0808-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0808-
48	CLIP; FRAME HARNESS (G) OD=9 H=9.5 THA	1-09709-179-0	01	1	0808-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	03	1	0808-
48	CLIP; FRAME HARNESS (B) L=250 THA	5-09707-030-1	03	1	0808-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0808-1201
48	CLIP; FRAME HARNESS (A) ID=14 L=44	9-09917-427-0	02	1	1202-
171	CLIP; STARTER HARNESS MZW6P M/T<RSZ> (B) OD=8 H=3.8	1-09709-309-0	01	1	1001-1102
171	CLIP; STARTER HARNESS (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (C) L=180	1-09707-162-1	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (D) OD=9 H=6	1-09709-178-0	01	1	0808-1102
171	CLIP; STARTER HARNESS MLD6S M/T<X7W> (E) L=36	8-94224-891-1	01	1	0808-1102
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0808-
483	CLIP; ENG HARNESS VIN MODEL YEAR 2010<VZA> (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1004-1102
483	CLIP; ENG HARNESS (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1103-
483	CLIP; ENG HARNESS (F)	1-09987-281-0	01	1	1004-
483	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1004-1312
483	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	02	1	1401-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0808-1003
483	CLIP; ENG HARNESS EXC. VIN MODEL YEAR 2010<VZA> (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1004-1005
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1006-
483	CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	0808-
483	CLIP; ENG HARNESS (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0808-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	0808-

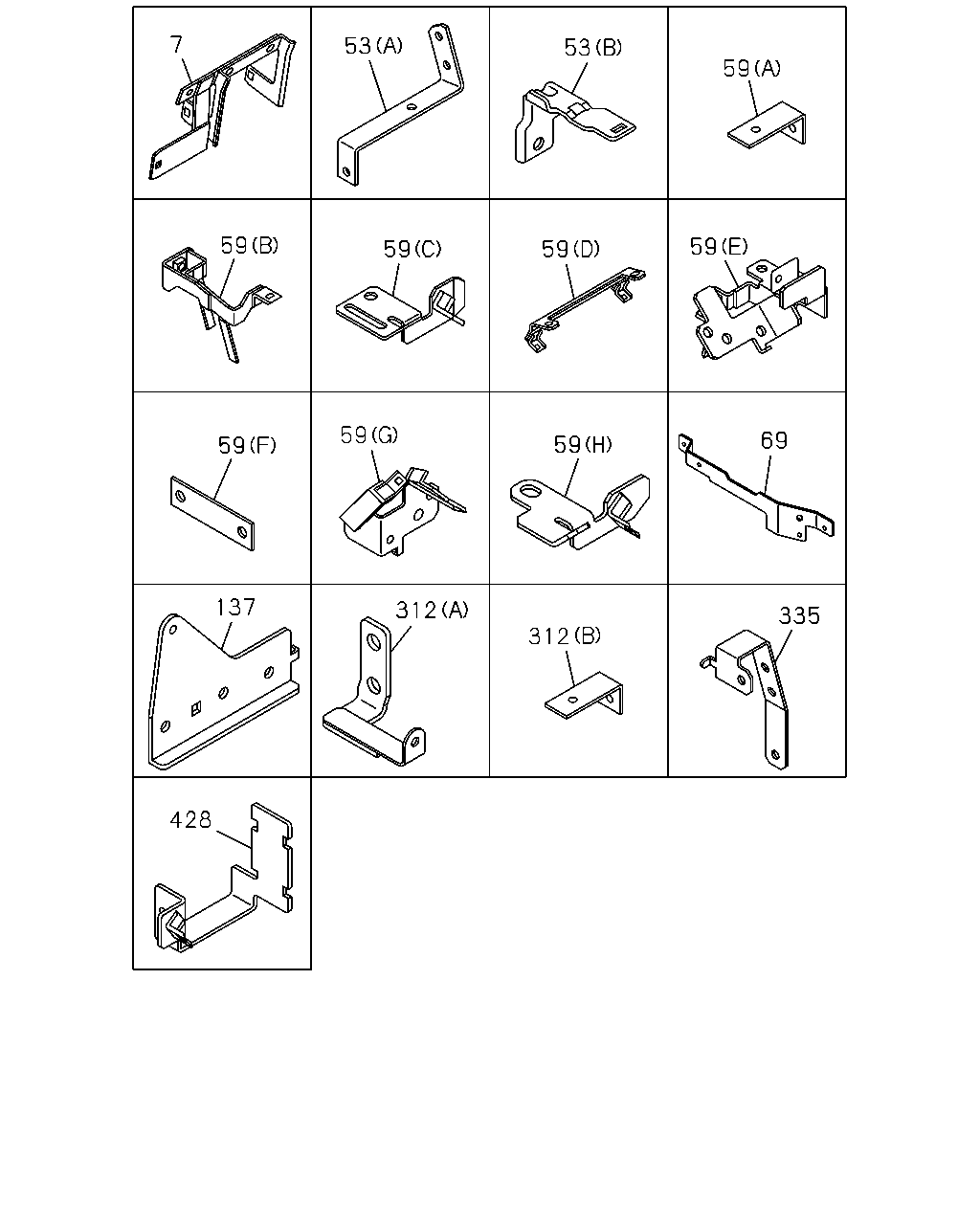

7 53 53 59 59 59 59 59 59 59 59 69 137 312 312 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0808-1204
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1205-
53	BRACKET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (A)	8-97622-857-0	01	1	0808-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0808-
59	BRACKET; FRAME HARNESS (A) L=55	1-47475-304-0	01	1	0808-0912
59	BRACKET; FRAME HARNESS (F) L=85	8-98044-743-0	01	1	1001-
59	BRACKET; FRAME HARNESS (C)	8-97616-305-0	01	1	0808-1502
59	BRACKET; FRAME HARNESS	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-97619-533-0	01	1	0808-
59	BRACKET; FRAME HARNESS (E)	8-97619-535-0	01	1	0808-1405
59	BRACKET; FRAME HARNESS (G)	8-97622-828-0	01	1	1406-
59	BRACKET; FRAME HARNESS (B)	8-98099-963-0	01	1	0808-
69	BRACKET; CLIP	8-97614-738-0	01	1	0808-
137	BRACKET; HARNESS CLAMP	8-97624-016-0	01	1	0808-
312	BRACKET; CLIP HARNESS (A)	8-98094-804-0	01	1	0808-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0808-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0808-
428	BRACKET	8-98116-461-0	01	1	0808-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
