Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#13786) — 272 parça

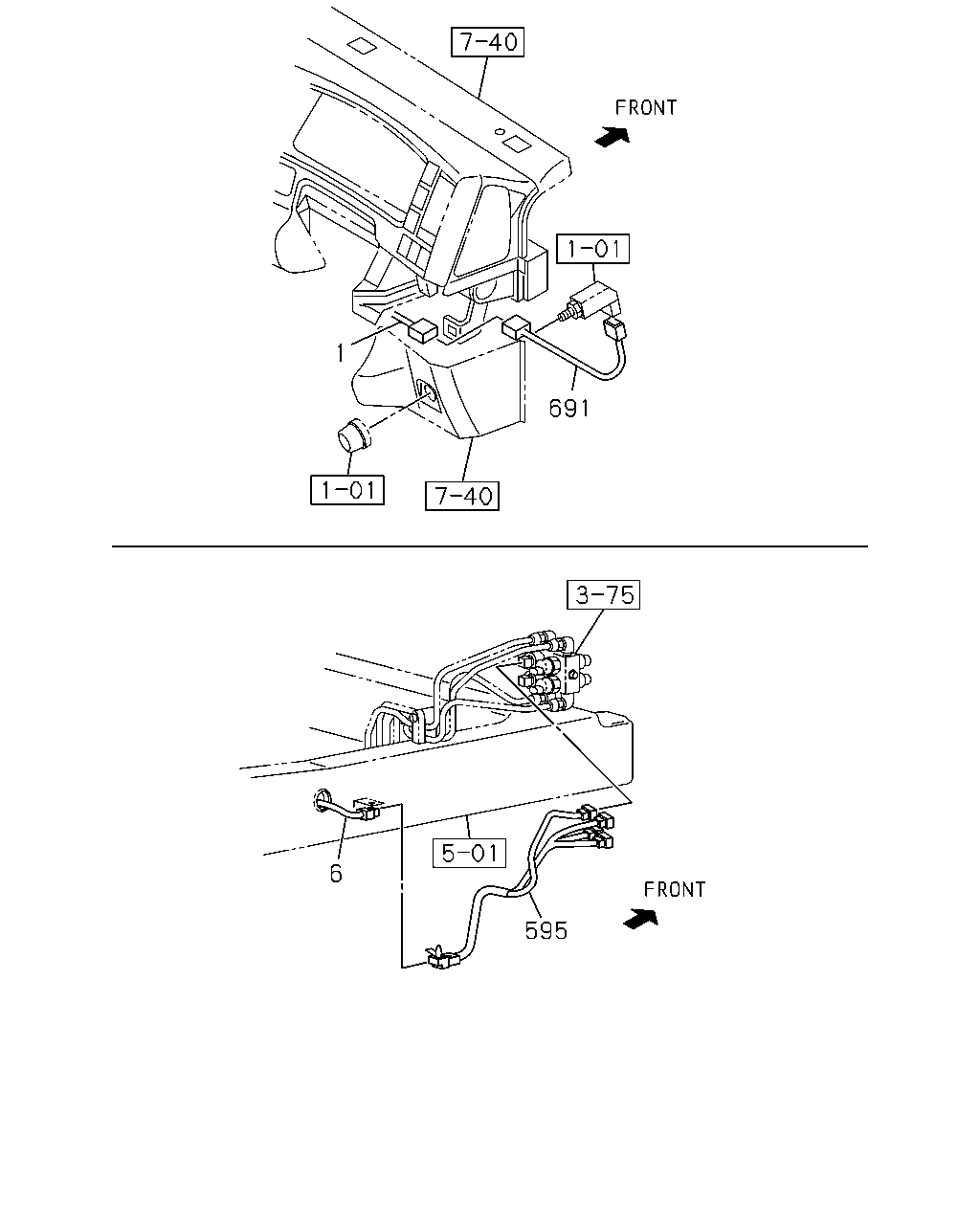

1 691 6 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA	8-98166-072-1	01	1	1004-1102
1	HARNESS; CAB THA	8-98166-072-1	01	1	1103-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA	8-98099-552-2	01	1	0808-0904
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA	8-98145-042-1	01	1	0905-1001
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA	8-98099-551-2	01	1	0808-0904
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA	8-98145-041-1	01	1	0905-1001
1	HARNESS; CAB THA	8-98145-041-1	01	1	1002-1003
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98145-041-1	01	1	1004-1102
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-500-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-487-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-499-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97923-688-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-489-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> THA	8-97924-688-0	01	1	0808-1102
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-488-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	0808-0912
6	HARNESS; FRAME MZW6P M/T<RSZ>,MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-490-1	01	1	1103-
595	HARNESS; WARNING,BRK	8-97621-003-0	01	1	0808-0809
595	HARNESS; WARNING,BRK THA	8-97924-874-0	01	1	0810-1102
595	HARNESS; WARNING,BRK THA	8-97925-476-0	01	1	1103-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	0808-

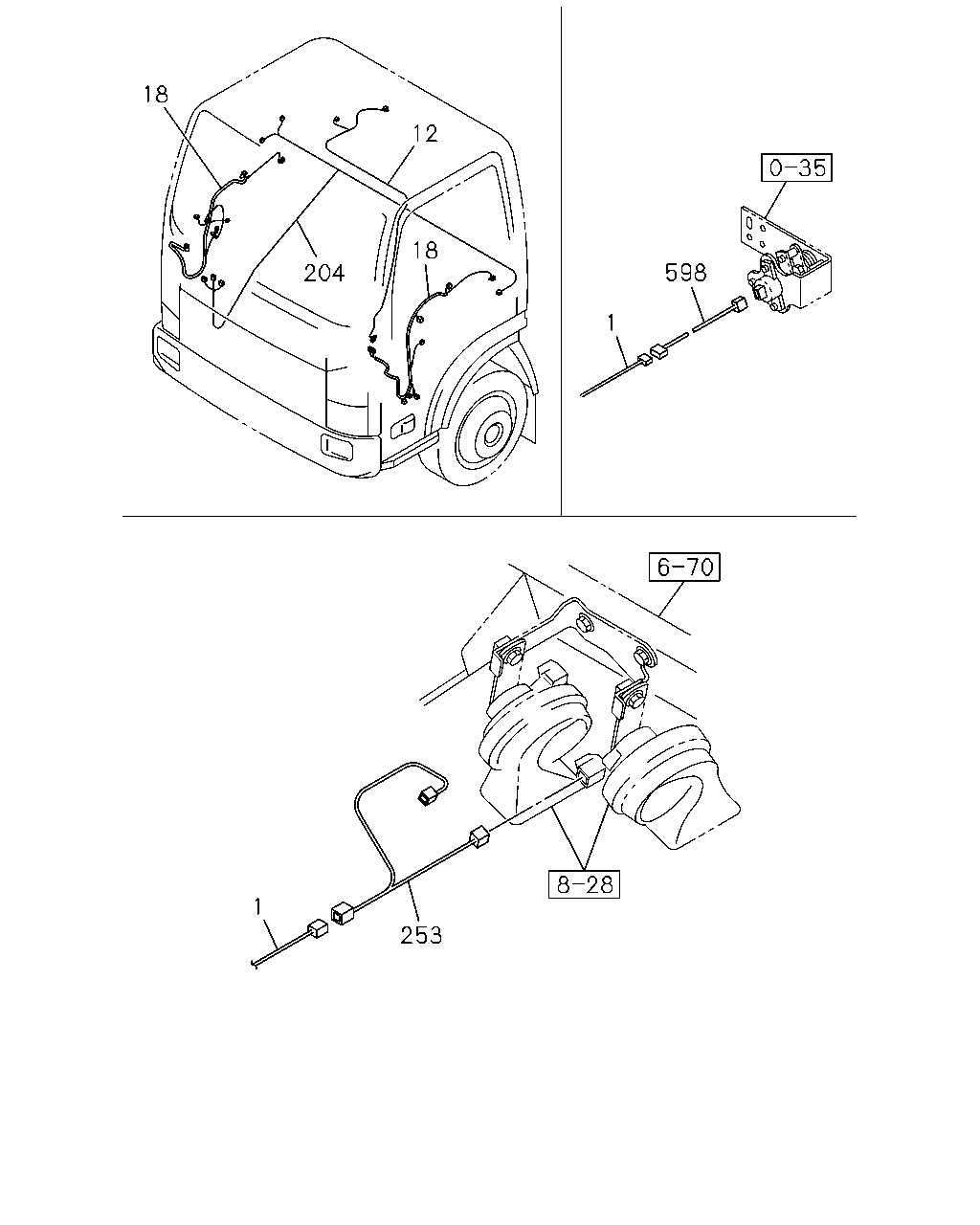

18 12 18 598 204 1 1 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA	8-98166-072-1	01	1	1004-1102
1	HARNESS; CAB THA	8-98166-072-1	01	1	1103-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA	8-98099-552-2	01	1	0808-0904
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA	8-98145-042-1	01	1	0905-1001
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA	8-98099-551-2	01	1	0808-0904
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA	8-98145-041-1	01	1	0905-1001
1	HARNESS; CAB THA	8-98145-041-1	01	1	1002-1003
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98145-041-1	01	1	1004-1102
12	HARNESS; ROOF THA	8-97924-298-0	01	1	0808-
18	HARNESS; DOOR THA	8-98076-304-3	01	1	1103-
18	HARNESS; DOOR THA	8-98076-305-3	01	1	1103-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> DRIVER THA	8-98108-439-1	01	1	0808-1003
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> PASSENGER THA	8-98108-440-1	01	1	0808-1003
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> DRIVER THA	8-98076-304-3	01	1	0808-1003
18	HARNESS; DOOR DRIVER THA	8-98076-304-3	01	1	1004-1102
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> PASSENGER THA	8-98076-305-3	01	1	0808-1003
18	HARNESS; DOOR PASSENGER THA	8-98076-305-3	01	1	1004-1102
204	HARNESS; CABLE,FLOOR THA	8-98081-204-2	01	1	0808-1102
204	HARNESS; CABLE,FLOOR THA	8-98081-204-2	01	1	1103-
253	HARNESS; EXT,HORN DUAL HEAVY DUTY HORN<6KK> EXC. VIN MODEL YEAR 2010<VZA>	8-98074-080-1	01	1	1004-1102
253	HARNESS; EXT,HORN ELECTRICAL HORN<WB7>	8-98074-081-1	01	1	0808-1001
253	HARNESS; EXT,HORN	8-98159-227-0	01	1	1002-1003
253	HARNESS; EXT,HORN EXC. VIN MODEL YEAR 2010<VZA>,DUAL HEAVY DUTY HORN<6KK>	8-98159-227-0	01	1	1004-1102
253	HARNESS; EXT,HORN EXC. ELECTRICAL HORN<WB7>	8-98074-080-1	01	1	0808-1001
598	HARNESS; EXT,PTO PTO CONTROL<SV6>	1-82675-898-0	01	1	0904-

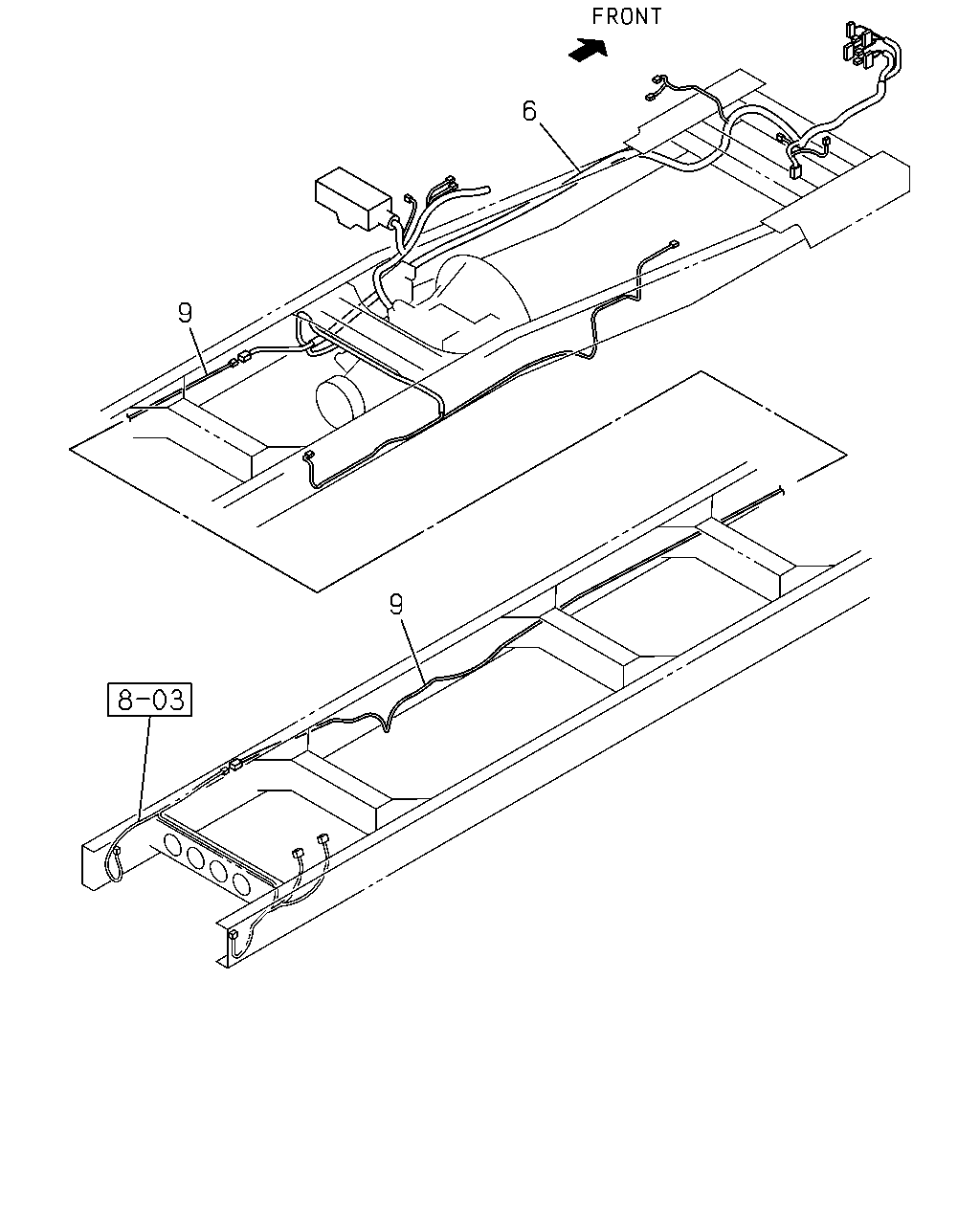

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-500-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-487-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-499-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97923-688-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-489-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> THA	8-97924-688-0	01	1	0808-1102
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-488-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	0808-0912
6	HARNESS; FRAME MZW6P M/T<RSZ>,MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-490-1	01	1	1103-
9	HARNESS; FRAME,RR WHEEL BASE 3400MM<34W> THA	8-97923-694-1	01	1	0808-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM<43W> THA	8-97923-695-3	01	1	0808-
9	HARNESS; FRAME,RR WHEEL BASE 4900MM<49W> THA	8-97923-696-3	01	1	0808-

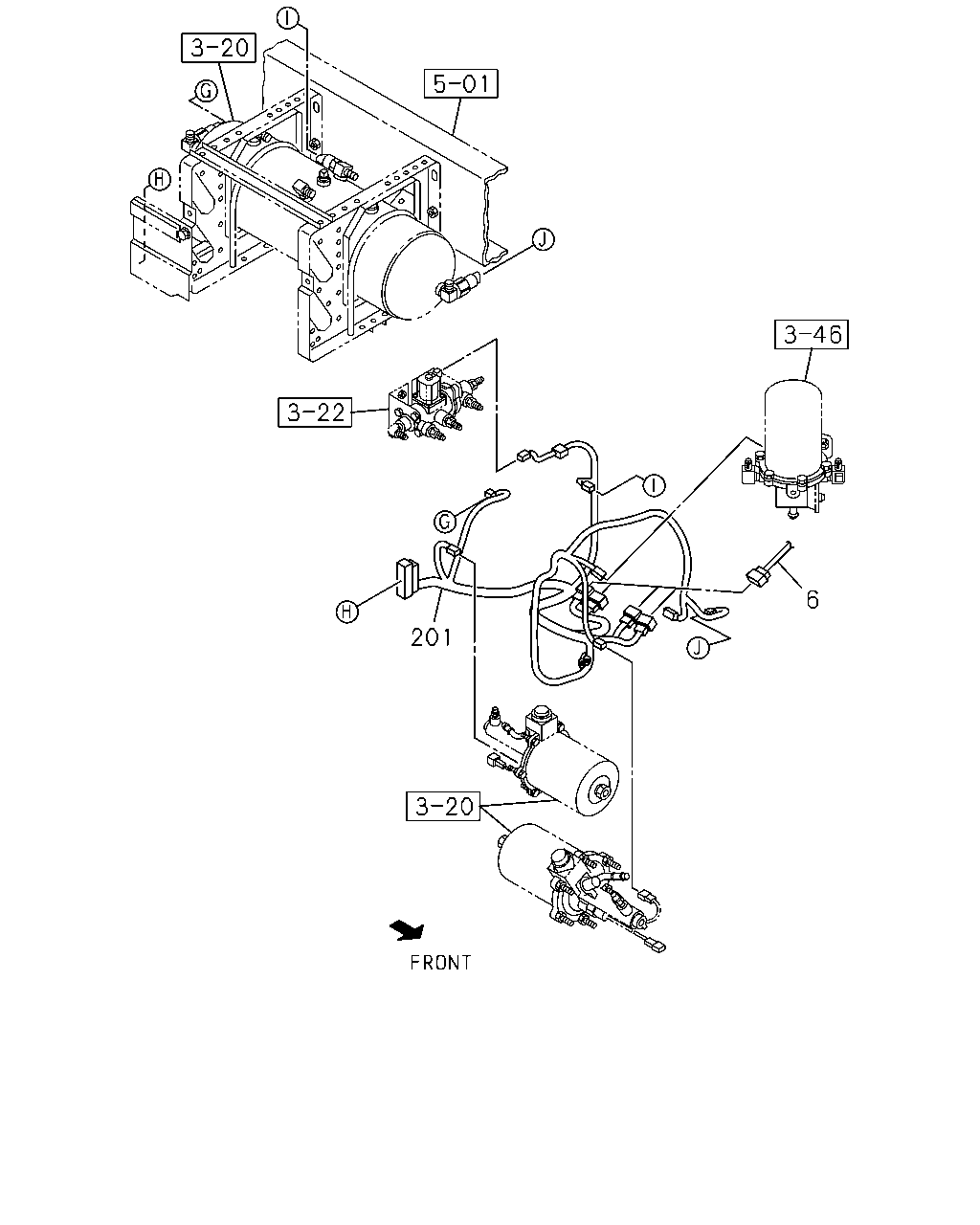

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-500-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-487-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-499-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97923-688-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-489-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> THA	8-97924-688-0	01	1	0808-1102
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-488-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	0808-0912
6	HARNESS; FRAME MZW6P M/T<RSZ>,MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-490-1	01	1	1103-
201	HARNESS; AIR TANK THA	8-98060-668-2	01	1	0808-

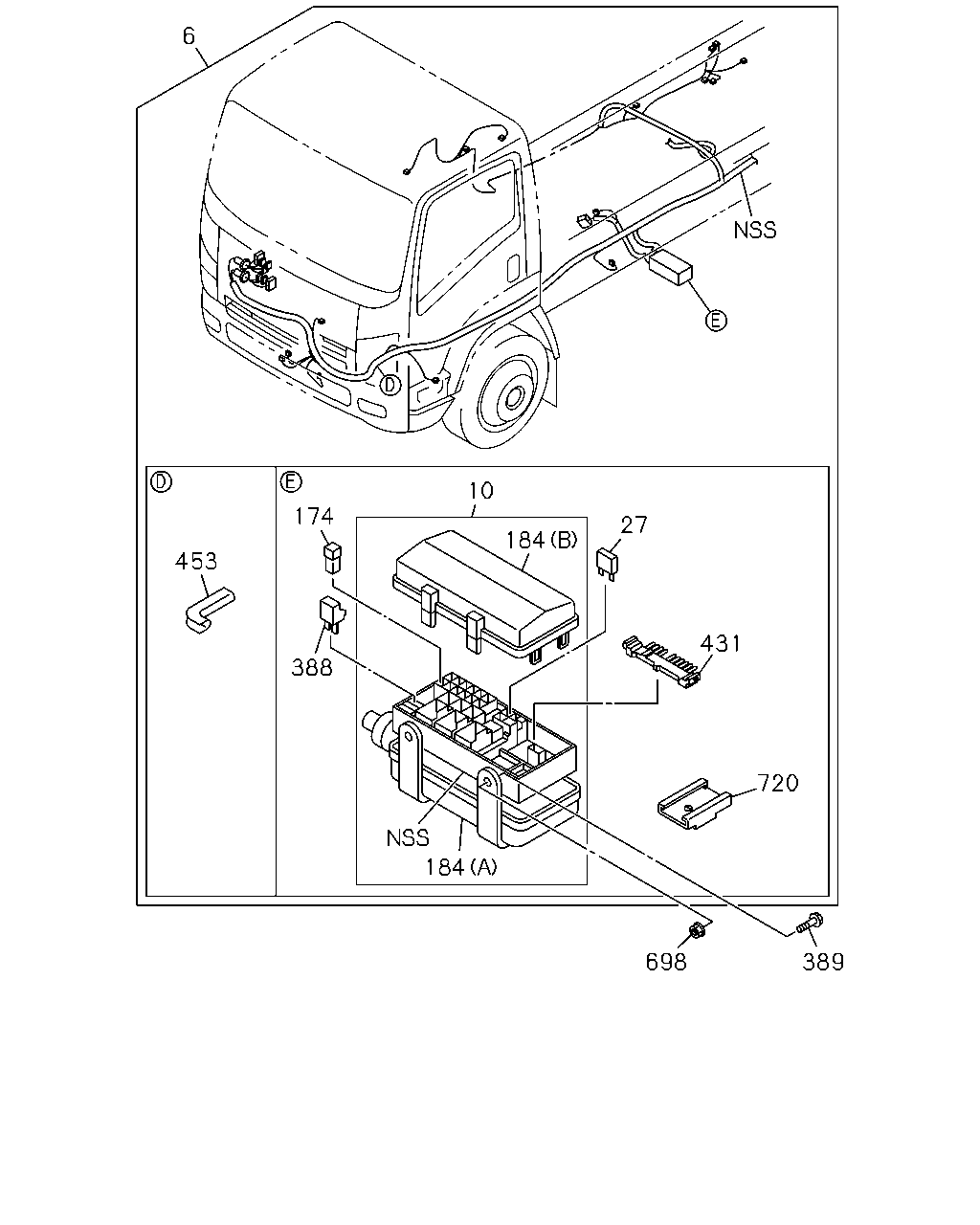

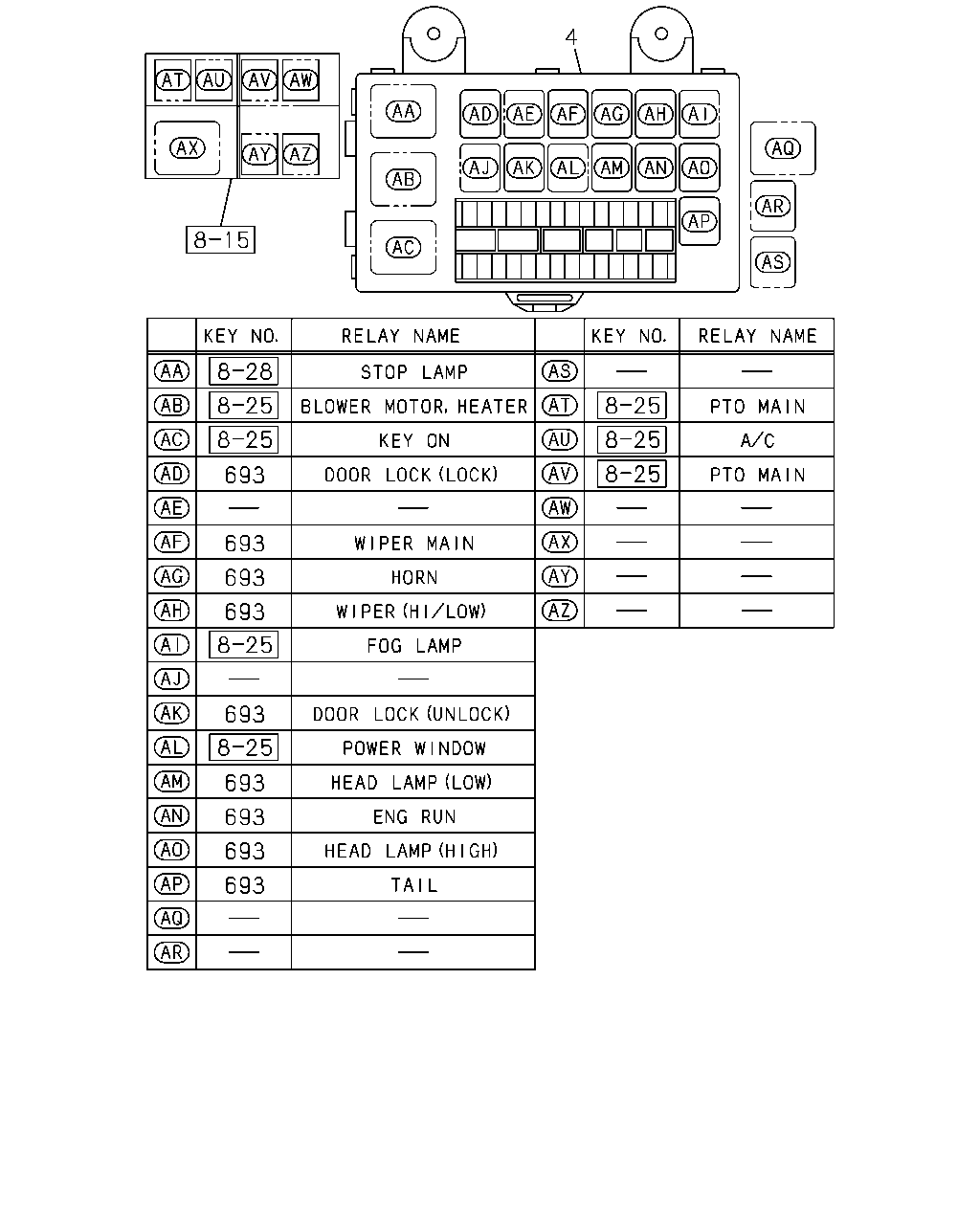

6 10 174 27 184 453 431 388 720 184 698 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-500-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-487-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-499-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97923-688-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-489-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> THA	8-97924-688-0	01	1	0808-1102
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-488-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	0808-0912
6	HARNESS; FRAME MZW6P M/T<RSZ>,MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-490-1	01	1	1103-
10	BOX; FUSE,HARNESS THA	8-98030-762-0	01	1	0808-
27	FUSE UNIT 10A RED THA	8-98054-257-0	01	1	0808-
27	FUSE UNIT 15A BLUE THA	8-98054-258-0	01	1	0808-
174	FUSE; SLOW BLOW 60A YELLOW THA	8-97219-407-0	01	1	1111-
174	FUSE; SLOW BLOW 30A PINK THA	8-98079-191-0	01	1	0808-
174	FUSE; SLOW BLOW 40A GREEN THA	8-98079-192-0	01	1	0808-
174	FUSE; SLOW BLOW 50A RED THA	8-98079-193-0	03	1	0808-
174	FUSE; SLOW BLOW 60A YELLOW THA	8-98079-194-0	02	1	0808-1102
174	FUSE; SLOW BLOW 60A YELLOW THA	8-97219-407-0	02	1	1103-1110
174	FUSE; SLOW BLOW 60A YELLOW THA	8-97219-407-0	01	1	1111-
184	COVER; RELAY & FUSE BOX (A) THA	8-98030-766-0	01	1	0808-
184	COVER; RELAY & FUSE BOX (B) THA	8-98030-767-1	01	1	0808-
388	DIODE; RELAY BOX BLACK 2P-1.5A THA	8-94422-639-1	01	1	0808-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER THA	1-09030-073-0	03	1	0808-
431	CONNECTOR; JOINT 10P BLUE THA	1-82699-598-0	02	1	1103-
431	CONNECTOR; JOINT 10P BLUE THA	1-82699-598-0	03	1	0808-1102
453	PROTECTOR; HARNESS THA	1-82699-709-0	02	1	0808-
698	NUT; COVER,RELAY BOX M8 FLANGE THA	0-91180-108-0	02	1	0808-
720	ATTACHMENT; CONNECTOR THA	1-82699-688-0	01	1	1103-
720	ATTACHMENT; CONNECTOR THA	1-82699-688-0	03	1	0808-1102

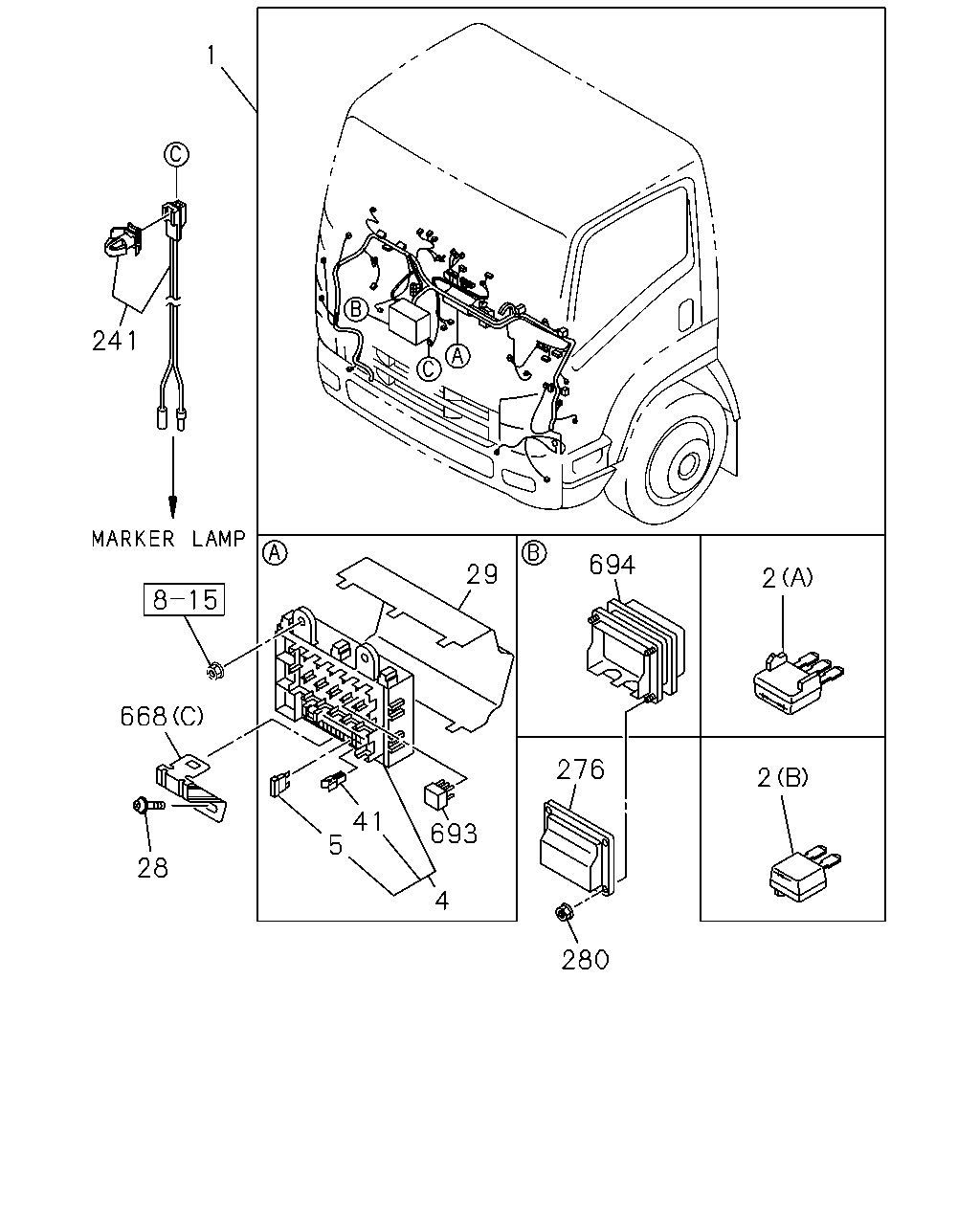

1 241 694 29 2 668 276 2 41 5 693 28 4 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA	8-98166-072-1	01	1	1004-1102
1	HARNESS; CAB THA	8-98166-072-1	01	1	1103-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA	8-98099-552-2	01	1	0808-0904
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> REMOTE CONT DOOR LOCK<6NF> THA	8-98145-042-1	01	1	0905-1001
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA	8-98099-551-2	01	1	0808-0904
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. REMOTE CONT DOOR LOCK<6NF> THA	8-98145-041-1	01	1	0905-1001
1	HARNESS; CAB THA	8-98145-041-1	01	1	1002-1003
1	HARNESS; CAB AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98145-041-1	01	1	1004-1102
2	DIODE; CABLE HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	0808-0912
2	DIODE; CABLE HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1001-1003
2	DIODE; CABLE HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1004-1102
2	DIODE; CABLE HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1004-1102
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A THA	8-94416-438-1	01	1	1103-
2	DIODE; CABLE HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A THA	8-94422-639-1	01	1	0808-0904
2	DIODE; CABLE HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) BLACK 2P-1.5A THA	8-94422-639-1	02	1	0905-0912
2	DIODE; CABLE HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> (B) BLACK 2P-1.5A THA	8-94422-639-1	02	1	1001-1003
2	DIODE; CABLE HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> (B) BLACK 2P-1.5A THA	8-94422-639-1	02	1	1004-1102
2	DIODE; CABLE HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> (B) BLACK 2P-1.5A THA	8-94422-639-1	02	1	1004-1102
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A THA	8-94422-639-1	02	1	1103-
4	BOX ASM; FUSE,HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> THA	8-98065-666-0	01	1	0808-0912
4	BOX ASM; FUSE,HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> THA	8-98065-666-0	01	1	1001-1003
4	BOX ASM; FUSE,HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98065-666-0	01	1	1004-1102
4	BOX ASM; FUSE,HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA	8-98065-666-0	01	1	1004-1102
4	BOX ASM; FUSE,HARNESS THA	8-98065-666-0	01	1	1103-
5	FUSE; FACIA HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 10A RED THA	8-98054-257-0	AR	1	0808-0912
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> 10A RED THA	8-98054-257-0	AR	1	1001-1003
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> 10A RED THA	8-98054-257-0	AR	1	1004-1102
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> 10A RED THA	8-98054-257-0	AR	1	1004-1102
5	FUSE; FACIA HARNESS 10A RED THA	8-98054-257-0	AR	1	1103-
5	FUSE; FACIA HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 15A BLUE THA	8-98054-258-0	AR	1	0808-0912
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> 15A BLUE THA	8-98054-258-0	AR	1	1001-1003
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> 15A BLUE THA	8-98054-258-0	AR	1	1004-1102
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> 15A BLUE THA	8-98054-258-0	AR	1	1004-1102
5	FUSE; FACIA HARNESS 15A BLUE THA	8-98054-258-0	AR	1	1103-
5	FUSE; FACIA HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 20A YELLOW THA	8-98054-259-0	AR	1	0808-0912
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> 20A YELLOW THA	8-98054-259-0	AR	1	1001-1003
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> 20A YELLOW THA	8-98054-259-0	AR	1	1004-1102
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> 20A YELLOW THA	8-98054-259-0	AR	1	1004-1102
5	FUSE; FACIA HARNESS 20A YELLOW THA	8-98054-259-0	AR	1	1103-
5	FUSE; FACIA HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 25A WHITE THA	8-98062-982-0	01	1	0808-0912
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> 25A WHITE THA	8-98062-982-0	01	1	1001-1003
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> 25A WHITE THA	8-98062-982-0	01	1	1004-1102
5	FUSE; FACIA HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> 25A WHITE THA	8-98062-982-0	01	1	1004-1102
5	FUSE; FACIA HARNESS 25A WHITE THA	8-98062-982-0	01	1	1103-
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0808-
29	COVER; FUSE BOX MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> THA	8-98056-968-0	01	1	0808-0912
29	COVER; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> THA	8-98056-968-0	01	1	1001-1003
29	COVER; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98056-968-0	01	1	1004-1102
29	COVER; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA	8-98056-968-0	01	1	1004-1102
29	COVER; FUSE BOX THA	8-98056-968-0	01	1	1103-
41	PULLER; FUSE MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> THA	8-98054-260-0	01	1	0808-0912
41	PULLER; FUSE MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> THA	8-98054-260-0	01	1	1001-1003
41	PULLER; FUSE MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98054-260-0	01	1	1004-1102
41	PULLER; FUSE MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA	8-98054-260-0	01	1	1004-1102
41	PULLER; FUSE THA	8-98054-260-0	01	1	1103-
241	HARNESS; MARKER LAMP THA	8-97924-671-0	01	1	0808-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0808-
280	NUT; BOX ASM FIX M6 FLANGE THA	0-91180-106-0	04	1	0808-
668	BRACKET; HARNESS (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS VIN MODEL YEAR 2010<VZA> (G)	8-98061-805-2	02	1	1004-1102
668	BRACKET; HARNESS (G)	8-98061-805-2	02	1	1103-1312
668	BRACKET; HARNESS (G)	8-98061-805-2	01	1	1401-
668	BRACKET; HARNESS (D)	8-98001-095-0	01	1	0808-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	0808-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	0808-
668	BRACKET; HARNESS (B)	8-98022-106-2	01	1	0808-1003
668	BRACKET; HARNESS EXC. VIN MODEL YEAR 2010<VZA> (B)	8-98022-106-2	01	1	1004-1102
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	0808-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	0808-
693	RELAY; FUSE BOX MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0808-0912
693	RELAY; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1001-1003
693	RELAY; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1004-1102
693	RELAY; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1004-1102
693	RELAY; FUSE BOX 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1103-
694	BOX ASM; CONNECTOR MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ>	8-98063-269-1	01	1	0808-0912
694	BOX ASM; CONNECTOR MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C>	8-98063-269-1	01	1	1001-1003
694	BOX ASM; CONNECTOR MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA>	8-98063-269-1	01	1	1004-1102
694	BOX ASM; CONNECTOR MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA>	8-98063-269-1	01	1	1004-1102
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	1103-

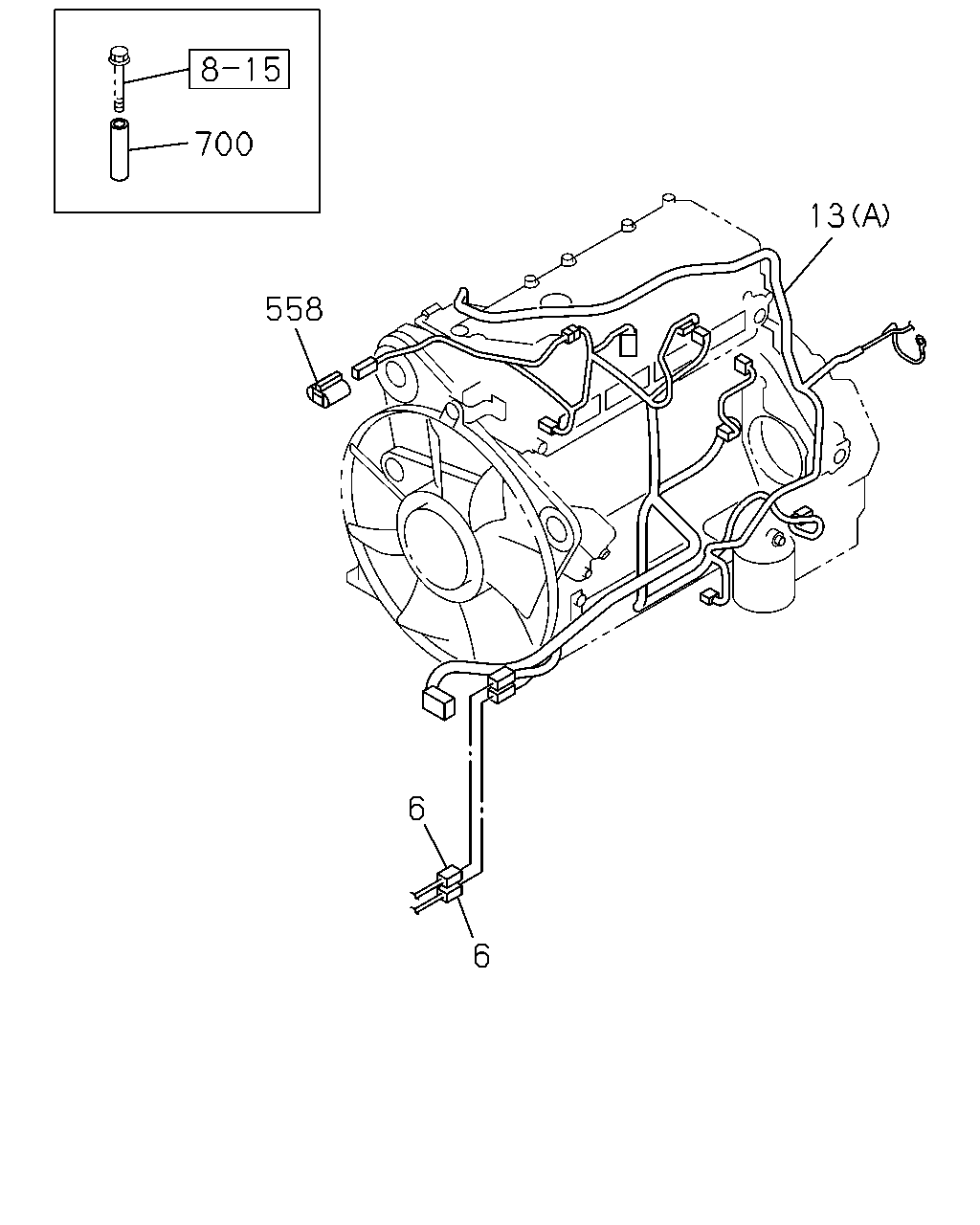

13 700 558 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-500-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-487-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-499-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97923-688-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-489-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> THA	8-97924-688-0	01	1	0808-1102
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-488-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	0808-0912
6	HARNESS; FRAME MZW6P M/T<RSZ>,MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-490-1	01	1	1103-
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0808-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> VIN MODEL YEAR 2010<VZA> (A)	8-98170-270-0	01	1	1004-1102
13	HARNESS; ENG GENERATOR 24V60A<KG2> (A)	8-98170-270-2	01	1	1103-1312
13	HARNESS; ENG GENERATOR 24V60A<KG2> (A)	8-98255-591-0	01	1	1401-1405
13	HARNESS; ENG GENERATOR 24V60A<KG2> (A)	8-98274-038-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> VIN MODEL YEAR 2010<VZA> (A)	8-98170-269-0	01	1	1004-1102
13	HARNESS; ENG GENERATOR 24V50A<K89> (A)	8-98170-269-2	01	1	1103-1312
13	HARNESS; ENG GENERATOR 24V50A<K89> (A)	8-98255-590-0	01	1	1401-1405
13	HARNESS; ENG GENERATOR 24V50A<K89> (A)	8-98274-037-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> (A)	8-98075-897-1	01	1	0808-0912
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> (A)	8-98075-897-1	01	1	1001-1004
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98119-878-1	01	1	1005-1102
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> (A)	8-98075-896-1	01	1	0808-0912
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> (A)	8-98075-896-1	01	1	1001-1004
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98119-877-1	01	1	1005-1102
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>	1-82690-668-0	01	1	1304-
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65> L=51	1-11369-157-0	01	1	1304-

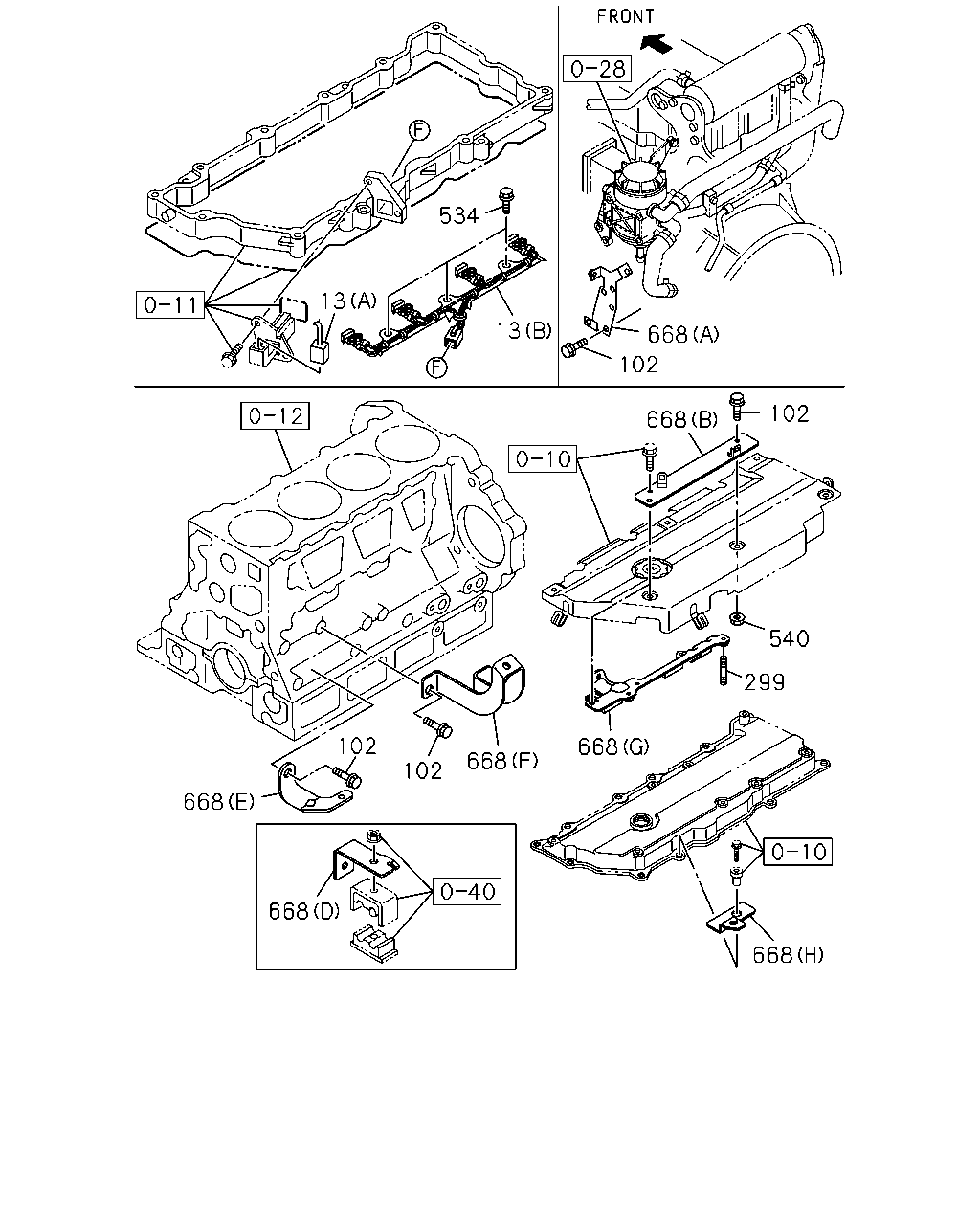

668 668 299 540 102 668 668 102 13 534 13 668 102 102 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0808-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> VIN MODEL YEAR 2010<VZA> (A)	8-98170-270-0	01	1	1004-1102
13	HARNESS; ENG GENERATOR 24V60A<KG2> (A)	8-98170-270-2	01	1	1103-1312
13	HARNESS; ENG GENERATOR 24V60A<KG2> (A)	8-98255-591-0	01	1	1401-1405
13	HARNESS; ENG GENERATOR 24V60A<KG2> (A)	8-98274-038-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> VIN MODEL YEAR 2010<VZA> (A)	8-98170-269-0	01	1	1004-1102
13	HARNESS; ENG GENERATOR 24V50A<K89> (A)	8-98170-269-2	01	1	1103-1312
13	HARNESS; ENG GENERATOR 24V50A<K89> (A)	8-98255-590-0	01	1	1401-1405
13	HARNESS; ENG GENERATOR 24V50A<K89> (A)	8-98274-037-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> (A)	8-98075-897-1	01	1	0808-0912
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> (A)	8-98075-897-1	01	1	1001-1004
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V60A<KG2> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98119-878-1	01	1	1005-1102
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> (A)	8-98075-896-1	01	1	0808-0912
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> (A)	8-98075-896-1	01	1	1001-1004
13	HARNESS; ENG 4HK1-TCS ENG<RJS> GENERATOR 24V50A<K89> EXC. VIN MODEL YEAR 2010<VZA> (A)	8-98119-877-1	01	1	1005-1102
102	BOLT; BRKT,HARNESS CONNECTOR M6X25 FLANGE THA	0-28050-625-0	01	1	0808-1003
102	BOLT; BRKT,HARNESS CONNECTOR EXC. VIN MODEL YEAR 2010<VZA> M6X25 FLANGE THA	0-28050-625-0	01	1	1004-1102
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE THA	0-28050-816-0	03	1	0808-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE THA	0-28151-016-0	03	1	0808-
299	STUD; BRKT VIN MODEL YEAR 2010<VZA> M6X20 L=28	0-41010-620-0	02	1	1004-1102
299	STUD; BRKT M6X20 L=28	0-41010-620-0	02	1	1103-
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	0808-
540	NUT; BRKT FIX EXC. VIN MODEL YEAR 2010<VZA> M6 FLANGE THA	0-91180-106-0	01	1	1004-1102
540	NUT; BRKT FIX M6 FLANGE THA	0-91180-106-0	01	1	0808-1003
540	NUT; BRKT FIX VIN MODEL YEAR 2010<VZA> M6 FLANGE THA	0-91180-106-0	02	1	1004-1102
540	NUT; BRKT FIX M6 FLANGE THA	0-91180-106-0	02	1	1103-1312
668	BRACKET; HARNESS (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS VIN MODEL YEAR 2010<VZA> (G)	8-98061-805-2	02	1	1004-1102
668	BRACKET; HARNESS (G)	8-98061-805-2	02	1	1103-1312
668	BRACKET; HARNESS (G)	8-98061-805-2	01	1	1401-
668	BRACKET; HARNESS (D)	8-98001-095-0	01	1	0808-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	0808-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	0808-
668	BRACKET; HARNESS (B)	8-98022-106-2	01	1	0808-1003
668	BRACKET; HARNESS EXC. VIN MODEL YEAR 2010<VZA> (B)	8-98022-106-2	01	1	1004-1102
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	0808-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	0808-

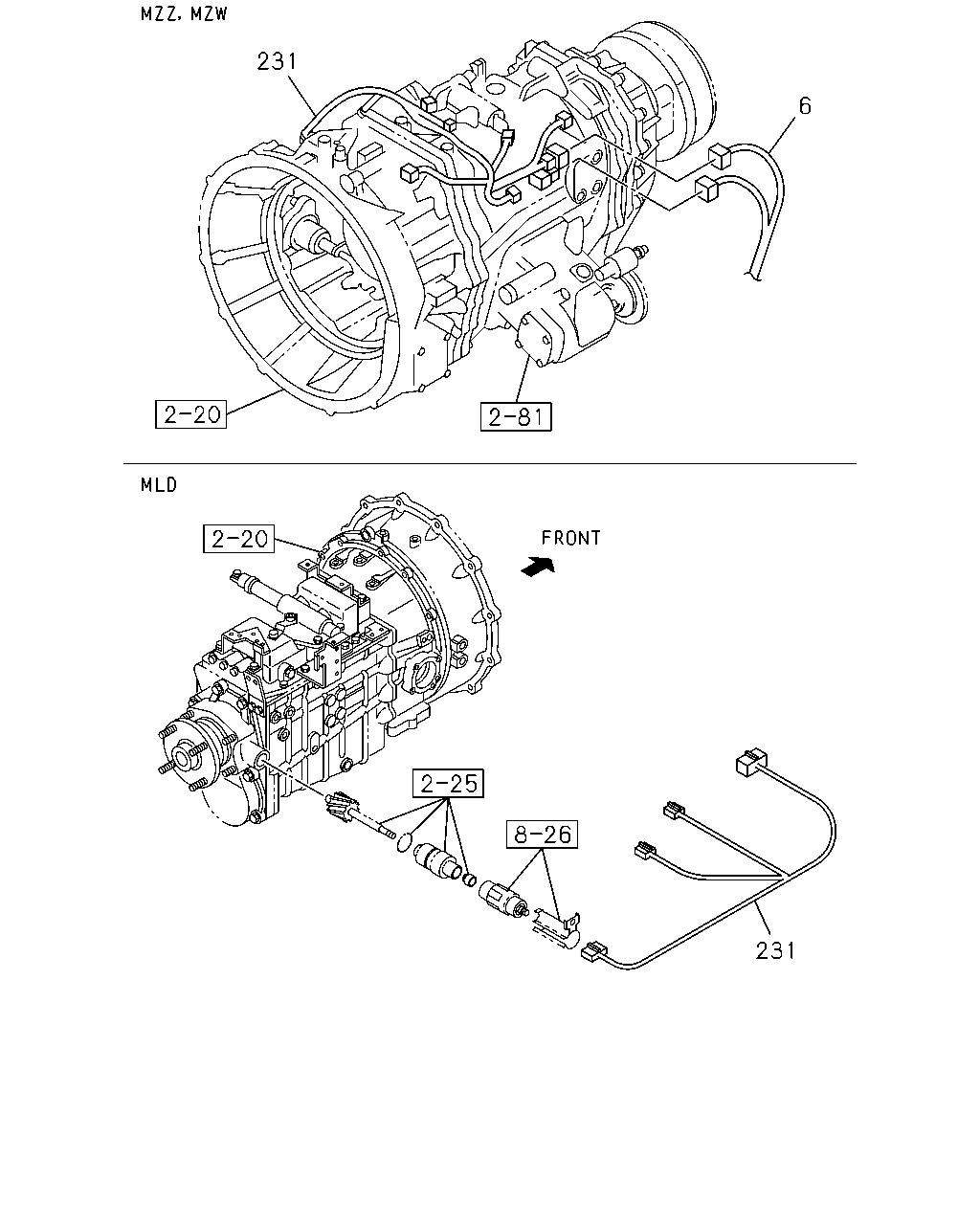

231 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-500-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-487-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-499-1	01	1	1103-
6	HARNESS; FRAME MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA	8-97923-688-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-489-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> THA	8-97924-688-0	01	1	0808-1102
6	HARNESS; FRAME WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-488-1	01	1	1103-
6	HARNESS; FRAME MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	0808-0912
6	HARNESS; FRAME MZW6P M/T<RSZ>,MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA	8-97924-255-1	01	1	1001-1102
6	HARNESS; FRAME MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> EXC. POOR QUALITY DIESEL FUEL<KF0> THA	8-97925-490-1	01	1	1103-
231	HARNESS; TRANS MZW6P M/T<RSZ> THA	8-97925-175-0	01	1	1001-
231	HARNESS; TRANS MLD6S M/T<X7W>	8-98114-228-0	01	1	0808-0809
231	HARNESS; TRANS MLD6S M/T<X7W> THA	8-97924-881-0	01	1	0810-1102
231	HARNESS; TRANS MZZ6W M/T<RSA> THA	8-97925-477-0	01	1	1103-

4 693 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> THA	8-98065-666-0	01	1	0808-0912
4	BOX ASM; FUSE,HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> THA	8-98065-666-0	01	1	1001-1003
4	BOX ASM; FUSE,HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> THA	8-98065-666-0	01	1	1004-1102
4	BOX ASM; FUSE,HARNESS MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> THA	8-98065-666-0	01	1	1004-1102
4	BOX ASM; FUSE,HARNESS THA	8-98065-666-0	01	1	1103-
693	RELAY; FUSE BOX MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	0808-0912
693	RELAY; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1001-1003
693	RELAY; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> MANUAL TRANSMISSION<X9C> EXC. VIN MODEL YEAR 2010<VZA> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1004-1102
693	RELAY; FUSE BOX MZW6P M/T<RSZ>,MLD6S M/T<X7W> AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2010<VZA> 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1004-1102
693	RELAY; FUSE BOX 24V 10A PANASONIC THA	8-97173-035-1	AR	1	1103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
