7-40 — INSTRUMENT PANEL AND BOX (#13776) — 144 parça

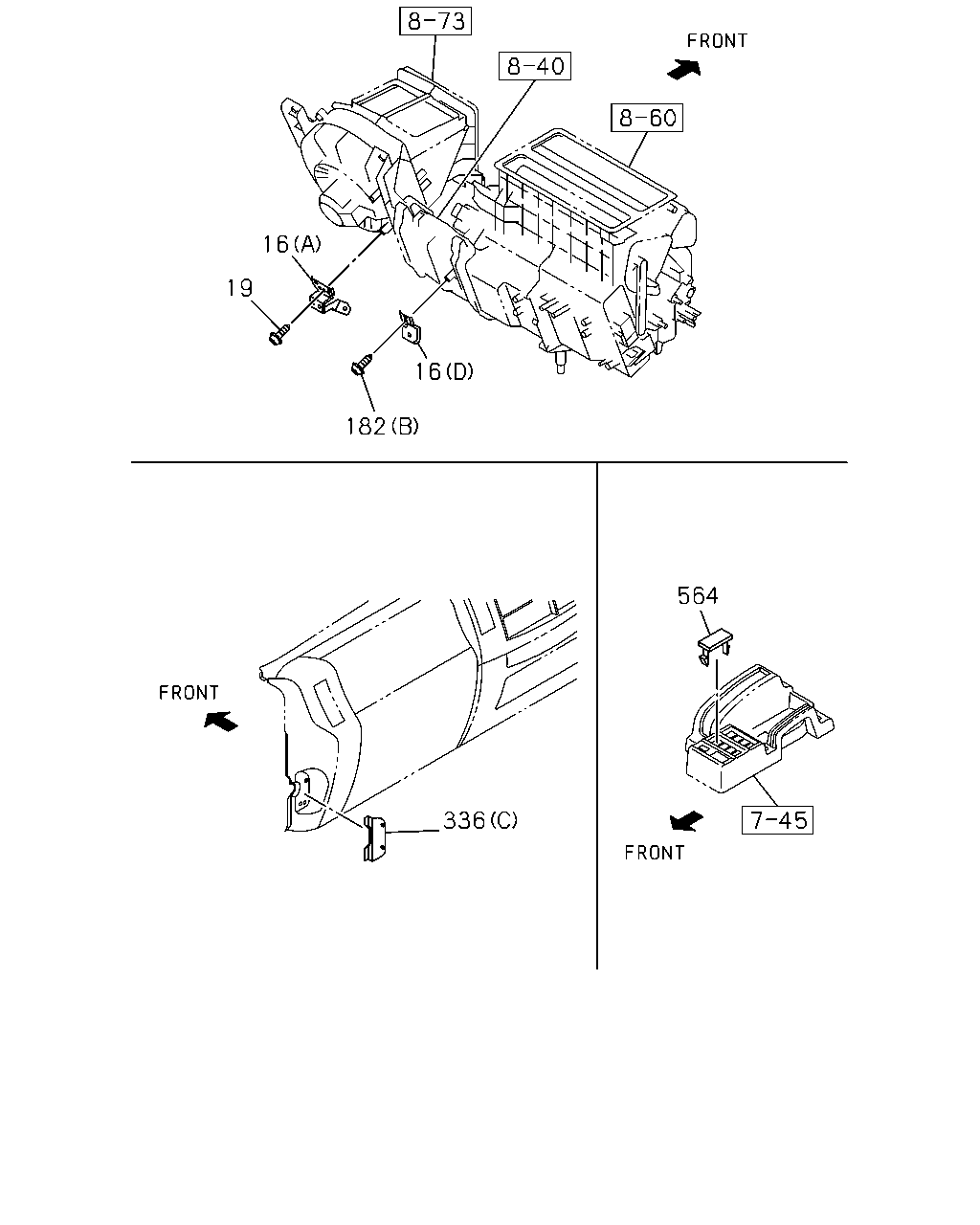

çizim 142926
16 19 16 182 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0808-
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0808-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0808-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0808-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0808-
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0808-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 0808-1010
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0808-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0808-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 0808-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0808-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0808-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0808-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0808-
564 COVER; SW 8-97043-732-1 06 1 0808-

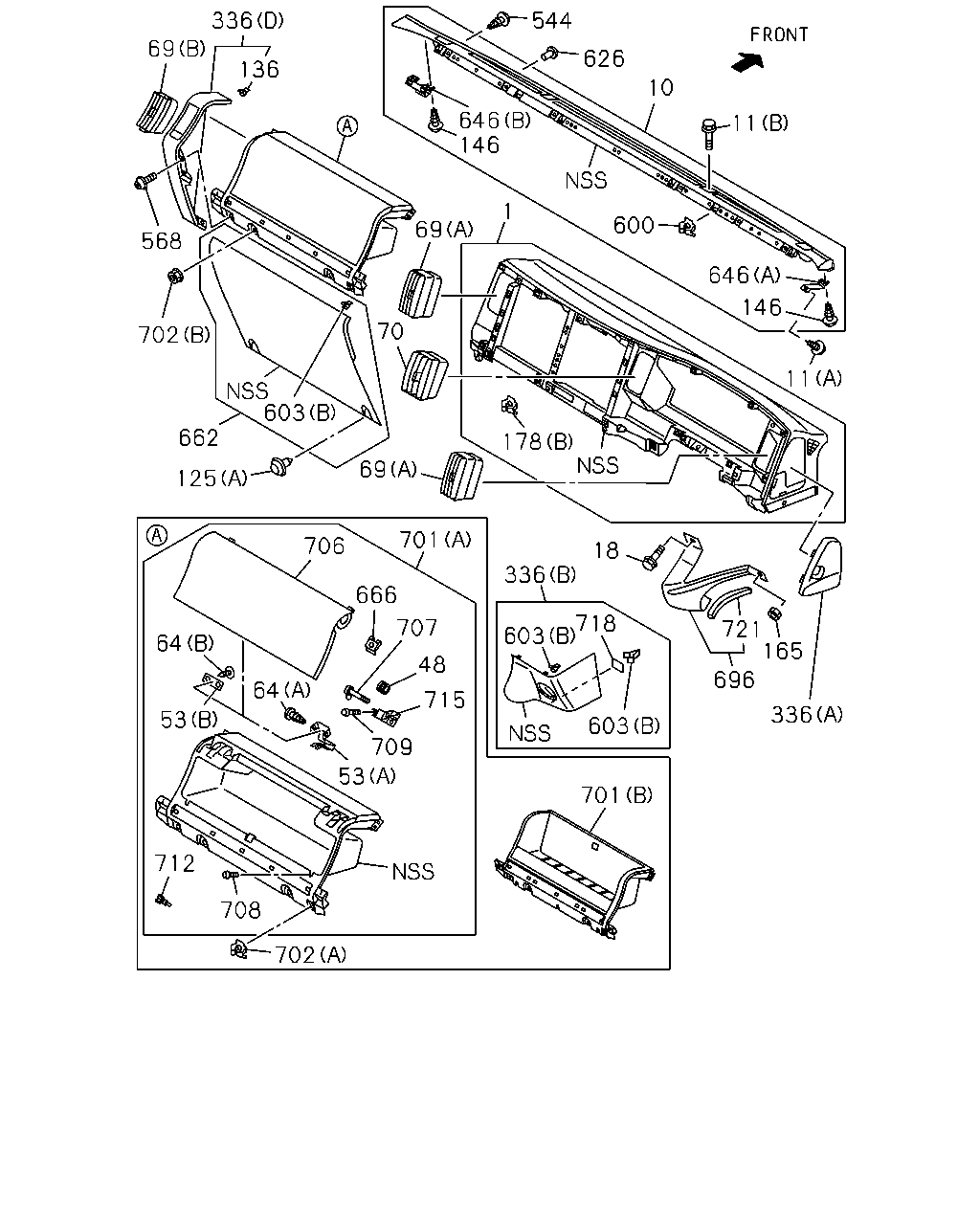

çizim 142927
336 69 136 568 702 662 603 125 69 701 706 666 707 48 715 709 53 708 712 53 64 64 603 336 718 696 336 165 721 18 603 701 702 178 11 146 646 600 146 69 70 11 10 626 544 646 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0808-
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0808-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1009-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0808-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0808-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER THA 		0-52000-612-0 01 1 0808-1010
18 BOLT; BRKT
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1011-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0808-1102
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1103-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THA 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THA 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0808-1102
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1103-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THA 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THA 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0808-1102
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1103-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0808-1102
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1103-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 THA 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0808-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0808-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0808-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0808-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0808-
136 CLIP; INST COVER 8-98076-254-0 02 1 0808-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0808-
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 0808-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0808-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0808-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0808-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0808-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0808-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0808-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0808-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0808-
600 NUT; PANEL 8-98037-629-0 02 1 0808-1008
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0808-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0808-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0808-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0808-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0808-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0808-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0808-
666 INSERT; INST PANEL 8-98038-450-0 04 1 0808-1102
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1103-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 THA 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 0808-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1103-
701 TRAY; INST
(A) GRAY 		8-97415-540-4 01 1 0808-1102
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1103-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0808-
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0808-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0808-1102
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1103-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0808-1102
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1103-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THA 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0808-1102
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1103-
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 0808-1102
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING THA 		0-71040-516-0 04 1 1103-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0808-1102
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1103-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0808-1102
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1103-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THA 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0808-1102
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1103-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> THA 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0808-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0808-

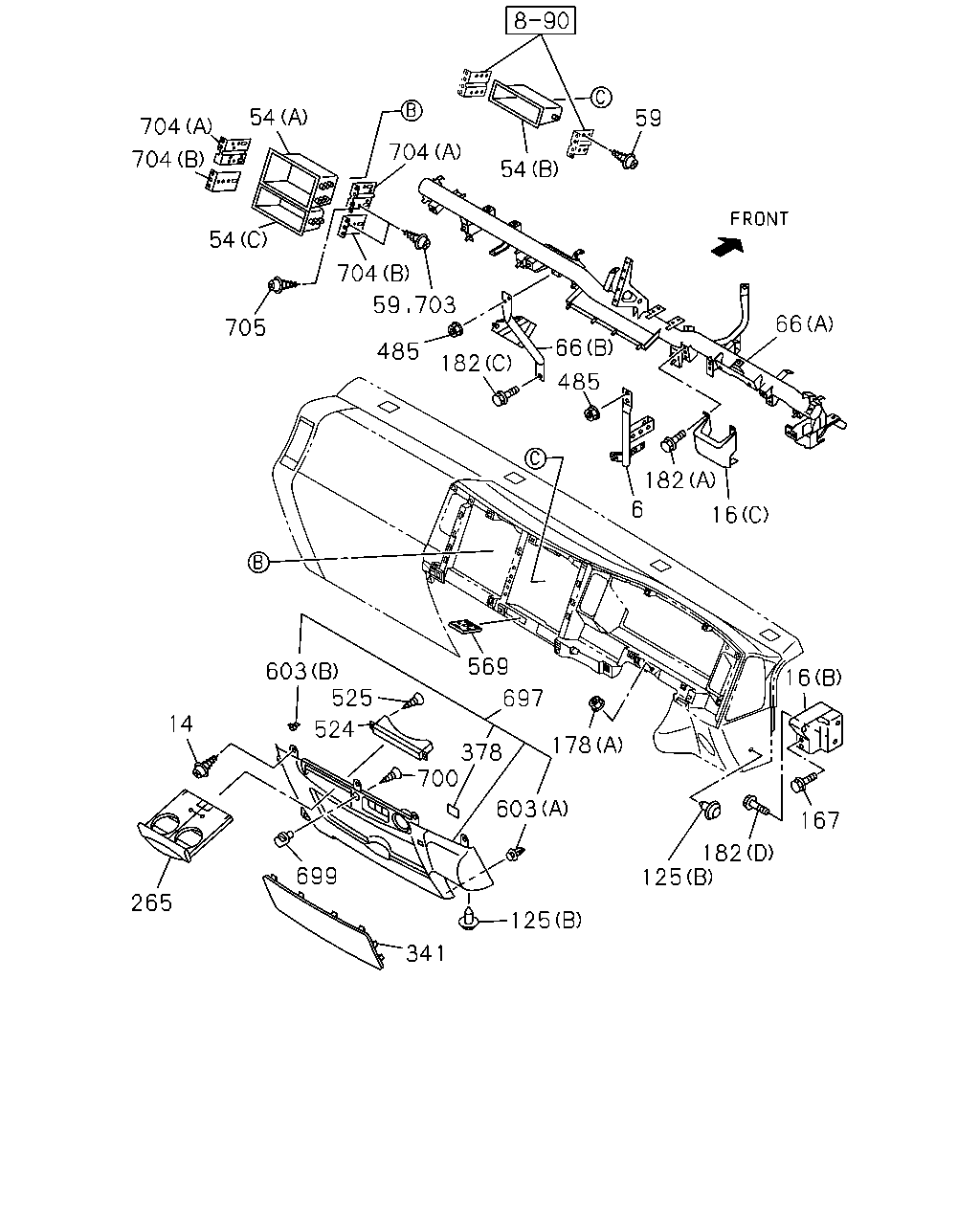

çizim 142930
59 54 704 54 704 704 54 705 704 59 703 485 66 182 485 66 182 6 16 16 167 182 125 125 178 697 569 603 525 524 378 700 603 699 265 14 341
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0808-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0808-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0808-
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0808-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0808-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0808-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0808-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0808-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0808-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0808-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0808-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0808-0909
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 0910-
66 REINFORCEMENT; INST PANEL
(A) 		8-98009-970-9 01 1 0808-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98170-401-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-605-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0808-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0808-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0808-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0808-
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 0808-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER THA 		0-52000-612-0 03 1 0808-1010
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1011-1111
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0808-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0808-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 0808-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0808-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0808-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 0808-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0808-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0808-
569 HOLDER; CARD 8-97410-276-1 01 1 0808-
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 0808-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0808-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0808-
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0808-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0808-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0808-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0808-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0808-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0808-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0808-
