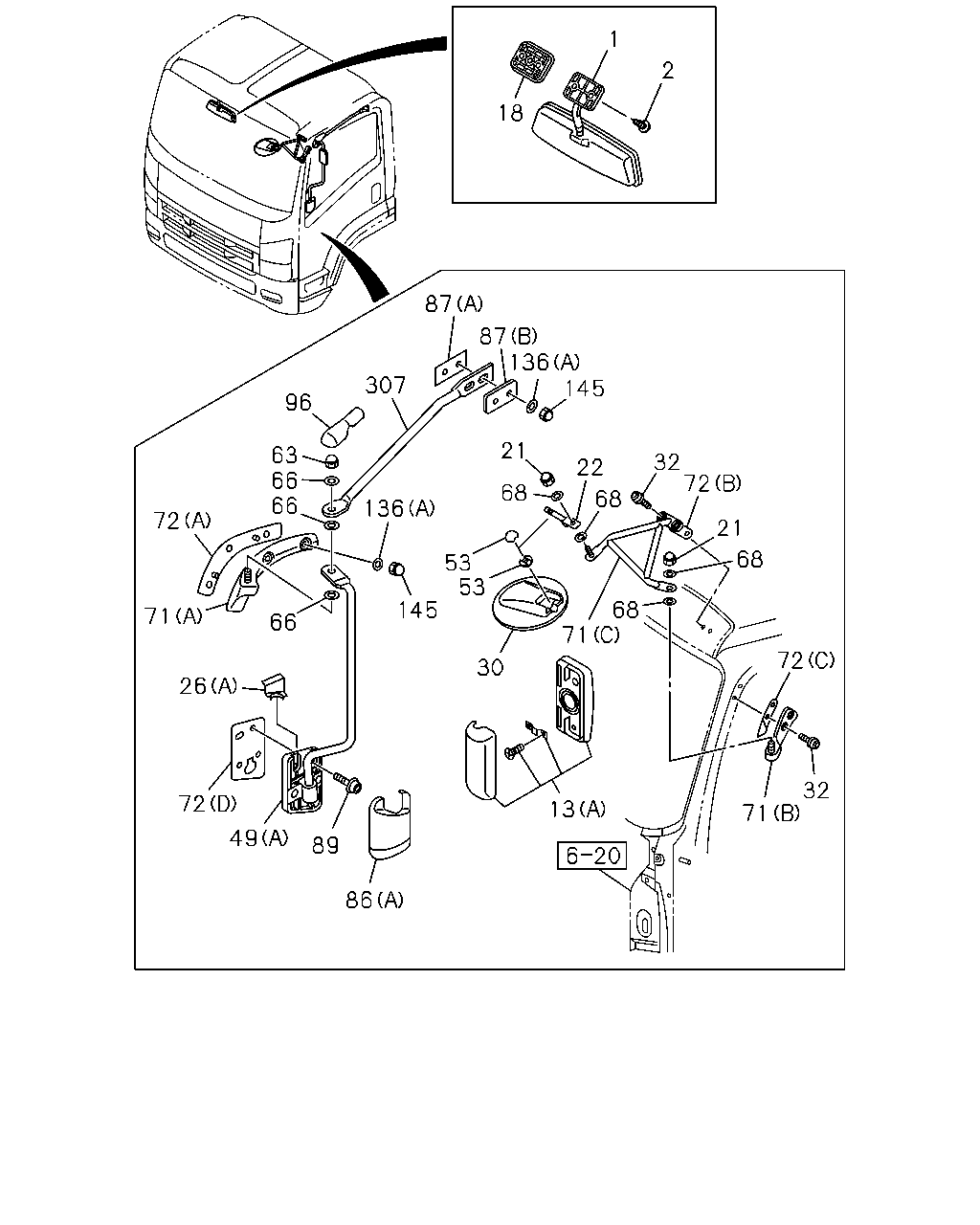

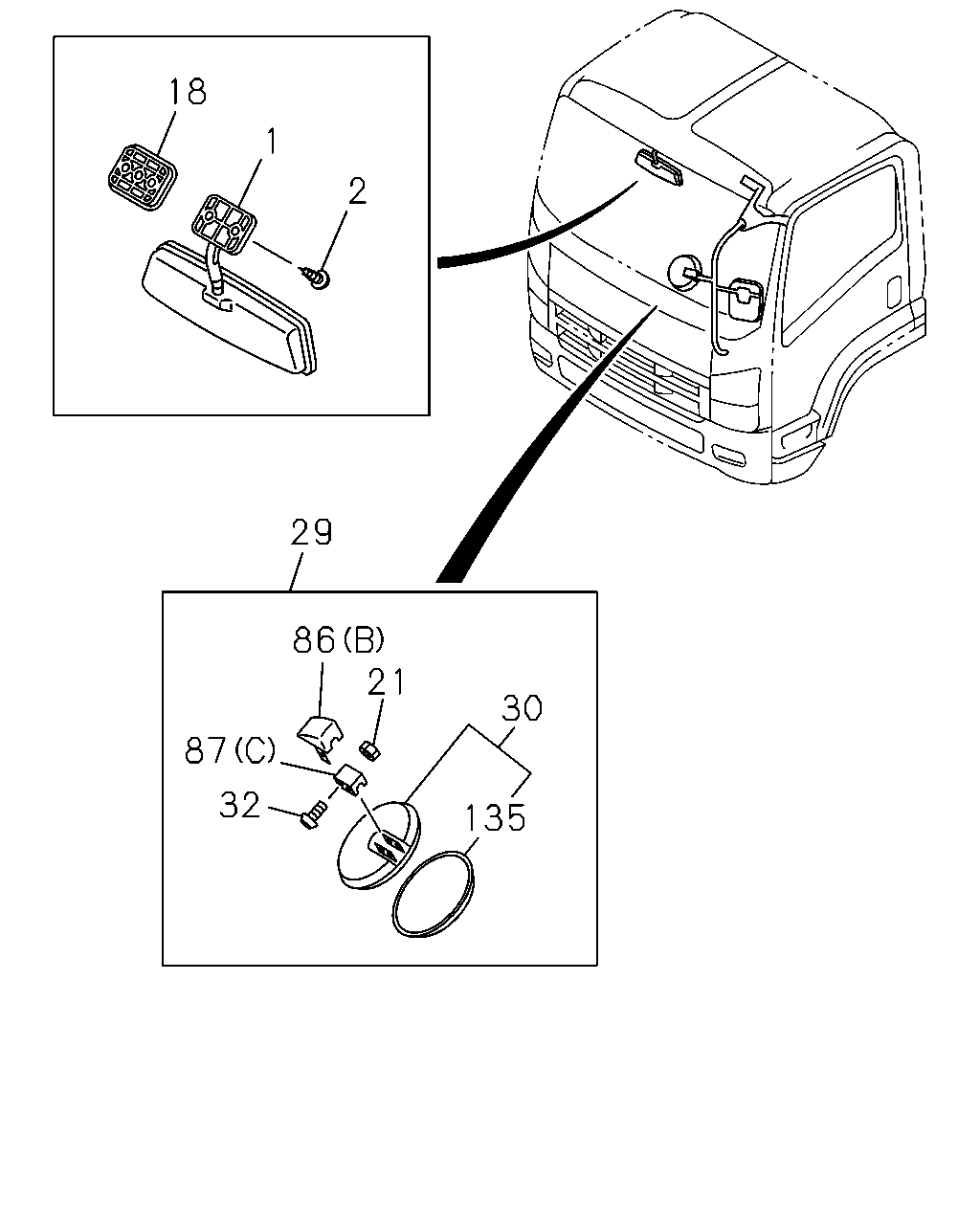

1 |
MIRROR; ROOM
THA
|
8-97924-058-2 |
01 |
1 |
0808- |
| |
2 |
SCREW; MIRROR TO BODY
M6X26
|
8-98033-674-0 |
02 |
1 |
0808- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
1-71737-917-3 |
01 |
1 |
1004-1102 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(C)
|
1-71737-917-3 |
01 |
1 |
1103- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
1-71737-918-3 |
01 |
1 |
1004-1102 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(C)
|
1-71737-918-3 |
01 |
1 |
1103- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
8-98028-332-0 |
01 |
1 |
1004-1102 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
8-98104-068-0 |
01 |
1 |
1004-1102 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(A)
|
8-98055-991-1 |
01 |
1 |
0808-1003 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98055-991-1 |
01 |
1 |
1004-1102 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
(A)
|
8-98055-992-1 |
01 |
1 |
0808-1003 |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98055-992-1 |
01 |
1 |
1004-1102 |
| |
18 |
CLIP; MIRROR
DARK GRAY
|
8-97408-241-0 |
01 |
1 |
0808- |
| |
21 |
NUT; MIRROR
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0808-1003 |
| |
21 |
NUT; MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1004-1102 |
| |
21 |
NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M5
|
1-09984-124-0 |
04 |
1 |
1004-1102 |
| |
21 |
NUT; MIRROR
M5
|
1-09984-124-0 |
04 |
1 |
1103- |
| |
21 |
NUT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M5
|
1-09984-124-0 |
02 |
1 |
1004-1102 |
| |
21 |
NUT; MIRROR
M5
|
1-09984-124-0 |
02 |
1 |
1103- |
| |
22 |
STAY; OUTSIDE MIRROR
|
8-98092-493-0 |
01 |
1 |
0808-1003 |
| |
22 |
STAY; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
|
8-98092-493-0 |
01 |
1 |
1004-1102 |
| |
26 |
COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
1-71707-221-0 |
01 |
1 |
1004-1102 |
| |
26 |
COVER; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
1-71707-222-0 |
01 |
1 |
1004-1102 |
| |
26 |
COVER; OUTSIDE MIRROR
(A)
|
8-98031-805-0 |
01 |
1 |
0808-1003 |
| |
26 |
COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-805-0 |
01 |
1 |
1004-1102 |
| |
26 |
COVER; OUTSIDE MIRROR
(A)
|
8-98031-806-0 |
01 |
1 |
0808-1003 |
| |
26 |
COVER; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-806-0 |
01 |
1 |
1004-1102 |
| |
30 |
MIRROR; UNDER
|
8-98055-994-0 |
01 |
1 |
0808-1003 |
| |
30 |
MIRROR; UNDER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
|
8-98055-994-0 |
01 |
1 |
1004-1102 |
| |
30 |
MIRROR; UNDER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
|
1-71798-591-1 |
01 |
1 |
1004-1102 |
| |
30 |
MIRROR; UNDER
|
1-71798-591-1 |
01 |
1 |
1103- |
| |
32 |
SCREW; UNDER MIRROR
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
0808-1003 |
| |
32 |
SCREW; UNDER MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
1004-1102 |
| |
32 |
SCREW; UNDER MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
1004-1102 |
| |
32 |
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
|
1-71737-797-0 |
02 |
1 |
1103- |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(A)
|
8-98067-514-1 |
01 |
1 |
0808-1102 |
| |
49 |
STAY; MIRROR SIDE
MIR O/S RR VIEW LONG ARM<DH2>
(A)
|
8-98067-515-1 |
01 |
1 |
0808-1102 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(A)
|
8-98060-215-1 |
01 |
1 |
0808-1102 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
(A)
|
8-98060-216-1 |
01 |
1 |
0808-1102 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
|
8-98075-060-1 |
01 |
1 |
0808-1102 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
(A)
|
8-98075-061-1 |
01 |
1 |
0808-1102 |
| |
49 |
STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98170-679-0 |
01 |
1 |
1004-1102 |
| |
49 |
STAY; MIRROR SIDE
(C)
|
8-98170-679-0 |
01 |
1 |
1103-1502 |
| |
49 |
STAY; MIRROR SIDE
(C)
|
8-98305-763-0 |
01 |
1 |
1503- |
| |
49 |
STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98170-680-0 |
01 |
1 |
1004-1102 |
| |
49 |
STAY; MIRROR SIDE
(C)
|
8-98170-680-0 |
01 |
1 |
1103- |
| |
49 |
STAY; MIRROR SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
8-98091-477-0 |
01 |
1 |
1004-1102 |
| |
53 |
PIVOT; SIDE MIRROR
ID=19.1
THA
|
1-71737-633-2 |
02 |
1 |
0808-1003 |
| |
53 |
PIVOT; SIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
ID=19.1
THA
|
1-71737-633-2 |
02 |
1 |
1004-1102 |
| |
53 |
PIVOT; SIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
ID=22.2
|
1-71736-489-2 |
04 |
1 |
1004-1102 |
| |
53 |
PIVOT; SIDE MIRROR
ID=22.2
|
1-71736-489-2 |
04 |
1 |
1103- |
| |
63 |
NUT; STAY
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
0808-1003 |
| |
63 |
NUT; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1004-1102 |
| |
63 |
NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M14 CAP NUT
|
8-98041-311-1 |
01 |
1 |
1004-1005 |
| |
63 |
NUT; STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
MIRROR O/S RR VIEW<D37>
M14 TOUGH LOCK NUT W/FLANGE
|
8-98174-339-0 |
01 |
1 |
1006-1102 |
| |
63 |
NUT; STAY
M14 TOUGH LOCK NUT W/FLANGE
|
8-98174-339-0 |
01 |
1 |
1103- |
| |
66 |
WASHER; PL
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
0808-1003 |
| |
66 |
WASHER; PL
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1004-1102 |
| |
66 |
WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
MIRROR O/S RR VIEW<D37>
UPPER
|
8-98174-337-0 |
01 |
1 |
1006-1102 |
| |
66 |
WASHER; PL
UPPER
|
8-98174-337-0 |
01 |
1 |
1103-1112 |
| |
66 |
WASHER; PL
UPPER
|
8-98201-756-0 |
01 |
1 |
1201- |
| |
66 |
WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
UPPER
ID=14.5 OD=30
|
9-09851-946-0 |
02 |
1 |
1004-1005 |
| |
66 |
WASHER; PL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
MIRROR O/S RR VIEW<D37>
LOWER
|
0-91610-614-0 |
01 |
1 |
1006-1102 |
| |
66 |
WASHER; PL
LOWER
|
0-91610-614-0 |
01 |
1 |
1103- |
| |
68 |
WASHER; STAY
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
0808-1003 |
| |
68 |
WASHER; STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
0808-1003 |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-793-2 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
0808-1003 |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-794-2 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(B)
|
8-98060-240-0 |
01 |
1 |
0808-1003 |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
8-98060-240-0 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
8-98092-492-3 |
01 |
1 |
0808-1003 |
| |
71 |
BRACKET; OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98092-492-3 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(D)
|
1-71707-224-0 |
04 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(G)
|
8-98040-021-0 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(G)
|
8-98040-021-0 |
01 |
1 |
1103- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(E)
|
8-98040-022-1 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(E)
|
8-98040-022-1 |
01 |
1 |
1103- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(F)
|
8-98040-543-1 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(F)
|
8-98040-543-1 |
01 |
1 |
1103- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
MIRROR O/S RR VIEW<D37>
(H)
|
8-98040-544-2 |
01 |
1 |
1004-1102 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(H)
|
8-98040-544-2 |
01 |
1 |
1103-1112 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(H)
|
8-98201-957-0 |
01 |
1 |
1201- |
| |
72 |
SHEET
(D)
|
8-98116-604-0 |
01 |
1 |
0808-1102 |
| |
72 |
SHEET
(D)
|
8-98116-605-0 |
01 |
1 |
0808-1102 |
| |
72 |
SHEET
(A)
|
8-98031-796-0 |
01 |
1 |
0808-1003 |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-796-0 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
(A)
|
8-98031-797-0 |
01 |
1 |
0808-1003 |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-797-0 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
(B)
|
8-98060-245-1 |
01 |
1 |
0808-1003 |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
8-98060-245-1 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
(C)
|
8-98064-776-0 |
01 |
1 |
0808-1003 |
| |
72 |
SHEET
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98064-776-0 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(E)
|
8-98040-351-0 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
(E)
|
8-98040-351-0 |
01 |
1 |
1103- |
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(F)
|
8-98040-353-1 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
(F)
|
8-98040-353-1 |
01 |
1 |
1103- |
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(G)
|
8-98040-535-0 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
(G)
|
8-98040-535-0 |
01 |
1 |
1103- |
| |
72 |
SHEET
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(H)
|
8-98040-537-1 |
01 |
1 |
1004-1102 |
| |
72 |
SHEET
(H)
|
8-98040-537-1 |
01 |
1 |
1103- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(A)
|
8-98031-802-2 |
01 |
1 |
0808-1003 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-802-2 |
01 |
1 |
1004-1102 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(A)
|
8-98031-803-2 |
01 |
1 |
0808-1003 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98031-803-2 |
01 |
1 |
1004-1102 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(F)
BLACK
|
1-71737-760-1 |
02 |
1 |
1004-1102 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(F)
BLACK
|
1-71737-760-1 |
02 |
1 |
1103- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
1004-1102 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(B)
BLACK
|
1-71737-649-1 |
01 |
1 |
1103- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(E)
|
8-98040-541-1 |
01 |
1 |
1004-1102 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(E)
|
8-98040-541-1 |
01 |
1 |
1103- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
8-98040-545-1 |
01 |
1 |
1004-1102 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(C)
|
8-98040-545-1 |
01 |
1 |
1103- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(D)
|
8-98040-546-1 |
01 |
1 |
1004-1102 |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
(D)
|
8-98040-546-1 |
01 |
1 |
1103- |
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
0808-1003 |
| |
87 |
SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
|
8-98063-786-0 |
02 |
1 |
1004-1102 |
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
0808-1003 |
| |
87 |
SPACER
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
|
8-98063-789-0 |
02 |
1 |
1004-1102 |
| |
87 |
SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(D)
|
1-71737-704-0 |
02 |
1 |
1004-1102 |
| |
87 |
SPACER
(D)
|
1-71737-704-0 |
02 |
1 |
1103- |
| |
87 |
SPACER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
|
1-71737-646-2 |
01 |
1 |
1004-1102 |
| |
87 |
SPACER
(C)
|
1-71737-646-2 |
01 |
1 |
1103- |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
M8X23
|
8-97310-216-1 |
08 |
1 |
0808-1003 |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M8X23
|
8-97310-216-1 |
08 |
1 |
1004-1102 |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M8X26 W/PL WASHER
|
8-98067-249-2 |
10 |
1 |
1004-1102 |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER
|
8-98067-249-2 |
10 |
1 |
1103- |
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
0808-1003 |
| |
96 |
CAP; MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
|
8-98080-173-0 |
02 |
1 |
1004-1102 |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
0808-1003 |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(A)
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1004-1102 |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(D)
ID=10
|
1-09985-180-0 |
01 |
1 |
1004-1102 |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(D)
ID=10
|
1-09985-180-0 |
01 |
1 |
1103- |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
02 |
1 |
1004-1102 |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(B)
ID=10.5 OD=26 T=2.6
|
1-09985-184-0 |
02 |
1 |
1103- |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
(C)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
1004-1102 |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
(C)
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
1103- |
| |
145 |
NUT; CAP,SUB STAY
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
0808-1003 |
| |
145 |
NUT; CAP,SUB STAY
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1004-1102 |
| |
145 |
NUT; CAP,SUB STAY
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
M10 CAP NUT
|
1-09984-134-0 |
03 |
1 |
1004-1102 |
| |
145 |
NUT; CAP,SUB STAY
M10 CAP NUT
|
1-09984-134-0 |
03 |
1 |
1103- |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
0808-1003 |
| |
307 |
STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
|
8-98063-784-2 |
01 |
1 |
1004-1102 |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
0808-1003 |
| |
307 |
STAY; MIRROR SUPPORT
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>
|
8-98063-785-2 |
01 |
1 |
1004-1102 |
