Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

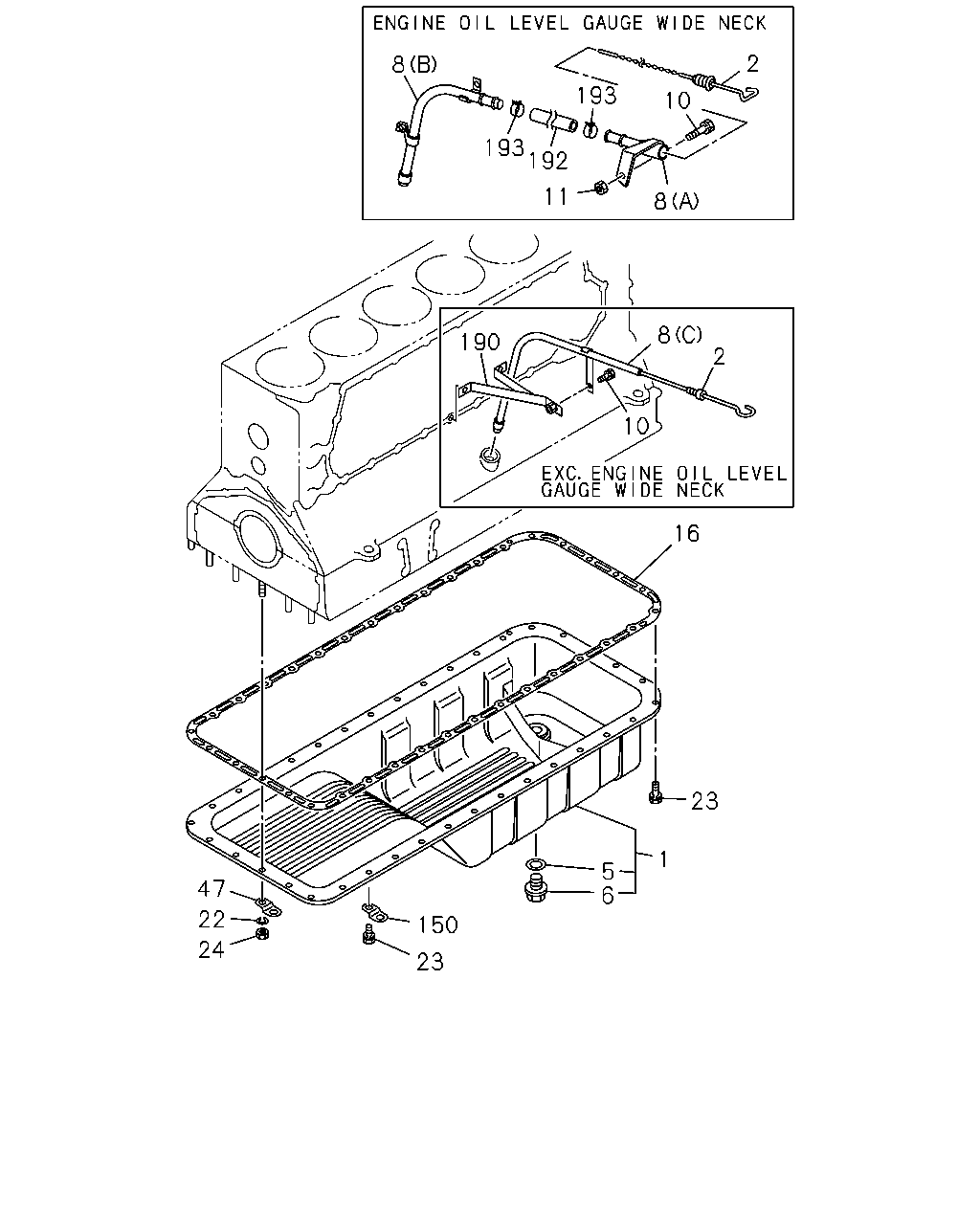

0-13 — OIL PAN AND LEVEL GAUGE
(#1377) — 23 parça
Tümü
A - 6SA1TC ENG
B - 6SA1 STD ENG
◀
[013A] NO.2 (1 parça)
[013A] NO.1 (22 parça)
▶
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
255
STAY; OIL FILLER
CAB BACK OIL FILLER<E2J>
1-22131-617-1
01
1
9203-
●
2
8
193
10
193
192
11
8
8
190
2
10
16
23
1
5
6
47
22
150
24
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
1-11360-635-2
01
1
9203-
●
1
PAN ASM; OIL
EXC. AUSTRALIA EQUIPMENT(RR3)
1-11360-635-2
01
1
9203-
●
1
PAN ASM; OIL
AUSTRALIA EQUIPMENT(RR3)
1-11360-742-1
01
1
9203-
●
2
GAUGE; OIL LEVEL
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>
1-11760-328-0
01
1
9203-
●
●
2
GAUGE; OIL LEVEL
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9>
1-11760-358-1
01
1
9203-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-179-0
01
1
9203-
●
●
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-064-1
01
1
9203-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)
1-11766-403-0
01
1
9203-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A)
1-11766-411-0
01
1
9203-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C)
1-11766-380-0
01
1
9203-
●
●
10
BOLT; GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X25 W/LK WASHER
0-50041-025-0
01
1
9203-
●
●
10
BOLT; GUIDE TUBE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X25 W/LK&PL WASHER
0-50140-825-0
01
1
9203-
●
●
11
NUT; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE
0-91150-110-0
01
1
9203-
●
●
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-050-1
01
1
9203-
●
●
22
WASHER; LK,OIL PAN
ID=8.2
9-09150-508-0
06
1
9203-
●
●
23
BOLT; OIL PAN
M8X20 W/LK WASHER
0-50040-820-0
30
1
9203-
●
●
24
NUT; OIL PAN
M8
9-09110-408-0
06
1
9203-
●
●
47
CLIP; HOSE,AIR BREATHER
1-11229-014-0
01
1
9203-
●
150
CLIP; WATER,OIL DRAIN
9-11229-070-0
02
1
9203-
●
●
190
STAY; OIL LEVEL GAUGE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=192.8
1-11769-139-0
01
1
9203-
●
●
192
HOSE; GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=350 SERVICED BY L=3000
0-02361-300-0
01
1
9203-
●
●
193
CLIP; HOSE,GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=17
1-09707-158-0
02
1
9203-
●
●
