◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#13764) — 155 parça

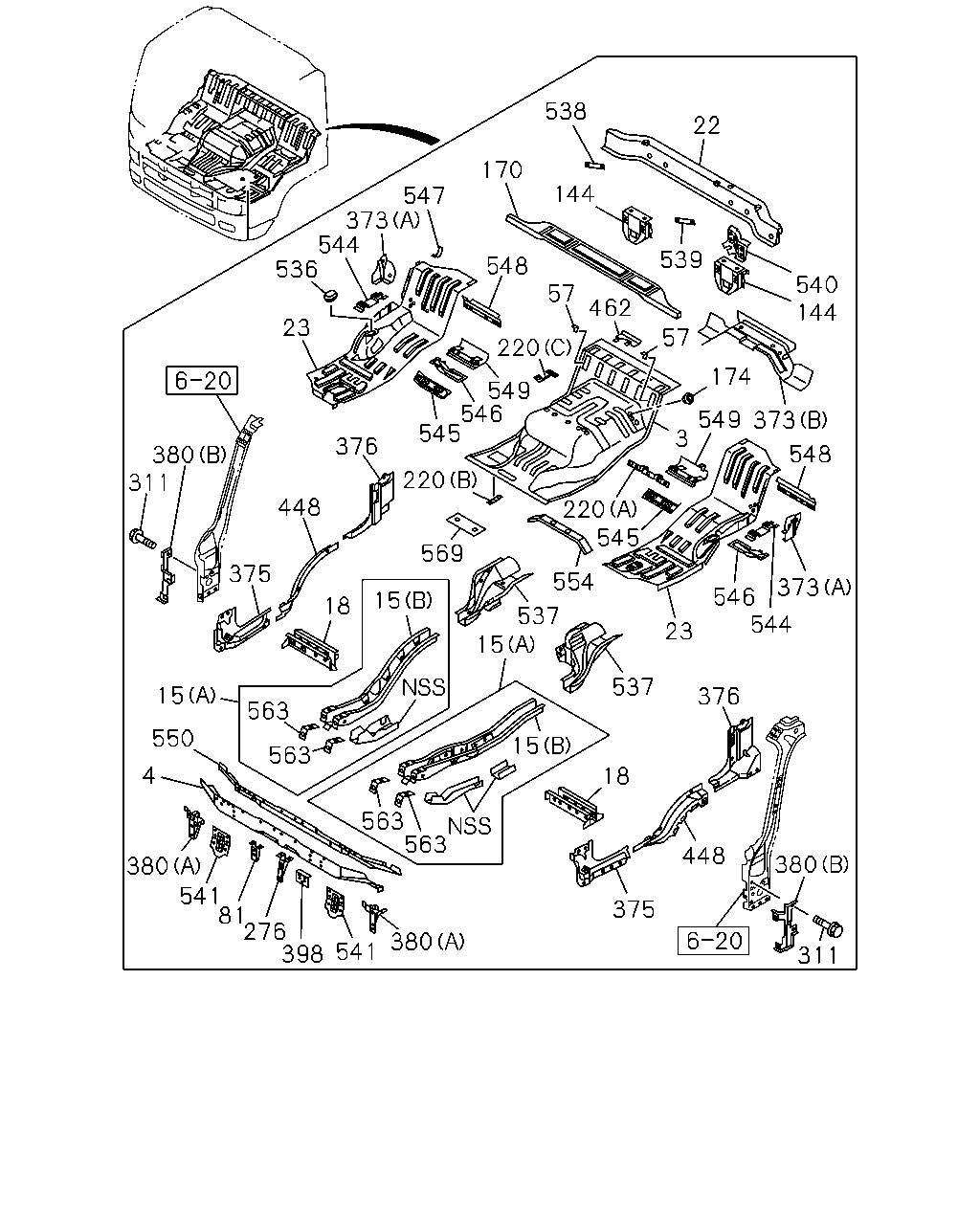

çizim 142916
538 22 170 144 547 373 544 536 539 548 540 144 57 462 23 57 220 174 549 546 545 549 373 3 376 548 380 311 220 448 220 545 569 375 554 373 546 544 15 18 537 15 23 537 15 376 563 550 563 15 4 18 563 563 448 380 380 541 81 276 398 375 380 541 311
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-97584-343-9 01 1 0808-1211
3 HOOD ASM; ENG
THA 		8-98167-035-0 01 1 1212-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1311-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1212-1309
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0808-1211
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1310-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1310-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1310-
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 1310-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1212-1309
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1212-1309
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 1212-1309
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0808-1211
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0808-1309
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0808-1211
15 FRAME; UNDER
(B) THA 		8-97584-412-6 01 1 0808-1211
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1311-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1311-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-4 01 1 1212-1309
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1212-1309
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-4 01 1 0808-1211
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0808-1211
22 FRAME; FLOOR REAR
THA 		8-97584-430-5 01 1 1311-
22 FRAME; FLOOR REAR
THA 		8-97584-430-5 01 1 1212-1309
22 FRAME; FLOOR REAR
THA 		8-97584-430-5 01 1 0808-1211
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 1311-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1311-
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 1212-1309
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1212-1309
23 PANEL; FLOOR,SIDE
THA 		8-97584-371-7 01 1 0808-1211
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0808-1211
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1311-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1212-1309
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0808-1211
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1311-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1212-1309
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0808-1211
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1311-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1311-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1212-1309
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1212-1309
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0808-1211
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0808-1211
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1311-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1212-1309
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 0808-1211
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0808-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1310-
220 PATCH
(B) THA 		8-97589-603-3 01 1 1310-
220 PATCH
(A) THA 		8-97588-840-4 01 1 1212-1309
220 PATCH
(B) THA 		8-97589-603-3 01 1 1212-1309
220 PATCH
(C) 		8-97589-627-2 01 1 1212-1306
220 PATCH
(A) THA 		8-97588-840-4 01 1 0808-1211
220 PATCH
(B) THA 		8-97589-603-3 01 1 0808-0912
220 PATCH
(B) THA 		8-97589-603-3 01 1 1001-1211
220 PATCH
(C) 		8-97589-627-2 01 1 0808-1211
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1311-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1212-1309
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0808-1211
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 0808-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 1212-1309
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1212-1309
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1212-1309
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-97584-345-9 01 1 0808-1211
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0808-1211
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0808-1211
375 CLOSING; PILLAR 8-98044-897-3 01 1 1311-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1311-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1212-1309
375 CLOSING; PILLAR 8-98044-898-3 01 1 1212-1309
375 CLOSING; PILLAR 8-98044-897-3 01 1 0808-1211
375 CLOSING; PILLAR 8-98044-898-3 01 1 0808-1211
376 CLOSING; PILLAR,LWR
THA 		8-97589-553-1 01 1 1311-
376 CLOSING; PILLAR,LWR
THA 		8-97589-555-1 01 1 1311-
376 CLOSING; PILLAR,LWR
THA 		8-97589-553-1 01 1 1212-1309
376 CLOSING; PILLAR,LWR
THA 		8-97589-555-1 01 1 1212-1309
376 CLOSING; PILLAR,LWR
THA 		8-97589-553-1 01 1 0808-1211
376 CLOSING; PILLAR,LWR
THA 		8-97589-555-1 01 1 0808-1211
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0808-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0808-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 0808-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 0808-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1306-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0808-1306
448 CLOSING; ROCKER 8-97589-551-2 01 1 1311-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1311-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1212-1309
448 CLOSING; ROCKER 8-97589-552-2 01 1 1212-1309
448 CLOSING; ROCKER 8-97589-551-2 01 1 0808-1211
448 CLOSING; ROCKER 8-97589-552-2 01 1 0808-1211
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0808-1004
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0808-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1311-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1311-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1212-1309
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1212-1309
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 0808-1211
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 0808-1211
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1311-
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 1212-1309
538 REINFORCEMENT ASM; AIR INT DUCT
THA 		8-97610-207-2 01 1 0808-1211
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1311-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1212-1309
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0808-1211
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1311-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1212-1309
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0808-1211
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1311-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1212-1309
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0808-1211
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1311-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1311-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1212-1309
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1212-1309
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0808-1211
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0808-1211
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1311-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1311-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1212-1309
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1212-1309
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 0808-1211
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0808-1211
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1311-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1212-1309
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0808-1211
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1311-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1212-1309
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0808-1211
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1311-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1311-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1212-1309
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1212-1309
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0808-1211
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0808-1211
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1311-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1311-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1212-1309
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1212-1309
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0808-1211
549 BRACKET; SEAT RR 8-97589-557-4 01 1 0808-1211
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1311-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1212-1309
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0808-1211
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1311-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1212-1309
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0808-1211
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1311-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1212-1309
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0808-1211
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1311-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 1212-1309
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-359-1 01 1 0808-1211
