◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#13755) — 77 parça

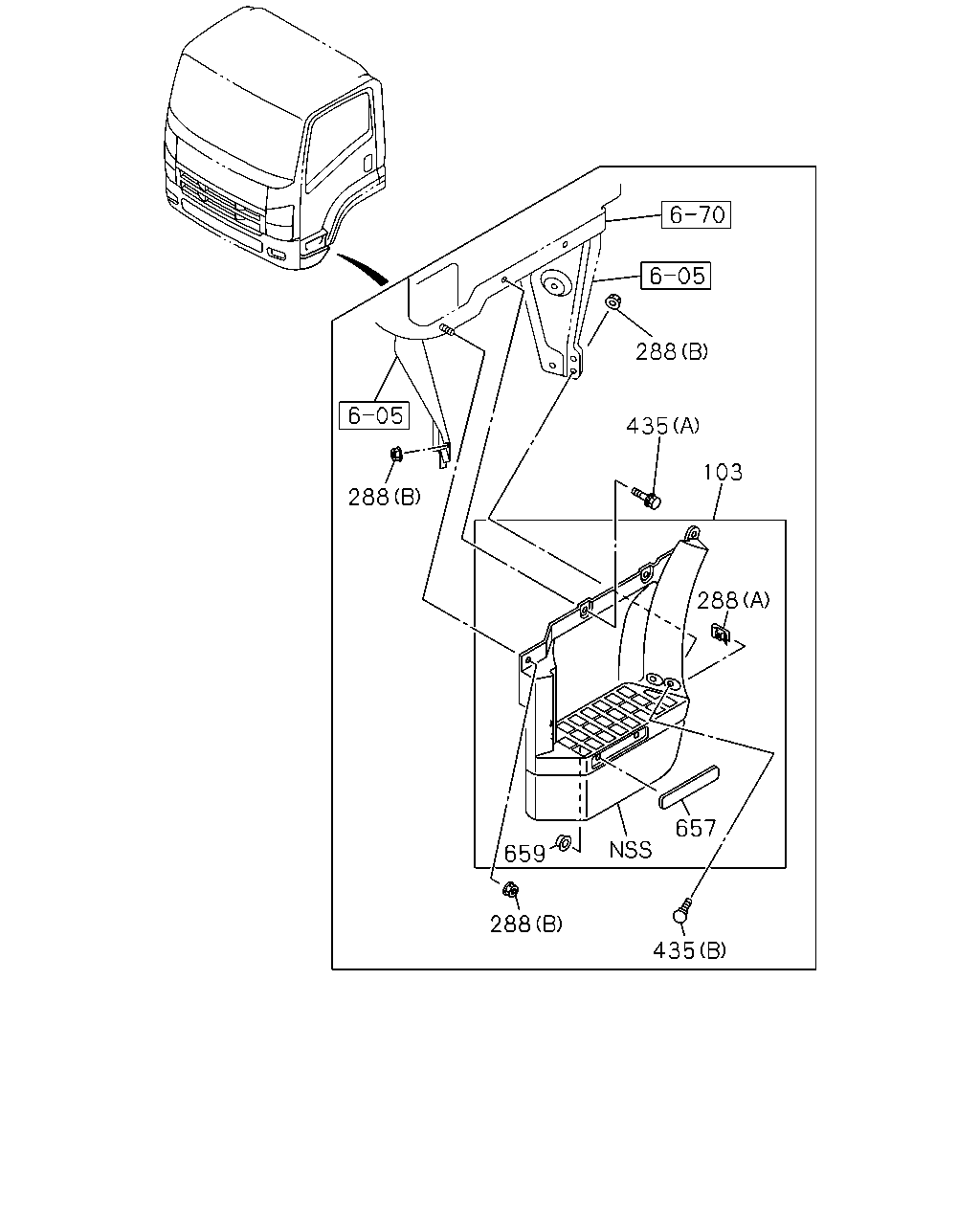

çizim 142876
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-327-3 01 1 0808-
103 PLATE; STEP 8-98037-329-3 01 1 0808-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0808-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 0808-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0808-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0808-
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0808-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0808-

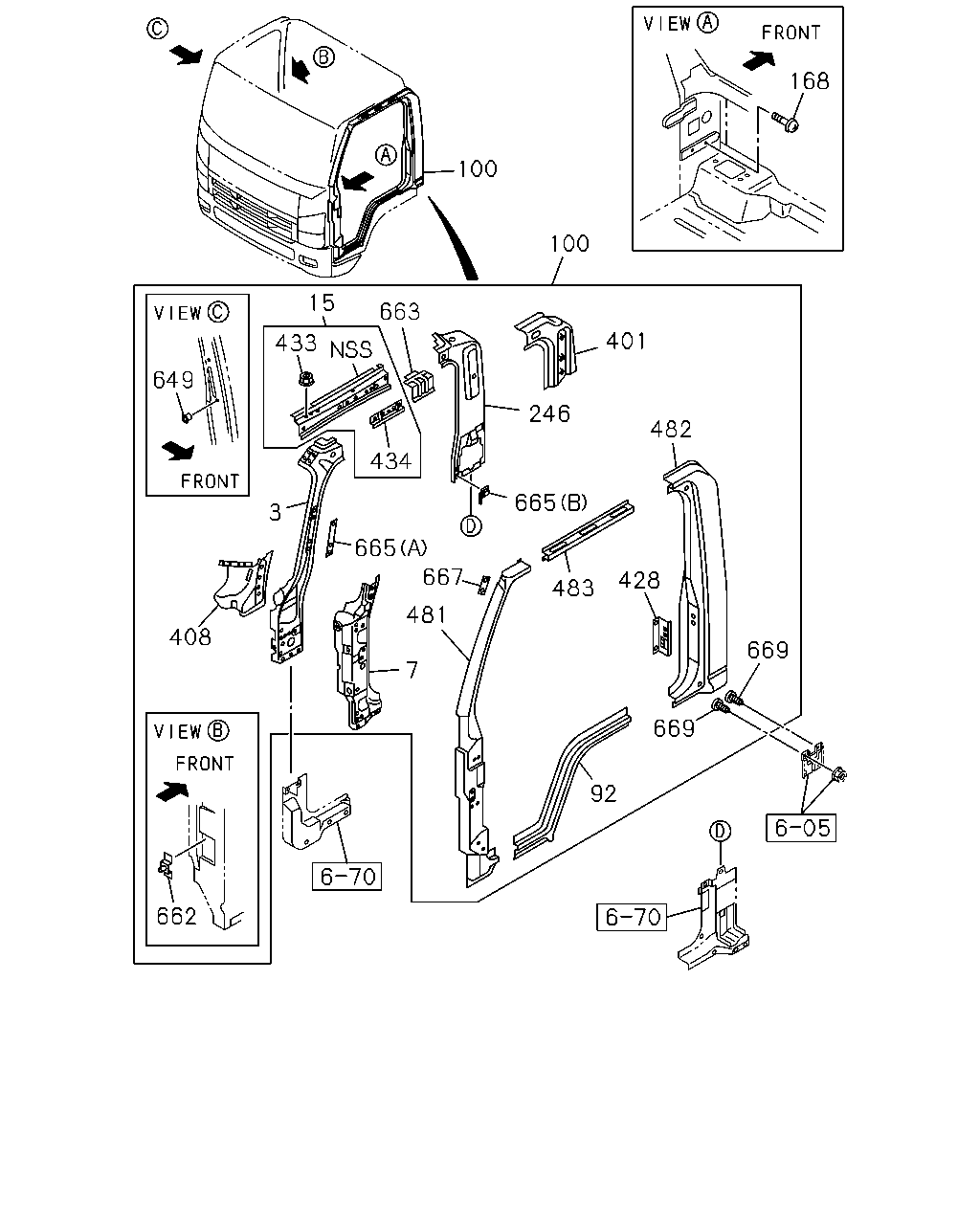

çizim 142884
168 100 100 15 663 401 433 649 246 482 434 665 3 665 667 428 483 481 408 669 7 669 92 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1310-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1310-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0808-1309
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0808-1309
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 0808-1309
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1310-
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 0808-1309
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1310-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1310-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1310-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 0808-1309
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 0808-1309
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0808-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0808-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-028-6 01 1 1004-1102
100 PANEL ASM; BODY SIDE 8-97586-028-6 01 1 1103-1309
100 PANEL ASM; BODY SIDE
THA 		8-97948-560-2 01 1 1310-
100 PANEL ASM; BODY SIDE 8-97586-046-7 01 1 0808-1309
100 PANEL ASM; BODY SIDE
THA 		8-97948-574-2 01 1 1310-
100 PANEL ASM; BODY SIDE 8-98044-541-5 01 1 0808-1003
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98044-541-5 01 1 1004-1102
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 0808-
246 PANEL; RR PILLAR,INNER
THA 		8-97585-301-3 01 1 0808-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-154-3 01 1 0808-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98315-129-0 01 1 1509-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98316-101-0 01 1 1509-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97585-303-2 01 1 0808-1508
401 PATCH; CLOSING,FRT PILLAR
THA 		8-98065-791-0 01 1 0808-1508
408 GUSSET; PILLAR 8-97586-193-3 01 1 1310-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1310-
408 GUSSET; PILLAR 8-97586-193-3 01 1 0808-1309
408 GUSSET; PILLAR 8-97586-194-2 01 1 0808-1309
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1310-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0808-1309
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0808-1309
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 04 1 0808-
434 PATCH; ASSIST GRIP
THA 		8-98039-019-0 01 1 0808-
434 PATCH; ASSIST GRIP
THA 		8-98039-020-0 01 1 0808-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1004-1102
481 PANEL; SIDE FRT PILLAR 8-98055-471-0 01 1 1103-
481 PANEL; SIDE FRT PILLAR 8-98055-453-0 01 1 0808-
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 0808-1003
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1004-1102
482 PANEL; SIDE RR PILLAR 8-98055-466-1 01 1 0808-
482 PANEL; SIDE RR PILLAR 8-98055-467-1 01 1 0808-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0808-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0808-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1310-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 0808-1309
662 BRACKET; DUCT
THA 		8-97948-248-0 01 1 1310-
662 BRACKET; DUCT 8-97584-611-1 01 1 0808-1309
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1310-
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1310-
663 BRACKET; AIR 8-97585-208-2 01 1 1002-1309
663 BRACKET; AIR 8-97585-207-2 01 1 0808-1001
663 BRACKET; AIR 8-97585-208-2 01 1 1001-1001
663 BRACKET; AIR 8-97585-207-2 01 1 1002-1309
663 BRACKET; AIR 8-97585-208-2 01 1 0808-0912
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 0808-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 0808-
667 BRACKET; MIRROR 8-98109-948-0 03 1 1310-
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1004-1102
667 BRACKET; MIRROR 8-98109-948-0 02 1 1103-1106
667 BRACKET; MIRROR 8-98109-948-0 03 1 1107-1309
667 BRACKET; MIRROR 8-98109-948-0 01 1 0808-1106
669 STUD; FENDER
M6X18 		8-98013-113-1 04 1 1310-
669 STUD; FENDER
M6X18 		8-98013-113-1 04 1 0808-1309
