◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#13753) — 165 parça

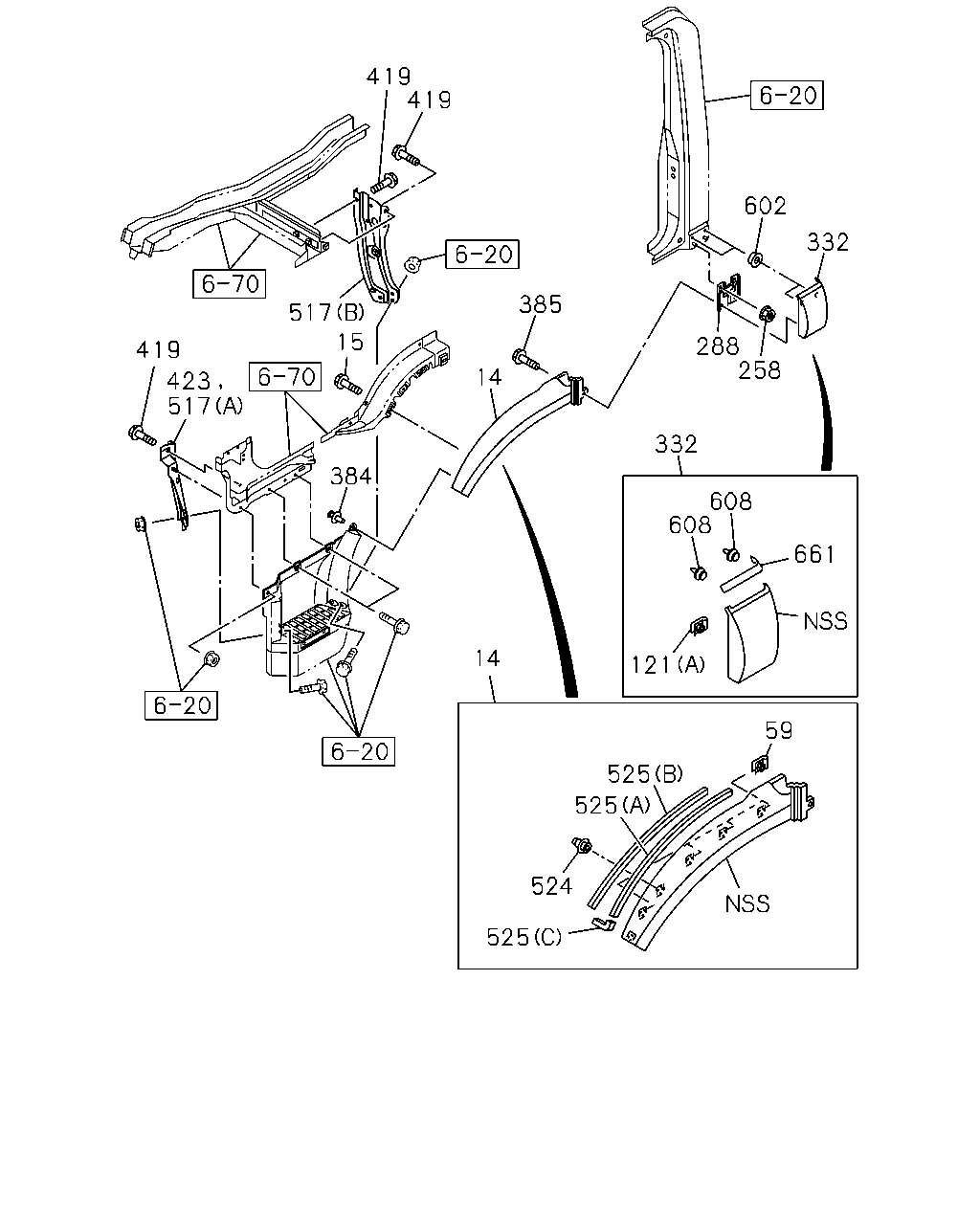

çizim 142880
59 525 525 524 525 661 608 608 121 332 258 288 602 385 332 419 419 517 419 15 14 14 384 423 517
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 8-98041-398-3 01 1 0808-0808
14 FENDER; FRT
THA 		8-98132-739-0 01 1 0809-
14 FENDER; FRT 8-98041-399-3 01 1 0808-0808
14 FENDER; FRT
THA 		8-98132-740-0 01 1 0809-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0808-
59 GROMMET; SCREW
THA 		8-94279-723-0 02 1 0808-
59 GROMMET; SCREW
THA 		8-94279-723-0 08 1 0808-0808
59 GROMMET; SCREW
THA 		8-94279-723-0 06 1 0809-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0808-
121 GROMMET; FENDER
(A) THA 		8-94279-723-0 02 1 0808-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0808-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0808-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0808-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0808-
258 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 04 1 0808-
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 0808-
332 FENDER; RR
WHITE THA 		8-97413-425-0 01 1 0808-
332 FENDER; RR
WHITE THA 		8-97413-426-0 01 1 0808-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0808-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 0808-
419 BOLT; STEP
M8X20 FLANGE THA 		0-28650-820-0 08 1 0808-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1310-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1310-
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 0808-1309
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 0808-1309
517 SUPPORT; STEP PANEL
(B) 		8-98037-338-2 01 1 0808-
517 SUPPORT; STEP PANEL
(B) 		8-98037-339-2 01 1 0808-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0808-
525 SEAL; FENDER
(A) 		8-98061-760-0 02 1 0808-
525 SEAL; FENDER
(B) 		8-98061-761-0 02 1 0808-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0808-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 04 1 0808-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1303-
608 CLIP
D5.4X8 THA 		1-09983-154-0 04 1 0808-
661 FINISHER; FENDER RR 8-98041-171-1 01 1 0808-
661 FINISHER; FENDER RR 8-98072-722-0 01 1 0808-

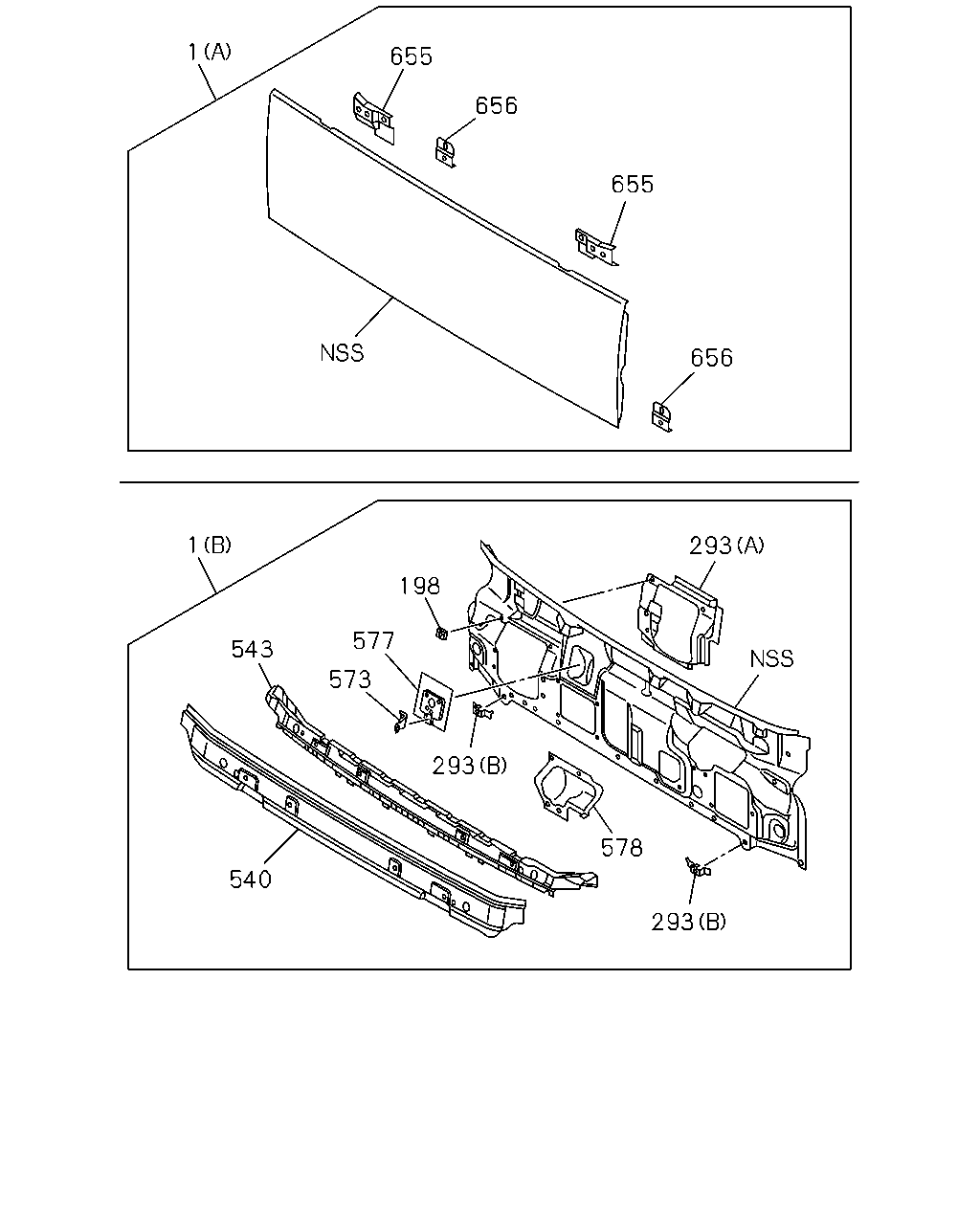

çizim 142890
655 656 655 656 1 293 198 577 543 573 293 578 540 293 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0808-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-931-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0808-
198 NUT; PANEL
M6 THA 		9-09114-086-0 02 1 0808-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0808-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0808-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 0808-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 0808-
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 0808-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 0808-
577 BRACKET; IDLER 8-97586-019-1 01 1 0808-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 0808-
655 PATCH; HINGE 8-98031-263-0 01 1 1103-
655 PATCH; HINGE 8-98031-264-0 01 1 1103-
655 PATCH; HINGE 8-98031-263-0 01 1 0808-1102
655 PATCH; HINGE 8-98031-264-0 01 1 0808-1102
656 PATCH; STRIKER 8-98031-265-0 02 1 1103-
656 PATCH; STRIKER 8-98031-265-0 02 1 0808-1102

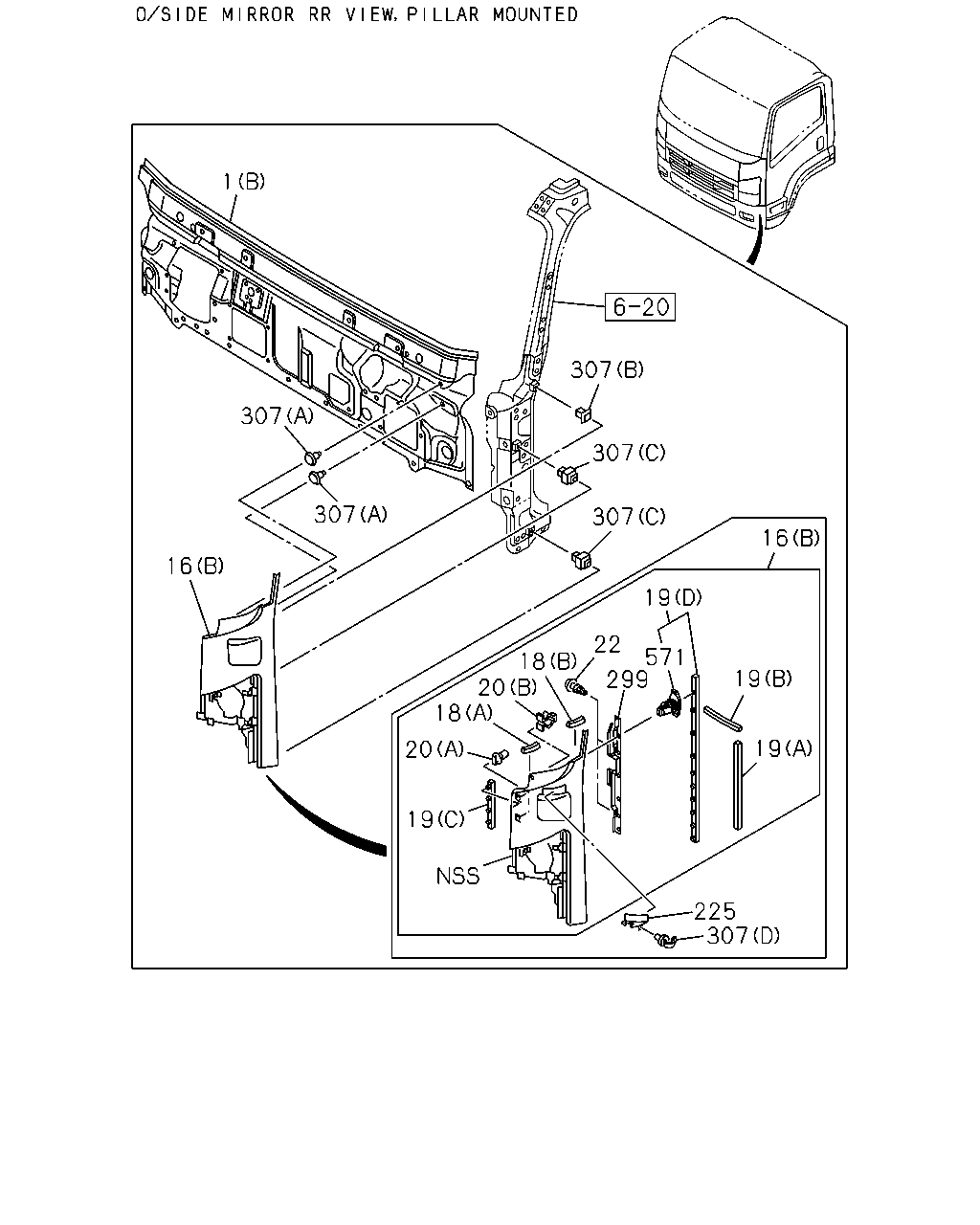

çizim 142894
1 307 307 307 307 307 16 16 19 22 571 299 18 20 18 19 19 20 19 225 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0808-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-931-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0808-
16 PANEL; FRONT,SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE THA 		8-97421-186-5 01 1 1004-1102
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-186-5 01 1 1103-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-419-4 01 1 0808-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-420-4 01 1 0808-1003
16 PANEL; FRONT,SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE THA 		8-97413-420-4 01 1 1004-1102
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0808-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0808-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 02 1 0808-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 0808-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 0808-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 0808-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 0808-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 02 1 0808-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0808-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0808-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0808-
225 COVER; SIDE,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-431-1 01 1 1004-1102
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1103-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0808-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0808-
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1004-1102
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1103-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0808-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0808-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0808-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0808-

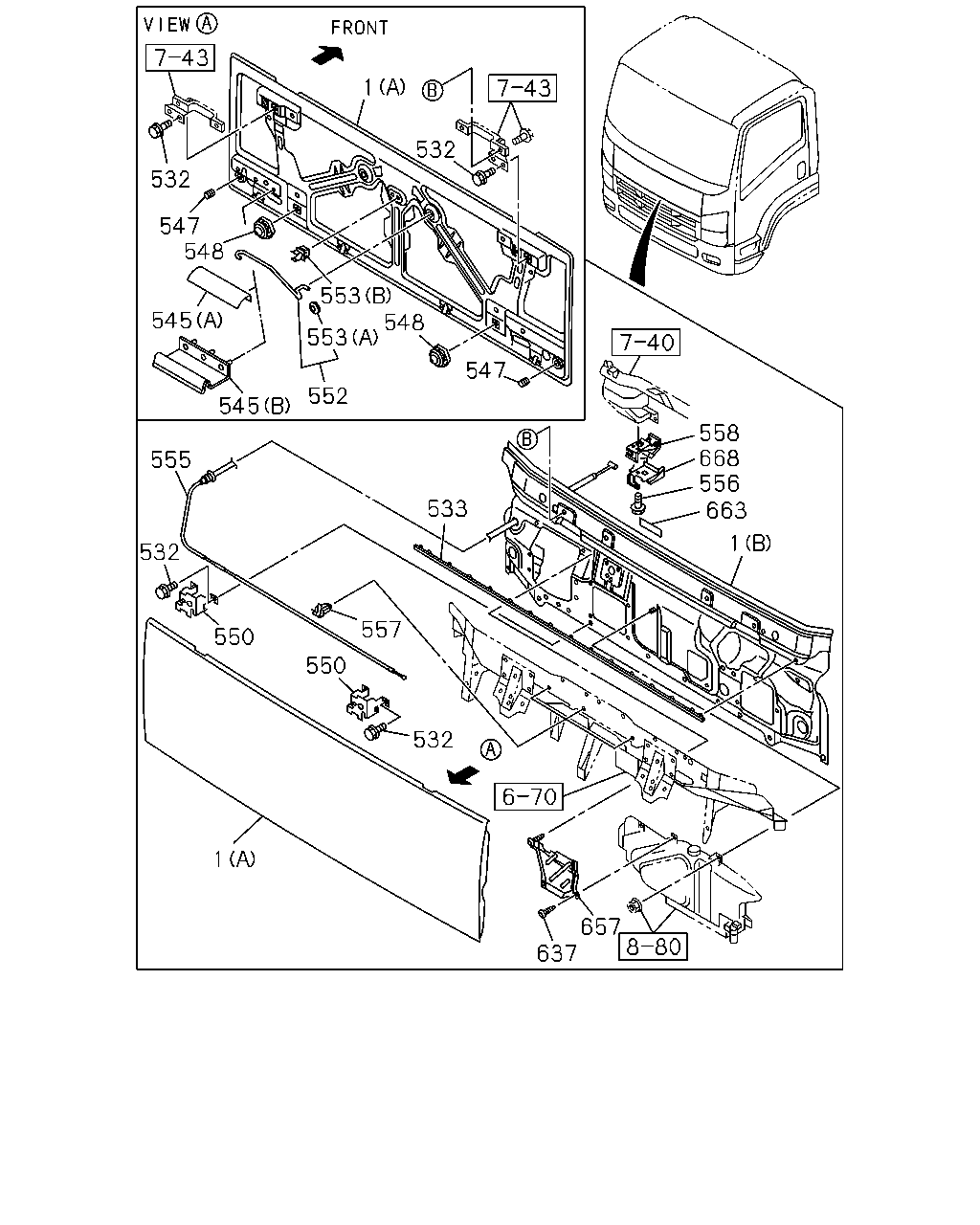

çizim 142895
1 532 532 547 548 553 548 545 553 547 552 545 558 668 556 663 555 533 1 532 557 550 550 532 1 657 637
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0808-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-931-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0808-
532 BOLT; FRT PANEL
M8X20 FLANGE THA 		0-28650-820-0 08 1 0808-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 0808-
533 SEAL; FRT PANEL
THA 		8-97926-492-0 01 1 1301-
545 SEAL; FRT LID
(B) THA 		8-97926-488-0 01 1 1301-
545 SEAL; FRT LID
(A) 		8-98036-583-0 01 1 0808-0910
545 SEAL; FRT LID
(B) 		8-98123-264-0 01 1 0911-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0808-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0808-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0808-
552 STAY; FRT LID 8-98089-836-0 01 1 0808-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0808-
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 0808-
555 CABLE; FRT LID 8-98036-573-1 01 1 0808-
556 BOLT; CABLE
M6X16 FLANGE THA 		0-28650-616-0 01 1 0808-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0808-
558 LEVER; FRT LID 1-79338-007-1 01 1 0808-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 0808-
657 COVER; WIPER IDLER 8-98060-908-0 01 1 0808-
663 TAPE; PROTECT
275X11 		8-98070-053-1 01 1 0808-0910
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 0808-

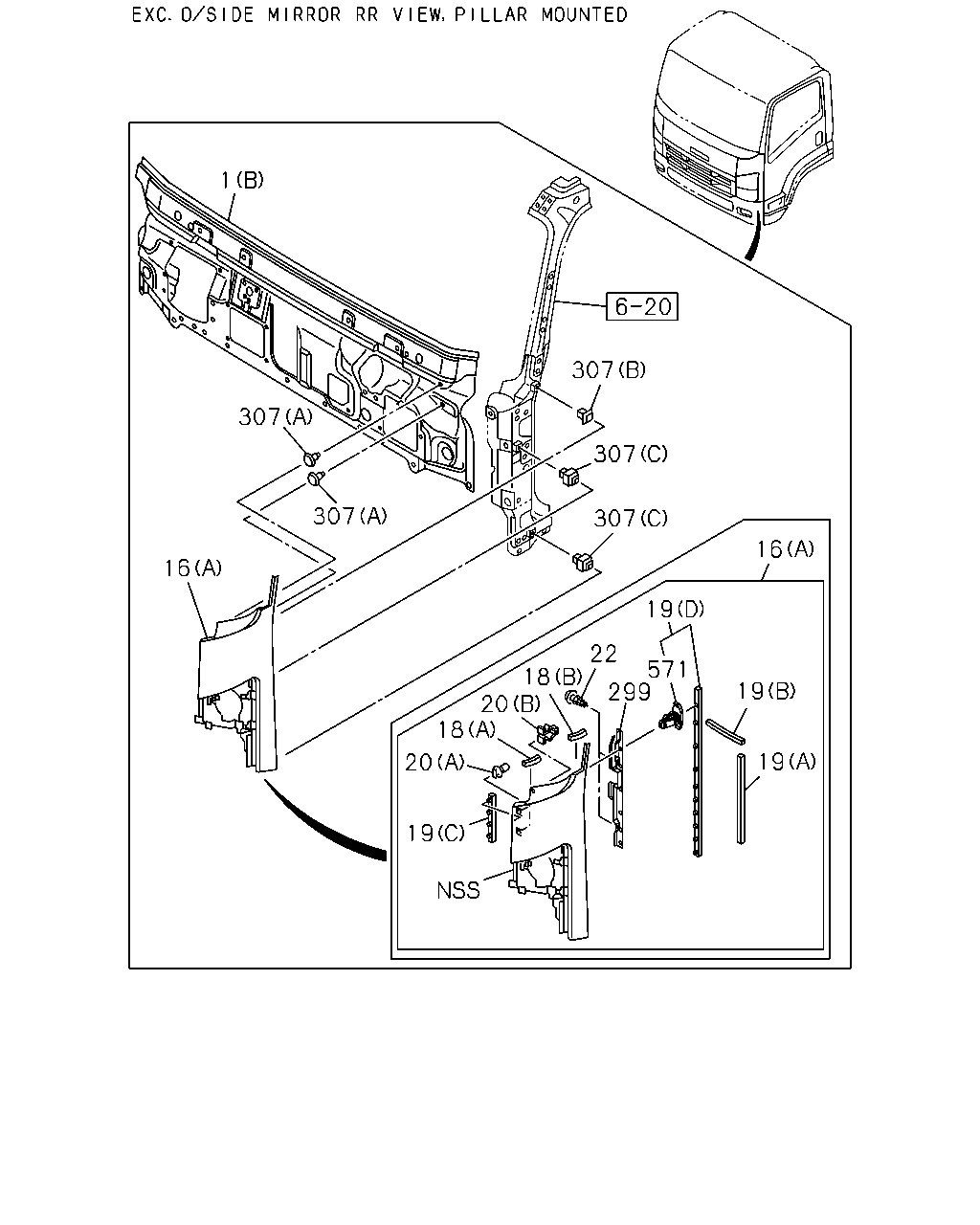

çizim 142899
1 307 307 307 307 307 16 16 19 22 18 20 18 571 299 19 19 20 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 0808-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-931-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0808-
16 PANEL; FRONT,SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE THA 		8-97421-186-5 01 1 1004-1102
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-186-5 01 1 1103-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-419-4 01 1 0808-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97413-420-4 01 1 0808-1003
16 PANEL; FRONT,SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE THA 		8-97413-420-4 01 1 1004-1102
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0808-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0808-
19 SEAL; FRT SIDE PANEL
(B) 		8-98035-268-0 02 1 0808-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 0808-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 0808-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 0808-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 0808-
19 SEAL; FRT SIDE PANEL
(A) 		8-98062-215-0 02 1 0808-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0808-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0808-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0808-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0808-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0808-
307 GROMMET; FRT PANEL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 1004-1102
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1103-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0808-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0808-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0808-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0808-

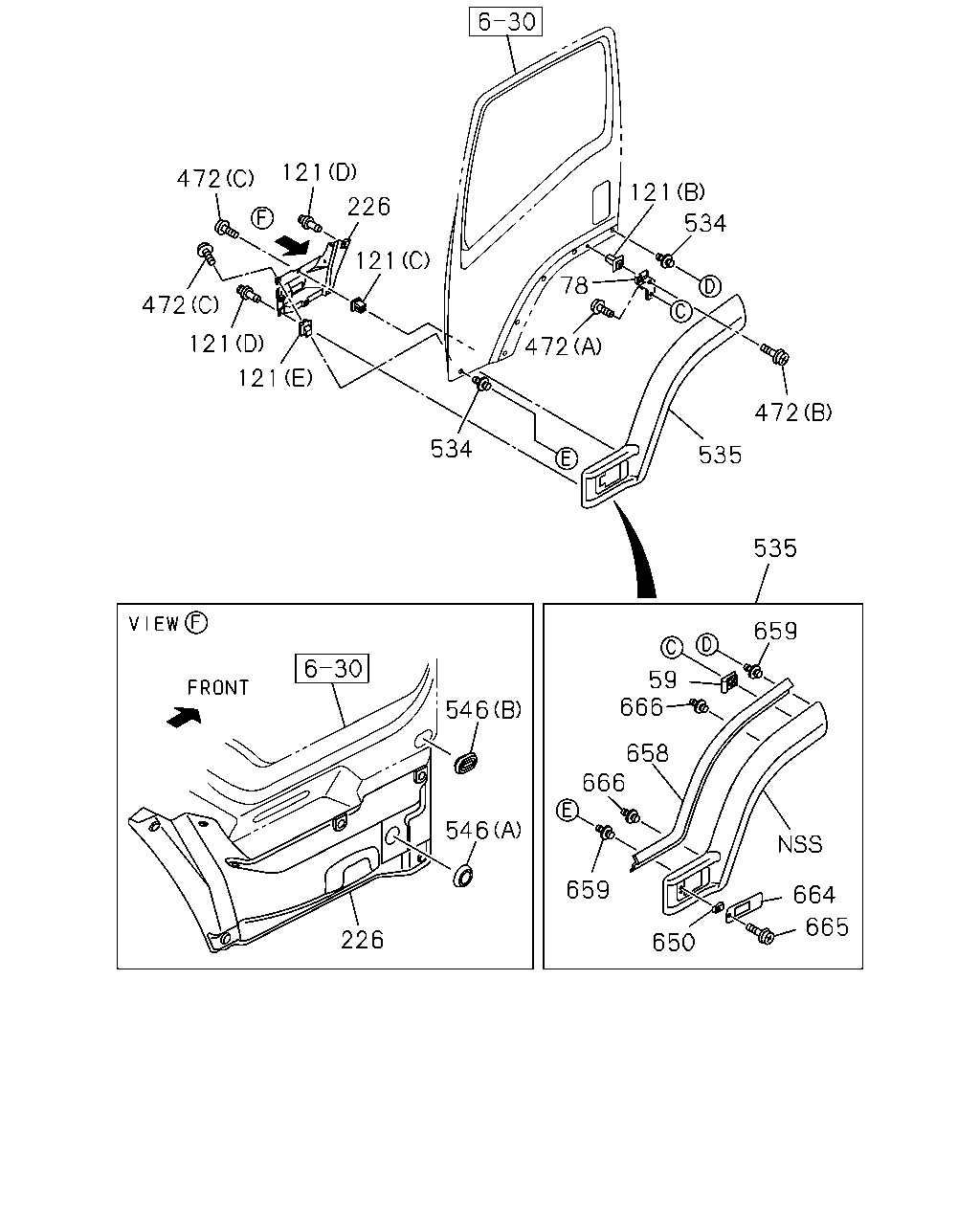

çizim 143007
121 472 121 226 534 121 78 472 472 121 121 472 534 535 535 659 59 666 546 658 666 546 659 664 665 226 650
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
THA 		8-94279-723-0 02 1 0808-
59 GROMMET; SCREW
THA 		8-94279-723-0 08 1 0808-0808
59 GROMMET; SCREW
THA 		8-94279-723-0 06 1 0809-
78 BRACKET; FENDER 8-98041-165-1 01 1 0808-
78 BRACKET; FENDER 8-98041-166-1 01 1 0808-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0808-
121 GROMMET; FENDER
(A) THA 		8-94279-723-0 02 1 0808-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0808-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0808-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0808-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0808-
226 PROTECTOR; FRT 8-98037-712-2 01 1 0808-
226 PROTECTOR; FRT 8-98037-713-2 01 1 0808-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0808-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0808-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0808-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0808-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
WHITE THA 		8-97415-327-1 01 1 0808-
535 FENDER; BLISTER
WHITE THA 		8-97415-347-1 01 1 0808-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0808-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0808-
650 NUT; SPIRE
THA 		8-94279-501-0 02 1 0808-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0808-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0808-
659 CLIP; FENDER
D5.4X8 THA 		1-09983-154-0 08 1 0808-
664 BASE; DOOR,SIDE TURN
WHITE 		8-97413-442-1 01 1 0808-1007
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-529-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
WHITE 		8-97413-444-1 01 1 0808-1007
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-557-0 01 1 1008-
665 SCREW; FENDER
M6X20 W/PL WASHER THA 		0-36210-620-0 02 1 0808-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0808-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
