5-01 — FRAME AND OTHER PARTS (#13746) — 106 parça

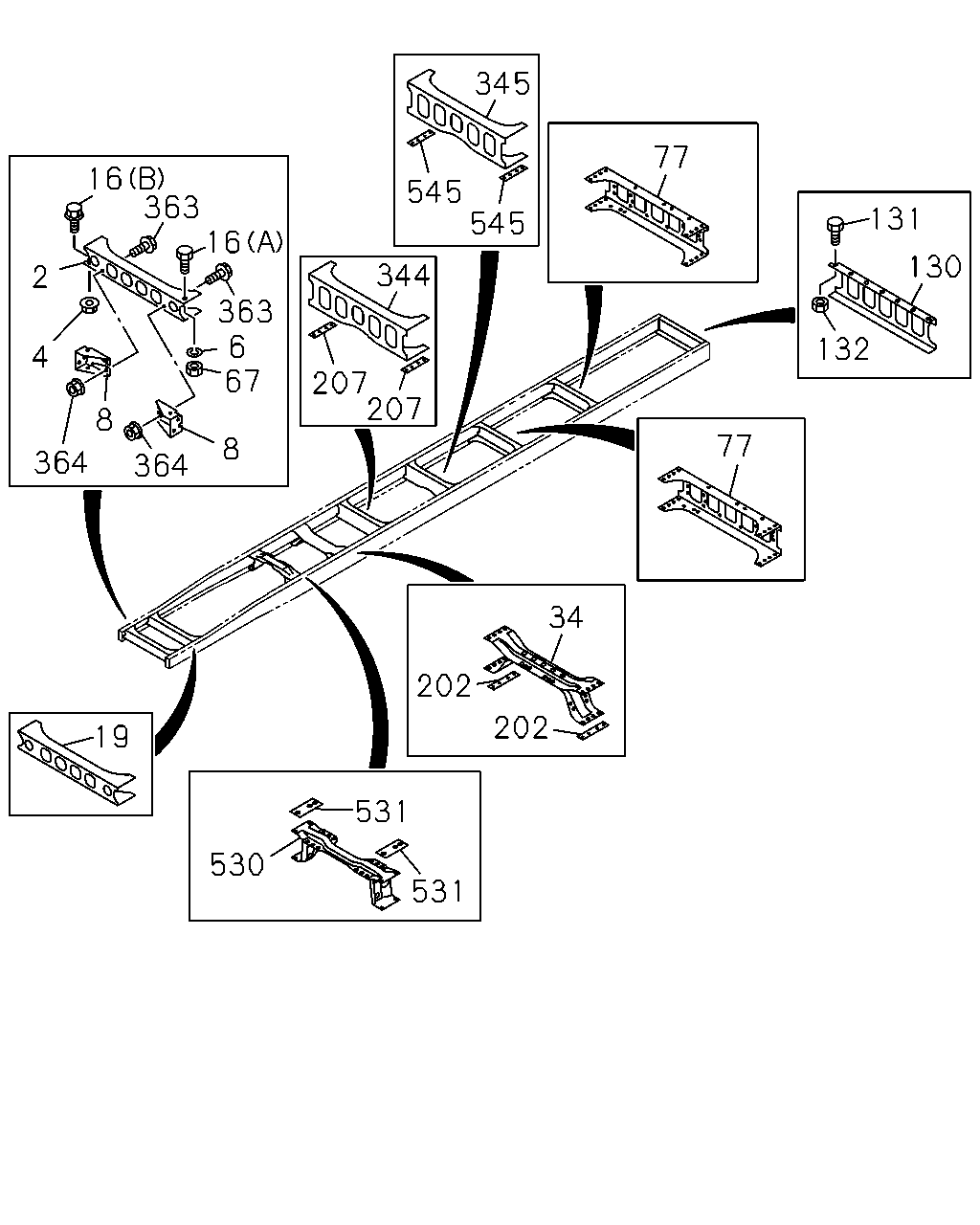

çizim 142867
345 77 16 363 16 545 545 131 130 344 2 363 6 67 132 4 207 207 8 77 8 364 364 34 202 202 19 531 530 531
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 0808- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 FLANGE THA 		0-91180-214-0 02 1 0808- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0808- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 0808- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 0808- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X35 FLANGE 		0-28851-435-0 02 1 0808- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 THA 		0-20851-230-0 02 1 0808- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0808- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0808- ● ● ●
67 NUT; C/MBR
M12 THA 		0-91110-512-0 02 1 0808- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 0808- ● ● ●
130 MEMBER; CROSS,END
THA 		8-97924-239-0 01 1 0808- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER THA 		0-50541-025-0 04 1 0808- ● ● ●
132 NUT; END C/MBR
M10 THA 		0-91110-510-0 04 1 0808- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0808- ● ● ●
207 SPACER; 4TH C/MBR
THA 		8-97609-758-0 02 1 0808- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0808- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0808- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0808- ●
363 BOLT; GUSSET
M12X25 FLANGE THA 		0-28661-225-0 04 1 0808- ● ● ●
364 NUT; GUSSET
M12 FLANGE THA 		0-91180-212-0 04 1 0808- ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T<RSZ> 		8-97609-809-3 01 1 1001- ● ● ●
530 MEMBER; CROSS,T/M 8-97627-753-0 01 1 0808-0912 ● ● ●
530 MEMBER; CROSS,T/M
MLD6S M/T<X7W> 		8-97627-753-0 01 1 1001-1102 ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T<RSA> 		8-97609-814-1 01 1 1103- ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T<RSA> 		8-97637-078-0 02 1 1103- ● ● ●
531 SPACER; C/MBR,T/M
THA 		8-97616-461-1 02 1 0808-1102 ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T<RSZ> THA 		8-97616-461-1 02 1 1103- ● ● ●
545 SPACER; 5TH C/MBR
THA 		8-97609-758-0 02 1 0808- ●

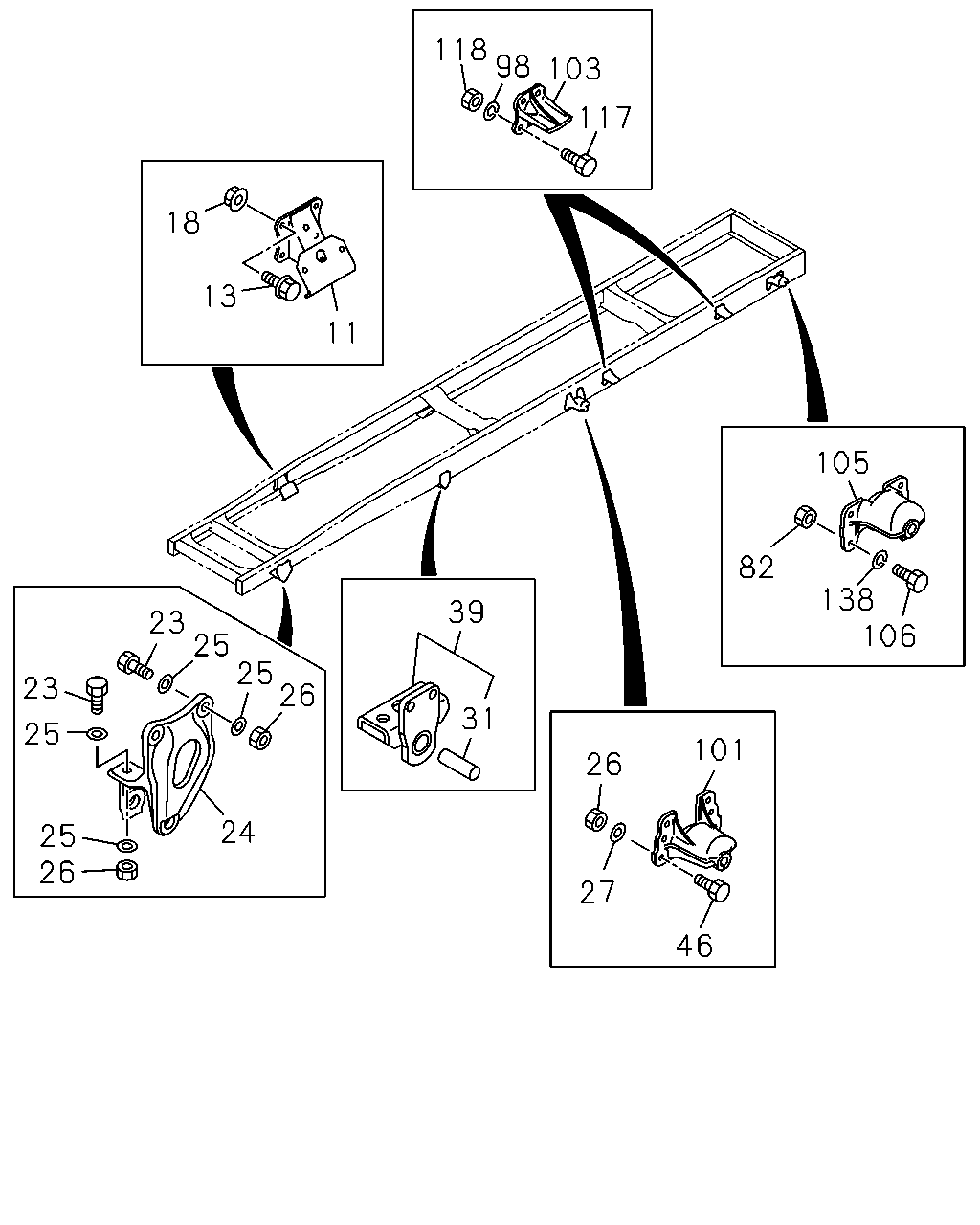

çizim 142868
118 98 103 117 18 13 11 105 82 138 106 39 23 25 25 26 23 31 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
THA 		8-97924-152-1 02 1 0808- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE THA 		0-28661-235-0 08 1 0808- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE THA 		0-91180-212-0 08 1 0808- ● ● ●
23 BOLT; BRKT,SPR
M14X50 THA 		0-20951-450-0 08 1 0808- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0808- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0808- ● ● ●
25 WASHER; PL,BRKT
ID=15 THA 		8-98010-627-1 16 1 0808- ● ● ●
26 NUT; BRKT,SPR
M14 THA 		0-91110-514-0 20 1 0808- ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-814-0 12 1 0808- ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0808- ● ● ●
39 BRACKET; FRT SPR,RR
THA 		8-97924-566-0 02 1 0808- ● ● ●
46 BOLT; BRKT FIX
M14X50 THA 		0-20951-450-0 12 1 0808- ● ● ●
82 NUT; BRKT
M14 THA 		0-91110-514-0 10 1 0808- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 0808- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0808- ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0808- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0808- ● ● ●
106 BOLT; BRKT
M14X50 THA 		0-20951-450-0 10 1 0808- ● ● ●
117 BOLT; STOPPER
M14X50 THA 		0-20951-450-0 16 1 0808- ● ● ●
118 NUT; STOPPER
M14 THA 		0-91110-514-0 16 1 0808- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 10 1 0808- ● ● ●

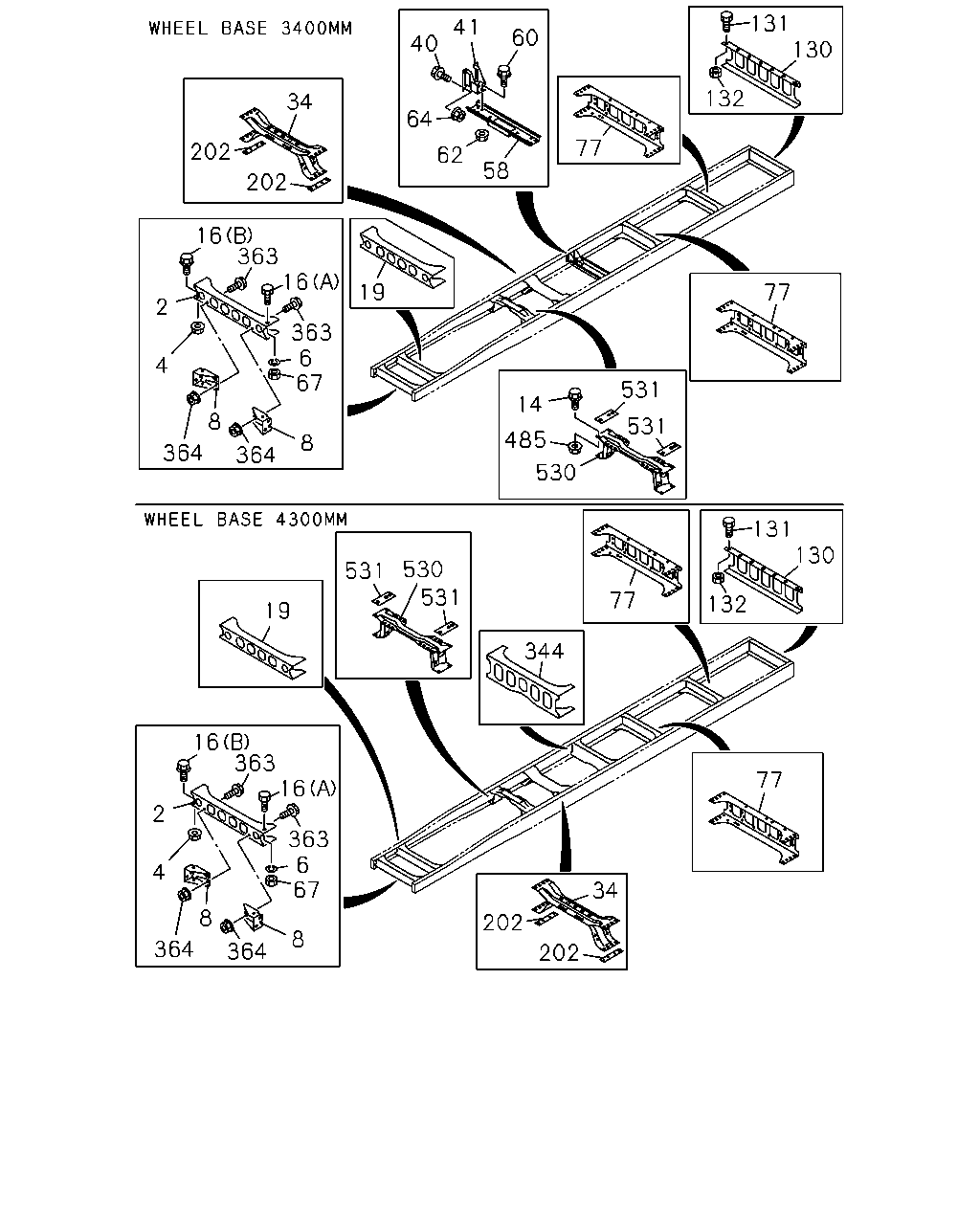

çizim 142889
131 130 41 60 40 132 34 64 77 202 62 58 202 16 363 16 19 77 2 363 6 67 4 531 14 8 531 485 8 364 364 530 131 130 530 531 531 77 132 19 344 16 363 16 77 2 363 6 67 4 34 8 202 8 364 364 202
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97615-669-2 01 1 0808- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 FLANGE THA 		0-91180-214-0 02 1 0808- ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0808- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 0808- ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 0808- ● ● ●
14 BOLT; TRANS MTG MBR,FRAME
M12X35 FLANGE THA 		0-28661-235-0 04 1 0808-0912 ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6S M/T<X7W> M12X35 FLANGE THA 		0-28661-235-0 04 1 1001-1102 ●
14 BOLT; TRANS MTG MBR,FRAME
M12X40 FLANGE IMA 		0-28661-240-0 02 1 0808-0912 ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6S M/T<X7W> M12X40 FLANGE IMA 		0-28661-240-0 02 1 1001-1102 ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X35 FLANGE 		0-28851-435-0 02 1 0808- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 THA 		0-20851-230-0 02 1 0808- ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-2 01 1 0808- ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0808- ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE THA 		0-28651-030-0 08 1 0808-0810 ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE THA 		0-28651-035-0 08 1 0811-0912 ●
40 BOLT; BRKT TO FRAME
MLD6S M/T<X7W> M10X35 FLANGE THA 		0-28651-035-0 08 1 1001-1102 ●
40 BOLT; BRKT TO FRAME
MZZ6W M/T<RSA> M10X35 FLANGE THA 		0-28651-035-0 08 1 1103- ●
41 BRACKET; CENTER BRG,FRAME SIDE
THA 		8-97615-973-2 01 1 0808-0912 ●
41 BRACKET; CENTER BRG,FRAME SIDE
MLD6S M/T<X7W> THA 		8-97615-973-2 01 1 1001-1102 ●
41 BRACKET; CENTER BRG,FRAME SIDE
MZZ6W M/T<RSA> THA 		8-97615-973-2 01 1 1103-1205 ●
41 BRACKET; CENTER BRG,FRAME SIDE
MZZ6W M/T<RSA> THA 		8-97615-973-2 01 1 1206- ●
41 BRACKET; CENTER BRG,FRAME SIDE
THA 		8-97615-974-2 01 1 0808-0912 ●
41 BRACKET; CENTER BRG,FRAME SIDE
MLD6S M/T<X7W> THA 		8-97615-974-2 01 1 1001-1102 ●
41 BRACKET; CENTER BRG,FRAME SIDE
MZZ6W M/T<RSA> THA 		8-97615-974-2 01 1 1103-1205 ●
41 BRACKET; CENTER BRG,FRAME SIDE
MZZ6W M/T<RSA> THA 		8-97615-974-2 01 1 1206- ●
58 MEMBER; CENTER BRG 8-97620-971-0 01 1 0808-0912 ●
58 MEMBER; CENTER BRG
MLD6S M/T<X7W> 		8-97620-971-0 01 1 1001-1102 ●
58 MEMBER; CENTER BRG
MZZ6W M/T<RSA> 		8-97638-924-0 01 1 1103- ●
60 BOLT; MBR
M10X25 FLANGE THA 		0-28651-025-0 08 1 0808-0912 ●
60 BOLT; MBR
MLD6S M/T<X7W> M10X25 FLANGE THA 		0-28651-025-0 08 1 1001-1102 ●
60 BOLT; MBR
MZZ6W M/T<RSA> M10X25 FLANGE THA 		0-28651-025-0 08 1 1103- ●
62 NUT; MBR
M10 FLANGE THA 		0-91180-110-0 08 1 0808-0912 ●
62 NUT; MBR
MLD6S M/T<X7W> M10 FLANGE THA 		0-91180-110-0 08 1 1001-1102 ●
62 NUT; MBR
MZZ6W M/T<RSA> M10 FLANGE THA 		0-91180-110-0 08 1 1103- ●
64 NUT; BRKT TO FRAME
M10 FLANGE THA 		0-91180-110-0 08 1 0808-0912 ●
64 NUT; BRKT TO FRAME
MLD6S M/T<X7W> M10 FLANGE THA 		0-91180-110-0 08 1 1001-1102 ●
64 NUT; BRKT TO FRAME
MZZ6W M/T<RSA> M10 FLANGE THA 		0-91180-110-0 08 1 1103- ●
67 NUT; C/MBR
M12 THA 		0-91110-512-0 02 1 0808- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 0808- ● ● ●
130 MEMBER; CROSS,END
THA 		8-97924-239-0 01 1 0808- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER THA 		0-50541-025-0 04 1 0808- ● ● ●
132 NUT; END C/MBR
M10 THA 		0-91110-510-0 04 1 0808- ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0808- ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0808- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0808- ●
363 BOLT; GUSSET
M12X25 FLANGE THA 		0-28661-225-0 04 1 0808- ● ● ●
364 NUT; GUSSET
M12 FLANGE THA 		0-91180-212-0 04 1 0808- ● ● ●
485 NUT; TRANS MTG MBR,FRAME
M12 FLANGE THA 		0-91180-212-0 06 1 0808-0912 ●
485 NUT; TRANS MTG MBR,FRAME
MLD6S M/T<X7W> M12 FLANGE THA 		0-91180-212-0 06 1 1001-1102 ●
530 MEMBER; CROSS,T/M
MZW6P M/T<RSZ> 		8-97609-809-3 01 1 1001- ● ● ●
530 MEMBER; CROSS,T/M 8-97627-753-0 01 1 0808-0912 ● ● ●
530 MEMBER; CROSS,T/M
MLD6S M/T<X7W> 		8-97627-753-0 01 1 1001-1102 ● ● ●
530 MEMBER; CROSS,T/M
MZZ6W M/T<RSA> 		8-97609-814-1 01 1 1103- ● ● ●
531 SPACER; C/MBR,T/M
MZZ6W M/T<RSA> 		8-97637-078-0 02 1 1103- ● ● ●
531 SPACER; C/MBR,T/M
THA 		8-97616-461-1 02 1 0808-1102 ● ● ●
531 SPACER; C/MBR,T/M
MZW6P M/T<RSZ> THA 		8-97616-461-1 02 1 1103- ● ● ●
