Isuzu WW
▶
TRUCKS
▶
FRR
▶
11122 - FRR THAILAND
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

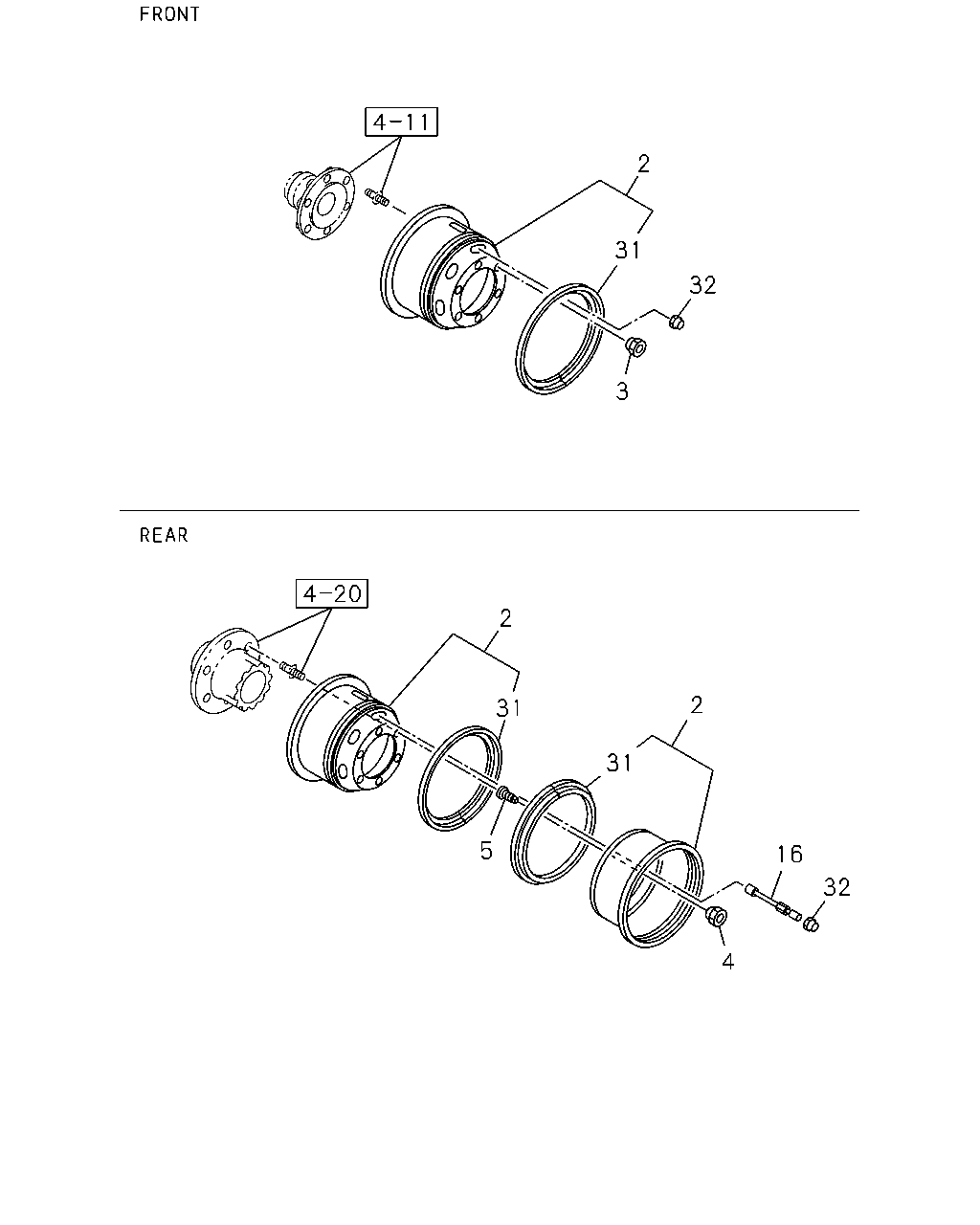

4-80 — ROAD WHEEL
(#13745) — 16 parça
2
31
32
3
2
2
31
31
5
16
32
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA
1-42350-417-0
01
1
0808-
2
WHEEL; DISC
FRONT 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA
1-42350-417-0
02
1
0808-
2
WHEEL; DISC
REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA
1-42350-417-0
04
1
0808-
3
NUT; WHEEL,FRT AXLE
M24 THA
8-97916-063-0
06
1
0808-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD THA
8-97916-064-0
06
1
0808-
4
NUT; WHEEL,RR AXLE
M30 THA
8-97916-066-0
06
1
0808-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD THA
8-97916-121-0
06
1
0808-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
06
1
0808-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
06
1
0808-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
1-42370-015-2
02
1
0808-1003
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
8-98167-051-0
02
1
1004-
31
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> SPARE 16X6.00GS STAMP, BLACK THA
1-42355-015-2
01
1
0808-
31
RING; SIDE,DISC WHEEL
FRONT 16X6.00GS STAMP, BLACK THA
1-42355-015-2
02
1
0808-
31
RING; SIDE,DISC WHEEL
REAR 16X6.00GS STAMP, BLACK THA
1-42355-015-2
04
1
0808-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46>
1-42374-001-0
05
1
0808-1003
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL REAR<R46>
1-42374-001-0
04
1
0808-1003
