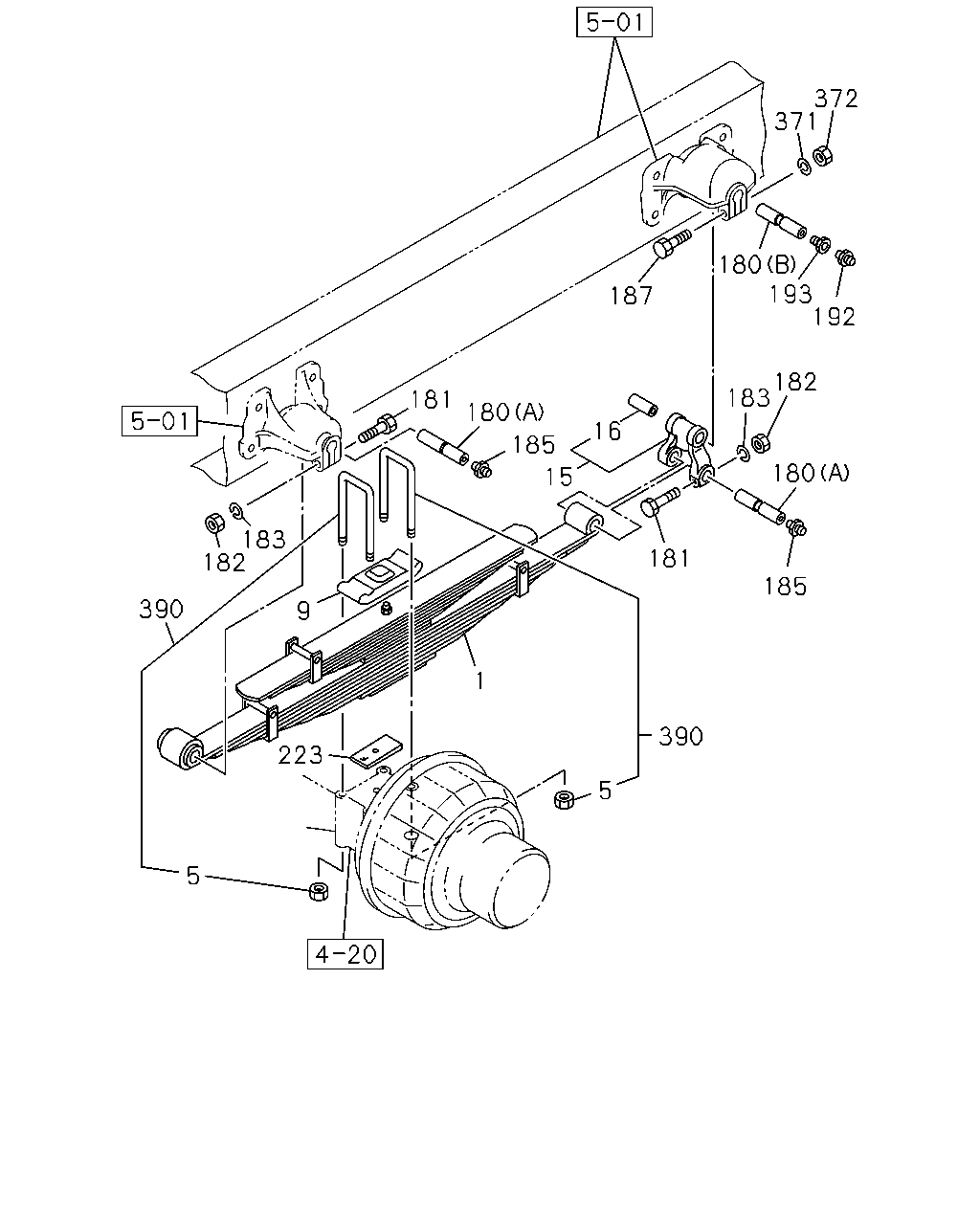

4-60 — REAR SUSPENSION (#13743) — 26 parça

372 371 180 193 192 187 182 183 181 180 16 185 180 15 183 182 181 185 390 9 1 390 223 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. THA	8-97924-265-0	02	1	0808-
5	NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0808-
9	PAD; U BOLT,RR SPR	1-51372-059-0	02	1	0808-
15	SHACKLE; RR SPR	1-51362-038-2	02	1	0808-
16	BUSHING; SHACKLE,RR SPR ID=25 THA	9-51151-032-0	02	1	0808-0902
16	BUSHING; SHACKLE,RR SPR ID=25	8-98082-176-0	02	1	0903-
180	PIN; RR SPR (A) DO=25 L=115 PT1/8	1-51361-016-0	04	1	0808-
180	PIN; RR SPR (B) DO=25 L=115 M12	1-51361-017-0	02	1	0808-
181	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	04	1	0808-
182	NUT; PIN,RR SPR M12 THA	0-91110-512-0	04	1	0808-
183	WASHER; LK,PIN,RR SPR ID=12.2 THA	0-91510-612-0	04	1	0808-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT THA	0-90301-410-0	02	1	0808-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT THA	0-90301-410-0	02	1	0808-
187	BOLT; SPR & SHACKLE M12X70	0-10961-270-0	02	1	0808-
192	NIPPLE; GREASE,SHACKLE PIN PT1/8 STRAIGHT THA	0-90301-410-0	02	1	0808-
193	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	02	1	0808-
223	SPACER; U BOLT,RR SPR WHEEL BASE 3400MM<34W>	1-51377-333-1	02	1	0808-0912
223	SPACER; U BOLT,RR SPR MLD6S M/T<X7W> WHEEL BASE 3400MM<34W>	1-51377-329-1	02	1	1001-1102
223	SPACER; U BOLT,RR SPR MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W>	1-51377-329-1	02	1	1103-
223	SPACER; U BOLT,RR SPR WHEEL BASE 4300MM<43W>	8-98043-891-0	02	1	0808-
223	SPACER; U BOLT,RR SPR WHEEL BASE 4900MM<49W>	8-98063-307-0	02	1	0808-0912
223	SPACER; U BOLT,RR SPR WHEEL BASE 4900MM<49W>	8-98063-307-0	02	1	1001-
223	SPACER; U BOLT,RR SPR MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W>	8-98063-307-0	02	1	1001-
371	WASHER; LK,SHACKLE ID=12.2 THA	0-91510-612-0	02	1	0808-
372	NUT; SHACKLE M12 THA	0-91110-512-0	02	1	0808-
390	U-BOLT SET; RR SPRING L=390	1-87870-399-0	04	1	0808-
