◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#13742) — 18 parça

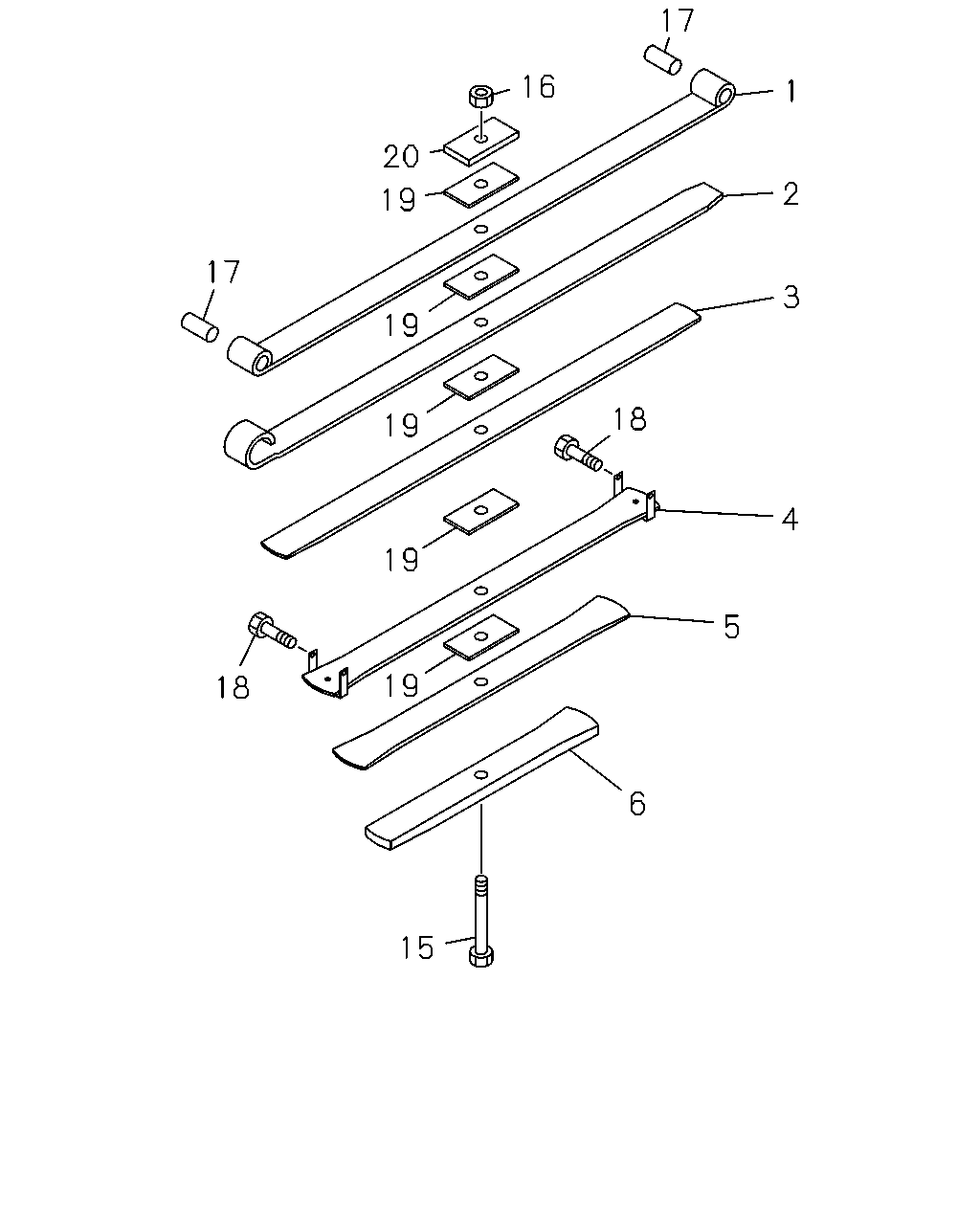

çizim 142861
17 16 1 20 2 19 17 3 19 18 19 4 19 5 19 18 6 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: A = 8-98017-554-0 		8-98064-261-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: B = 8-98017-555-0 		8-98064-267-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: A = 8-98017-554-0 		8-98064-262-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: B = 8-98017-555-0 		8-98064-268-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: A = 8-98017-554-0 		8-98064-263-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: B = 8-98017-555-0 		8-98064-269-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: A = 8-98017-554-0 		8-98064-264-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: B = 8-98017-555-0 		8-98064-270-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: A = 8-98017-554-0 		8-98064-265-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: B = 8-98017-555-0 		8-98064-271-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: A = 8-98017-554-0 		8-98064-266-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: B = 8-98017-555-0 		8-98064-272-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=100, THA ASM PART: A = 8-98017-554-0, B = 8-98017-555-0 		1-51156-341-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M14, THA ASM PART: A = 8-98017-554-0, B = 8-98017-555-0 		9-99110-514-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ID=25, THA ASM PART: A = 8-98017-554-0, B = 8-98017-555-0 		9-51151-032-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M8X87, THA ASM PART: A = 8-98017-554-0, B = 8-98017-555-0 		1-09000-335-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1, THA ASM PART: A = 8-98017-554-0, B = 8-98017-555-0 		1-51177-263-0 05 1 -
20 SEAT; LEAF SPR,FRT
T=6, THA ASM PART: A = 8-98017-554-0, B = 8-98017-555-0 		1-51177-262-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
