◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#13741) — 29 parça

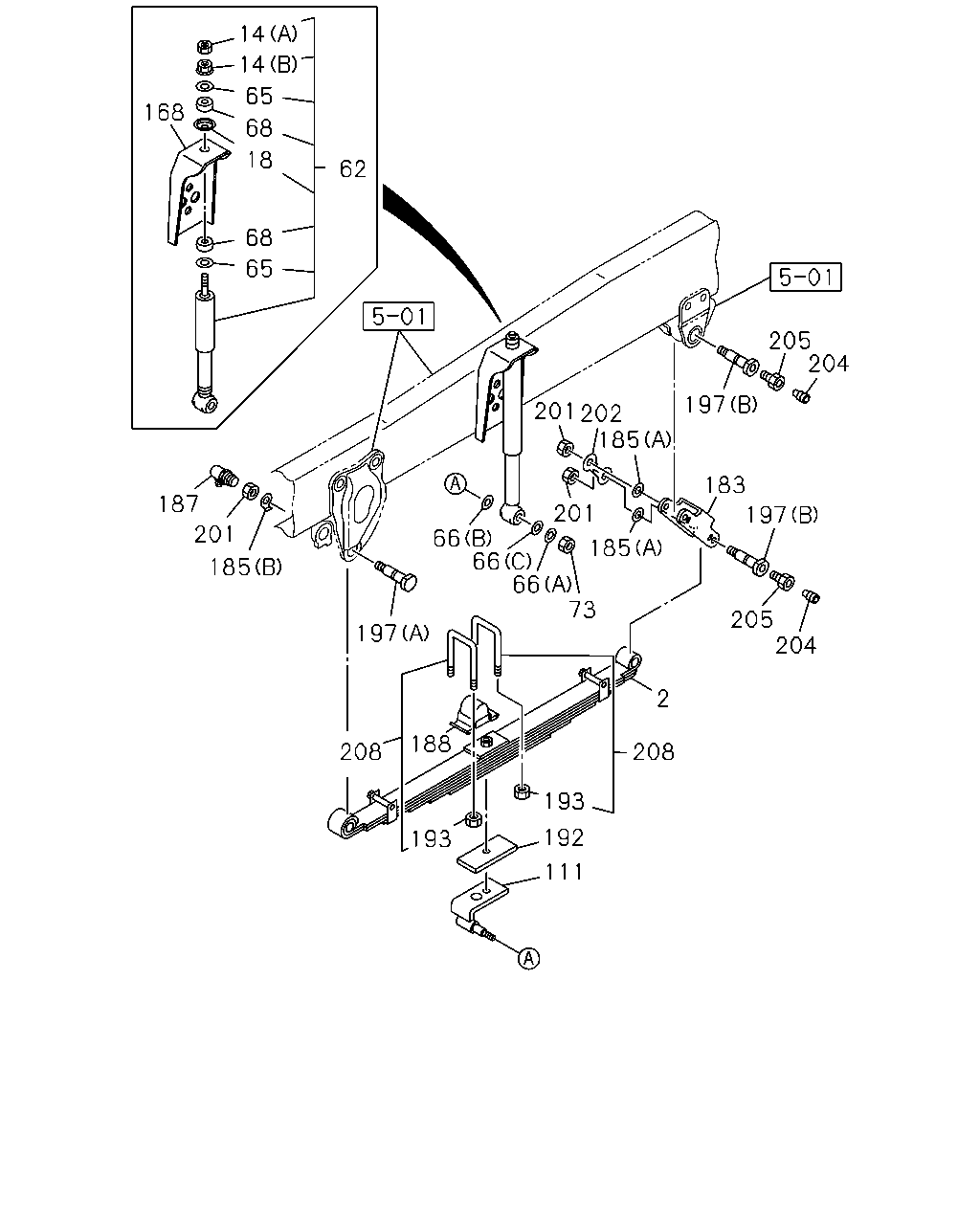

çizim 142869
14 14 65 168 68 18 62 68 65 205 204 197 201 202 185 183 187 201 197 201 66 66 66 185 185 73 205 204 197 2 188 208 208 193 192 193 111
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-98017-554-0 01 1 0808-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-98017-555-0 01 1 0808-
14 NUT; S/ABS,UPR
(A) M10 THA 		0-91111-510-0 02 1 0808-
14 NUT; S/ABS,UPR
(B) M10 FLANGE THA 		0-91180-210-0 02 1 0808-
18 WASHER; CENTERING,S/ABS
TOKICO THA 		8-94412-791-0 02 1 0808-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97924-897-0 02 1 0808-
65 WASHER; S/ABS
OD=40 THA 		9-51631-614-0 04 1 0808-
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 0808-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 0808-
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 0808-
68 BUSHING; S/ABS
TOKICO THA 		9-51631-603-0 04 1 0808-
73 NUT; BRKT,SHOCK
M12 THA 		0-91110-512-0 02 1 0808-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-586-4 01 1 0808-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-587-4 01 1 0808-
168 BRACKET; S/ABS,FRT SUSP 8-98060-258-0 02 1 0808-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 0808-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 0808-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 0808-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0808-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 0808-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 0808-
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 0808-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 0808-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 0808-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0808-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 0808-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT THA 		0-90301-410-0 04 1 0808-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 0808-
208 U-BOLT SET; FRT SPRING
L=150 		1-87870-466-0 04 1 0808-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
