◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#13729) — 29 parça

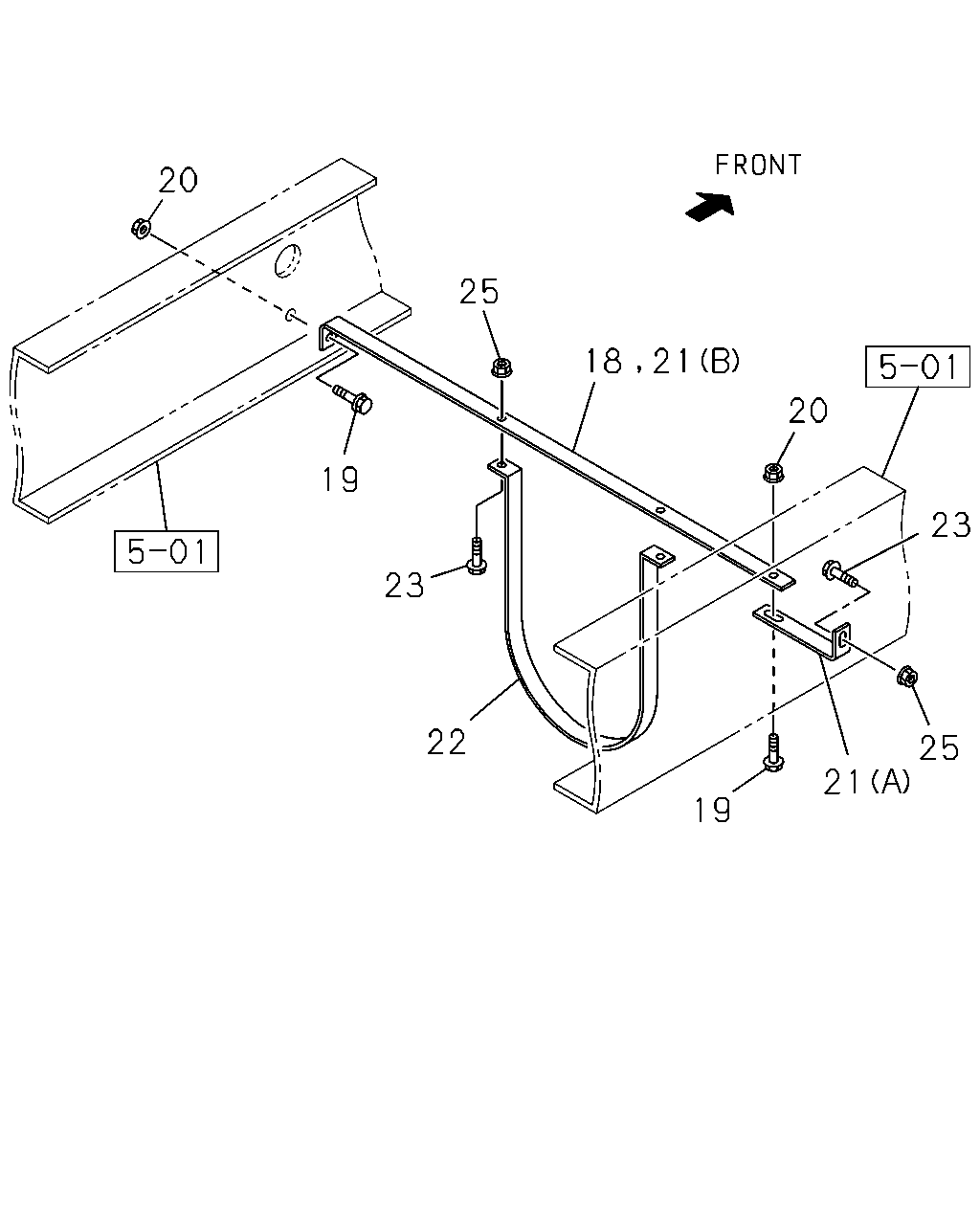

çizim 142853
23 20 21 18 25 20 19 23 22 19 25 21
BalonParca AdiParca NoAdetTipApplied Date
18 BRACKET; PROP SHAFT GUARD
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA 		8-98131-128-0 01 1 1209-
18 BRACKET; PROP SHAFT GUARD
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> THA 		1-53279-226-2 01 1 1209-
18 BRACKET; PROP SHAFT GUARD
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA 		1-53279-226-2 01 1 1209-
19 BOLT; BRKT,PROP SHAFT GUARD
M10X35 FLANGE THA 		0-28051-035-0 02 1 1209-
19 BOLT; BRKT,PROP SHAFT GUARD
M10X35 FLANGE THA 		0-28051-035-0 02 1 0808-
20 NUT; BRKT,PROP SHAFT GUARD
M10 FLANGE THA 		0-91180-210-0 02 1 1209-
20 NUT; BRKT,PROP SHAFT GUARD
M10 FLANGE THA 		0-91180-210-0 02 1 0808-
21 BRACKET; PROP GUARD
WHEEL BASE 3400MM<34W> (A) THA 		8-98098-347-0 01 1 0808-0912
21 BRACKET; PROP GUARD
MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (A) THA 		8-98098-347-0 01 1 1001-1102
21 BRACKET; PROP GUARD
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (A) THA 		8-98098-347-0 01 1 1103-
21 BRACKET; PROP GUARD
WHEEL BASE 3400MM<34W> (B) THA 		8-98131-128-0 01 1 0808-0912
21 BRACKET; PROP GUARD
MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> (B) THA 		8-98131-128-0 01 1 1001-1102
21 BRACKET; PROP GUARD
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> (B) THA 		8-98131-128-0 01 1 1103-1208
21 BRACKET; PROP GUARD
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) THA 		1-53279-226-2 01 1 0808-0912
21 BRACKET; PROP GUARD
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> (B) THA 		1-53279-226-2 01 1 1001-1208
21 BRACKET; PROP GUARD
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) THA 		1-53279-226-2 01 1 1001-1208
21 BRACKET; PROP GUARD
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) THA 		1-53279-228-1 01 1 0808-0912
21 BRACKET; PROP GUARD
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> (A) THA 		1-53279-228-1 01 1 1001-
21 BRACKET; PROP GUARD
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (A) THA 		1-53279-228-1 01 1 1001-
22 GUARD; PROP SHAFT
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> THA 		8-98111-296-0 01 1 1103-
22 GUARD; PROP SHAFT
WHEEL BASE 3400MM<34W> THA 		8-98111-296-0 01 1 0808-0912
22 GUARD; PROP SHAFT
MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> THA 		8-98111-296-0 01 1 1001-1102
22 GUARD; PROP SHAFT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> THA 		1-53279-230-0 01 1 0808-0912
22 GUARD; PROP SHAFT
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> H=260 THA 		1-53279-230-0 01 1 1001-
22 GUARD; PROP SHAFT
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> H=260 THA 		1-53279-230-0 01 1 1001-
23 BOLT; GUARD
M10X35 FLANGE THA 		0-28051-035-0 02 1 0808-1208
23 BOLT; GUARD
M10X35 FLANGE THA 		0-28051-035-0 03 1 0808-
25 NUT; GUARD
M10 FLANGE THA 		0-91180-210-0 02 1 0808-1208
25 NUT; GUARD
M10 FLANGE THA 		0-91180-210-0 03 1 0808-
