◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#13725) — 30 parça

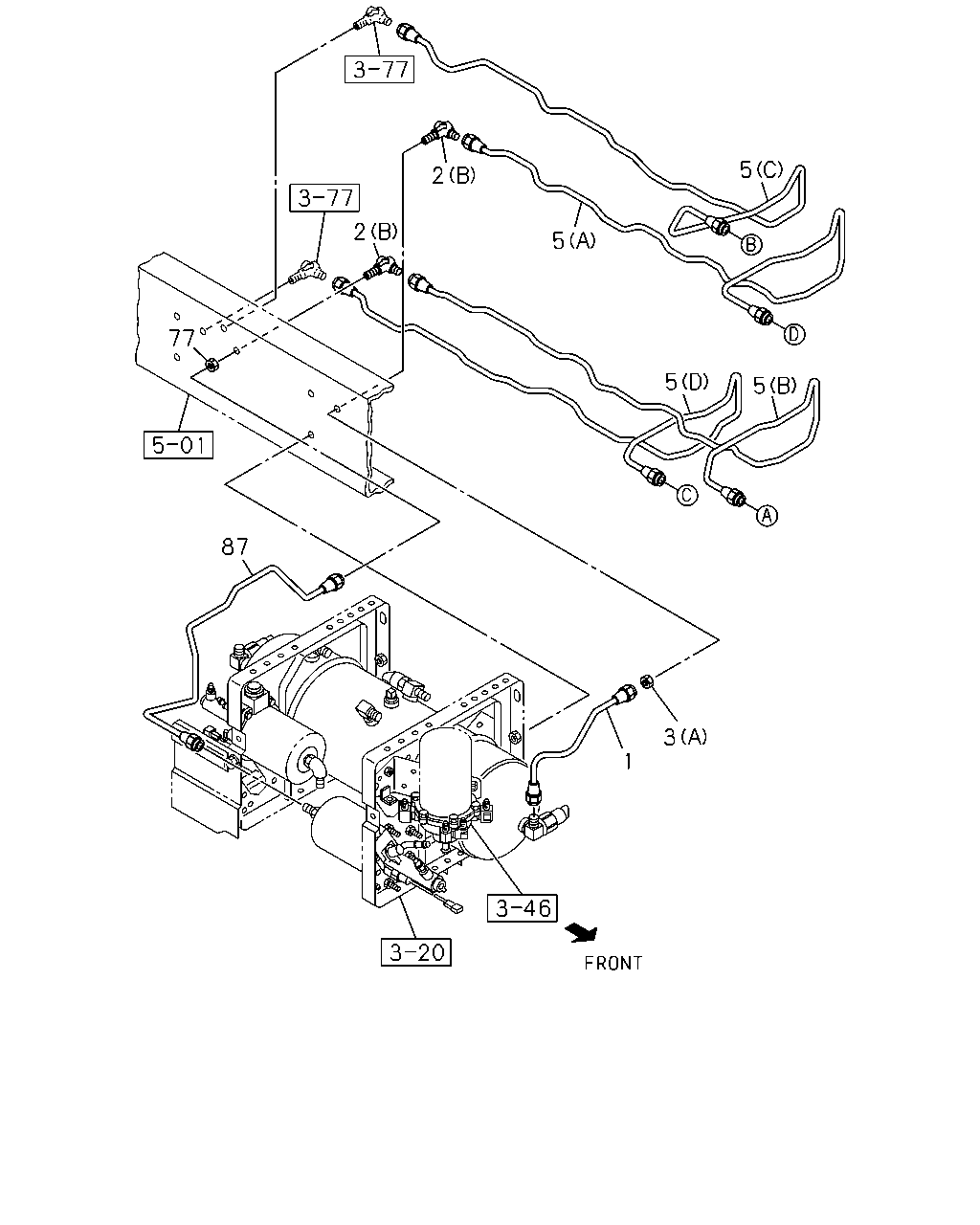

çizim 142842
5 2 2 5 77 5 5 87 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION
L=290 		8-98044-172-0 01 1 0808-
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0808-
2 UNION; AIR PIPE
(A) THA 		8-98057-394-1 01 1 0808-
3 NUT; PIPE UNION
(A) M16 THA 		0-91111-516-0 01 1 0808-
3 NUT; PIPE UNION
(B) M8 FLANGE THA 		0-91180-108-0 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(A) L=2215 SERVICED BY L=2500 THA 		1-47428-883-0 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(B) L=2708 SERVICED BY L=2900 THA 		1-47428-885-0 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(C) L=2501 THA 		8-98082-095-2 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(D) L=2609 SERVICED BY L=2900 THA 		1-47428-885-0 01 1 0808-
77 NUT; PIPE UNION
M16 THA 		0-91111-516-0 01 1 0808-
87 PIPE; AIR,UNION TO AIR MASTER
L=821 SERVICED BY L=900 THA 		1-47428-873-0 01 1 0808-

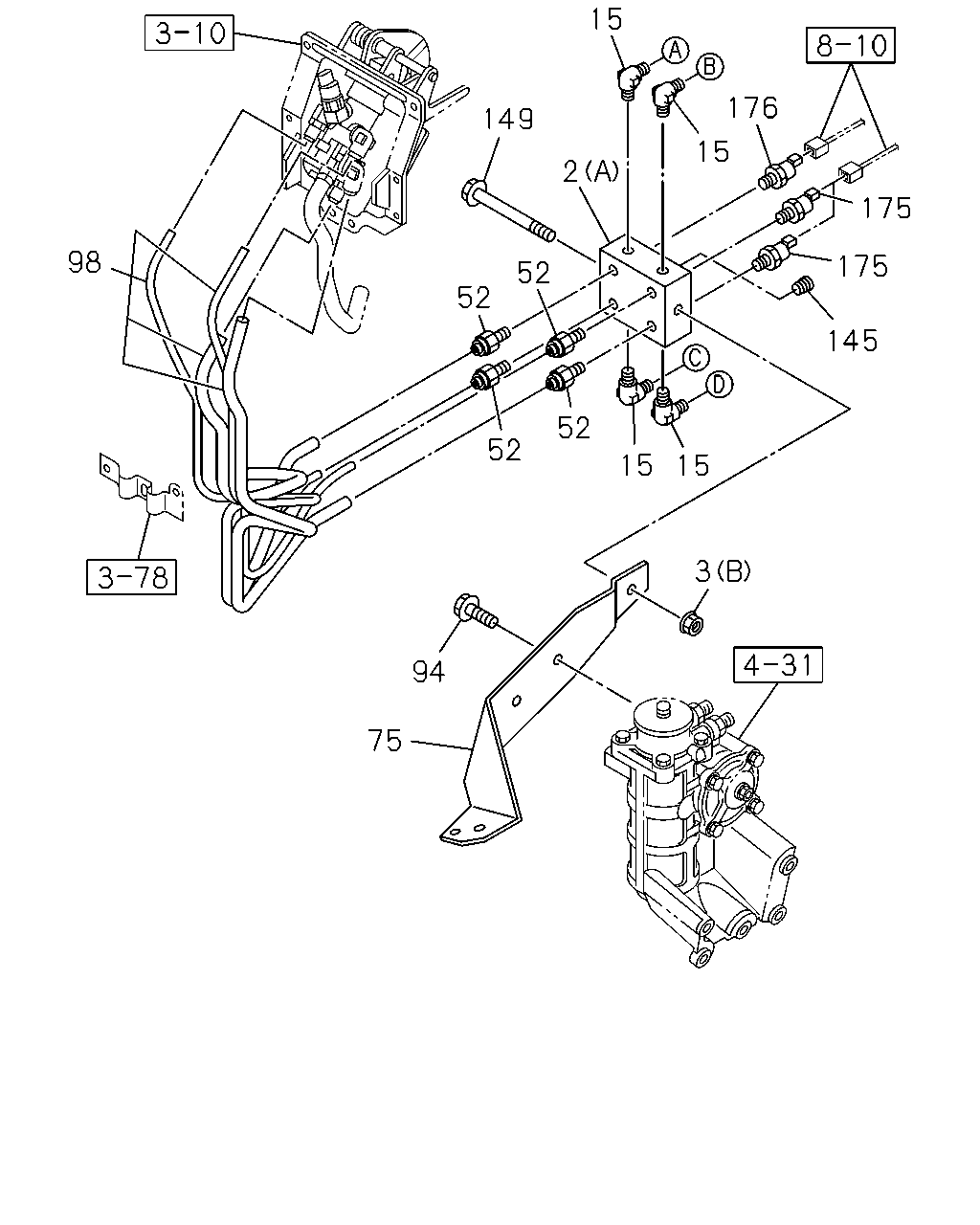

çizim 142852
15 176 149 15 2 175 98 175 5 52 145 52 52 15 15 3 94 75
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 0808-
2 UNION; AIR PIPE
(A) THA 		8-98057-394-1 01 1 0808-
3 NUT; PIPE UNION
(A) M16 THA 		0-91111-516-0 01 1 0808-
3 NUT; PIPE UNION
(B) M8 FLANGE THA 		0-91180-108-0 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(A) L=2215 SERVICED BY L=2500 THA 		1-47428-883-0 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(B) L=2708 SERVICED BY L=2900 THA 		1-47428-885-0 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(C) L=2501 THA 		8-98082-095-2 01 1 0808-
5 PIPE; AIR,UNION TO UNION
(D) L=2609 SERVICED BY L=2900 THA 		1-47428-885-0 01 1 0808-
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 0808-
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 0808-
75 BRACKET; UNION 8-98066-785-0 01 1 0808-
94 BOLT; BRKT
M10X16 FLANGE THA 		0-28151-016-0 02 1 0808-0911
94 BOLT; BRKT
M10X20 FLANGE THA 		0-28151-020-0 02 1 0912-
98 TUBE; NYLON
THA 		8-98079-175-0 01 1 0808-
145 PLUG
PT1/4 THA 		9-99204-513-0 01 1 0808-
149 BOLT; UNION
M8X100 FLANGE THA 		0-28050-800-0 01 1 0808-
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0808-
176 SWITCH; AIR PRESS
STAMP 0.7 		8-97622-710-0 01 1 0808-0908
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0909-
