3-70 — BRAKE PIPING; AIR,AIR MASTER (#13724) — 28 parça

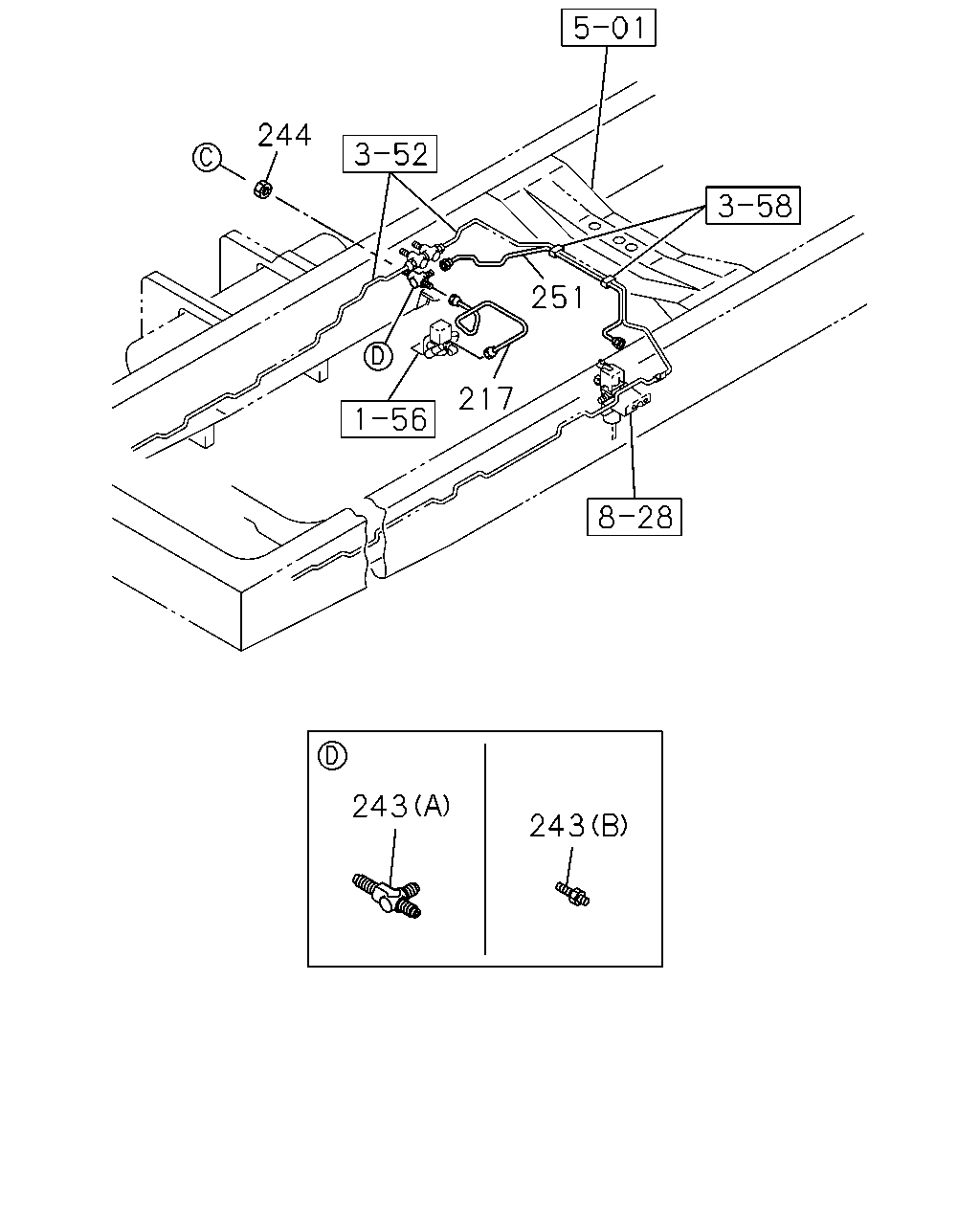

244 251 217 243 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
217	PIPE; VAC,UNION TO MAG VLV MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=261 THA	8-98090-911-0	01	1	1001-1102
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=261 THA	8-98090-911-0	01	1	1103-
217	PIPE; VAC,UNION TO MAG VLV MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> EXC. PTO CONTROL<SV6> L=280 THA	8-98090-912-0	01	1	1001-1102
217	PIPE; VAC,UNION TO MAG VLV MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=225 THA	8-98119-804-0	01	1	0808-1102
217	PIPE; VAC,UNION TO MAG VLV MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> EXC. PTO CONTROL<SV6> L=244 THA	8-98119-805-0	01	1	0808-1102
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 3400MM<34W> EXC. PTO CONTROL<SV6> L=280 THA	8-98090-912-0	01	1	1103-
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=265	8-98067-433-0	01	1	0808-
217	PIPE; VAC,UNION TO MAG VLV WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> EXC. PTO CONTROL<SV6> L=284 THA	8-98086-311-0	01	1	0808-
243	UNION; AIR PIPE PTO CONTROL<SV6> (A) M12 3WAY	0-92138-906-0	01	1	0808-
243	UNION; AIR PIPE EXC. PTO CONTROL<SV6> (B) M12 L=66.5	0-92113-306-0	01	1	0808-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	0808-
251	PIPE; AIR,UNION TO MAG VLV MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=834 SERVICED BY L=900	1-47428-813-0	01	1	1001-1102
251	PIPE; AIR,UNION TO MAG VLV MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=775 SERVICED BY L=800	1-47428-812-0	01	1	0808-1102
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=834 SERVICED BY L=900	1-47428-813-0	01	1	1103-
251	PIPE; AIR,UNION TO MAG VLV WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=1038 SERVICED BY L=1100	1-47428-815-0	01	1	0808-

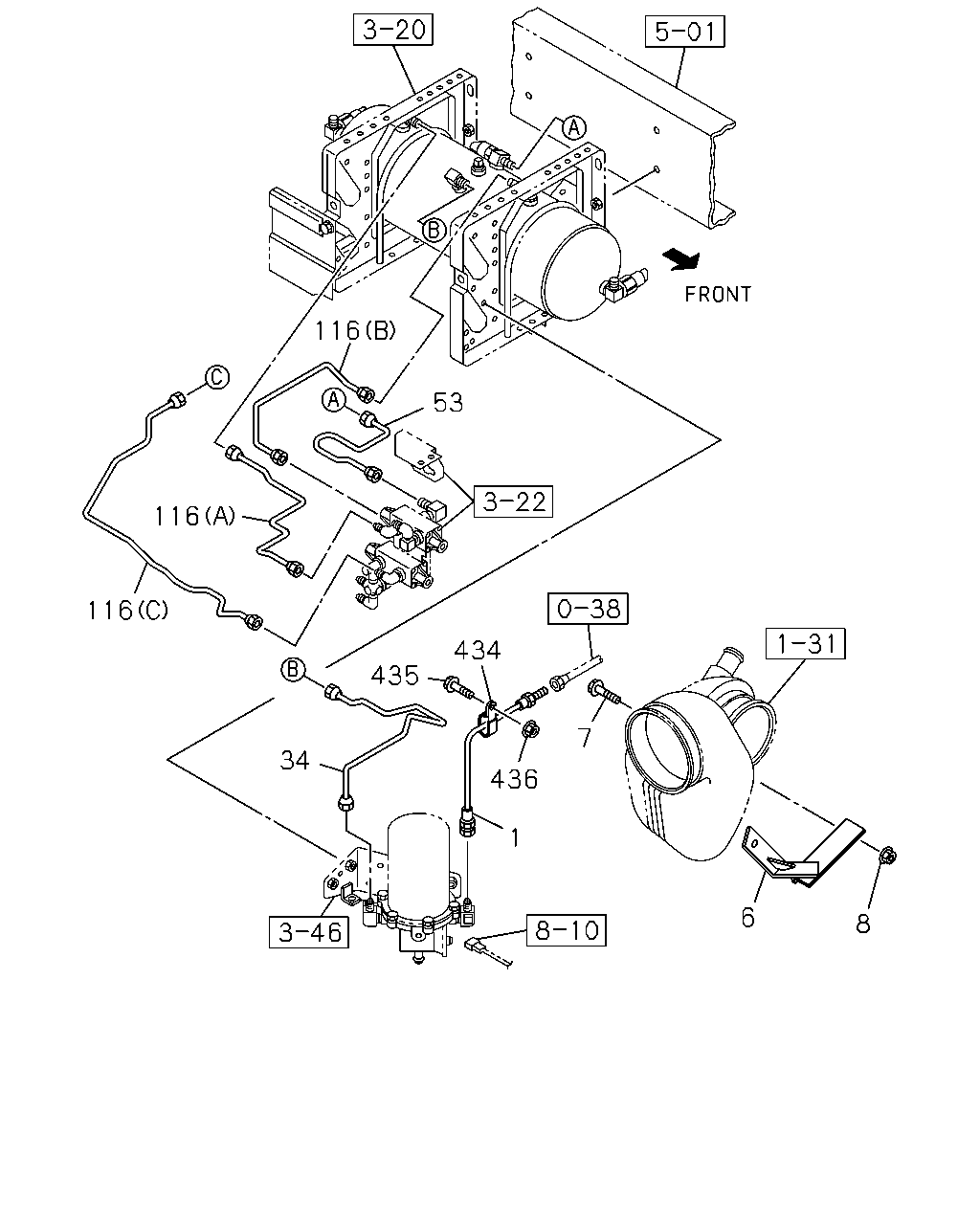

116 53 116 116 434 435 7 34 436 1 6 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	0808-
6	BRACKET; FLEX HOSE,AIR TANK	8-98066-733-1	01	1	0808-1205
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1206-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE THA	0-28650-825-0	02	1	0808-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE THA	0-91180-108-0	02	1	0808-0906
34	PIPE; AIR L=662 SERVICED BY L=700	1-49115-481-0	01	1	0808-
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	0808-
116	PIPE; AIR,PROTECTION VLV (C) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	0808-
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	0808-
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	0808-
434	CLIP ID=35 L=33	1-09700-945-0	01	1	0808-
435	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0808-
436	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0808-
