3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#13721) — 30 parça
◀

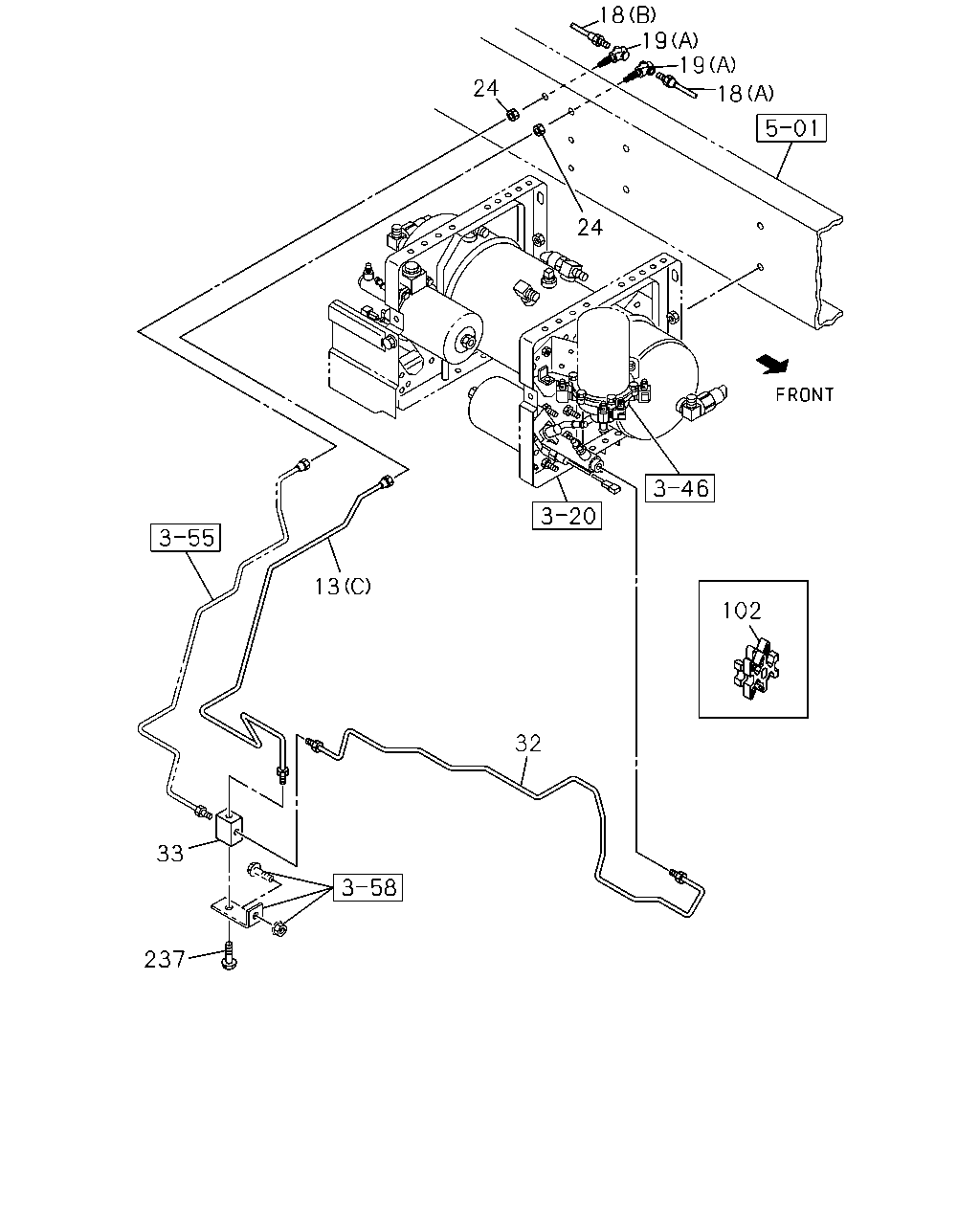

[352A] AIR TANK SIDE (15 parça)

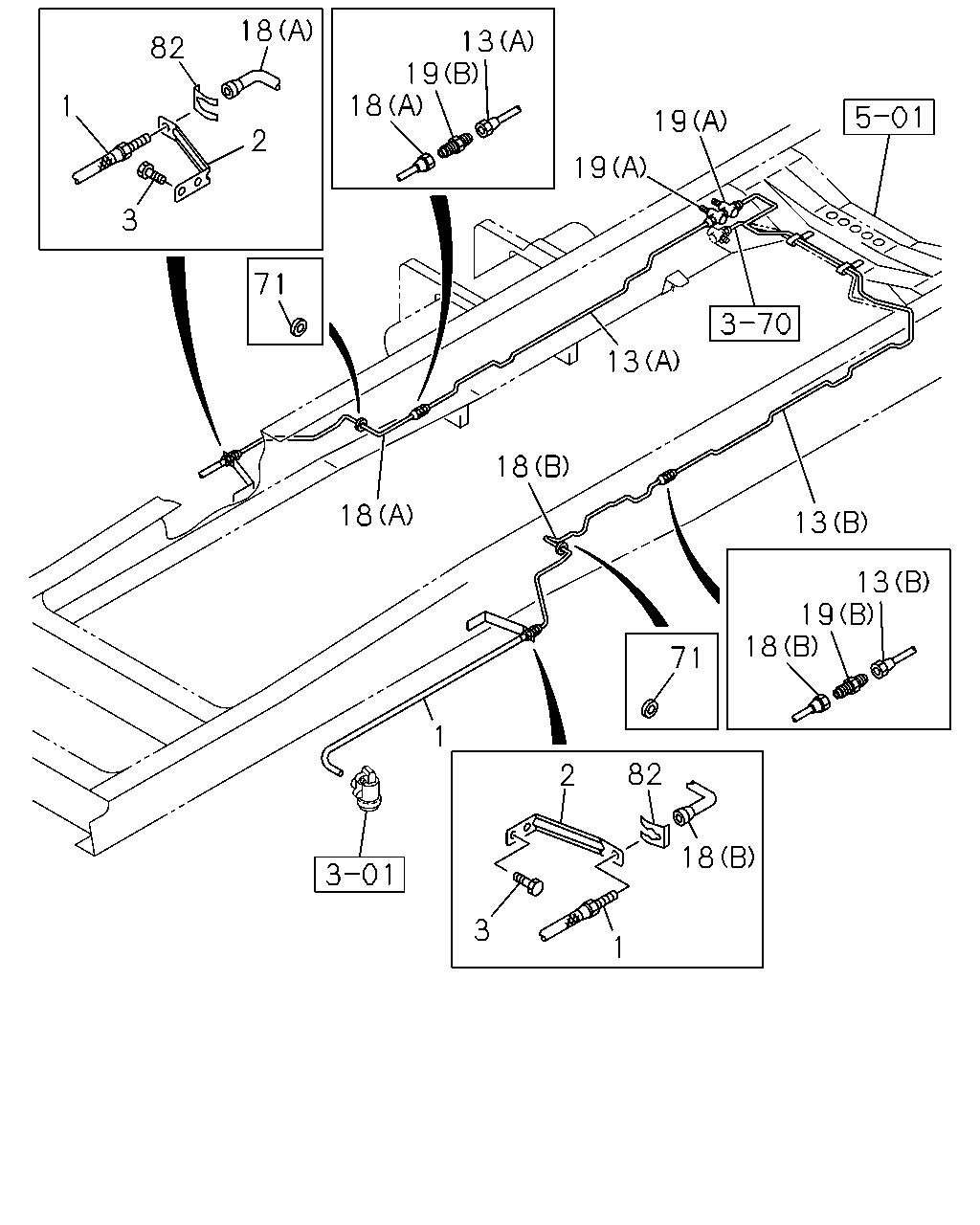

[352A] FRAME SIDE (15 parça)
▶
18
19
19
24
18
24
13
102
32
33
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM<34W> (B) L=1644
8-98099-637-0
01
1
0808-
13
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=1847
8-98078-163-0
01
1
0808-0909
13
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=1833
8-98158-297-0
01
1
0910-
13
PIPE; OIL,UNION TO UNION
(A) L=995
8-98115-457-0
01
1
0808-
13
PIPE; OIL,UNION TO UNION
(C) L=695 THA
8-98119-737-0
01
1
0808-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1016 THA
8-98065-376-0
01
1
0808-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=567 THA
8-98067-426-0
01
1
0808-
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
0808-
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
0808-
24
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
0808-
32
PIPE; OIL,AIR MASTER TO UNION
L=886 THA
8-98084-323-0
01
1
0808-0808
32
PIPE; OIL,AIR MASTER TO UNION
L=865 THA
8-98132-010-0
01
1
0808-
33
UNION; OIL PIPE
8-97314-636-0
01
1
0808-
102
CLIP; PIPE
ID=4.7X4
1-09701-304-0
03
1
0808-
237
BOLT; UNION
M8X10 FLANGE THA
0-28050-810-0
01
1
0808-
18
13
19
18
82
1
19
2
19
3
71
13
18
18
13
13
19
18
71
1
82
2
18
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=640
8-98085-202-0
02
1
0808-1102
1
HOSE; FLEX,FRT BRK
L=480
8-98172-789-0
02
1
1103-
2
BRACKET; FLEX HOSE,FRT BRK
8-98011-946-1
02
1
0808-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE THA
0-28650-825-0
04
1
0808-
13
PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM<34W> (B) L=1644
8-98099-637-0
01
1
0808-
13
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=1847
8-98078-163-0
01
1
0808-0909
13
PIPE; OIL,UNION TO UNION
WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> (B) L=1833
8-98158-297-0
01
1
0910-
13
PIPE; OIL,UNION TO UNION
(A) L=995
8-98115-457-0
01
1
0808-
13
PIPE; OIL,UNION TO UNION
(C) L=695 THA
8-98119-737-0
01
1
0808-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=1016 THA
8-98065-376-0
01
1
0808-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=567 THA
8-98067-426-0
01
1
0808-
19
UNION; OIL PIPE
(B) M10 STRAIGHT
0-92107-005-0
02
1
0808-
19
UNION; OIL PIPE
(A) M10X2 ELBOW
8-98018-438-0
02
1
0808-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
0808-
82
PLATE; FLEX HOSE
8-97360-054-0
02
1
0808-
