◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#1372) — 93 parça
çizim 94764
157 160 166 167 170 169 167 167 171 172 173 180
BalonParca AdiParca NoAdetTipApplied Date
157 REPLACER KIT; RETURN SPR 1-85237-002-0 01 1 9204-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 9204-
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9405-
167 ALIGNER; CLU PILOT
(A) L=300 		1-85253-018-0 01 1 9204-9404
167 ALIGNER; CLU PILOT
(B) L=190 		1-85253-022-0 01 1 9405-9504
167 ALIGNER; CLU PILOT
FULLER RT6609 M/T(X8M),FULLER RT7608LL M/T(X8P) (B) L=190 		1-85253-022-0 01 1 9505-
167 ALIGNER; CLU PILOT
MLD6A M/T(X5N) (C) L=185 		1-85253-012-0 01 1 9505-
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9204-
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9405-
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9204-
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9204-
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 9204-9404
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9204-
çizim 94837
186 193 208 230 274 271 209 268 237 232 296 297
BalonParca AdiParca NoAdetTipApplied Date
186 ADJUSTER; BRAKE 1-47165-066-0 01 1 9204-
193 JACK ASM
10TON 		1-85510-013-1 01 1 9204-
208 HANDLE; JACK
L=680 		1-85515-004-0 01 1 9204-9405
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9406-
209 CLIP; JACK HANDLE
ID=12 		1-73638-008-2 02 1 9204-
230 PUMP; GREASE 1-85556-007-2 01 1 9204-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9204-
237 BAG; TOOL 8-94367-102-0 01 1 9204-9509
237 BAG; TOOL 8-97130-902-0 01 1 9510-
268 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9204-
271 CLIP; TIRE HANGER
ID=14 		1-73638-009-2 02 1 9204-
274 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9204-
296 REPLACER; SLINGER
6HE1 STD ENG(46L) 		8-94396-858-0 01 1 9505-
297 CUTTER; SEAL,OIL PAN
6HE1 STD ENG(46L) 		8-94393-112-0 01 1 9505-

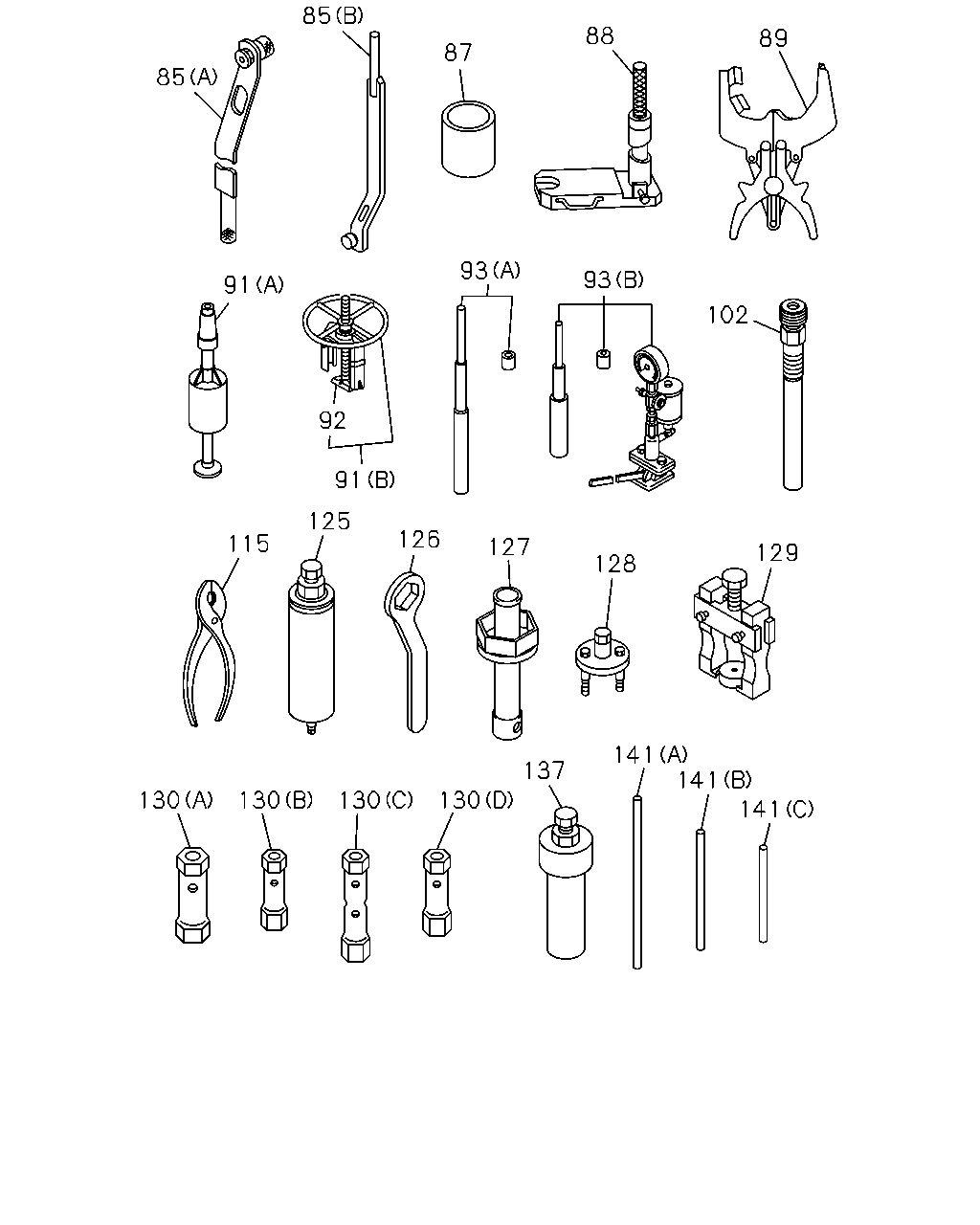

çizim 94913
85 85 87 88 89 102 93 93 91 92 91 115 125 126 127 128 129 141 141 141 137 130 130 130 130
BalonParca AdiParca NoAdetTipApplied Date
85 REPLACER ASM; VALVE SPR
(A) 		1-85235-007-0 01 1 9204-9504
85 REPLACER ASM; VALVE SPR
6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) 		1-85235-007-0 01 1 9505-
85 REPLACER ASM; VALVE SPR
6HE1 STD ENG(46L) (B) 		8-94396-861-0 01 1 9505-
87 TOOL; PISTON 1-85221-007-0 01 1 9204-9504
87 TOOL; PISTON
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		1-85221-007-0 01 1 9505-
88 TOOL; CONNROD BUSHING 1-85220-036-0 01 1 9204-9504
88 TOOL; CONNROD BUSHING
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		1-85220-036-0 01 1 9505-
89 TOOL; PISTON RING 1-85221-029-0 01 1 9204-
91 REPLACER ASM; CYL LINER
(A) 		1-85231-027-0 01 1 9204-9504
91 REPLACER ASM; CYL LINER
6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) 		1-85231-027-0 01 1 9505-
91 REPLACER ASM; CYL LINER
6HE1 STD ENG(46L) (B) 		8-94396-849-0 01 1 9505-
92 ANKLE; REPLACER,CYL LINER
6HE1 STD ENG(46L) 		8-94396-821-0 01 1 9505-
93 SETTING KIT; VALVE GUIDE
(A) L=260 		9-85231-202-0 01 1 9204-9504
93 SETTING KIT; VALVE GUIDE
6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=260 		9-85231-202-0 01 1 9505-
93 SETTING KIT; VALVE GUIDE
6HE1 STD ENG(46L) (B) 		1-85220-001-0 01 1 9505-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 9204-9504
102 ADAPTER; COMP GAGE
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		5-85317-001-0 01 1 9505-
115 PLIER 5-85171-001-0 01 1 9204-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 9204-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-0 01 1 9204-
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 9204-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9204-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 9204-
130 WRENCH; BOX
(A) B=46 & 54 L=165 		9-85112-320-0 01 1 9204-
130 WRENCH; BOX
(B) B=32 & 41 L=150 		9-85112-322-0 01 1 9204-
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9204-
130 WRENCH; BOX
(D) B=41 & 46 L=165 		9-85113-401-0 01 1 9204-
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 9204-
141 HANDLE; WRENCH
(A) OD=25 L=480 		1-85116-011-0 01 1 9204-
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9204-
141 HANDLE; WRENCH
(C) OD=16 L=300 		9-85114-307-0 01 1 9204-

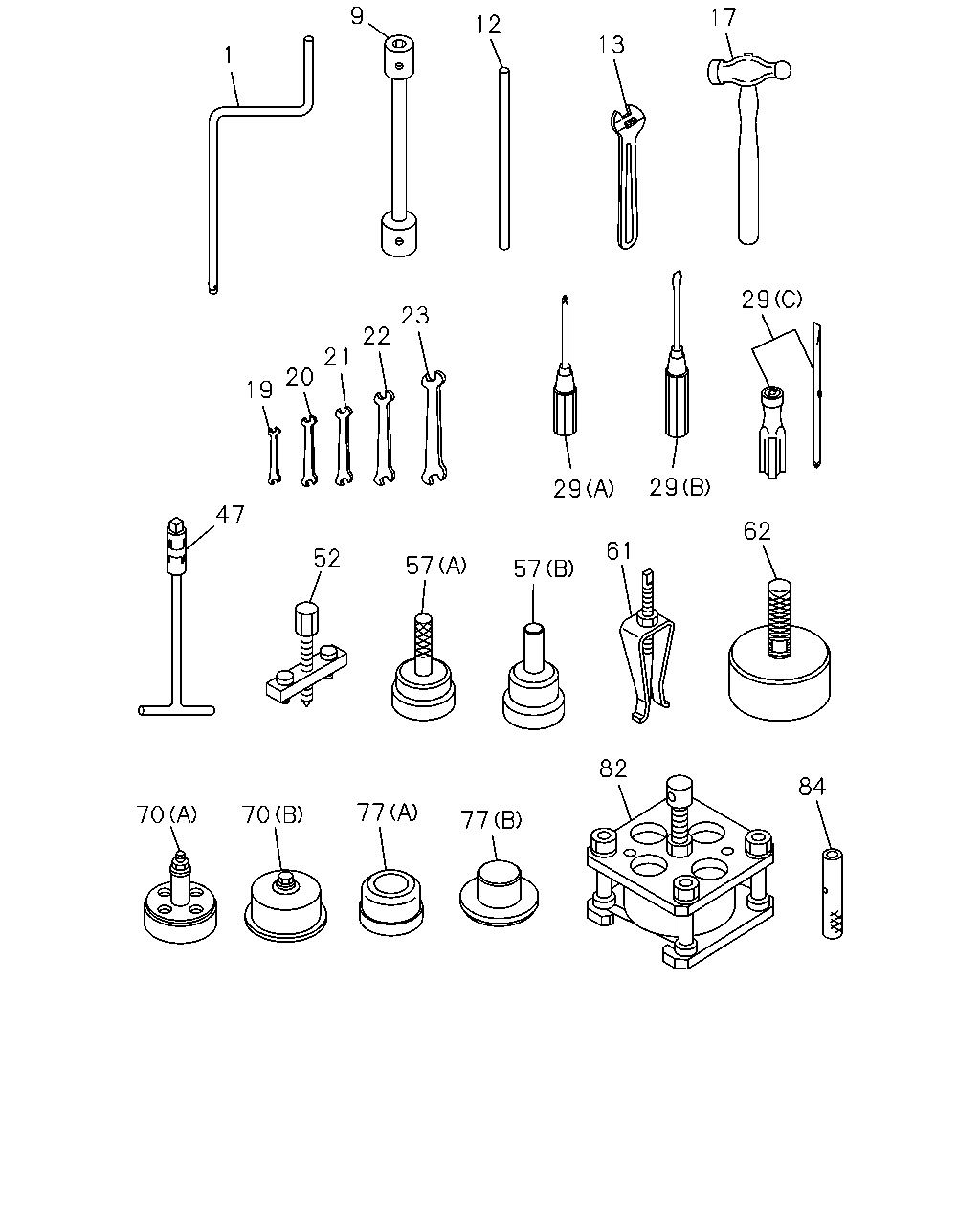

çizim 95041
1 9 12 13 17 29 62 29 29 61 57 57 52 23 22 21 20 19 47 70 70 77 77 82 84
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		9-23110-018-0 01 1 9204-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 9204-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9204-
13 WRENCH; MONKEY 1-85117-003-1 01 1 9204-9304
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9305-
17 HAMMER 9-85121-406-0 01 1 9204-
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9204-9505
19 WRENCH; 7X8
8X10 		9-99592-108-0 01 1 9506-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9204-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9204-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9204-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9204-
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9204-
29 DRIVER; SCREW
(A) <-> L=190 		9-09595-726-0 01 1 9204-9505
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9506-
29 DRIVER; SCREW
(B) <-> L=320 		9-09595-729-0 01 1 9204-9505
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9506-
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-901-0 01 1 9204-9504
47 WRENCH ASM; UNIVERSAL,INJ PUMP
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		9-85113-901-0 01 1 9505-
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 9204-9504
52 REMOVER; WATER PUMP
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		1-85210-047-0 01 1 9505-
57 TOOL; SETTING CRANK GEAR
(A) 		1-85221-072-0 01 1 9204-9504
57 TOOL; SETTING CRANK GEAR
6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) 		1-85221-072-0 01 1 9505-
57 TOOL; SETTING CRANK GEAR
6HE1 STD ENG(46L) (B) ID=134.5 		8-94396-819-0 01 1 9505-
61 PULLER ASM; PILOT BRG
6HE1 STD ENG(46L) 		9-85210-157-0 01 1 9505-
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 9204-9504
62 TOOL ASM; SETTING WEAR RING
6SA1 STD ENG(06L),6SA1TC ENG(28L) 		1-85221-079-0 01 1 9505-
70 TOOL; SETTING,OIL SEAL
(A) 		1-85220-025-1 01 1 9204-9504
70 TOOL; SETTING,OIL SEAL
6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) 		1-85220-025-1 01 1 9505-
70 TOOL; SETTING,OIL SEAL
6HE1 STD ENG(46L) (B) 		8-94396-856-0 01 1 9505-
77 TOOL; SETTING,CYL LINER
(A) 		1-85221-070-0 01 1 9204-9504
77 TOOL; SETTING,CYL LINER
6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) 		1-85221-070-0 01 1 9505-
77 TOOL; SETTING,CYL LINER
6HE1 STD ENG(46L) (B) 		8-94396-816-0 01 1 9505-
82 PULLER ASM; CR/SHF GEAR
6HE1 STD ENG(46L) 		8-94396-818-0 01 1 9505-
84 REPLACER; VALVE SEAL
6HE1 STD ENG(46L) 		8-94396-815-0 01 1 9505-
