3-22 — AIR CONTROL PARTS (#13717) — 24 parça

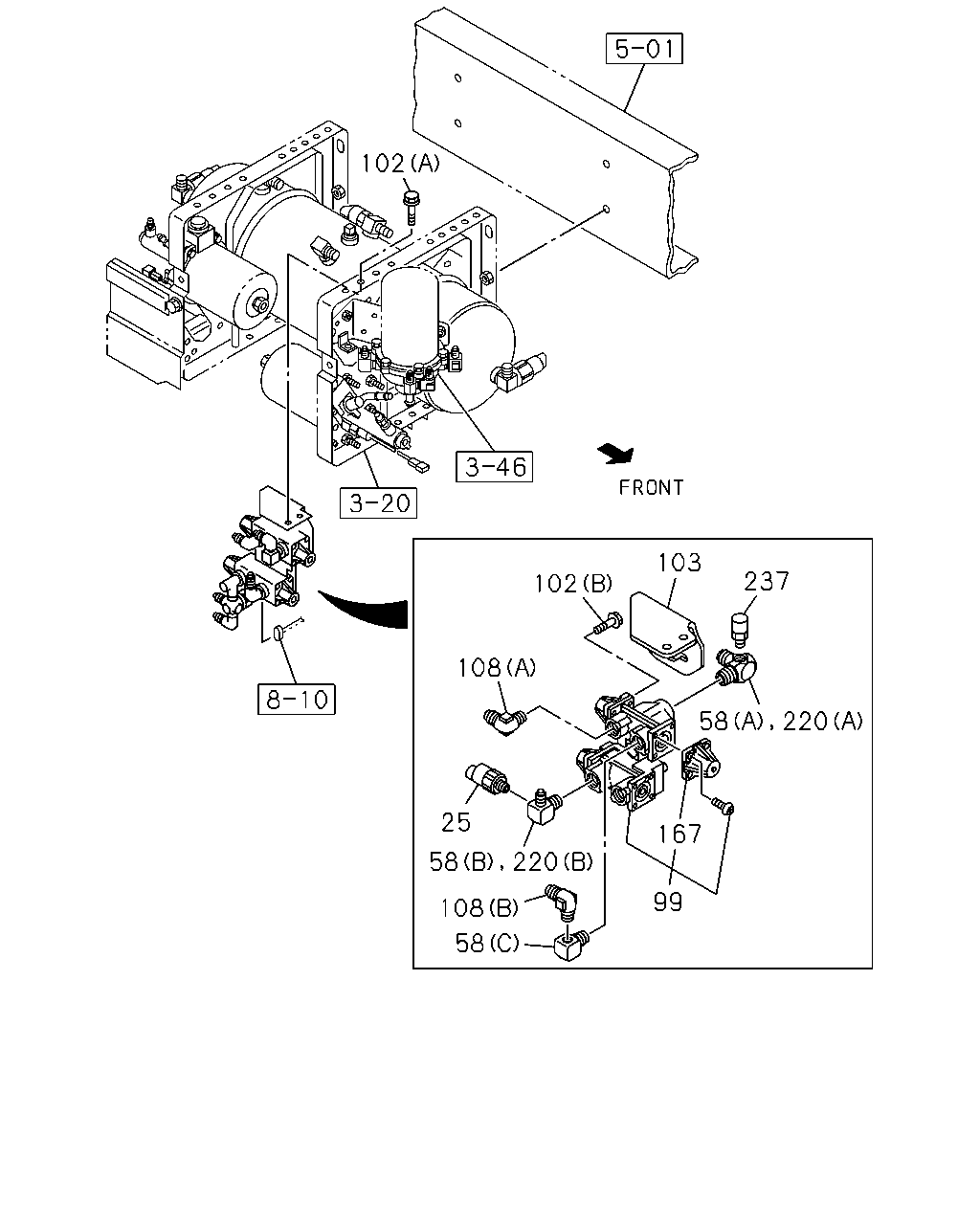

çizim 142822
102 102 103 237 220 58 108 25 58 108 58 220 167 99
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
STAMP 5.5 THA 		8-97609-249-0 01 1 1310-
25 SWITCH; PRESSURE
STAMP 5.5 THA 		8-97609-249-0 01 1 0808-1309
58 ADAPTER
(B) THA 		1-09656-698-0 01 1 1310-
58 ADAPTER
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1310-
58 ADAPTER
(A) 		8-98031-239-0 01 1 1310-
58 ADAPTER
(B) THA 		1-09656-698-0 01 1 1204-1309
58 ADAPTER
(A) 		8-98031-239-0 01 1 1204-1309
58 ADAPTER
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 0808-1309
99 VALVE; PROTECTION
THA 		1-48110-287-3 01 1 1310-
99 VALVE; PROTECTION 1-48110-287-1 01 1 0808-1309
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 1310-
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE THA 		0-28050-816-0 02 1 0808-1309
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0808-
103 BRACKET; PROTECTION VALVE 8-98221-293-0 01 1 1312-
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 0808-1309
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1310-
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1310-
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0808-1309
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0808-1309
167 COVER; VALVE
THA 		1-48119-625-0 03 1 1103-1506
220 CONNECTOR; 3WAY
(B) THA 		1-09656-698-0 01 1 0808-1203
220 CONNECTOR; 3WAY
(A) 		8-98031-239-0 01 1 0808-1203
237 VALVE; SAFETY 1-48320-012-2 01 1 0808-
çizim 421157
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-452-1 01 1 1103-1506
