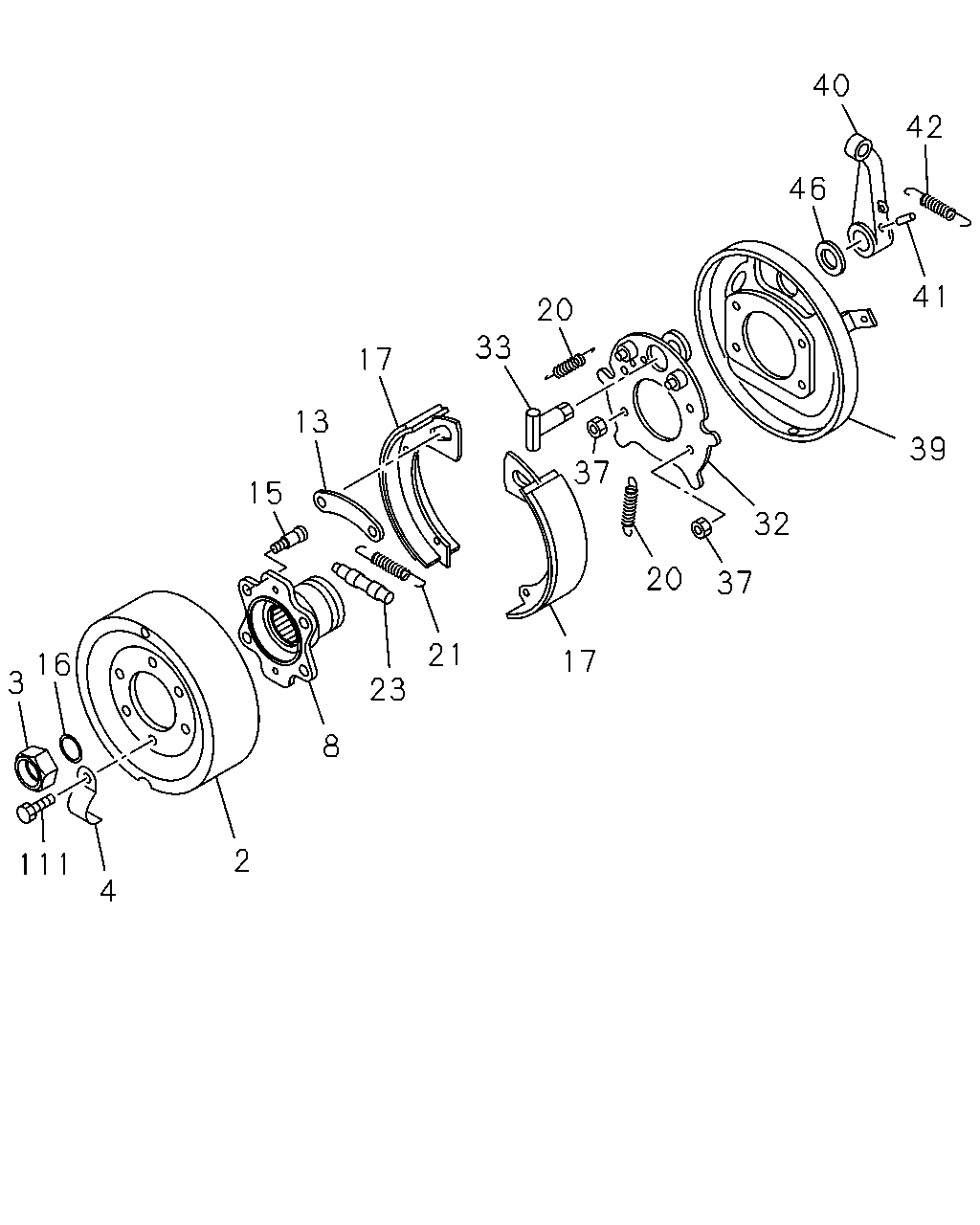

3-08 — PARKING BRAKE (#13713) — 190 parça

40 42 46 41 20 33 17 13 39 37 15 32 20 37 21 17 16 3 23 8 2 111 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0808-0912	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	1001-1102	●	●
2	DRUM; PARKING BRK	1-46211-020-1	01	1	1103-		●	●
3	NUT; LK M36 FLANGE	8-98014-140-0	01	1	0808-1102	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0808-0912	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	1001-1102	●	●
8	FLANGE; PARKING BRK	8-98171-007-0	01	1	1103-			●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1001-1002		●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1003-1102	●	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1103-		●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0808-0912	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1001	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1002	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0808-0912	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1001-1102	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1103-		●	●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0808-0912	●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	1001-1102	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0808-1102	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0808-0912	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1001-1102	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1103-		●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0808-0912	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1001-1102	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1103-		●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0808-0912	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1001-1102	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1103-		●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0808-0912	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1001-1102	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1103-		●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0808-0912	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1001-1102	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1103-		●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0808-0912	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1001-1102	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1103-		●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0808-0912	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1001-1102	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1103-		●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0808-1102	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	1001-		●
39	COVER; DUST,PARKING BRK	1-46213-115-0	01	1	1103-			●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0808-1102	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	1001-		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-057-0	01	1	1103-			●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0808-0912	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1001-1102	●	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1103-		●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0808-0912	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1001-1102	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1103-		●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0808-0912	●
46	WASHER; LEVER	9-09855-367-0	01	1	1001-1102	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	1103-		●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0808-0906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1001-1009		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-1102	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1103-		●

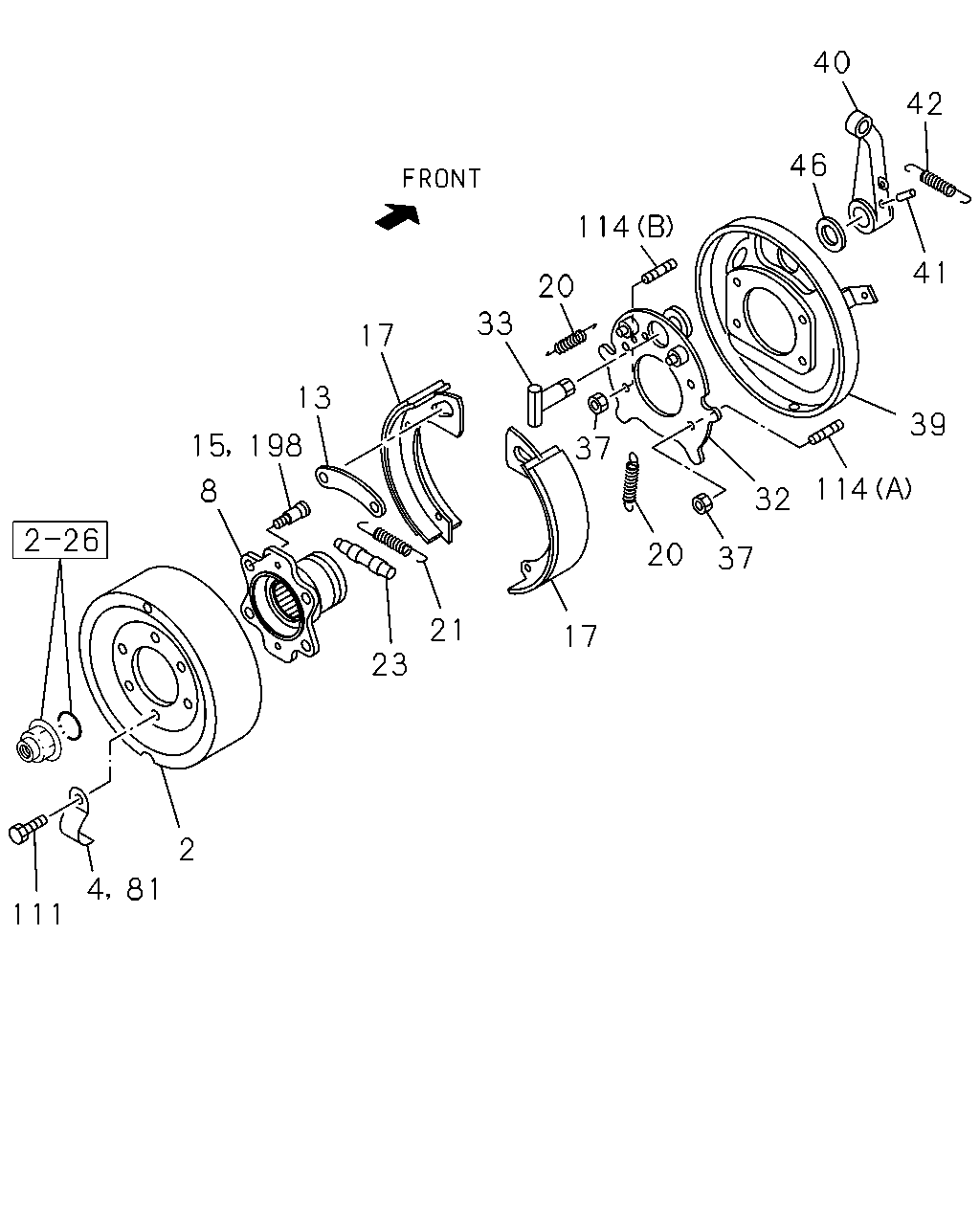

40 42 46 114 41 20 33 17 13 39 198 15 37 114 8 32 20 37 21 17 23 2 81 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0808-0912	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	1001-1102	●	●
2	DRUM; PARKING BRK	1-46211-020-1	01	1	1103-		●	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	0808-0912	●
4	COVER; ADJ HOLE	1-46219-018-0	02	1	1001-1102	●	●
8	FLANGE; PARKING BRK	8-98171-007-0	01	1	1103-			●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1001-1002		●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1003-1102	●	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1103-		●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0808-0912	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1001	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1002	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0808-0912	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1001-1102	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1103-		●	●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	0808-0912	●
15	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	1001-1102	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0808-0912	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1001-1102	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1103-		●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0808-0912	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1001-1102	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1103-		●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0808-0912	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1001-1102	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1103-		●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0808-0912	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1001-1102	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1103-		●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0808-0912	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1001-1102	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1103-		●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0808-0912	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1001-1102	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1103-		●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0808-0912	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1001-1102	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1103-		●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0808-1102	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	1001-		●
39	COVER; DUST,PARKING BRK	1-46213-115-0	01	1	1103-			●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0808-1102	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	1001-		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-057-0	01	1	1103-			●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0808-0912	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1001-1102	●	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1103-		●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0808-0912	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1001-1102	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1103-		●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0808-0912	●
46	WASHER; LEVER	9-09855-367-0	01	1	1001-1102	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	1103-		●	●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1207-1506		●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1103-		●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0808-0906	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1001-1009		●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-1102	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50740-820-0	02	1	1103-		●
114	STUD; SUPPORT PLATE (C) M14X22.5 L=42.5	8-97365-445-0	04	1	1103-			●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1001-		●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1001-		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1207-1506		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1103-		●	●

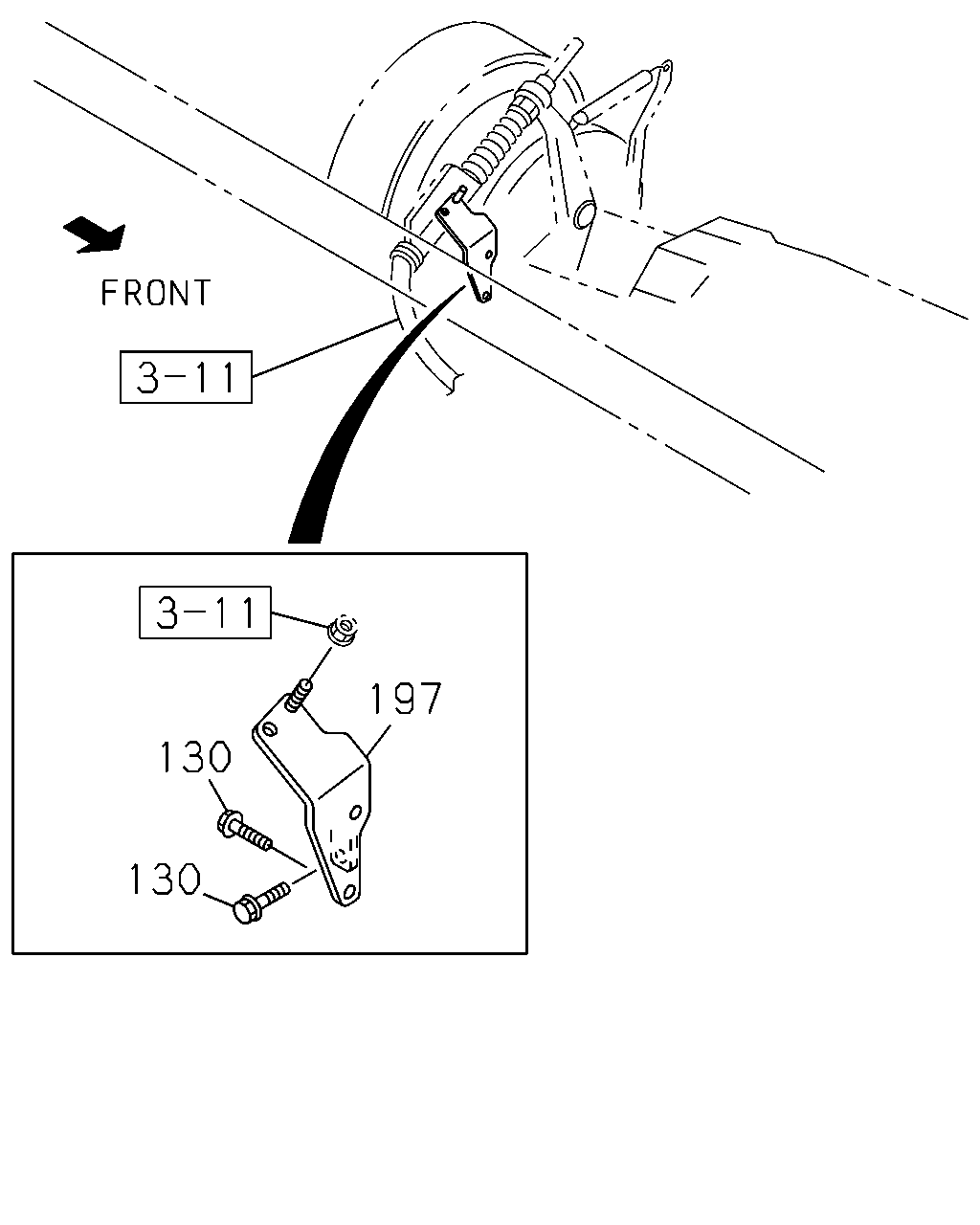

197 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
130	BOLT; BRKT M10X25 FLANGE THA	0-28151-025-0	03	1	1103-		●
130	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1001-	●
197	BRACKET; CENTER BRAKE CABLE	8-98170-963-2	01	1	1103-		●
197	BRACKET; CENTER BRAKE CABLE	8-98020-897-1	01	1	1001-	●

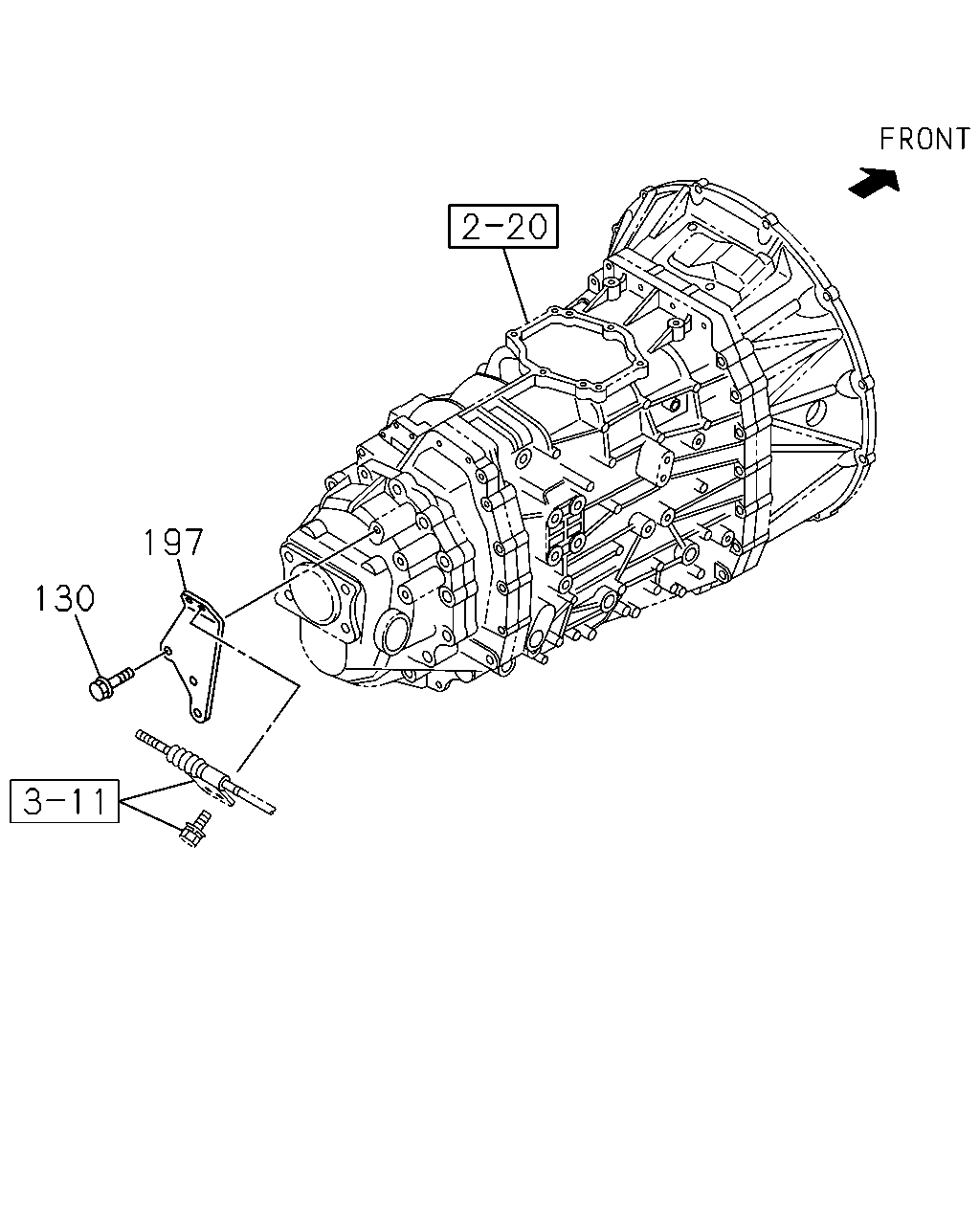

197 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
130	BOLT; BRKT M10X25 FLANGE THA	0-28151-025-0	03	1	1103-		●
130	BOLT; BRKT M10X25 FLANGE THA	0-28751-025-0	03	1	1001-	●
197	BRACKET; CENTER BRAKE CABLE	8-98170-963-2	01	1	1103-		●
197	BRACKET; CENTER BRAKE CABLE	8-98020-897-1	01	1	1001-	●

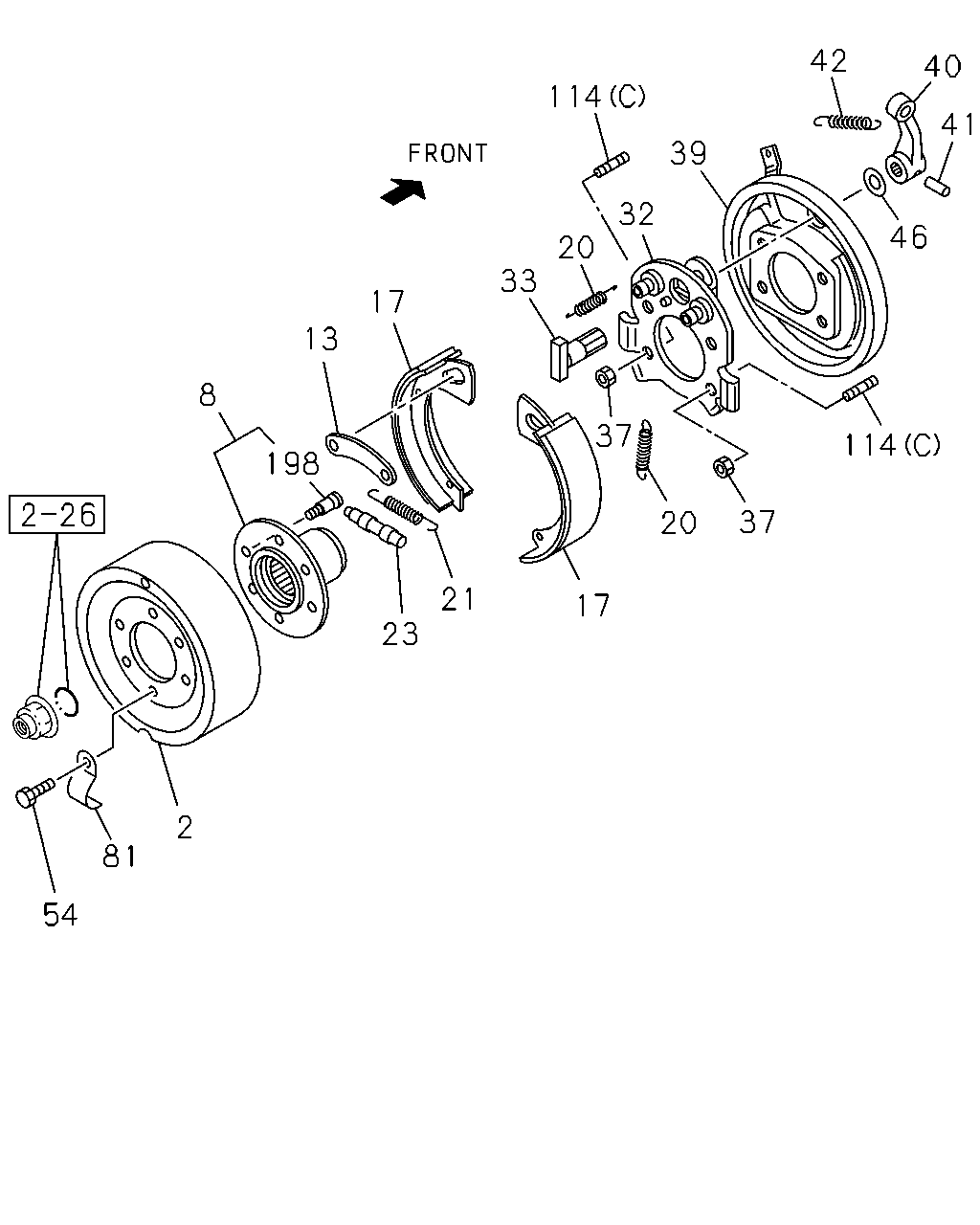

42 40 114 41 39 32 46 20 33 17 13 8 37 114 198 37 20 21 17 23 2 81 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DRUM; PARKING BRK	1-46211-020-0	01	1	0808-0912	●
2	DRUM; PARKING BRK	1-46211-020-0	01	1	1001-1102	●	●
2	DRUM; PARKING BRK	1-46211-020-1	01	1	1103-		●	●
8	FLANGE; PARKING BRK	8-98171-007-0	01	1	1103-			●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1001-1002		●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1003-1102	●	●
8	FLANGE; PARKING BRK	8-98153-194-0	01	1	1103-		●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	0808-0912	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1001	●	●
8	FLANGE; PARKING BRK	1-37243-236-0	01	1	1001-1002	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	0808-0912	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1001-1102	●	●
13	BRACE; PARKING BRK	9-46239-003-0	01	1	1103-		●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	0808-0912	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1001-1102	●	●
17	SHOE; PARKING BRK	1-46220-029-0	02	1	1103-		●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	0808-0912	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1001-1102	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-567-1	02	1	1103-		●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	0808-0912	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1001-1102	●	●
21	SPRING; RETURN,PARKING BRK SHOE	1-09583-268-0	01	1	1103-		●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	0808-0912	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1001-1102	●	●
23	SCREW; ADJ,PARKING BRK SHOE	9-46240-008-0	01	1	1103-		●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	0808-0912	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1001-1102	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-023-0	01	1	1103-		●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	0808-0912	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1001-1102	●	●
33	SHAFT; CAM,PARKING BRK	1-46251-070-0	01	1	1103-		●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	0808-0912	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1001-1102	●	●
37	NUT; SUPPORT PLATE M14 FLANGE	8-97365-444-0	04	1	1103-		●	●
39	COVER; DUST,PARKING BRK	1-46213-019-0	01	1	0808-1102	●
39	COVER; DUST,PARKING BRK	1-46213-111-0	01	1	1001-		●
39	COVER; DUST,PARKING BRK	1-46213-115-0	01	1	1103-			●
40	LEVER; CM/SHF,PARKING BRK	1-46252-043-0	01	1	0808-1102	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-052-0	01	1	1001-		●
40	LEVER; CM/SHF,PARKING BRK	1-46252-057-0	01	1	1103-			●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	0808-0912	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1001-1102	●	●
41	PIN; KNOCK,LEVER	9-09878-594-0	01	1	1103-		●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	0808-0912	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1001-1102	●	●
42	SPRING; RETURN,LEVER	9-09942-592-0	01	1	1103-		●	●
46	WASHER; LEVER	9-09855-367-0	01	1	0808-0912	●
46	WASHER; LEVER	9-09855-367-0	01	1	1001-1102	●	●
46	WASHER; LEVER	9-09855-367-0	01	1	1103-		●	●
54	BOLT; COVER M8X20 W/LK WASHER	0-50740-820-0	02	1	1103-			●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1207-1506		●
81	COVER; CHECK HOLE,PARKING BRK	1-46219-018-0	02	1	1103-		●	●
114	STUD; SUPPORT PLATE (C) M14X22.5 L=42.5	8-97365-445-0	04	1	1103-			●
114	STUD; SUPPORT PLATE (B) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	1001-		●
114	STUD; SUPPORT PLATE (A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1001-		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1207-1506		●
198	BOLT; KNURL M14X43 KNURL	8-98014-003-0	04	1	1103-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
