3-05 — REAR WHEEL BRAKE (#13712) — 157 parça

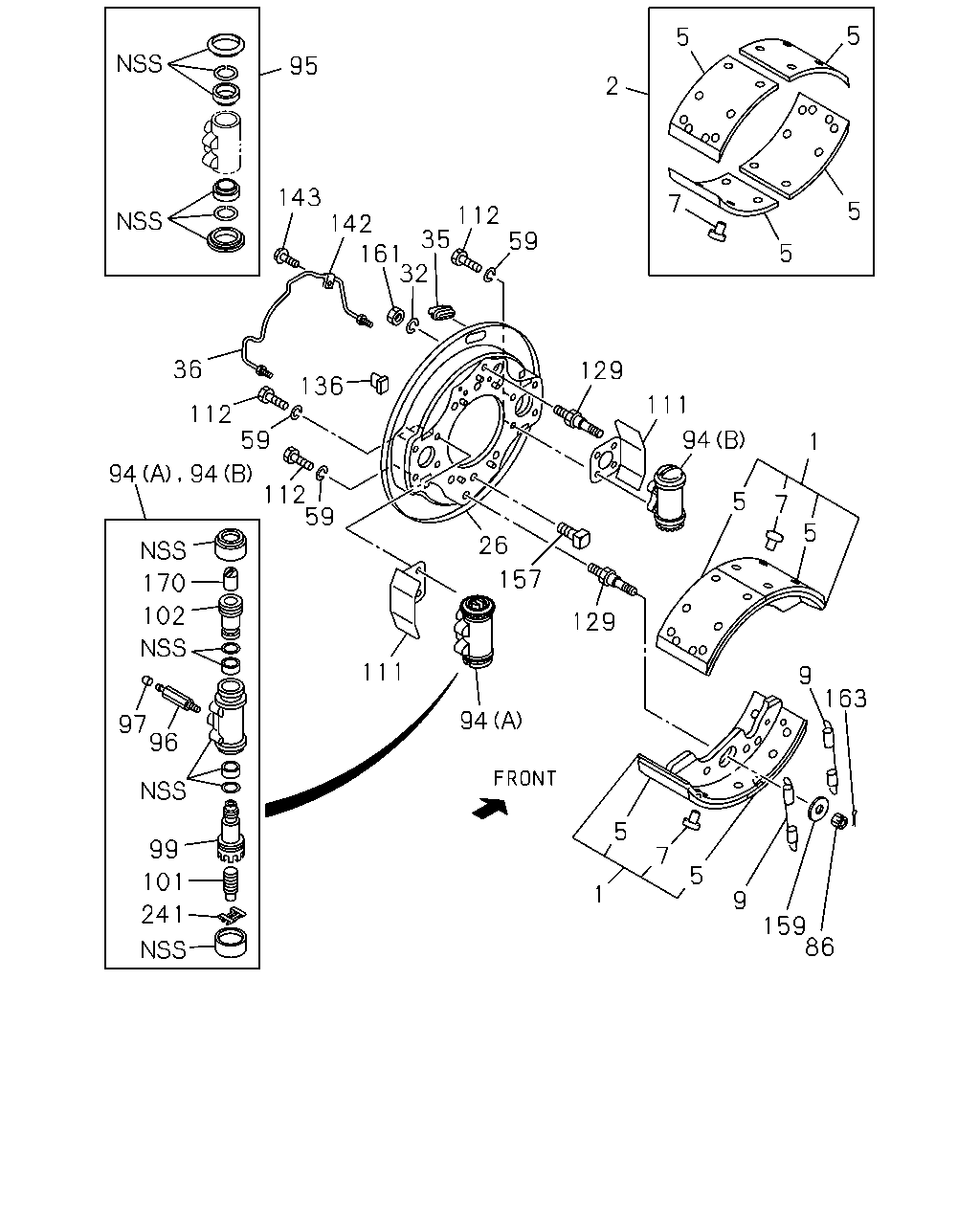

çizim 142829
5 5 95 2 143 142 161 32 7 5 112 35 59 5 36 129 136 111 112 59 94 1 94 94 112 59 5 7 5 26 157 170 102 129 111 9 163 94 97 96 5 99 7 5 101 1 9 241 159 86
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47120-626-0 04 1 1103-
1 SHOE; BRK,RR 1-47170-484-0 04 1 0808-1102
1 SHOE; BRK,RR 1-47120-626-0 04 1 1103-
2 LINING SET; RR BRK,STANDARD 1-88310-551-1 02 1 1103-
2 LINING SET; RR BRK,STANDARD 1-88311-386-0 02 1 0808-1102
2 LINING SET; RR BRK,STANDARD 1-88310-551-1 02 1 1103-
5 LINING; RR BRK SHOE,STANDARD 1-47125-803-0 08 1 1103-
5 LINING; RR BRK SHOE,STANDARD 1-47126-801-0 08 1 0808-1102
5 LINING; RR BRK SHOE,STANDARD 1-47125-803-0 08 1 1103-
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1103-
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 0808-1102
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1103-
9 SPRING; RETURN,BRK SHOE 1-09583-271-0 04 1 1103-
9 SPRING; RETURN,BRK SHOE 1-09583-383-0 02 1 0808-1102
9 SPRING; RETURN,BRK SHOE 1-09583-384-0 02 1 0808-1102
9 SPRING; RETURN,BRK SHOE 1-09583-271-0 04 1 1103-
26 PLATE; BACK,RR BRK 1-47150-467-0 01 1 1103-
26 PLATE; BACK,RR BRK 1-47150-468-0 01 1 1103-
26 PLATE; BACK,RR BRK 1-47150-708-1 01 1 0808-1102
26 PLATE; BACK,RR BRK 1-47150-709-1 01 1 0808-1102
26 PLATE; BACK,RR BRK 1-47150-467-0 01 1 1103-
26 PLATE; BACK,RR BRK 1-47150-468-0 01 1 1103-
32 WASHER; LK
ID=12.2 		0-91510-512-0 04 1 1103-
32 WASHER; LK 1-47159-110-0 04 1 0808-1102
32 WASHER; LK
ID=12.2 		0-91510-512-0 04 1 1103-
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1103-
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0808-1102
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1103-
36 PIPE; OIL,RR BRK 1-47421-815-0 02 1 1103-
36 PIPE; OIL,RR BRK 1-49167-859-0 02 1 0808-1102
36 PIPE; OIL,RR BRK 1-47421-815-0 02 1 1103-
59 WASHER; LK,RR WHEEL CYL
ID=12.2 THA 		0-91510-612-0 16 1 0808-1102
86 NUT; FLANGE 1-09440-003-0 04 1 1103-
86 NUT; FLANGE 1-09440-101-0 04 1 0808-1102
86 NUT; FLANGE 1-09440-003-0 04 1 1103-
94 CYLINDER; WHEEL,RR BRK
(C) BACKWARD 		1-47600-959-0 01 1 1103-
94 CYLINDER; WHEEL,RR BRK
(A) BACKWARD 		1-47601-169-0 02 1 0808-1102
94 CYLINDER; WHEEL,RR BRK
(B) FORWARD 		1-47601-170-0 01 1 0808-1102
94 CYLINDER; WHEEL,RR BRK
(B) FORWARD 		1-47601-171-0 01 1 0808-1102
94 CYLINDER; WHEEL,RR BRK
(C) FORWARD 		1-47600-956-0 01 1 1103-
94 CYLINDER; WHEEL,RR BRK
(C) BACKWARD 		1-47600-957-0 01 1 1103-
94 CYLINDER; WHEEL,RR BRK
(C) FORWARD 		1-47600-958-0 01 1 1103-
95 CUP SET; RR WHEEL CYL 1-87830-770-0 04 1 1103-
95 CUP SET; RR WHEEL CYL 1-87831-323-0 04 1 0808-1102
95 CUP SET; RR WHEEL CYL 1-87830-770-0 04 1 1103-
96 SCREW; BLEEDER,RR BRK 1-47615-020-0 02 1 1103-
96 SCREW; BLEEDER,RR BRK 1-47615-018-1 02 1 0808-1102
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 1103-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0808-1102
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 1103-
99 PISTON; RR WHEEL CYL 1-47624-310-0 02 1 1103-
99 PISTON; RR WHEEL CYL 1-47620-238-0 04 1 0808-1102
99 PISTON; RR WHEEL CYL 1-47624-309-0 02 1 1103-
101 SCREW; ADJ,RR WHEEL CYL
M22 RH THREAD 		1-47622-034-0 02 1 1103-
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 0808-1102
101 SCREW; ADJ,RR WHEEL CYL
M22 LH THREAD 		1-47622-033-0 02 1 1103-
102 PISTON; REAR WHEEL CYL 1-47624-311-0 04 1 1103-
102 PISTON; REAR WHEEL CYL 1-47620-239-0 04 1 0808-1102
111 COVER; WHEEL CYL 1-47159-103-0 04 1 1103-
111 COVER; WHEEL CYL 1-47159-230-0 04 1 0808-1102
112 BOLT; WHEEL CYL SETTING
M12 		1-47159-184-0 16 1 1103-
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 16 1 0808-1102
129 PIN; SHOE HOLD 1-47162-044-0 04 1 0808-1102
136 GROMMET 9-09956-640-0 04 1 1103-
136 GROMMET 1-09333-138-0 04 1 0808-1102
142 CLAMP; OIL PIPE 1-09701-322-0 02 1 0808-1102
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 0808-1102
157 BOLT; RR BRK SET
M14X45 SQUARE HEAD 		1-09060-015-0 12 1 1103-
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 0808-1102
159 WASHER; SHOE HOLD 1-47169-037-0 04 1 0808-1102
161 NUT; SHOE HOLD LOCK 1-47159-111-0 04 1 0808-1102
163 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 1103-
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 0808-1102
170 PIECE; ANCHOR,RR WHEEL CYL 1-47619-185-0 04 1 0808-1102
241 HOLDER 1-47619-097-0 04 1 0808-1102

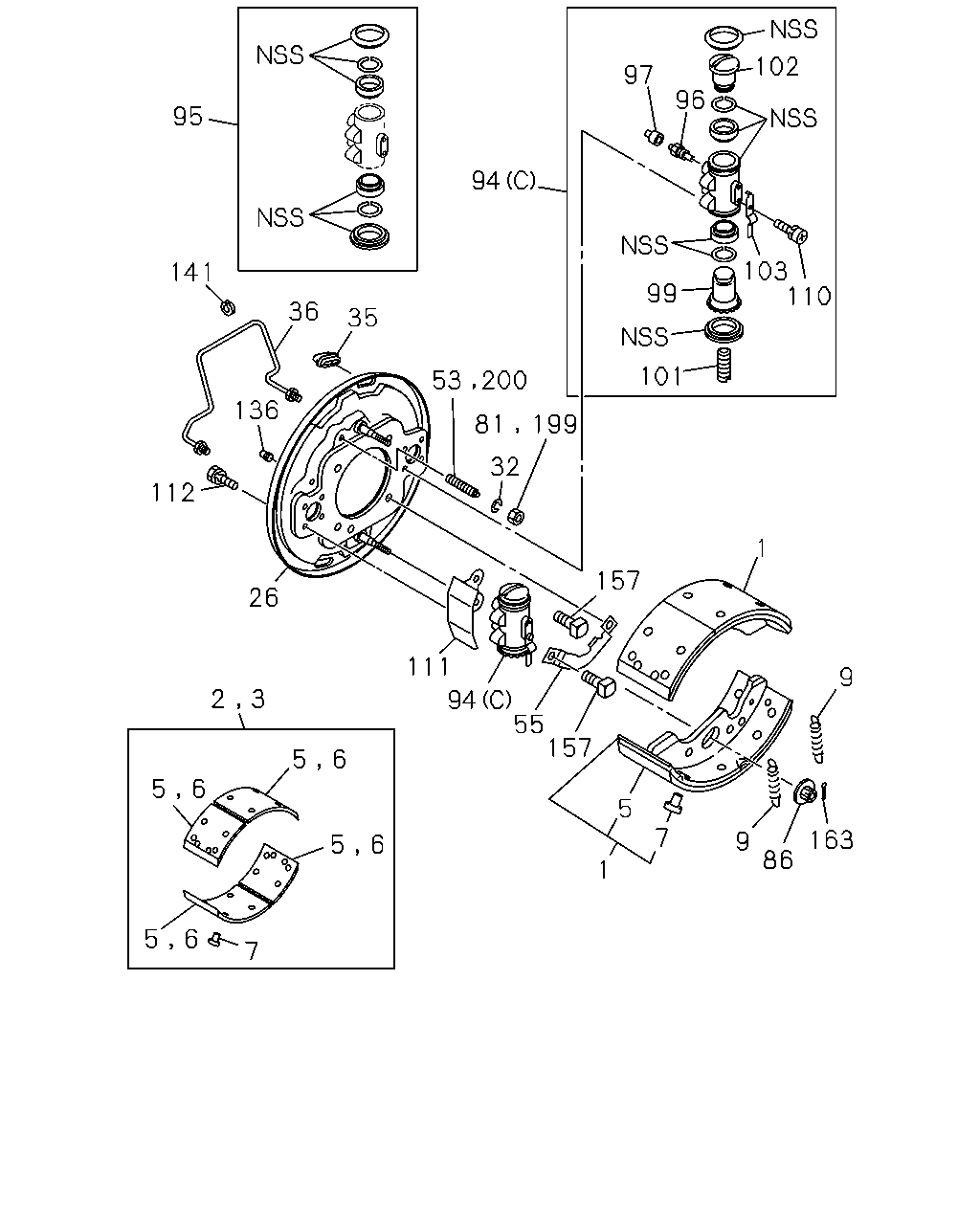

çizim 143015
102 97 96 95 94 103 110 141 99 36 35 101 136 81 199 32 112 1 157 26 111 9 2 3 94 55 157 5 6 5 6 5 7 163 9 5 6 86 1 5 6 7 53 200
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR 1-47120-626-0 04 1 1103-
1 SHOE; BRK,RR 1-47170-484-0 04 1 0808-1102
1 SHOE; BRK,RR 1-47120-626-0 04 1 1103-
2 LINING SET; RR BRK,STANDARD 1-88310-551-1 02 1 1103-
2 LINING SET; RR BRK,STANDARD 1-88311-386-0 02 1 0808-1102
2 LINING SET; RR BRK,STANDARD 1-88310-551-1 02 1 1103-
3 LINING SET; RR BRK,OVER SIZE 1-88310-552-1 02 1 1103-
3 LINING SET; RR BRK,OVER SIZE 1-88310-552-1 02 1 1103-
5 LINING; RR BRK SHOE,STANDARD 1-47125-803-0 08 1 1103-
5 LINING; RR BRK SHOE,STANDARD 1-47126-801-0 08 1 0808-1102
5 LINING; RR BRK SHOE,STANDARD 1-47125-803-0 08 1 1103-
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-804-0 08 1 1103-
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-804-0 08 1 1103-
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1103-
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 0808-1102
7 RIVET; LINING,RR BRK 1-09732-029-0 96 1 1103-
9 SPRING; RETURN,BRK SHOE 1-09583-271-0 04 1 1103-
9 SPRING; RETURN,BRK SHOE 1-09583-383-0 02 1 0808-1102
9 SPRING; RETURN,BRK SHOE 1-09583-384-0 02 1 0808-1102
9 SPRING; RETURN,BRK SHOE 1-09583-271-0 04 1 1103-
26 PLATE; BACK,RR BRK 1-47150-467-0 01 1 1103-
26 PLATE; BACK,RR BRK 1-47150-468-0 01 1 1103-
26 PLATE; BACK,RR BRK 1-47150-708-1 01 1 0808-1102
26 PLATE; BACK,RR BRK 1-47150-709-1 01 1 0808-1102
26 PLATE; BACK,RR BRK 1-47150-467-0 01 1 1103-
26 PLATE; BACK,RR BRK 1-47150-468-0 01 1 1103-
32 WASHER; LK
ID=12.2 		0-91510-512-0 04 1 1103-
32 WASHER; LK 1-47159-110-0 04 1 0808-1102
32 WASHER; LK
ID=12.2 		0-91510-512-0 04 1 1103-
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1103-
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0808-1102
35 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1103-
36 PIPE; OIL,RR BRK 1-47421-815-0 02 1 1103-
36 PIPE; OIL,RR BRK 1-49167-859-0 02 1 0808-1102
36 PIPE; OIL,RR BRK 1-47421-815-0 02 1 1103-
53 BOLT; LOCK PLATE 1-47162-050-0 02 1 1103-
53 BOLT; LOCK PLATE 1-47162-050-0 02 1 1103-
55 PLATE; LK,RR WHEEL CYL 1-47139-064-0 04 1 1103-
55 PLATE; LK,RR WHEEL CYL 1-47139-064-0 04 1 1103-
81 NUT 1-09400-100-0 02 1 1103-
81 NUT 1-09400-100-0 02 1 1103-
86 NUT; FLANGE 1-09440-003-0 04 1 1103-
86 NUT; FLANGE 1-09440-101-0 04 1 0808-1102
86 NUT; FLANGE 1-09440-003-0 04 1 1103-
94 CYLINDER; WHEEL,RR BRK
(C) BACKWARD 		1-47600-959-0 01 1 1103-
94 CYLINDER; WHEEL,RR BRK
(A) BACKWARD 		1-47601-169-0 02 1 0808-1102
94 CYLINDER; WHEEL,RR BRK
(B) FORWARD 		1-47601-170-0 01 1 0808-1102
94 CYLINDER; WHEEL,RR BRK
(B) FORWARD 		1-47601-171-0 01 1 0808-1102
94 CYLINDER; WHEEL,RR BRK
(C) FORWARD 		1-47600-956-0 01 1 1103-
94 CYLINDER; WHEEL,RR BRK
(C) BACKWARD 		1-47600-957-0 01 1 1103-
94 CYLINDER; WHEEL,RR BRK
(C) FORWARD 		1-47600-958-0 01 1 1103-
95 CUP SET; RR WHEEL CYL 1-87830-770-0 04 1 1103-
95 CUP SET; RR WHEEL CYL 1-87831-323-0 04 1 0808-1102
95 CUP SET; RR WHEEL CYL 1-87830-770-0 04 1 1103-
96 SCREW; BLEEDER,RR BRK 1-47615-020-0 02 1 1103-
96 SCREW; BLEEDER,RR BRK 1-47615-018-1 02 1 0808-1102
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 1103-
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0808-1102
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 02 1 1103-
99 PISTON; RR WHEEL CYL 1-47624-310-0 02 1 1103-
99 PISTON; RR WHEEL CYL 1-47620-238-0 04 1 0808-1102
99 PISTON; RR WHEEL CYL 1-47624-309-0 02 1 1103-
101 SCREW; ADJ,RR WHEEL CYL
M22 RH THREAD 		1-47622-034-0 02 1 1103-
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 0808-1102
101 SCREW; ADJ,RR WHEEL CYL
M22 LH THREAD 		1-47622-033-0 02 1 1103-
102 PISTON; REAR WHEEL CYL 1-47624-311-0 04 1 1103-
102 PISTON; REAR WHEEL CYL 1-47620-239-0 04 1 0808-1102
103 SPRING; LK,RR WHEEL CYL,ADJ 1-47629-072-0 04 1 1103-
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1103-
111 COVER; WHEEL CYL 1-47159-103-0 04 1 1103-
111 COVER; WHEEL CYL 1-47159-230-0 04 1 0808-1102
112 BOLT; WHEEL CYL SETTING
M12 		1-47159-184-0 16 1 1103-
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 16 1 0808-1102
136 GROMMET 9-09956-640-0 04 1 1103-
136 GROMMET 1-09333-138-0 04 1 0808-1102
141 PROTECTOR; RR BRK PIPE 9-47461-158-0 02 1 1103-
157 BOLT; RR BRK SET
M14X45 SQUARE HEAD 		1-09060-015-0 12 1 1103-
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 0808-1102
163 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 1103-
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 0808-1102
199 NUT 1-09400-100-0 02 1 1103-
200 BOLT 1-47162-050-0 02 1 1103-
