3-01 — FRONT WHEEL BRAKE (#13711) — 129 parça

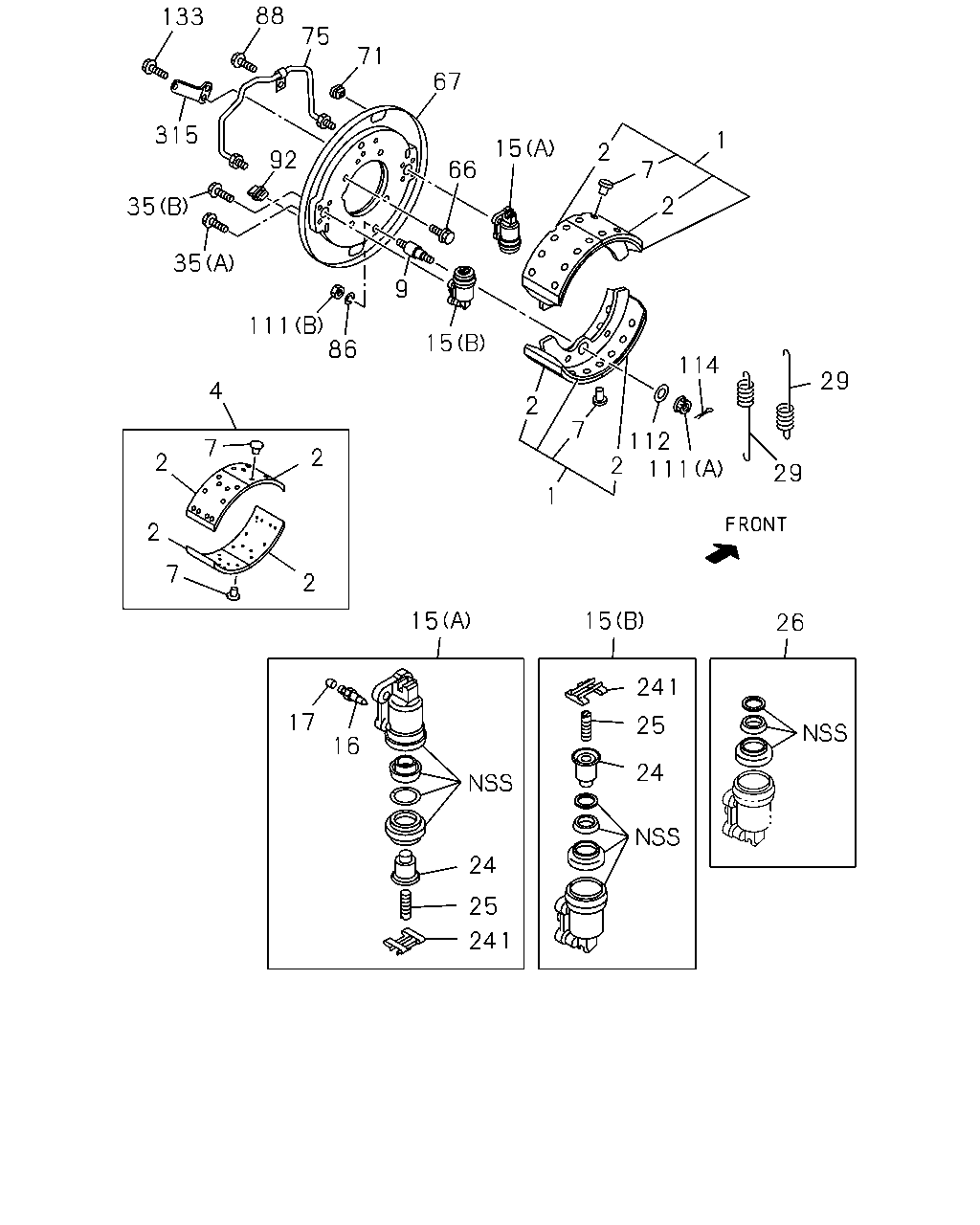

çizim 142812
88 133 75 71 67 315 1 15 2 92 66 7 2 35 35 9 111 86 15 114 29 4 2 7 112 2 111 7 2 2 29 1 2 7 2 15 15 26 241 17 25 16 24 24 25 241
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT 1-47170-483-0 04 1 0808-1102
1 SHOE; BRK,FRT 1-47120-624-0 04 1 1103-
2 LINING; FRT BRK SHOE,STANDARD 1-47125-801-0 04 1 1103-
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 0808-1102
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 0808-1102
4 LINING SET; FRT BRK,STANDARD 1-88310-501-1 01 1 1103-
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 0808-1102
7 RIVET; LINING,FRT BRK 1-09732-029-0 56 1 1103-
9 PIN; SHOE HOLDER 1-47162-046-0 04 1 0808-1102
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 0808-1102
15 CYLINDER; WHEEL,FRT BRK
(C) 		1-47600-938-0 02 1 1103-
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 0808-1102
15 CYLINDER; WHEEL,FRT BRK
(C) 		1-47600-939-0 02 1 1103-
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 0808-1102
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 0808-1102
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 0808-1102
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 04 1 1103-
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0808-1102
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 04 1 1103-
24 PISTON; FRT WHEEL CYL 1-47624-319-0 02 1 1103-
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 0808-1102
24 PISTON; FRT WHEEL CYL 1-47624-318-0 02 1 1103-
25 SCREW; ADJ,FRT WHEEL CYL
RH THREAD 		1-47622-021-0 02 1 1103-
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 0808-1102
25 SCREW; ADJ,FRT WHEEL CYL
LH THREAD 		1-47622-020-0 02 1 1103-
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 0808-1102
26 CUP SET; FRT WHEEL CYL 1-87830-679-0 04 1 1103-
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-0 04 1 0808-1102
29 SPRING; RETURN,FRT BRK SHOE 1-09583-288-0 04 1 1103-
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50051-025-0 08 1 0808-0906
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 0907-1102
35 BOLT; FRT WHEEL CYL
(C) M14X30 		1-09000-365-0 04 1 1103-
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 0808-1102
35 BOLT; FRT WHEEL CYL
(D) M8X22 		9-09802-475-0 08 1 1103-
66 BOLT; OIL SHIELD COVER
M14X60 		0-20951-460-0 04 1 0808-1102
67 PLATE; BACK,FRT BRK 1-47150-704-0 01 1 0808-0907
67 PLATE; BACK,FRT BRK 1-47150-716-0 01 1 0908-1102
67 PLATE; BACK,FRT BRK 1-47150-375-0 01 1 1103-
67 PLATE; BACK,FRT BRK 1-47150-705-0 01 1 0808-0907
67 PLATE; BACK,FRT BRK 1-47150-717-0 01 1 0908-1102
67 PLATE; BACK,FRT BRK 1-47150-376-0 01 1 1103-
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0808-1102
71 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1103-
75 PIPE; OIL,FWD,FRT BRK 1-47414-238-0 01 1 1103-
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 0808-1102
75 PIPE; OIL,FWD,FRT BRK 1-47414-237-0 01 1 1103-
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 0808-1102
86 WASHER; LK,FRT WHEEL CYL
ID=14.2 		0-91510-614-0 04 1 1103-
88 BOLT; BRK PIPE CLAMP
M6X10 		9-01900-610-0 02 1 0808-1102
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 0808-1102
92 GROMMET; ADJ HOLE 9-09956-640-0 04 1 1103-
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 0808-1102
111 NUT; FLANGE,SHOE HOLD
(C) 		1-09440-002-0 04 1 1103-
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 0808-1102
112 WASHER; PL,SHOE HOLD 1-47169-037-0 04 1 0808-1102
114 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		9-08112-020-0 04 1 0808-0907
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 0908-1102
114 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 1103-
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50040-820-0 04 1 0808-0906
133 BOLT; BRKT
M8X20 W/LK WASHER 		0-50540-820-0 04 1 0907-1102
241 HOLDER 1-47619-097-0 04 1 0808-1102
315 BRACKET; BRAKE FLEX HOSE 1-47159-228-0 01 1 0808-0907
315 BRACKET; BRAKE FLEX HOSE 1-47159-242-0 01 1 0908-1102
315 BRACKET; BRAKE FLEX HOSE 1-47159-229-0 01 1 0808-0907
315 BRACKET; BRAKE FLEX HOSE 1-47159-243-0 01 1 0908-1102

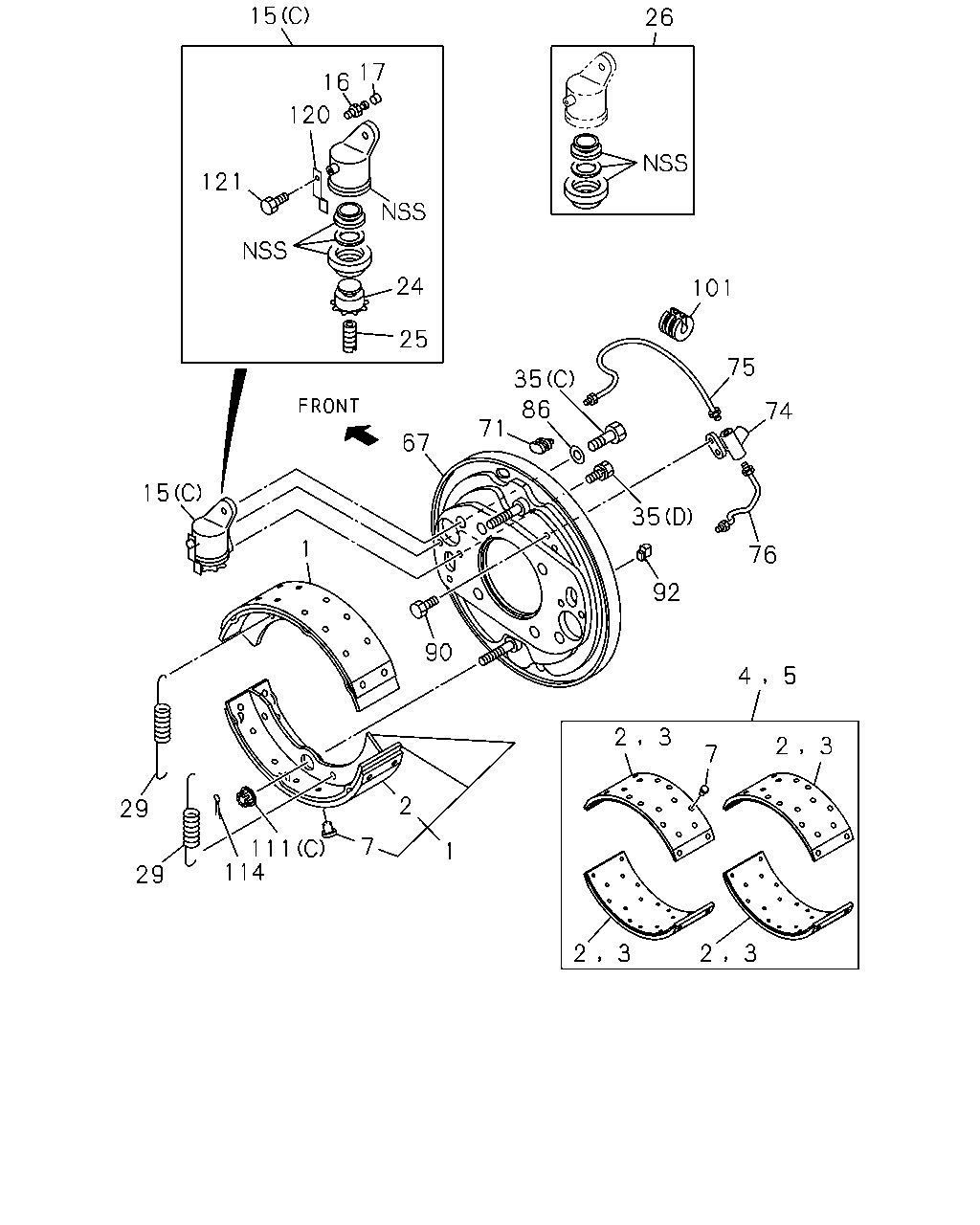

çizim 143025
15 26 17 16 120 121 24 101 25 75 35 86 74 71 67 15 35 1 76 92 90 5 4 2 3 3 2 7 2 29 7 111 114 1 29 2 3 2 3
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT 1-47170-483-0 04 1 0808-1102
1 SHOE; BRK,FRT 1-47120-624-0 04 1 1103-
2 LINING; FRT BRK SHOE,STANDARD 1-47125-801-0 04 1 1103-
2 LINING; FRT BRK SHOE,STANDARD 1-47126-800-0 08 1 0808-1102
3 LINING; FRT BRK SHOE,OVER SIZE 1-47125-802-0 04 1 1103-
4 LINING SET; FRT BRK,STANDARD 1-88311-385-0 02 1 0808-1102
4 LINING SET; FRT BRK,STANDARD 1-88310-501-1 01 1 1103-
5 LINING SET; FRT BRK,OVER SIZE 1-88310-502-1 01 1 1103-
7 RIVET; LINING,FRT BRK
D6X11.5 		1-09732-019-0 64 1 0808-1102
7 RIVET; LINING,FRT BRK 1-09732-029-0 56 1 1103-
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-172-0 01 1 0808-1102
15 CYLINDER; WHEEL,FRT BRK
(C) 		1-47600-938-0 02 1 1103-
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-173-0 01 1 0808-1102
15 CYLINDER; WHEEL,FRT BRK
(C) 		1-47600-939-0 02 1 1103-
15 CYLINDER; WHEEL,FRT BRK
(B) BACKWARD 		1-47601-174-0 01 1 0808-1102
15 CYLINDER; WHEEL,FRT BRK
(A) FORWARD 		1-47601-175-0 01 1 0808-1102
16 SCREW; BLEEDER,FRT BRK 1-47615-009-0 02 1 0808-1102
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 04 1 1103-
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 THA 		1-47619-011-0 02 1 0808-1102
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 04 1 1103-
24 PISTON; FRT WHEEL CYL 1-47624-319-0 02 1 1103-
24 PISTON; FRT WHEEL CYL 1-47620-237-0 04 1 0808-1102
24 PISTON; FRT WHEEL CYL 1-47624-318-0 02 1 1103-
25 SCREW; ADJ,FRT WHEEL CYL
RH THREAD 		1-47622-021-0 02 1 1103-
25 SCREW; ADJ,FRT WHEEL CYL 1-47622-070-0 04 1 0808-1102
25 SCREW; ADJ,FRT WHEEL CYL
LH THREAD 		1-47622-020-0 02 1 1103-
26 CUP SET; FRT WHEEL CYL 1-87831-309-0 04 1 0808-1102
26 CUP SET; FRT WHEEL CYL 1-87830-679-0 04 1 1103-
29 SPRING; RETURN,FRT BRK SHOE 1-09583-385-0 04 1 0808-1102
29 SPRING; RETURN,FRT BRK SHOE 1-09583-288-0 04 1 1103-
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50051-025-0 08 1 0808-0906
35 BOLT; FRT WHEEL CYL
(A) M10X25 W/LK WASHER 		0-50551-025-0 08 1 0907-1102
35 BOLT; FRT WHEEL CYL
(C) M14X30 		1-09000-365-0 04 1 1103-
35 BOLT; FRT WHEEL CYL
(B) 		1-47159-227-0 08 1 0808-1102
35 BOLT; FRT WHEEL CYL
(D) M8X22 		9-09802-475-0 08 1 1103-
67 PLATE; BACK,FRT BRK 1-47150-704-0 01 1 0808-0907
67 PLATE; BACK,FRT BRK 1-47150-716-0 01 1 0908-1102
67 PLATE; BACK,FRT BRK 1-47150-375-0 01 1 1103-
67 PLATE; BACK,FRT BRK 1-47150-705-0 01 1 0808-0907
67 PLATE; BACK,FRT BRK 1-47150-717-0 01 1 0908-1102
67 PLATE; BACK,FRT BRK 1-47150-376-0 01 1 1103-
71 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0808-1102
71 GROMMET; CHECK HOLE 1-09333-033-0 04 1 1103-
74 CONNECTOR; FRT BRK 1-47630-013-1 01 1 1103-
74 CONNECTOR; FRT BRK 1-47630-014-1 01 1 1103-
75 PIPE; OIL,FWD,FRT BRK 1-47414-238-0 01 1 1103-
75 PIPE; OIL,FWD,FRT BRK 1-49167-859-0 02 1 0808-1102
75 PIPE; OIL,FWD,FRT BRK 1-47414-237-0 01 1 1103-
76 PIPE; OIL,BACKWARD,FRT BRK 1-47414-241-0 01 1 1103-
76 PIPE; OIL,BACKWARD,FRT BRK 1-47414-242-0 01 1 1103-
86 WASHER; LK,FRT WHEEL CYL 1-47159-110-0 04 1 0808-1102
86 WASHER; LK,FRT WHEEL CYL
ID=14.2 		0-91510-614-0 04 1 1103-
90 BOLT; CONNECTOR 5-09030-036-1 02 1 1103-
92 GROMMET; ADJ HOLE 1-09333-138-0 04 1 0808-1102
92 GROMMET; ADJ HOLE 9-09956-640-0 04 1 1103-
101 PROTECTOR; OIL PIPE,FRT BRK 9-47461-158-0 02 1 1103-
111 NUT; FLANGE,SHOE HOLD
(A) 		1-09440-101-0 04 1 0808-1102
111 NUT; FLANGE,SHOE HOLD
(C) 		1-09440-002-0 04 1 1103-
111 NUT; FLANGE,SHOE HOLD
(B) 		1-47159-111-0 04 1 0808-1102
114 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		9-08112-020-0 04 1 0808-0907
114 PIN; SPLIT,SHOE HOLD 1-47169-048-0 04 1 0908-1102
114 PIN; SPLIT,SHOE HOLD 9-09874-040-0 04 1 1103-
120 SPRING; LK,ADJ,FRT WHEEL CYL 1-47629-072-0 04 1 1103-
121 SCREW; LK SPR FRT WHEEL CYL 8-94128-727-0 04 1 1103-
