◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11122 - FRR THAILAND ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#13710) — 11 parça

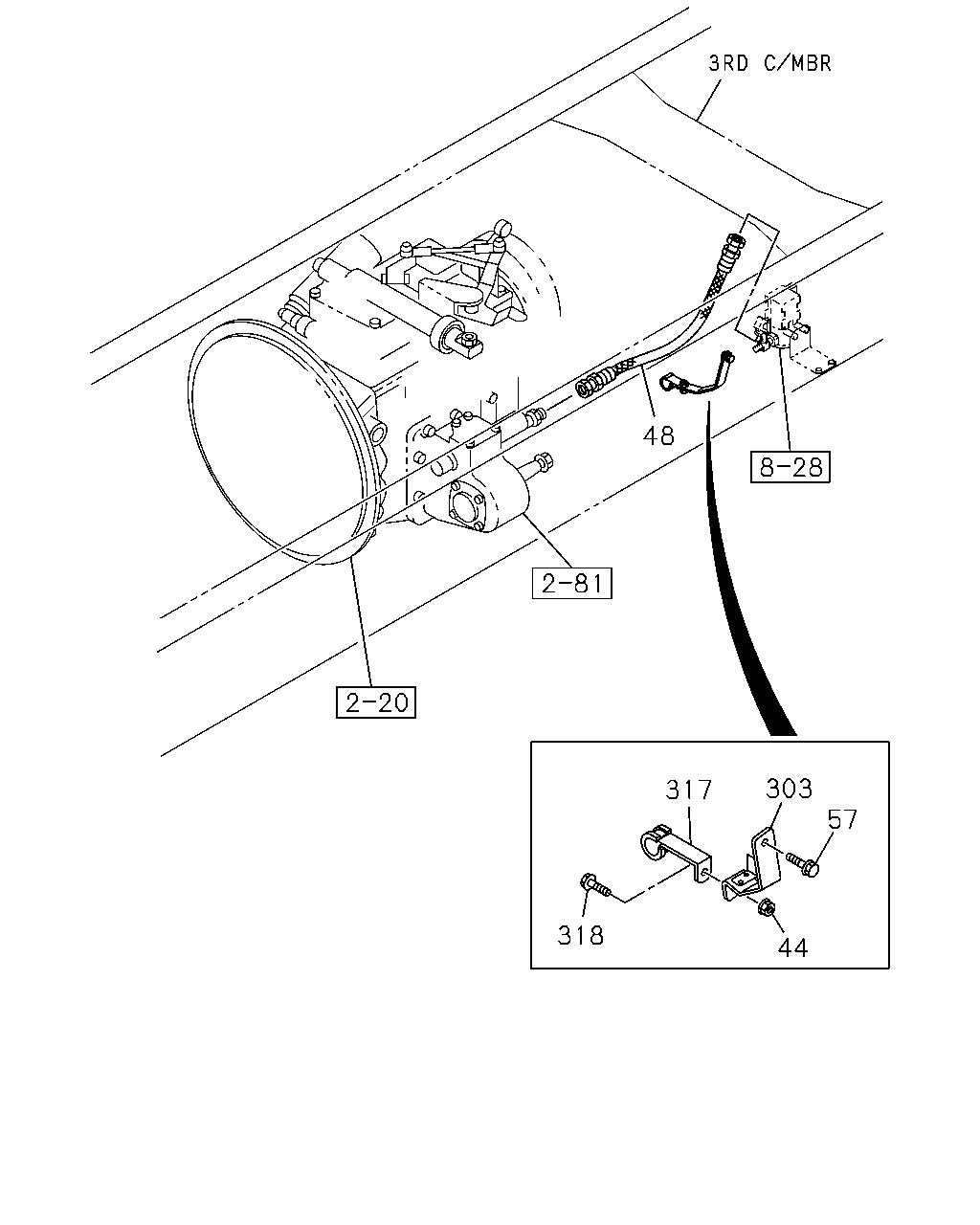

çizim 142810
48 303 317 57 318 44
BalonParca AdiParca NoAdetTipApplied Date
44 NUT; BRKT
MZZ6W M/T<RSA> PTO CONTROL<SV6> M10 FLANGE THA 		0-91180-210-0 01 1 1103-
48 HOSE; FLEX,PTO
MZW6P M/T<RSZ> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=480 THA 		1-09363-659-0 01 1 1001-
48 HOSE; FLEX,PTO
MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=580 		1-09363-613-1 01 1 1001-1102
48 HOSE; FLEX,PTO
MZZ6W M/T<RSA>,MZW6P M/T<RSZ> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=580 		1-09363-613-1 01 1 1103-
48 HOSE; FLEX,PTO
MLD6S M/T<X7W> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=500 		1-09363-733-0 01 1 0808-1102
48 HOSE; FLEX,PTO
MZZ6W M/T<RSA> WHEEL BASE 3400MM<34W> PTO CONTROL<SV6> L=490 		1-09363-966-0 01 1 1103-
48 HOSE; FLEX,PTO
MLD6S M/T<X7W> WHEEL BASE 4300MM<43W>,WHEEL BASE 4900MM<49W> PTO CONTROL<SV6> L=520 		1-09363-957-0 01 1 0808-1102
57 BOLT; BRKT
MZZ6W M/T<RSA> PTO CONTROL<SV6> M10X25 FLANGE THA 		0-28651-025-0 01 1 1103-
303 BRACKET; CLIP
MZZ6W M/T<RSA> PTO CONTROL<SV6> 		8-98136-975-0 01 1 1103-
317 CLIP; NYLON TUBE
MZZ6W M/T<RSA> PTO CONTROL<SV6> ID=15 L=22 H=30 		1-09701-215-1 01 1 1103-
318 BOLT; CLIP
MZZ6W M/T<RSA> PTO CONTROL<SV6> M8X20 FLANGE THA 		0-28650-820-0 01 1 1103-
