8-40 — HEATER SYSTEM (#13698) — 23 parça

77 26 455 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

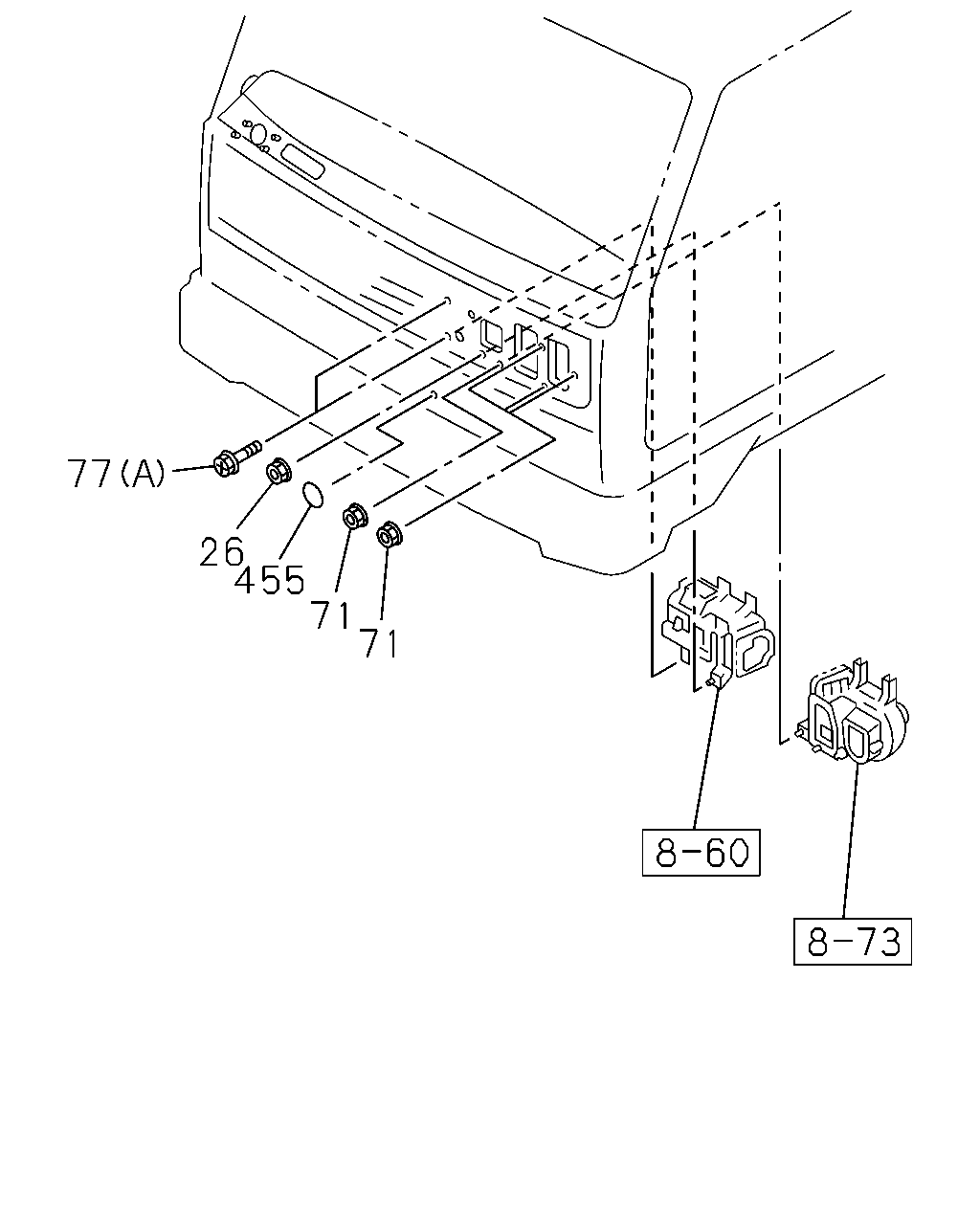

26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0711-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0711-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0711-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0711-
455	SEAL; CLIP HOLE OD=25 BLACK	1-76798-019-0	01	1	0711-

223 135 123 223 12 123 223 123 223 186 12 123 186 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

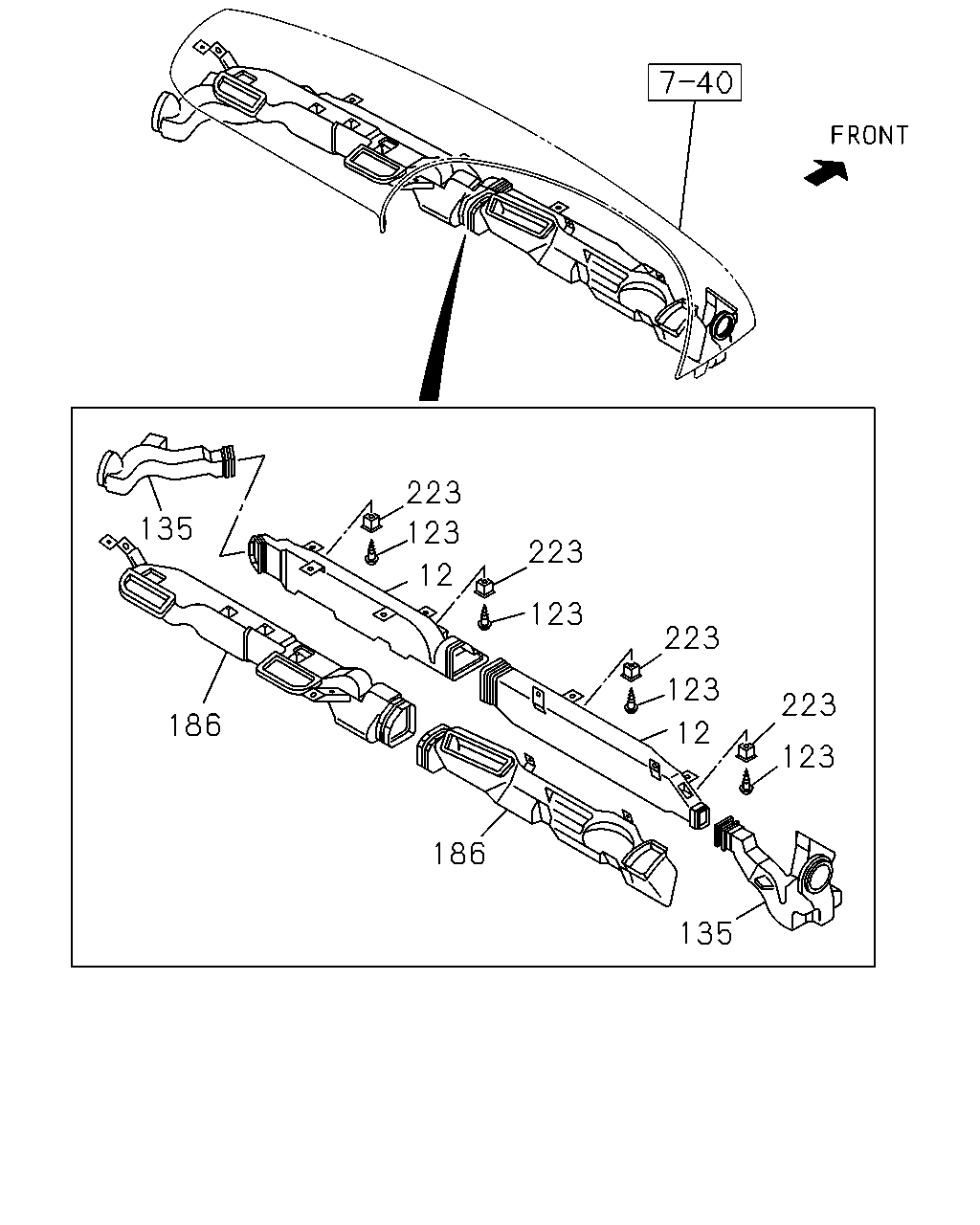

12	NOZZLE; DEFROSTER	1-76378-321-6	01	1	0711-
12	NOZZLE; DEFROSTER	1-76377-172-7	01	1	0711-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0711-
135	HOSE; DEFROSTER	1-76378-253-4	01	1	0711-
135	HOSE; DEFROSTER	1-76378-252-7	01	1	0711-
186	DUCT; VENTILATOR	1-76377-246-0	01	1	0711-
186	DUCT; VENTILATOR	1-76378-418-0	01	1	0711-
223	GROMMET; SCREW D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0711-

265 250 459 459 250 460 461 373 72 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

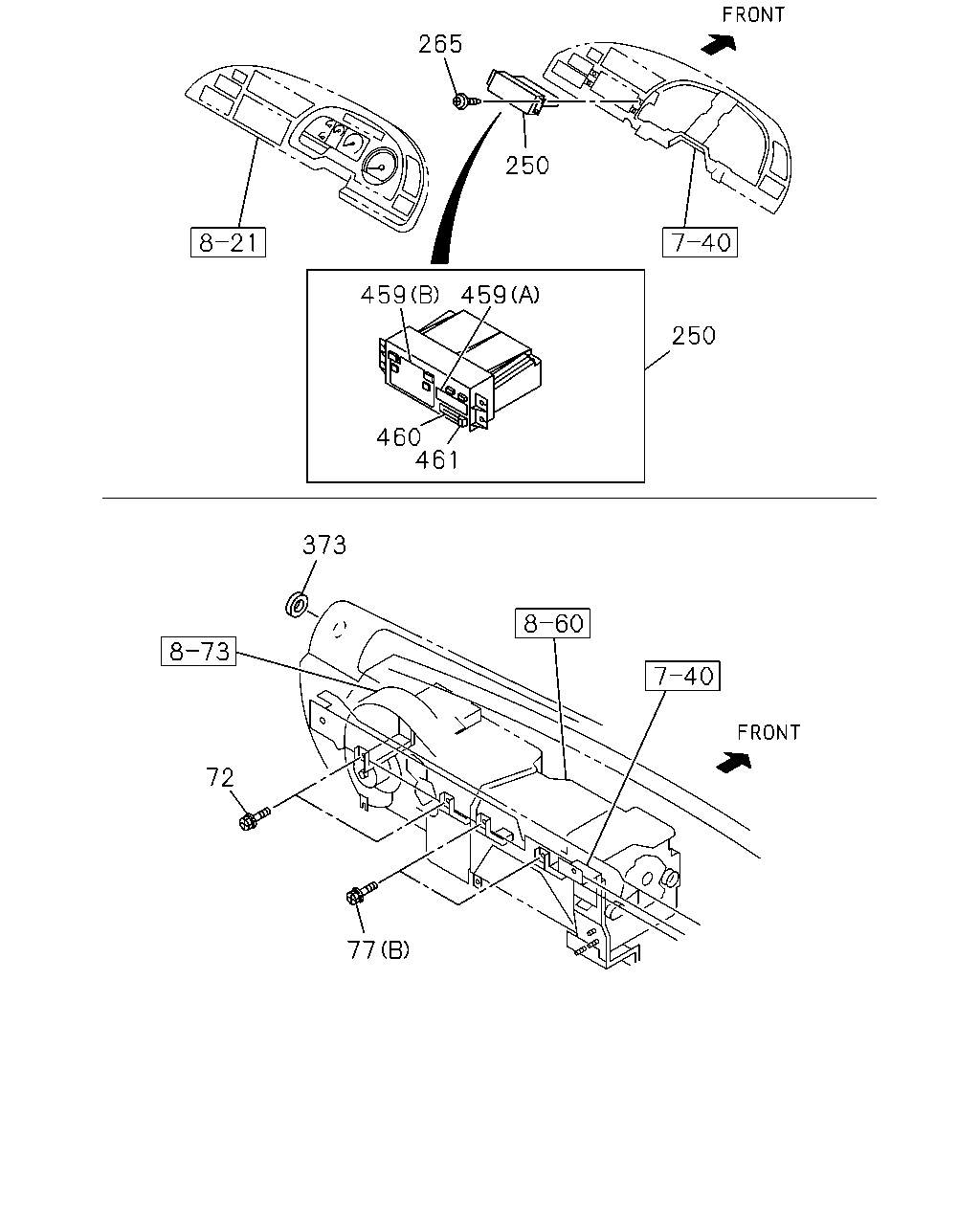

72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0711-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0711-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0711-
250	CONTROL ASM; A/C	1-83543-034-1	01	1	0711-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	01	1	0711-
373	RUBBER; JOINT	1-76378-291-0	02	1	0711-
459	PANEL; CONTROL ASM,A/C (A)	1-83549-013-0	01	1	0711-
459	PANEL; CONTROL ASM,A/C (B)	1-83549-017-0	01	1	0711-
460	SWITCH; CONTROL ASM,A/C	1-82489-006-0	01	1	0711-
461	KNOB; CONTROL ASM,A/C	1-83549-016-0	01	1	0711-
