8-15 — FIXING PARTS; WIRING HARNESS (#13692) — 128 parça

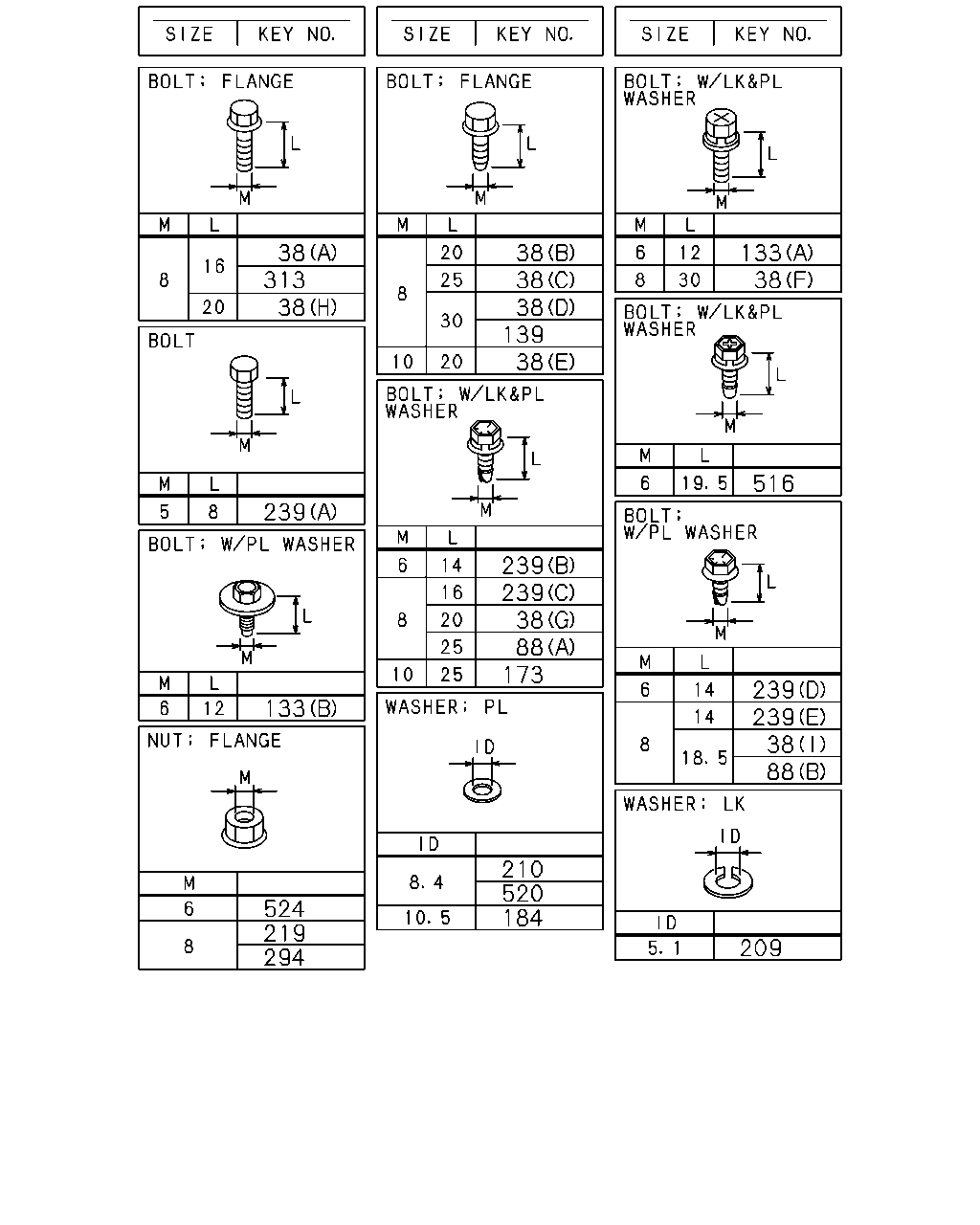

çizim 143523
38 313 38 38 38 38 139 38 133 38 516 239 239 239 38 88 173 239 239 38 88 133 210 520 184 524 219 294 209
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0711-
38 BOLT; CLIP,HARNESS
(H) M8X20 FLANGE 		0-28050-820-0 02 1 0711-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0711-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE IDN 		0-28650-820-0 02 1 0711-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28650-825-0 01 1 0711-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE IDN 		0-28650-825-0 03 1 0711-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0711-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0711-
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0711-1202
38 BOLT; CLIP,HARNESS
(G) M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0711-1202
38 BOLT; CLIP,HARNESS
(I) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
38 BOLT; CLIP,HARNESS
(I) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1203-
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0711-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0711-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0711-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0711-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0711-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0711-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0711-
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0711-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0711-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0711-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0711-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER IDN 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0711-1202
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1203-
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0711-1006
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0711-1006
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1007-
313 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0711-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0711-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0711-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0711-

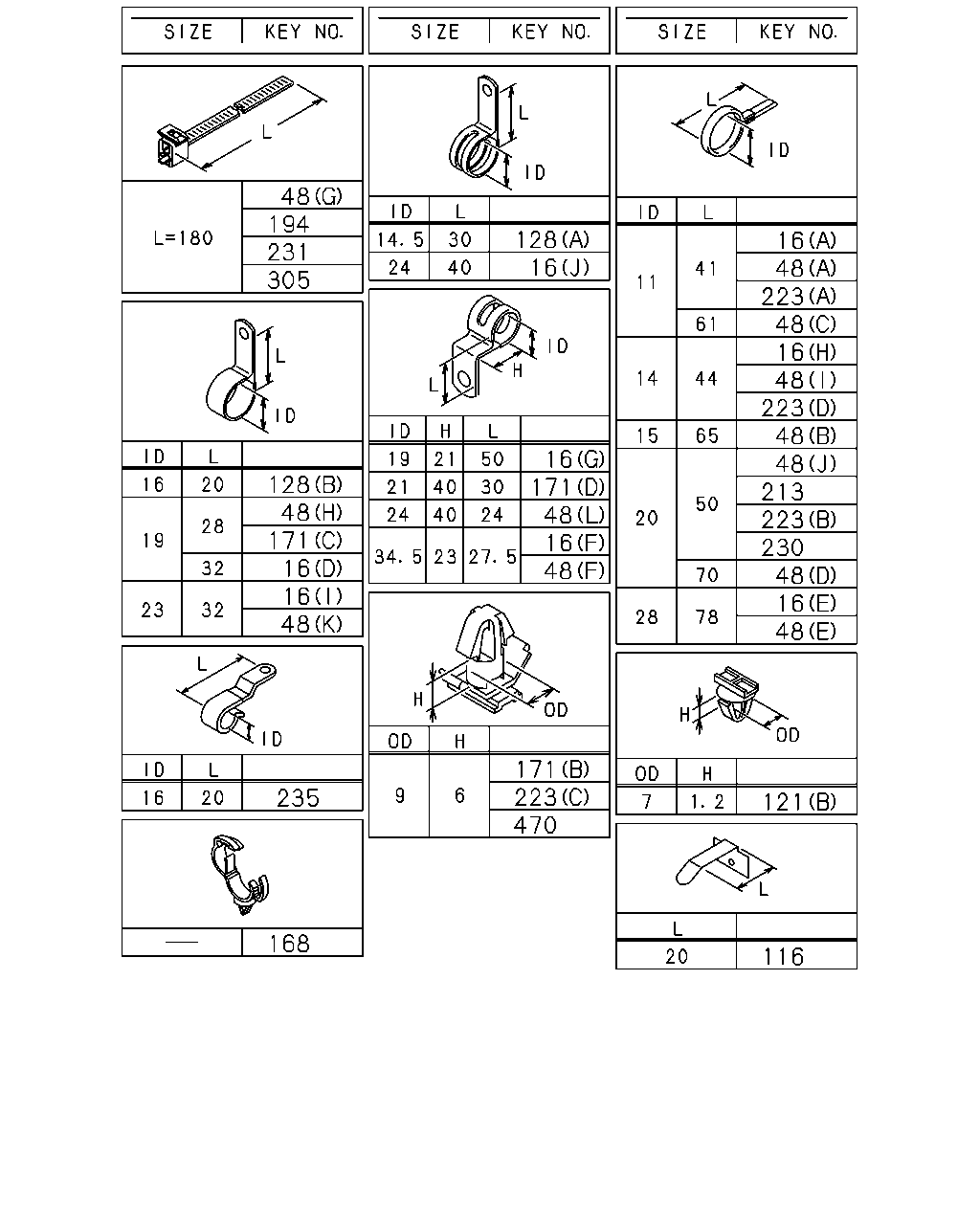

çizim 143526
48 194 231 305 128 16 16 48 223 48 16 48 223 48 48 213 223 230 48 16 48 16 171 48 16 48 128 48 171 16 16 48 171 223 470 235 121 168 116
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0711-
16 CLIP; HARNESS
(I) ID=23 L=32 		1-09700-346-0 01 1 0711-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0711-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0711-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0711-
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0711-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0711-
16 CLIP; HARNESS
(C) L=250 IDN 		5-09707-030-1 01 1 0711-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 0711-
48 CLIP; FRAME HARNESS
(K) ID=23 L=32 		1-09700-346-0 01 1 0711-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0711-
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 		1-09700-466-0 01 1 0711-
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 03 1 0711-0810
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0711-0810
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 07 1 0811-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0711-
48 CLIP; FRAME HARNESS
(L) ID=24 H=40 L=24 		1-09701-243-1 03 1 0711-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 0711-
48 CLIP; FRAME HARNESS
(M) L=250 IDN 		5-09707-030-1 01 1 0711-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 02 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 01 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 15 1 0711-
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 0711-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0711-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0711-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0711-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=16 L=20 		0-95235-535-0 01 1 0711-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=14.5 L=30 		9-09916-893-1 01 1 0711-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0811-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0711-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0711-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0711-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0711-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0711-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0711-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0711-
223 CLIP; AIR TANK HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0711-
223 CLIP; AIR TANK HARNESS
(D) ID=14 L=44 		9-09917-427-0 02 1 0711-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 0711-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0711-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0711-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0711-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0711-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0711-
çizim 143538
14 81 121 206 16 48 217 178 178 178 154 16 171 312 53 59 513 530
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=140 IDN 		5-09707-031-1 01 1 0711-
16 CLIP; HARNESS
(D) ID=19 L=32 		0-95235-866-0 01 1 0711-
16 CLIP; HARNESS
(I) ID=23 L=32 		1-09700-346-0 01 1 0711-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0711-
16 CLIP; HARNESS
(E) ID=28 L=78 		1-09700-858-0 01 1 0711-
16 CLIP; HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
16 CLIP; HARNESS
(G) ID=19 H=21 L=50 		1-09700-910-1 01 1 0711-
16 CLIP; HARNESS
(J) ID=24 L=40 		1-09701-139-0 01 1 0711-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0711-
16 CLIP; HARNESS
(C) L=250 IDN 		5-09707-030-1 01 1 0711-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 0711-
48 CLIP; FRAME HARNESS
(K) ID=23 L=32 		1-09700-346-0 01 1 0711-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0711-
48 CLIP; FRAME HARNESS
(B) ID=15 L=65 		1-09700-466-0 01 1 0711-
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 03 1 0711-0810
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0711-0810
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 07 1 0811-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0711-
48 CLIP; FRAME HARNESS
(L) ID=24 H=40 L=24 		1-09701-243-1 03 1 0711-
48 CLIP; FRAME HARNESS
(G) L=180 		1-09707-162-1 01 1 0711-
48 CLIP; FRAME HARNESS
(M) L=250 IDN 		5-09707-030-1 01 1 0711-
48 CLIP; FRAME HARNESS
(I) ID=14 L=44 		9-09917-427-0 02 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 01 1 0711-
48 CLIP; FRAME HARNESS
(J) ID=20 L=50 		9-09917-430-0 15 1 0711-
48 CLIP; FRAME HARNESS
(H) ID=19 L=28 		0-95235-856-0 01 1 0711-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0711-
53 BRACKET; HARNESS 1-47476-812-1 01 1 0711-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0711-
81 CLIP; HARNESS
L=140 IDN 		5-09707-031-1 02 1 0711-
121 CLIP; FACIA HARNESS
(A) L=140 IDN 		5-09707-031-1 01 1 0711-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0711-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0711-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0711-
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0711-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0711-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0711-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0711-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0711-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0711-
206 CLIP; FUEL TANK HARNESS
L=140 IDN 		5-09707-031-1 02 1 0711-
217 CLIP; RR BODY HARNESS
L=250 IDN 		5-09707-030-1 02 1 0711-
312 BRACKET; CLIP HARNESS 1-47478-981-0 01 1 0711-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0711-0906
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0711-
