Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#13691) — 46 parça
◀

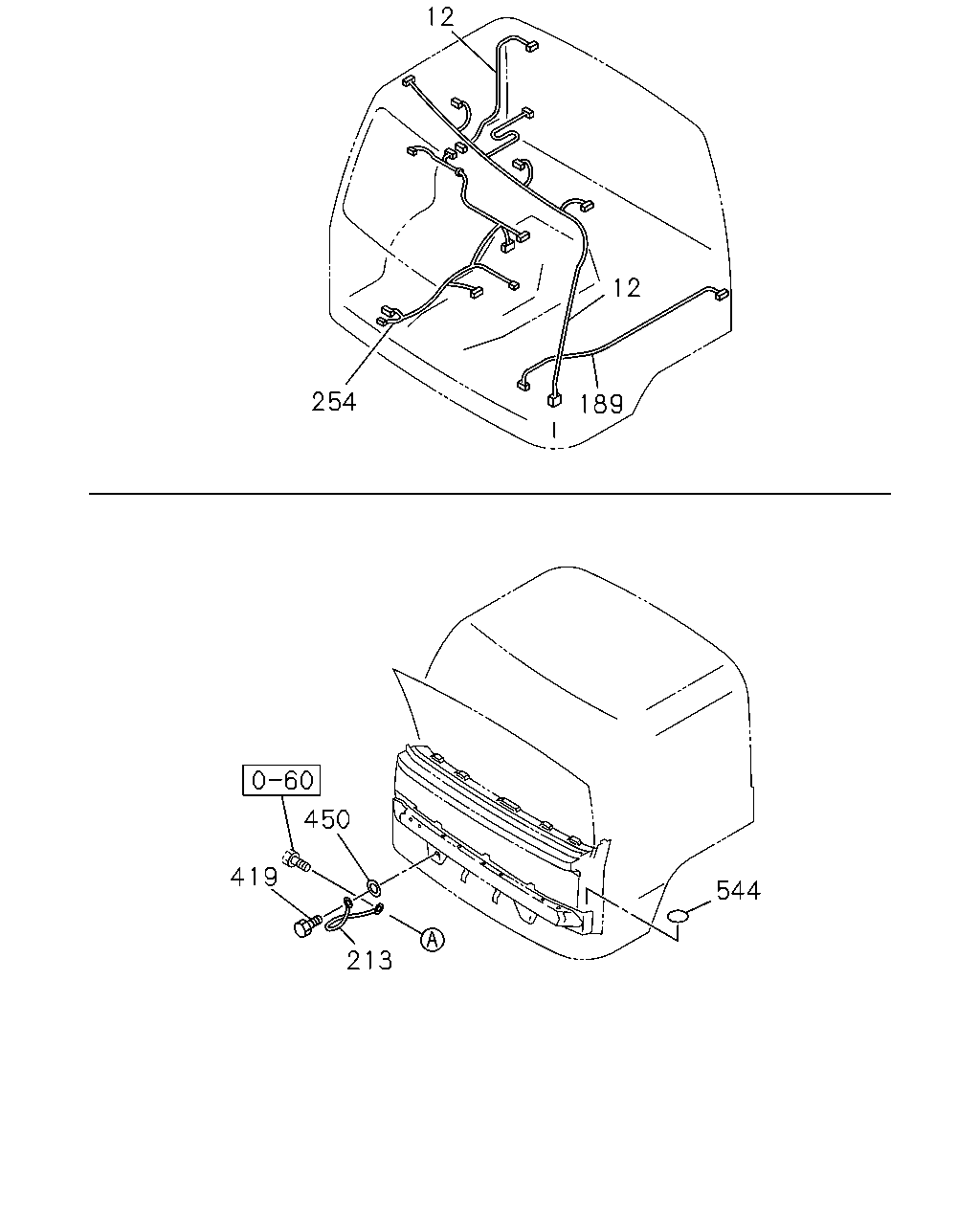

[810A] CAB,ROOF AND FLOOR HARNESS (8 parça)
[810A] FUSE BOX AND FUSE (11 parça)

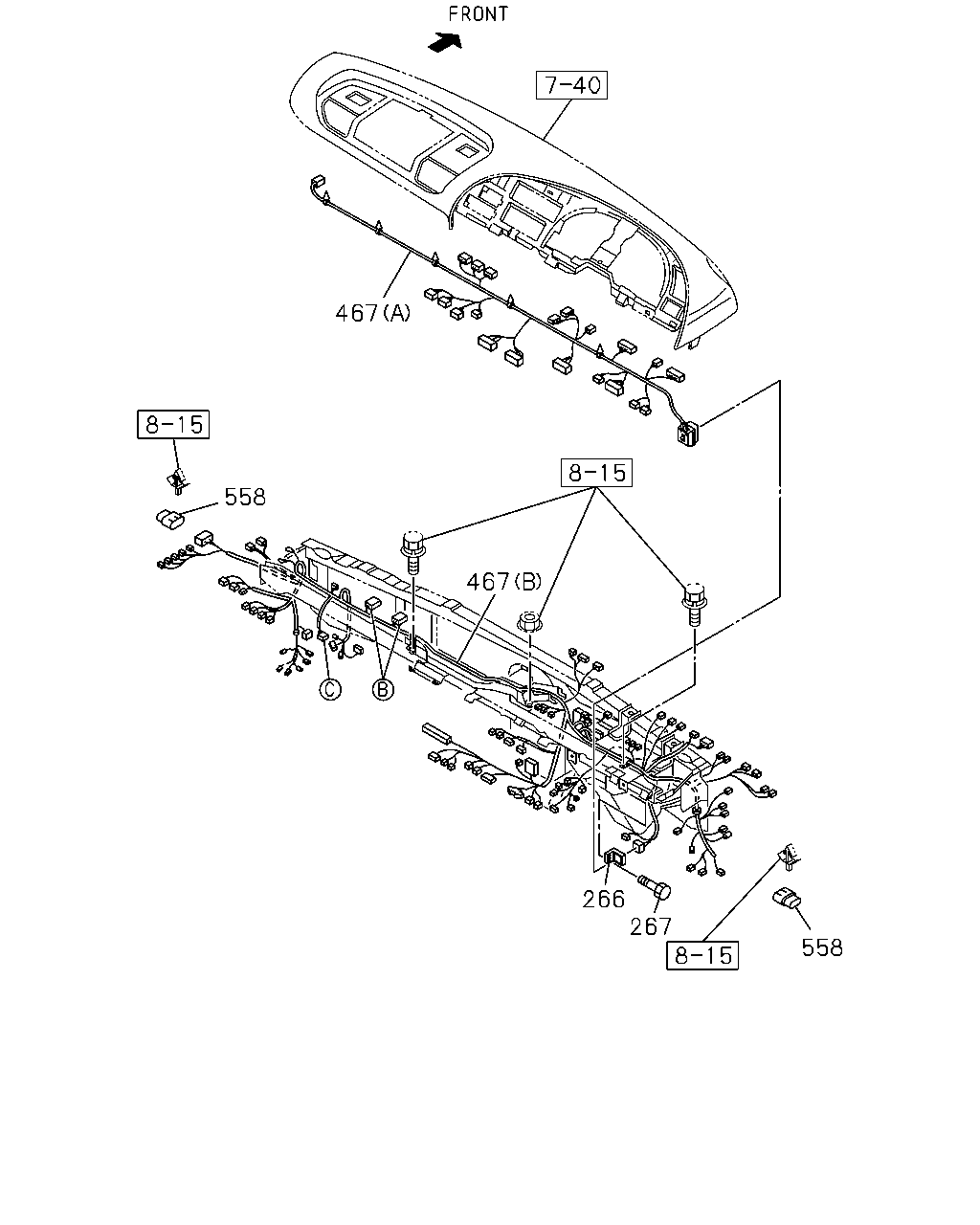

[810A] FACIA HARNESS (5 parça)

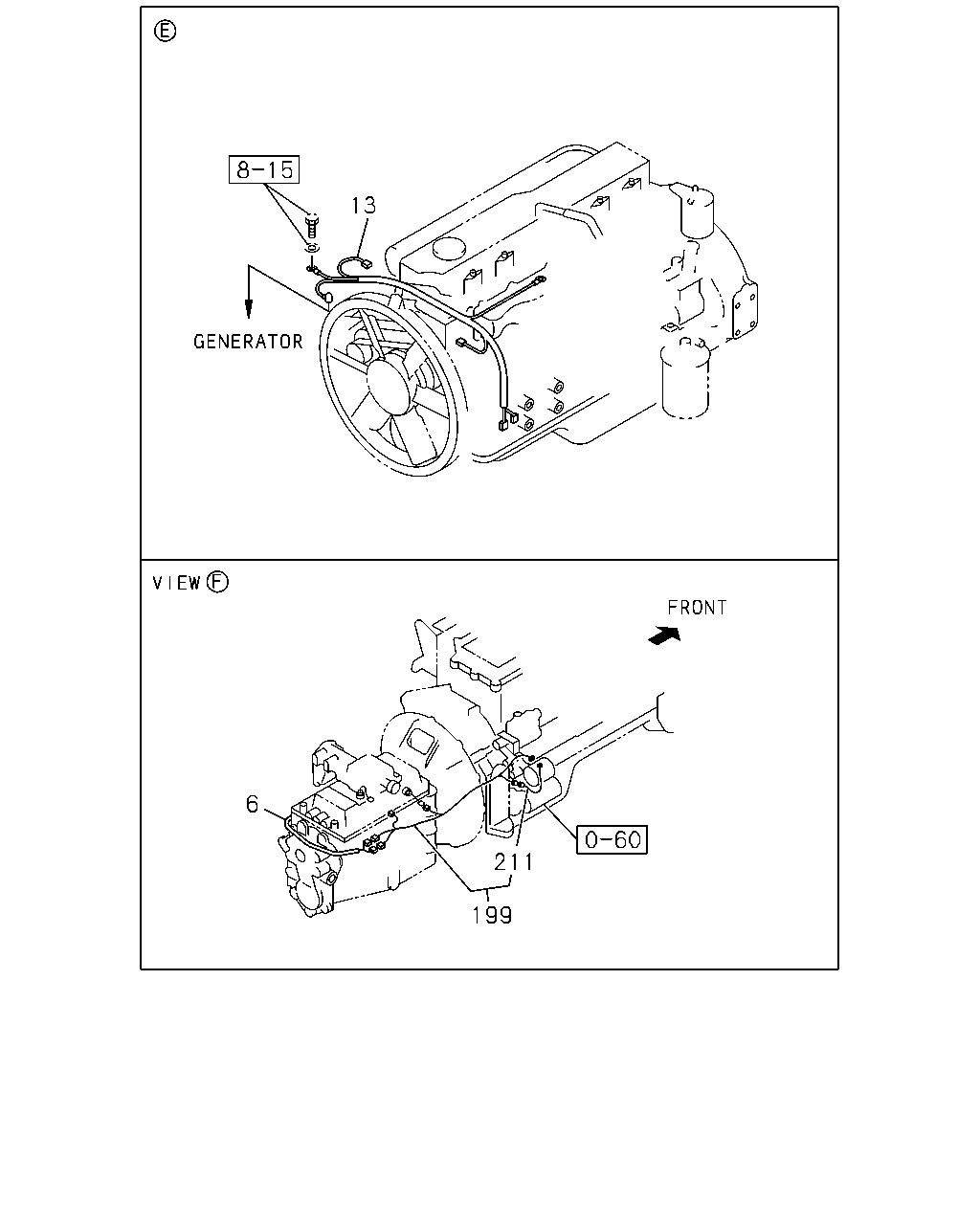

[810A] ENG HARNESS AND STARTER HARNESS (4 parça)

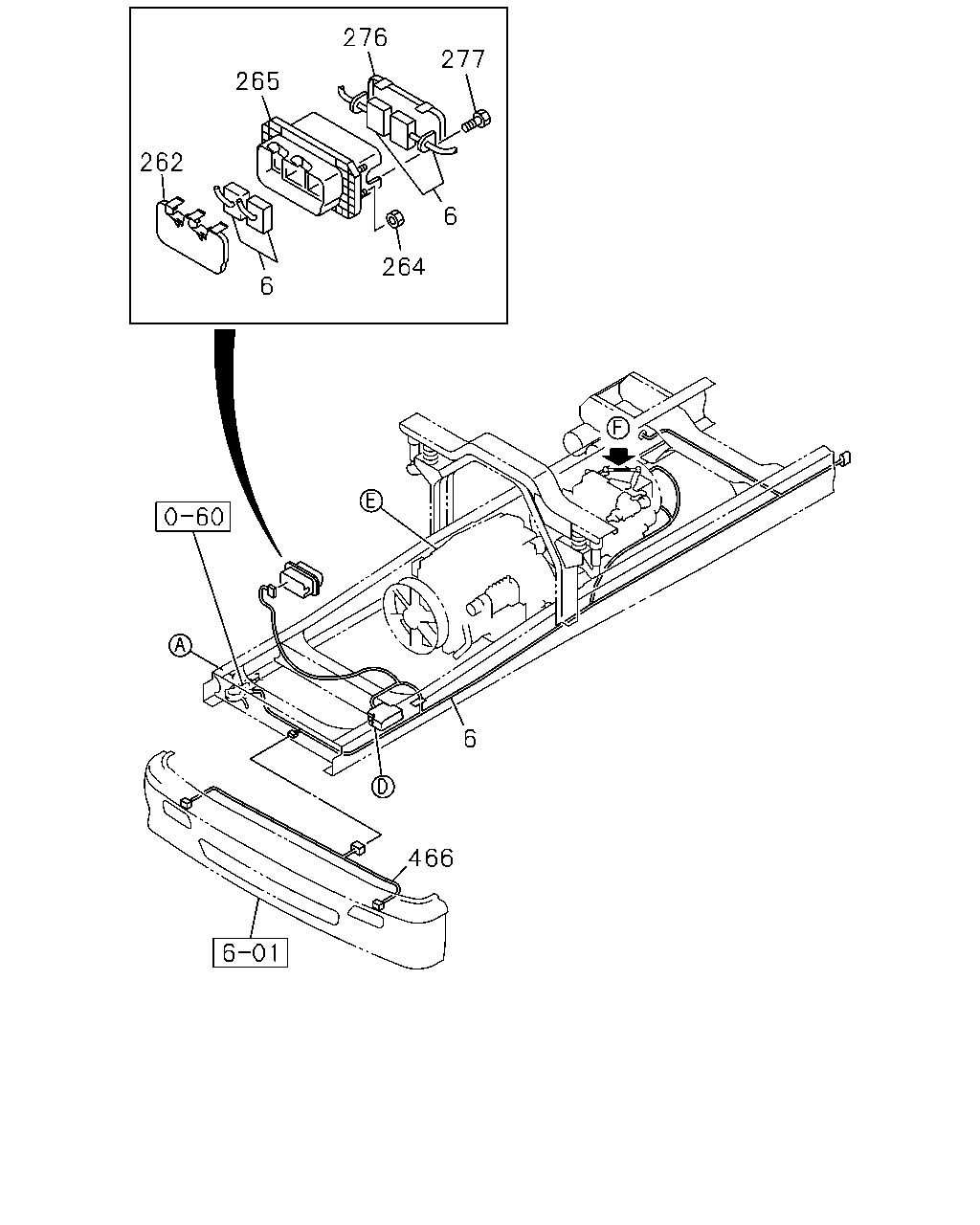

[810A] BUMPER AND FRAME HARNESS (8 parça)

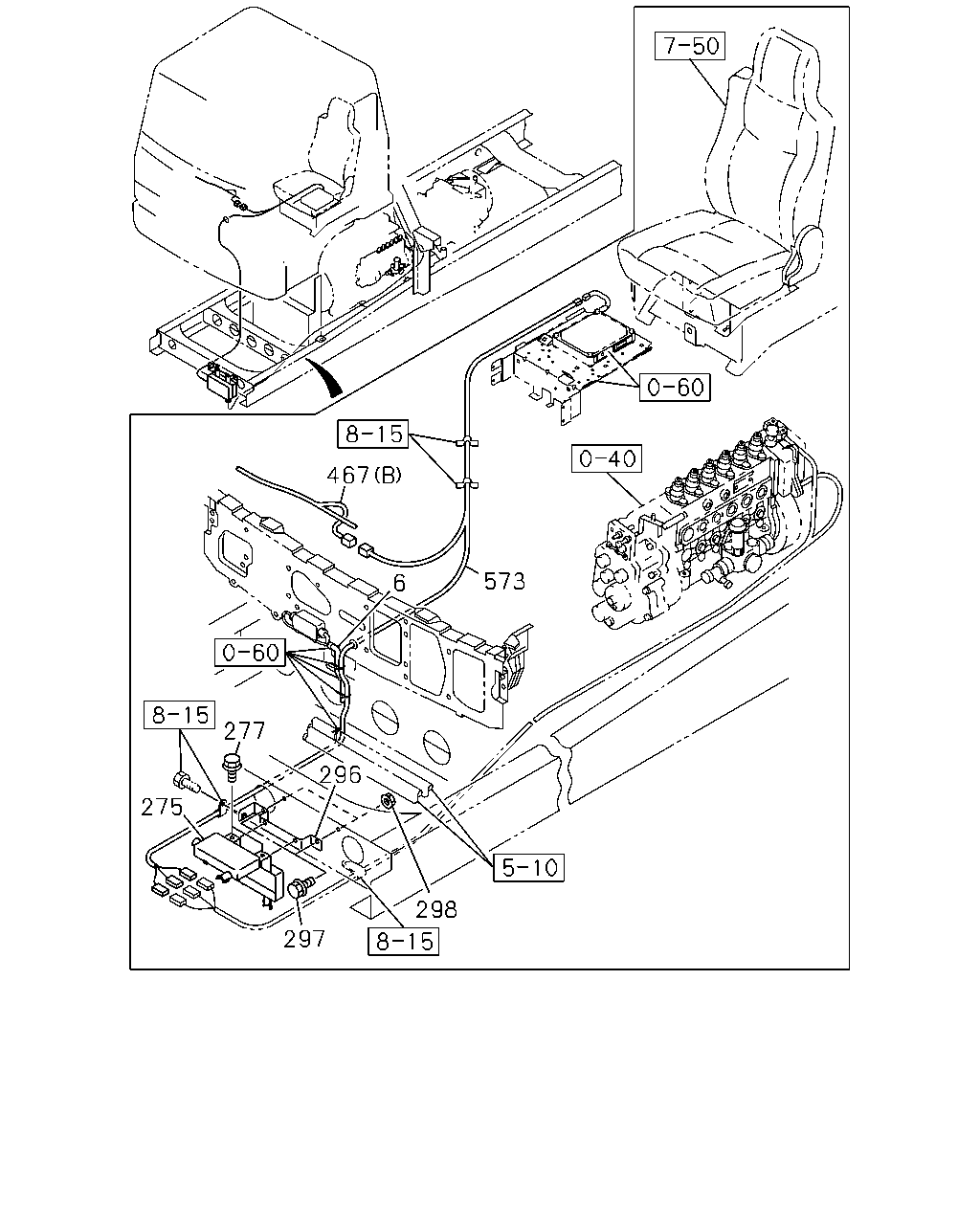

[810A] CONTROL UNIT HARNESS AND BOX ASM (10 parça)
▶
12
12
254
189
450
419
544
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
1-82625-714-6
01
1
0711-
189
HARNESS; EXT
1-82625-673-2
02
1
0711-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
0711-
254
HARNESS; CAB FLOOR
1-82626-993-2
01
1
0711-
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0711-1202
419
BOLT; CAB EARTH
M8X24 W/PL WASHER
8-98141-256-1
01
1
1203-
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
0-91614-608-0
01
1
0711-
544
SEAL; FRT MTG RAIL
OD=25 BLACK
1-76798-019-0
01
1
0711-
467
4
41
5
62
431
10
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
7.5AX13 15AX13
1-82510-515-0
01
1
0711-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
13
1
0711-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
13
1
0711-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
0711-
27
FUSE UNIT
(A) 40A GREEN
8-94468-662-0
03
1
0711-
27
FUSE UNIT
(B) 60A YELLOW
8-94468-669-0
01
1
0711-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
0711-
62
DIODE; HARNESS
BLACK 10P
1-82699-703-0
02
1
0711-
431
CONNECTOR; JOINT
10P BROWN IDN
1-82699-601-0
02
1
0711-
467
HARNESS; FACIA
(A)
8-98085-180-0
01
1
0711-
467
HARNESS; FACIA
(B)
8-98082-815-0
01
1
0711-
467
558
467
266
267
558
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0711-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
0811-
467
HARNESS; FACIA
(A)
8-98085-180-0
01
1
0711-
467
HARNESS; FACIA
(B)
8-98082-815-0
01
1
0711-
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
0711-
13
6
211
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98082-841-0
01
1
0711-
13
HARNESS; ENG
1-82640-970-0
01
1
0711-
199
HARNESS; STARTER
1-82640-718-5
01
1
0711-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-1
01
1
0711-
276
277
265
262
6
264
6
6
466
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98082-841-0
01
1
0711-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0711-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0811-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0711-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
0711-
277
BOLT; BOX ASM FIX
M8X25 FLANGE IDN
0-28650-825-0
02
1
0711-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0711-
466
HARNESS; BUMPER
1-82638-758-1
01
1
0711-
467
573
6
277
296
275
298
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98082-841-0
01
1
0711-
275
BOX ASM; FRAME HARNESS
1-82699-378-0
01
1
0711-
277
BOLT; BOX ASM FIX
M8X25 FLANGE IDN
0-28650-825-0
02
1
0711-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0711-
296
BRACKET; HARNESS BOX
1-82699-923-0
01
1
0711-
297
BOLT; BOX BRKT
M8X25 FLANGE IDN
0-28650-825-0
02
1
0711-
298
NUT; BOX BRKT
M8 FLANGE
0-91180-108-0
02
1
0711-
467
HARNESS; FACIA
(A)
8-98085-180-0
01
1
0711-
467
HARNESS; FACIA
(B)
8-98082-815-0
01
1
0711-
573
HARNESS; CONTROL UNIT
1-82627-620-0
01
1
0711-
