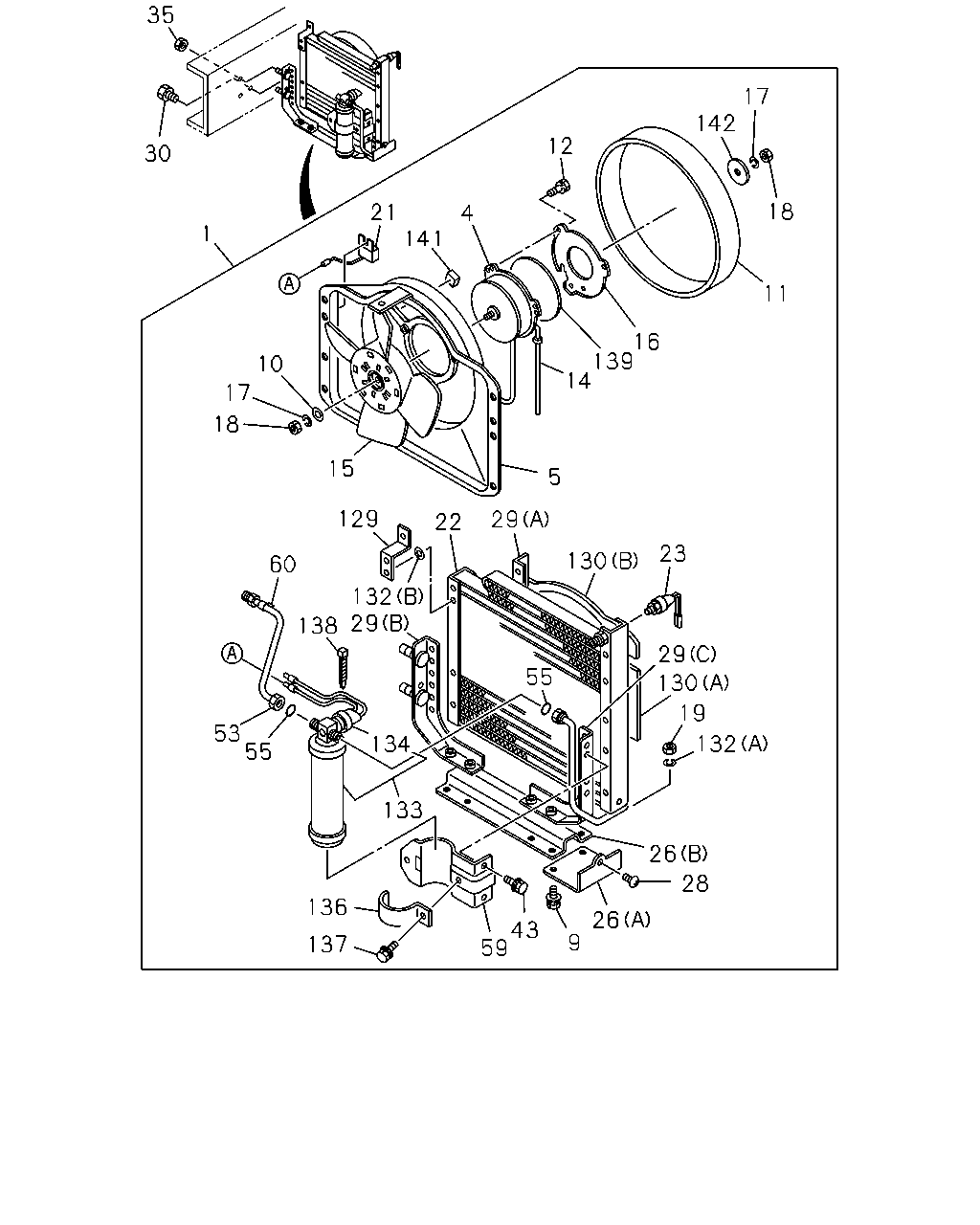

1 |
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-124-1 |
01 |
1 |
9204-9301 |
| |
1 |
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-162-0 |
01 |
1 |
9302- |
| |
4 |
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83561-059-0 |
01 |
1 |
9204- |
| |
5 |
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-164-0 |
01 |
1 |
9204- |
| |
9 |
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
M8X22
|
1-83579-198-0 |
07 |
1 |
9204- |
| |
10 |
WASHER; PL,FAN
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-045-0 |
01 |
1 |
9204- |
| |
11 |
COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-057-0 |
01 |
1 |
9204- |
| |
12 |
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-042-0 |
03 |
1 |
9204- |
| |
14 |
HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83566-449-0 |
01 |
1 |
9204- |
| |
15 |
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-041-0 |
01 |
1 |
9204- |
| |
16 |
COVER; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-055-0 |
01 |
1 |
9204- |
| |
17 |
WASHER; LK,FAN
AIR CONDITIONER MANUAL CONTROL(C60)
ID=5
|
1-83539-044-0 |
02 |
1 |
9204- |
| |
18 |
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-043-0 |
02 |
1 |
9204- |
| |
19 |
NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
M8
|
9-09110-408-0 |
01 |
1 |
9204- |
| |
21 |
CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-84132-007-0 |
01 |
1 |
9204- |
| |
22 |
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-148-0 |
01 |
1 |
9204- |
| |
23 |
SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-82380-088-0 |
01 |
1 |
9204- |
| |
26 |
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
1-83539-060-0 |
01 |
1 |
9204- |
| |
26 |
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83539-105-0 |
01 |
1 |
9204- |
| |
28 |
SCREW; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-047-0 |
04 |
1 |
9204- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83539-163-0 |
01 |
1 |
9204- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(C)
|
1-83571-477-0 |
01 |
1 |
9204- |
| |
29 |
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
1-83571-789-0 |
01 |
1 |
9204- |
| |
30 |
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
M10X25 W/LK WASHER
|
0-50041-025-0 |
02 |
1 |
9204- |
| |
35 |
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
M10
|
9-09110-410-0 |
02 |
1 |
9204- |
| |
43 |
BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-059-0 |
02 |
1 |
9204- |
| |
53 |
PIPE; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-166-1 |
01 |
1 |
9204-9301 |
| |
53 |
PIPE; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-217-0 |
01 |
1 |
9302- |
| |
55 |
GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
ID=6
|
8-94481-700-0 |
02 |
1 |
9204- |
| |
59 |
BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83571-479-0 |
01 |
1 |
9204- |
| |
60 |
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-167-0 |
01 |
1 |
9204- |
| |
129 |
BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-207-0 |
01 |
1 |
9204- |
| |
130 |
LINING; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83539-061-0 |
01 |
1 |
9204- |
| |
130 |
LINING; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
1-83539-104-0 |
01 |
1 |
9204- |
| |
132 |
WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
(A)
|
1-14319-034-0 |
01 |
1 |
9204- |
| |
132 |
WASHER; BRKT
AIR CONDITIONER MANUAL CONTROL(C60)
(B)
|
1-83539-052-0 |
01 |
1 |
9204- |
| |
133 |
DRYER ASM; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83535-051-2 |
01 |
1 |
9204-9301 |
| |
133 |
DRYER ASM; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83535-068-0 |
01 |
1 |
9302- |
| |
134 |
SWITCH; PRESSURE,DRYER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83534-121-0 |
01 |
1 |
9204-9301 |
| |
134 |
SWITCH; PRESSURE,DRYER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-216-0 |
01 |
1 |
9302- |
| |
136 |
BRACKET; DRYER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83571-472-0 |
01 |
1 |
9204-9301 |
| |
136 |
BRACKET; DRYER
AIR CONDITIONER MANUAL CONTROL(C60)
|
8-97084-632-0 |
01 |
1 |
9302- |
| |
137 |
BOLT; BRKT,DRYER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-048-0 |
01 |
1 |
9204- |
| |
138 |
CLIP; DRYER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83574-130-0 |
01 |
1 |
9204-9301 |
| |
138 |
CLIP; DRYER
AIR CONDITIONER MANUAL CONTROL(C60)
|
5-09707-008-0 |
01 |
1 |
9302- |
| |
139 |
SEAL; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-054-0 |
01 |
1 |
9204- |
| |
141 |
INSULATOR; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-056-0 |
03 |
1 |
9204- |
| |
142 |
COVER; SHROUD COVER
AIR CONDITIONER MANUAL CONTROL(C60)
|
1-83539-058-0 |
01 |
1 |
9204- |
