◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11126 - FTR(INDONESIA)6HH1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#13685) — 88 parça

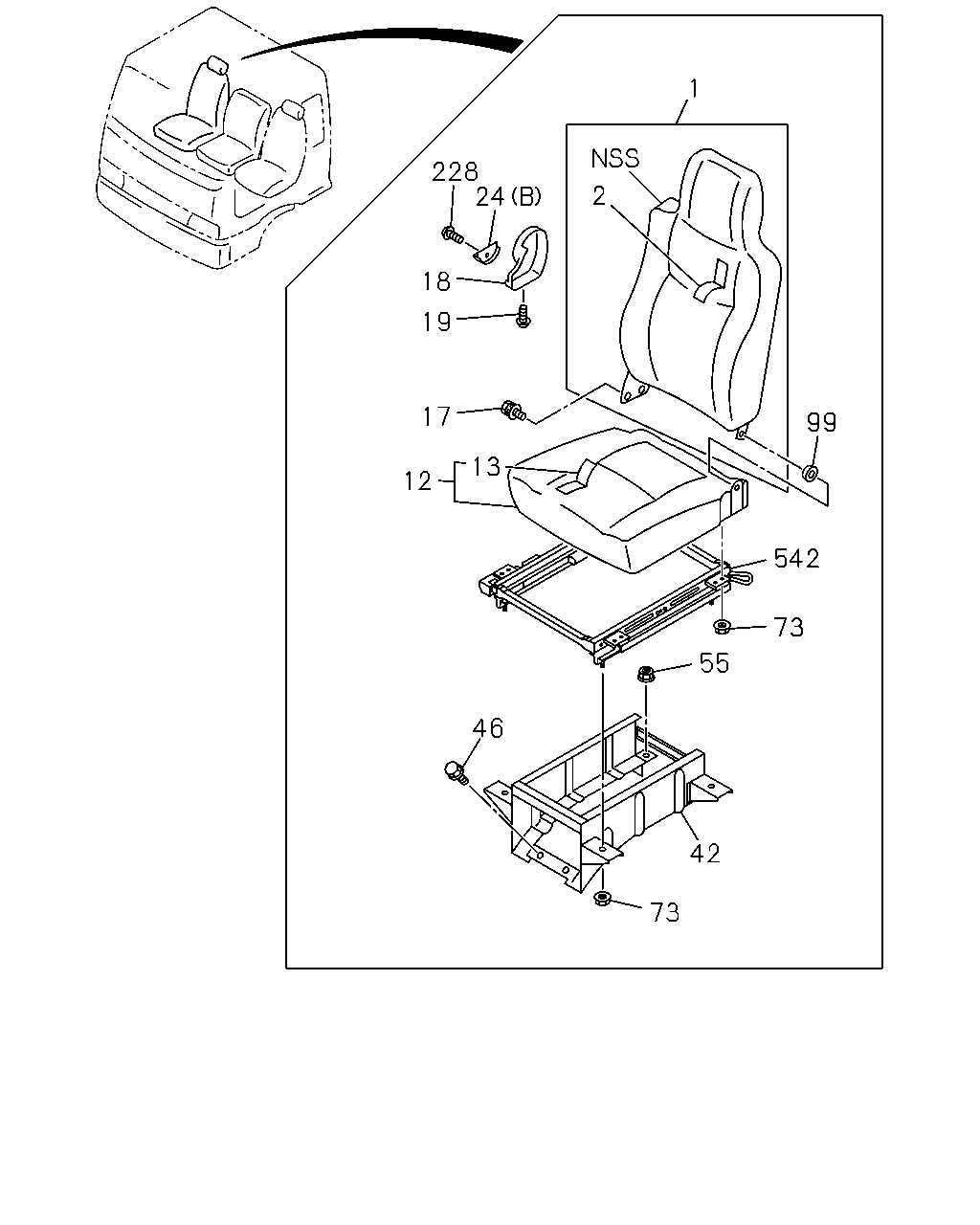

çizim 143504
1 228 24 2 18 19 17 99 13 12 542 73 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75208-049-2 01 1 0711-0901
1 BACK ASM; SEAT 8-98135-608-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK 1-75127-036-1 01 1 0711-
12 CUSHION; SEAT,FRT 1-75207-147-3 01 1 0711-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75116-712-1 01 1 0711-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0711-
18 COVER; RECLINING 1-75418-050-0 01 1 0711-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-056-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 0711-0711
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-068-0 01 1 0711-
42 STAND; DRIVER SEAT 1-75558-604-1 01 1 0711-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0711-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 12 1 0711-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0711-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
228 SCREW; KNOB
M4X6 		8-97042-273-0 02 1 0711-0711
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-282-3 01 1 0711-

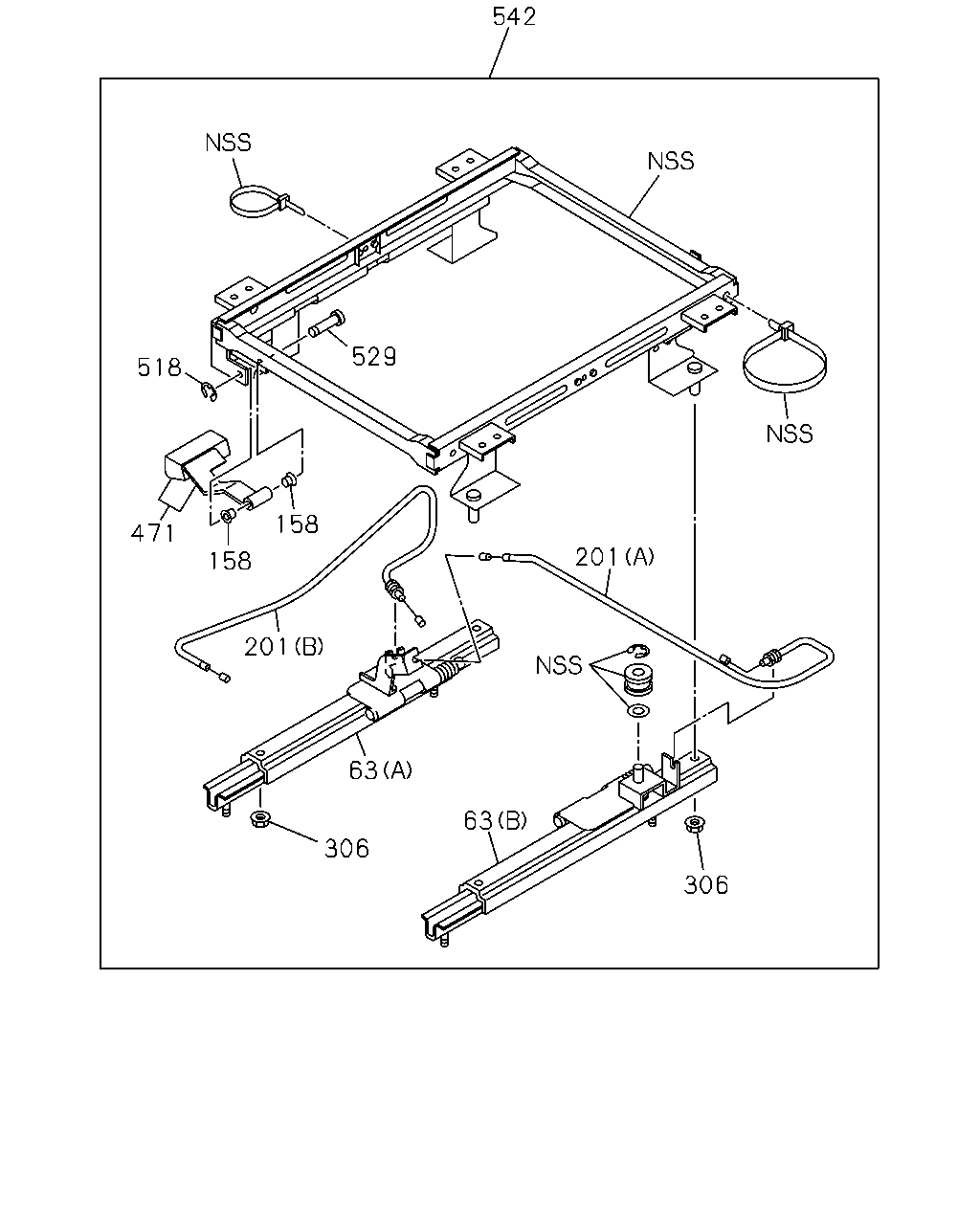

çizim 143506
542 529 518 158 471 201 158 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-199-1 01 1 0711-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-294-1 01 1 0711-
158 BUSHING; LINK ARM
IDN 		1-75518-209-0 02 1 0711-
201 CABLE; ADJ
(B) L=667 IDN 		1-75518-288-0 01 1 0711-
201 CABLE; ADJ
(A) L=605 IDN 		1-75518-289-1 01 1 0711-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 04 1 0711-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0711-0711
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
518 NUT; TILT ADJ
IDN 		1-75518-263-0 01 1 0711-
529 PIN; LINK
IDN 		1-75518-262-0 01 1 0711-
542 ADJUSTER ASM; SEAT SLIDE 1-75518-282-3 01 1 0711-
çizim 143511
506 360 175 176 188 16 189 188 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING 1-75418-062-1 01 1 0711-
175 BACK ASM; PASSENGER CENTER SEAT 1-75207-253-3 01 1 0711-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK 1-75116-641-1 01 1 0711-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH 1-75116-626-1 01 1 0711-
182 CUSHION ASM; CENTER SEAT 1-75026-828-4 01 1 0711-
188 BOLT; BACK TO CUSHION
M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 04 1 0711-1209
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 0711-
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 0711-
359 BOX; PARCEL 1-72538-157-6 01 1 0711-1009
359 BOX; PARCEL 8-98145-115-0 01 1 1010-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0711-1009
360 SCREW; PARCEL
(D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0711-1104
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 02 1 0711-1009
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 04 1 1210-
403 NUT; CENTER SEAT
M8 FLANGE 		0-91180-108-0 04 1 0711-
506 CAP; PARCEL BOX 1-09983-164-3 04 1 0711-1009
506 CAP; PARCEL BOX 1-09983-164-3 02 1 1010-

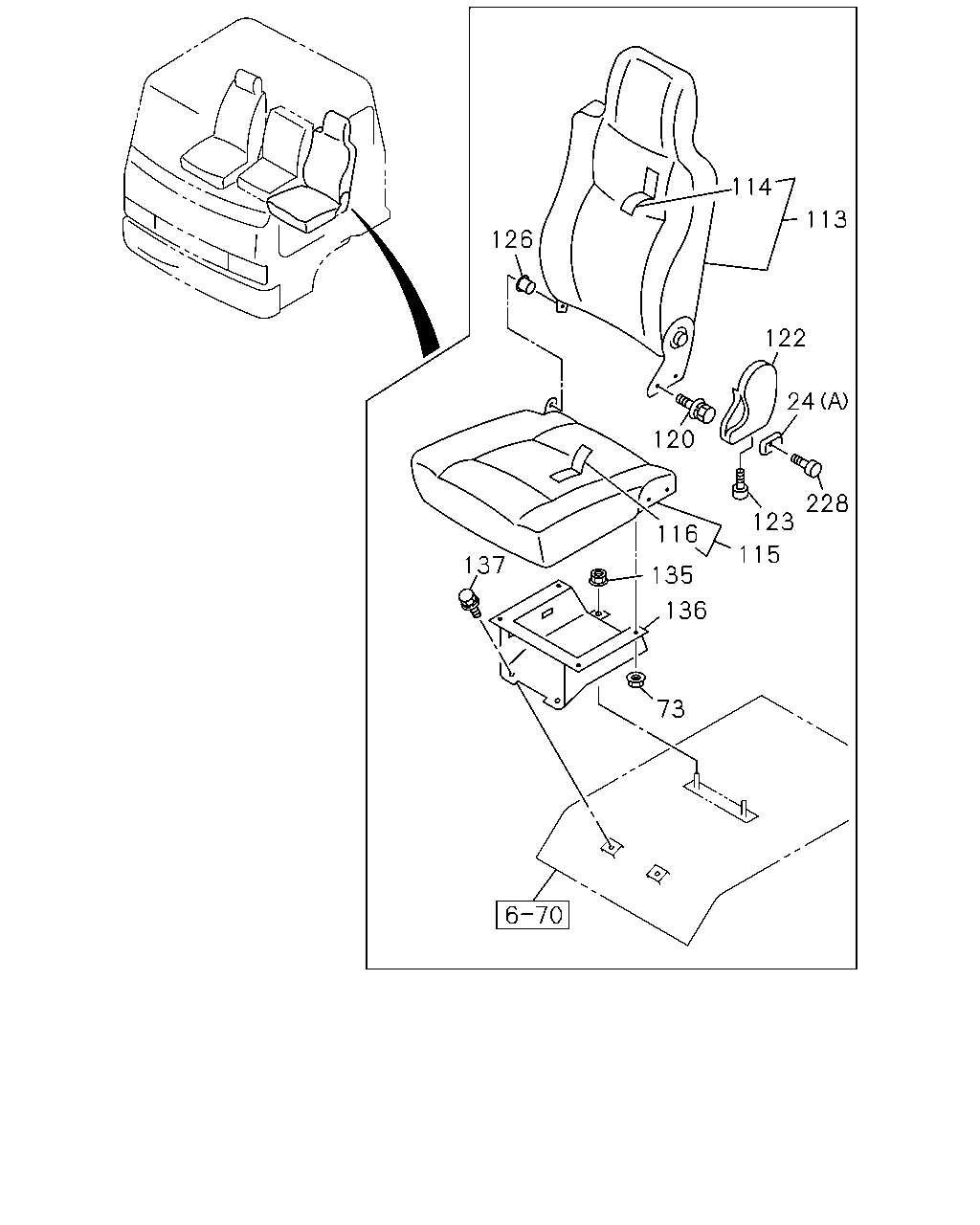

çizim 143515
114 113 126 122 24 120 228 123 116 115 137 135 136 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-056-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 0711-0711
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-068-0 01 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 12 1 0711-
113 BACK ASM; SEAT 1-75208-059-3 01 1 0711-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75116-599-1 01 1 0711-
115 CUSHION ASM; PASSENGER SEAT 1-75026-773-1 01 1 0711-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75116-577-1 01 1 0711-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0711-
122 COVER; ADJ,RECLINING 1-75418-052-0 01 1 0711-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 01 1 0711-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0711-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0711-
136 STAND; PASSENGER SEAT 1-75558-550-7 01 1 0711-1305
136 STAND; PASSENGER SEAT 8-98242-292-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0711-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
228 SCREW; KNOB
M4X6 		8-97042-273-0 02 1 0711-0711
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-

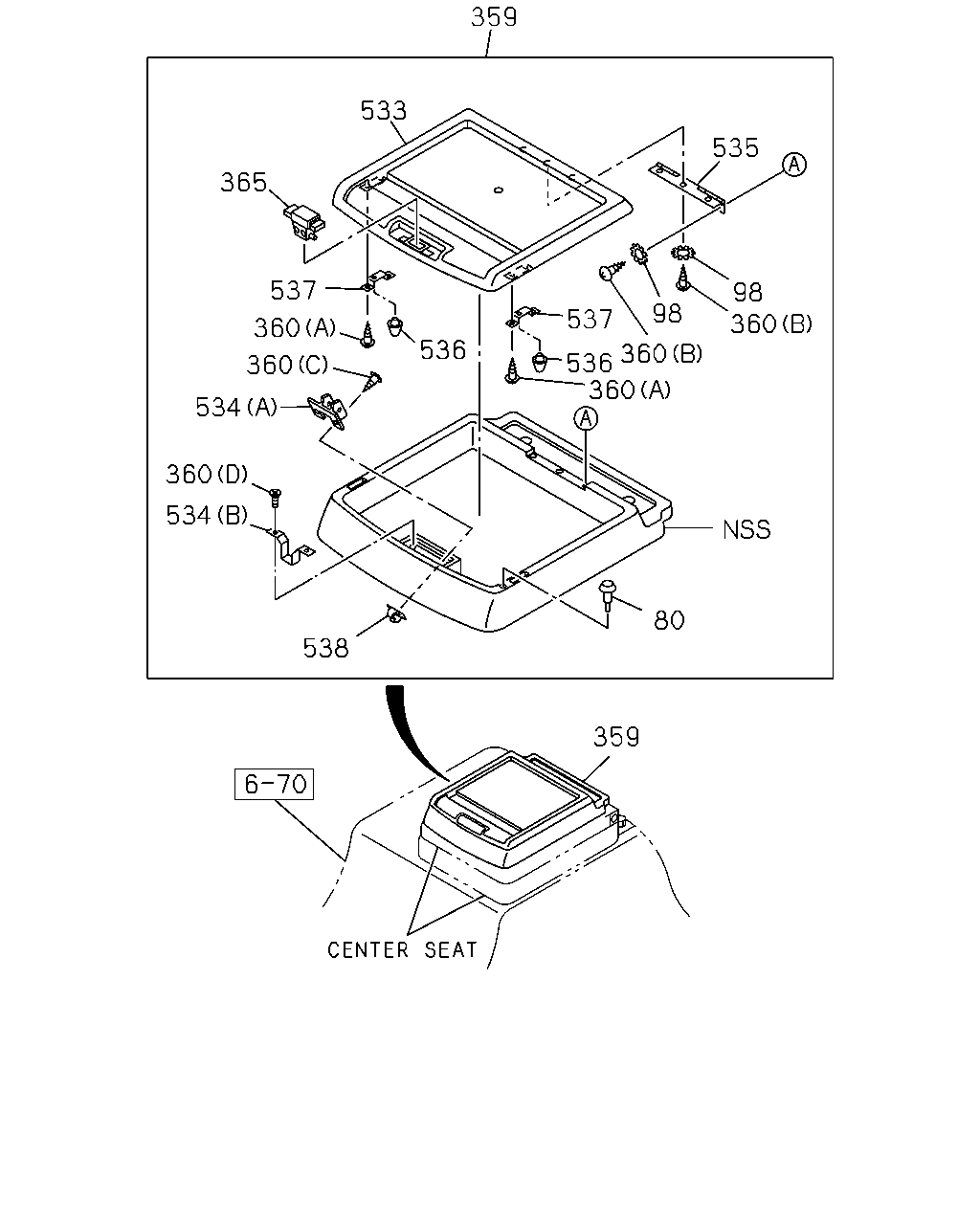

çizim 143521
359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER 1-72538-187-0 02 1 1010-
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0711-
359 BOX; PARCEL 1-72538-157-6 01 1 0711-1009
359 BOX; PARCEL 8-98145-115-0 01 1 1010-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0711-1009
360 SCREW; PARCEL
(D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
(B) M4X16 		0-70040-416-0 06 1 0711-1104
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 02 1 0711-1009
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER IDN 		0-74310-516-0 04 1 1210-
365 LOCK ASM; SEAT 1-72538-180-0 01 1 0711-
533 LID; PARCEL BOX 1-72538-194-3 01 1 0711-1009
533 LID; PARCEL BOX 8-98145-119-0 01 1 1010-
534 STRIKER; PARCEL BOX
(A) 		1-72538-181-0 01 1 0711-1009
534 STRIKER; PARCEL BOX
(B) 		1-72538-190-0 01 1 1010-
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 0711-
536 RUBBER; CUSHION 5-09983-002-1 02 1 0711-1009
537 BRACKET; RUBBER 1-72548-057-1 02 1 0711-1009
538 GROMMET; SCREW 1-09983-165-0 02 1 0711-1009
