7-40 — INSTRUMENT PANEL AND BOX (#13682) — 91 parça

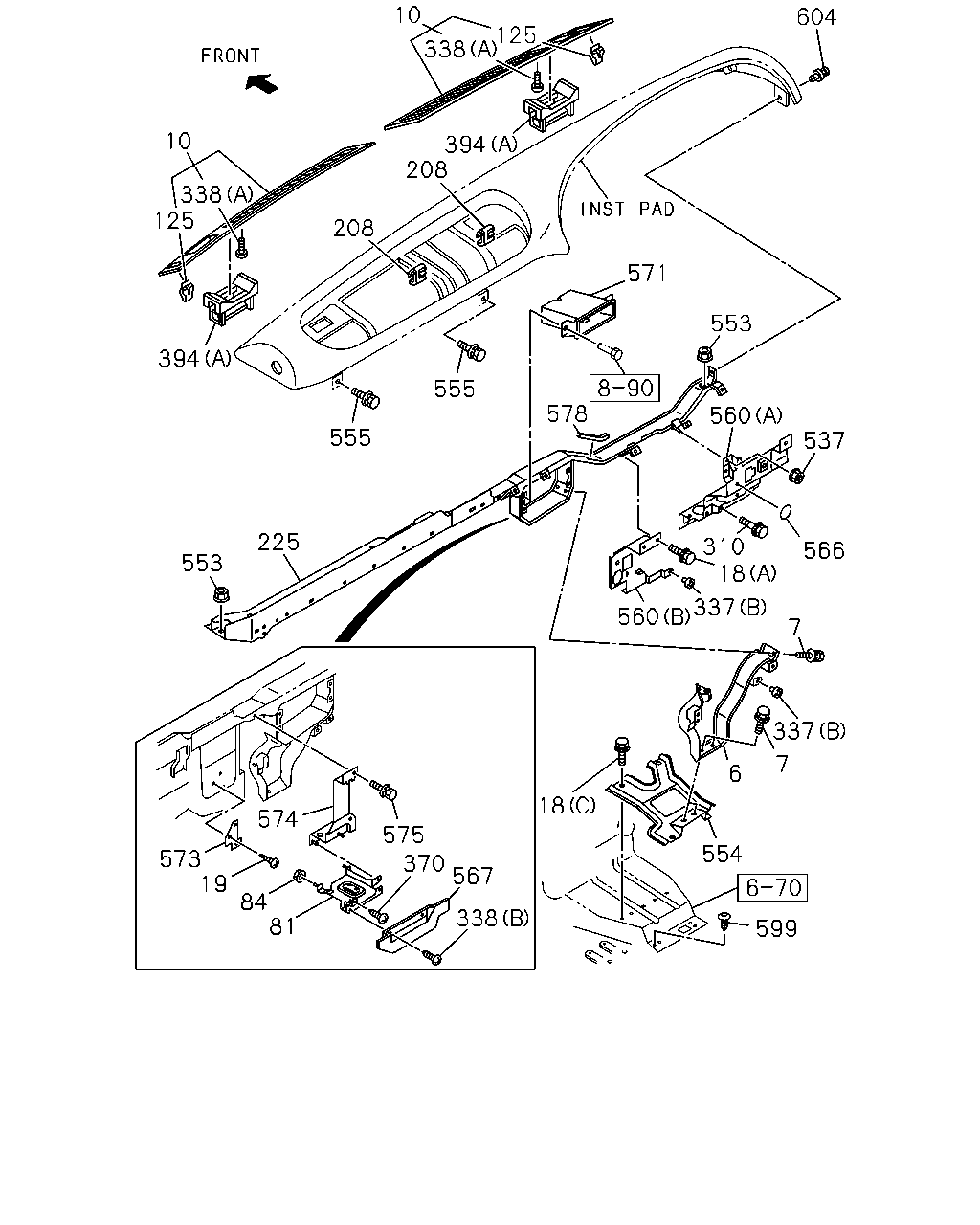

çizim 143508
10 604 125 338 10 394 208 338 125 208 571 553 394 555 578 560 555 537 225 310 18 566 553 337 560 7 337 7 6 18 574 575 370 567 554 573 19 84 81 338 599
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0711-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0711-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0711-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0711-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0711-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0711-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0711-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0711-
81 BRACKET; ELEC CONT UNIT 1-73908-437-1 01 1 0711-0810
81 BRACKET; ELEC CONT UNIT 1-73908-008-7 01 1 0811-
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0711-
125 CLIP; INST PANEL
IDN 		8-97217-066-0 01 1 0711-
125 CLIP; INST PANEL
IDN 		8-97217-066-0 08 1 0711-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0711-
225 FRAME; FACIA 1-65681-096-2 01 1 0711-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0711-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0711-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0711-
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0711-0801
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 15 1 0802-
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0711-
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0711-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0711-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0711-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0711-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0711-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0711-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0711-
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0711-
560 BRACKET
(B) 		1-65680-976-3 01 1 0711-
560 BRACKET
(A) 		1-65671-786-2 01 1 0711-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0711-
567 COVER; CONT UNIT 1-65681-022-2 01 1 0711-
571 BEZEL; POCKET 1-72438-151-3 01 1 0711-
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0711-
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0711-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0711-
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0711-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0711-
604 CLIP; INST PAD 1-09983-123-0 01 1 0711-

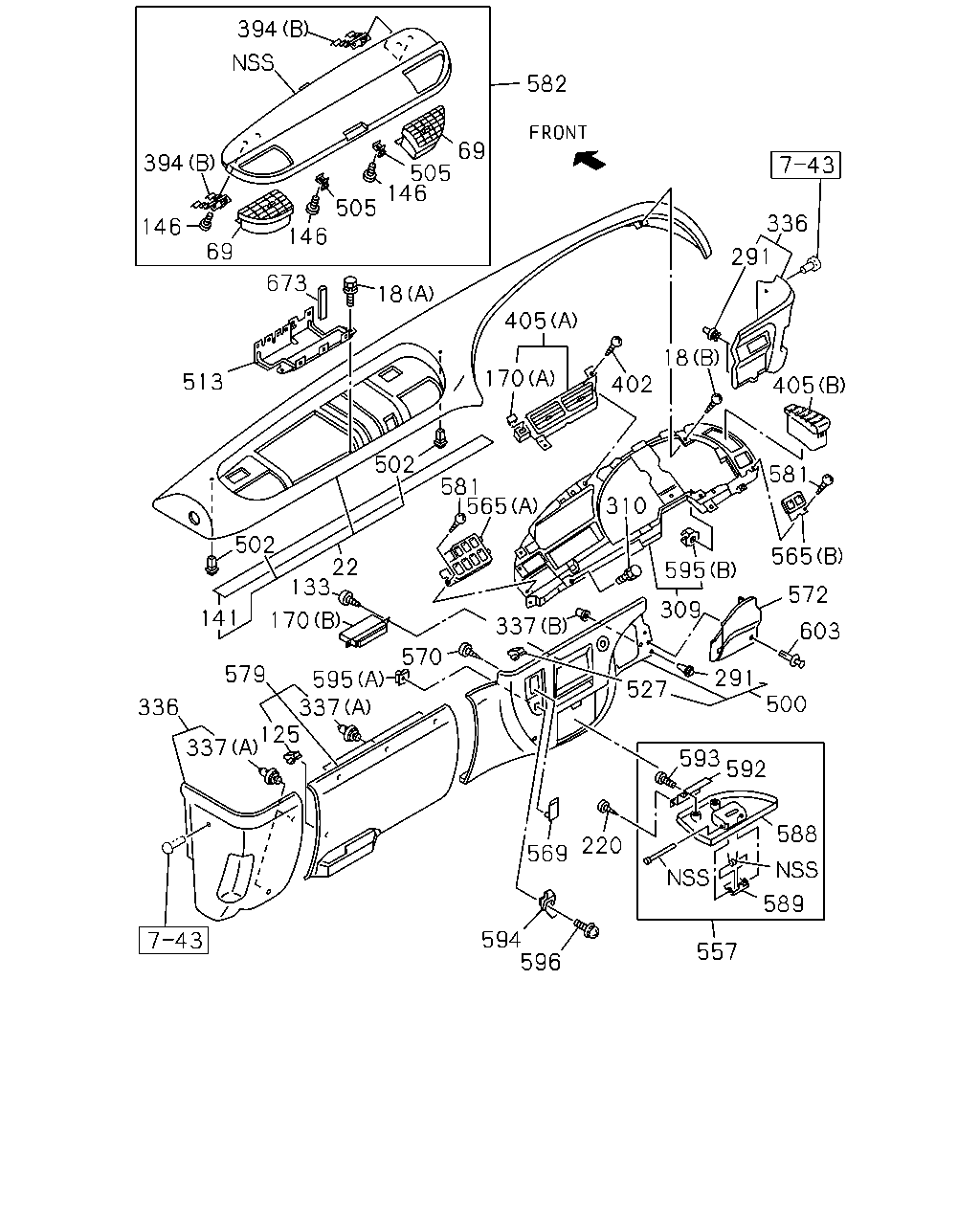

çizim 143524
394 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 170 513 402 405 502 581 581 565 310 502 565 22 133 595 572 309 141 170 337 603 570 579 291 595 337 125 527 500 336 337 593 592 588 220 569 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0711-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0711-
18 BOLT; BRKT
(C) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0711-
22 PAD; INST 1-72318-421-6 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0711-
125 CLIP; INST PANEL
IDN 		8-97217-066-0 01 1 0711-
125 CLIP; INST PANEL
IDN 		8-97217-066-0 08 1 0711-
133 SCREW; COVER,INST PNL
M5X14 		8-94279-325-0 02 1 0711-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0711-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0711-
170 COVER; HOLE
(B) IDN 		1-72438-139-1 01 1 0711-
170 COVER; HOLE
(A) 		1-76367-068-0 01 1 0711-
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0711-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0711-
309 PANEL; SW,INST 1-72418-009-6 01 1 0711-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0711-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 0711-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 0711-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0711-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0711-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0711-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0711-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0711-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0711-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0711-
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 0711-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0711-
505 LOCK; LID 1-72558-024-2 02 1 0711-
513 BRACKET; RELAY 1-73908-425-0 01 1 0711-
527 CLIP; INST CLUSTER
IDN 		8-97217-066-0 04 1 0711-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0711-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0711-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0711-
569 HOLDER; CARD 1-72498-015-2 01 1 0711-
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0711-
572 COVER; INSPECTION 1-72438-054-3 01 1 0711-
579 COVER; INST PNL 1-72438-113-4 01 1 0711-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0711-
582 LID; FUSE & RELAY 1-72548-127-8 01 1 0711-
588 LID; BOX 1-72548-135-3 01 1 0711-
589 KNOB; LID 1-72548-143-0 01 1 0711-
592 HINGE; LID 1-72548-133-3 01 1 0711-
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0711-
594 HOOK; COAT 1-72498-013-0 01 1 0711-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0711-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0711-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0711-
603 CLIP; COVER 1-09987-245-1 01 1 0711-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0711-
