7-20 — MIRROR AND MIRROR STAY
(#13680) — 61 parça
◀
[720A] ROOM MIRROR (2 parça)

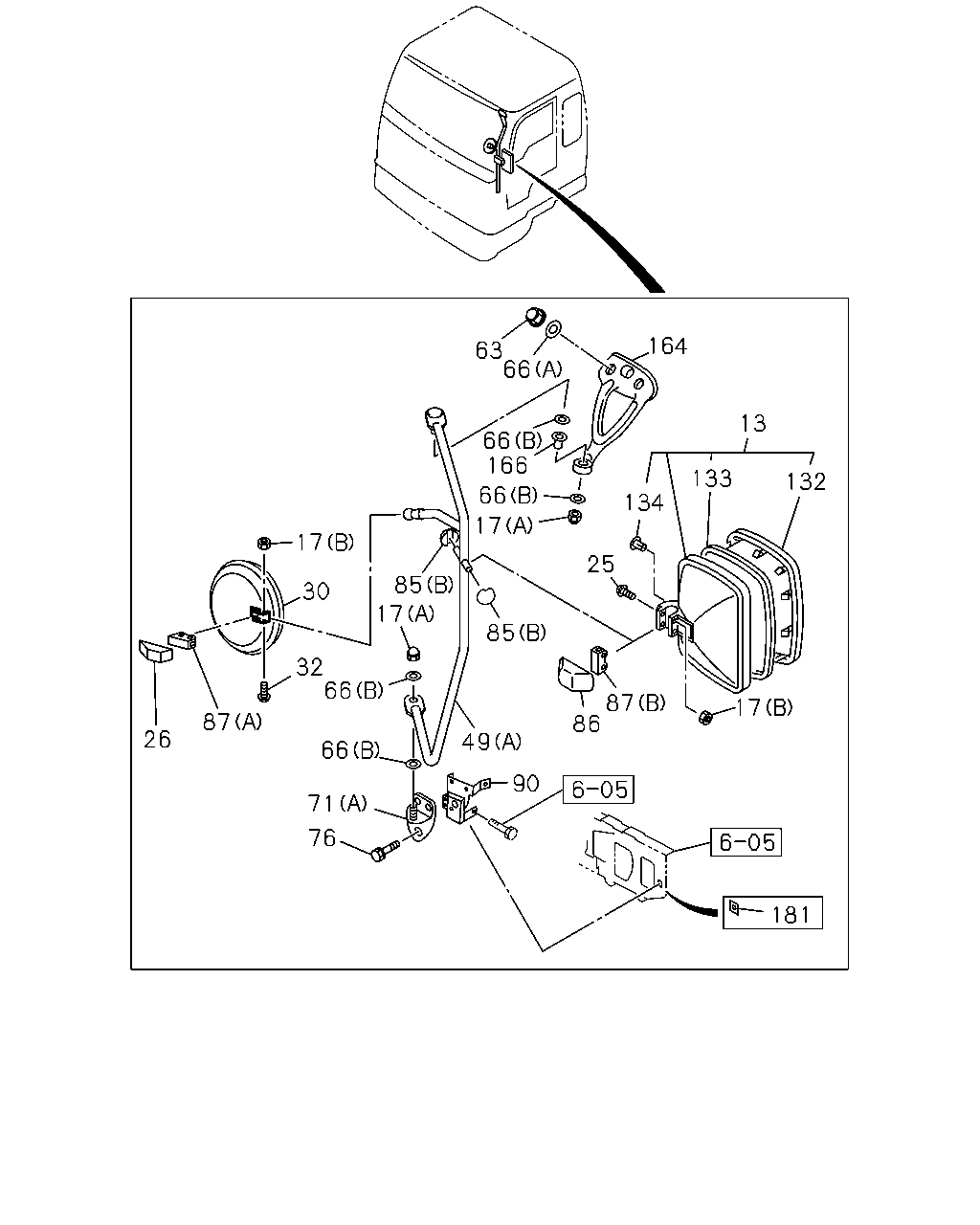

[720A] OUTSIDE MIRROR LH (30 parça)

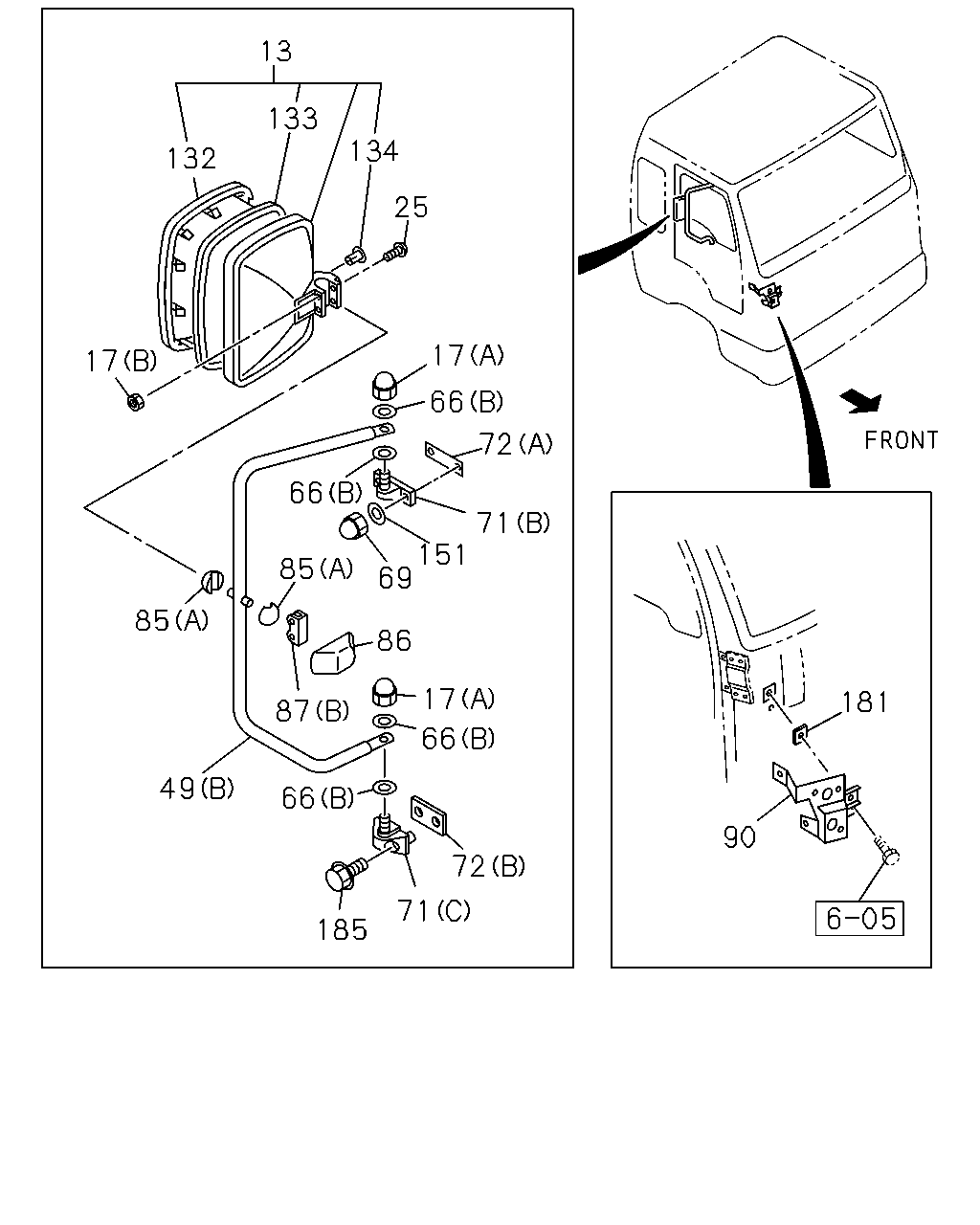

[720A] OUTSIDE MIRROR RH (29 parça)
▶
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73118-026-1
01
1
0711-
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0711-
164
63
66
13
66
166
133
132
66
134
17
17
25
85
30
17
85
32
66
87
86
17
87
26
49
66
90
71
76
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
02
1
0711-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
06
1
0711-
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
04
1
0711-
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
04
1
0711-
26
COVER; OUTSIDE MIRROR
BLACK
1-71737-649-1
01
1
0711-
30
MIRROR; UNDER
1-71798-591-1
01
1
0711-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
02
1
0711-
49
STAY; MIRROR SIDE
(A)
1-71797-856-2
01
1
0711-
49
STAY; MIRROR SIDE
(B)
1-71798-490-3
01
1
0711-
63
NUT; STAY
M8
1-09984-187-0
03
1
0711-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0711-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0711-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
0711-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
0711-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
0711-
76
BOLT; STAY BRKT
M8X30 W/LK WASHER
8-94279-183-1
03
1
0711-
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
0711-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
0711-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
02
1
0711-
87
SPACER
(B)
1-71737-704-0
02
1
0711-
87
SPACER
(A)
1-71737-646-2
01
1
0711-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0711-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0711-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
1-71737-934-0
02
1
0711-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
02
1
0711-
134
CLIP; MIRROR LENS
1-71737-936-0
02
1
0711-
164
STAY; ROOF
1-71798-299-4
01
1
0711-
166
BUSHING; STAY
1-09983-175-1
01
1
0711-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0711-
13
133
134
132
25
17
17
66
72
66
71
151
69
85
85
86
17
181
87
66
49
66
90
72
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
02
1
0711-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
06
1
0711-
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
04
1
0711-
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
04
1
0711-
49
STAY; MIRROR SIDE
(A)
1-71797-856-2
01
1
0711-
49
STAY; MIRROR SIDE
(B)
1-71798-490-3
01
1
0711-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
08
1
0711-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0711-
69
NUT; CAP
M8
1-09984-187-0
02
1
0711-0809
69
NUT; CAP
M8 CAP NUT
8-98059-914-0
02
1
0810-
71
BRACKET; OUTSIDE MIRROR
(A)
1-71798-581-3
01
1
0711-
71
BRACKET; OUTSIDE MIRROR
(B)
1-71798-484-1
01
1
0711-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-486-2
01
1
0711-
72
SHEET
(A)
1-71798-487-3
01
1
0711-
72
SHEET
(B)
1-71798-488-1
01
1
0711-
85
PIVOT; MAIN MIRROR
(B) ID=22.2
1-71736-489-2
02
1
0711-
85
PIVOT; MAIN MIRROR
(A) ID=19.1
1-71737-633-2
02
1
0711-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
02
1
0711-
87
SPACER
(B)
1-71737-704-0
02
1
0711-
87
SPACER
(A)
1-71737-646-2
01
1
0711-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0711-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0711-0809
90
BRACKET; MIRROR STAY
1-71707-237-0
01
1
0810-
132
RING; MIRROR
1-71737-934-0
02
1
0711-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
02
1
0711-
134
CLIP; MIRROR LENS
1-71737-936-0
02
1
0711-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
0711-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0711-
185
BOLT; BRKT
M8X35 FLANGE
8-98046-876-0
02
1
0711-
