Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶

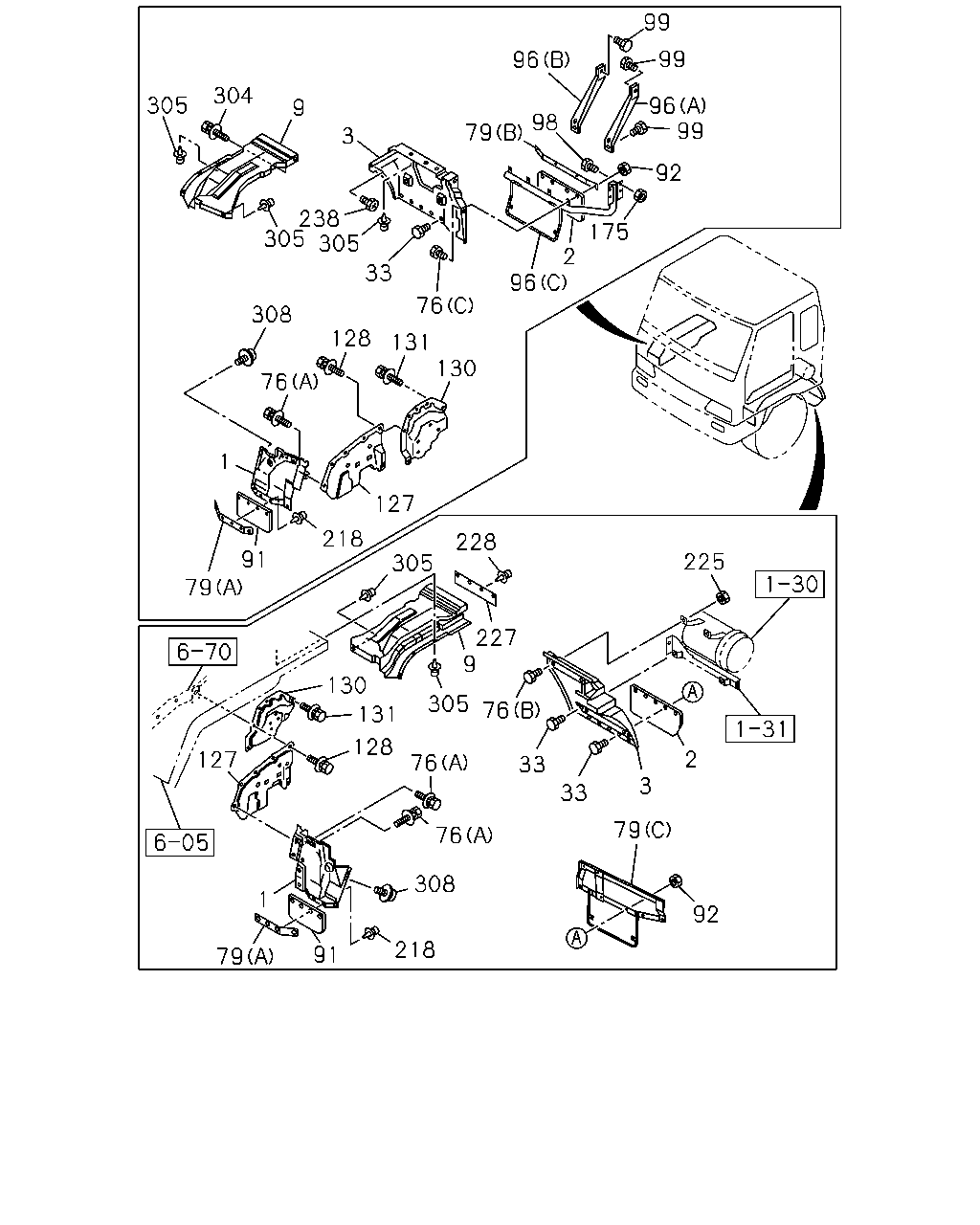

6-47 — MUD GUARD AND INSULATOR
(#13667) — 44 parça
◀
[647A] NO.2 (3 parça)
[647A] NO.1 (41 parça)
▶
140
147
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
140
BOLT; SIDE PANEL
M8X16 FLANGE
0-28050-816-0
04
1
0711-
140
BOLT; SIDE PANEL
M8X25 FLANGE IDN
0-28650-825-0
02
1
0711-
147
PANEL; SIDE,UNDER,RR
1-22119-346-0
01
1
0711-
99
99
96
304
305
96
99
9
98
79
3
92
238
305
305
175
2
96
33
76
308
128
131
130
76
1
127
218
228
91
225
305
79
227
9
130
305
76
131
128
127
2
76
33
3
33
79
76
308
1
92
218
91
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
1-79938-810-8
01
1
0711-
1
GUARD; MUD,FRT
1-79938-812-8
01
1
0711-
2
COVER; MUD,TIRE RR
1-79931-255-2
01
1
0711-
2
COVER; MUD,TIRE RR
1-79931-371-0
01
1
0711-
3
GUARD; MUD,RR
1-79938-998-0
01
1
0711-
3
GUARD; MUD,RR
1-79938-971-1
01
1
0711-
9
GUARD; SPLASH,WHEEL HOUSE
1-79936-007-2
01
1
0711-
9
GUARD; SPLASH,WHEEL HOUSE
1-79938-955-3
01
1
0711-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
06
1
0906-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
07
1
0711-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0711-0805
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
04
1
0806-
76
BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER
1-09980-495-0
01
1
0711-
76
BOLT; MUD GUARD
(C) M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
0711-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
0711-
79
RETAINER; MUD COVER
(A)
1-79931-044-0
02
1
0711-
79
RETAINER; MUD COVER
(B)
1-79931-269-0
01
1
0711-
79
RETAINER; MUD COVER
(C)
1-79931-304-0
01
1
0711-
91
COVER; MUD,FRT
1-79931-214-1
02
1
0711-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
04
1
0711-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
05
1
0711-
96
STAY; MUD GUARD
(C)
1-53497-661-0
01
1
0711-
96
STAY; MUD GUARD
(A)
1-79938-737-0
01
1
0711-
96
STAY; MUD GUARD
(B)
1-79938-738-1
01
1
0711-
98
BOLT; STAY TO BRKT
M8X30 FLANGE
0-28650-830-0
04
1
0711-
99
BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0711-
127
APRON; FRT
1-53192-301-3
01
1
0711-
127
APRON; FRT
1-53193-223-1
01
1
0711-
128
BOLT; APRON,FRT
M8X25 W/LK&PL WASHER
8-94331-747-1
10
1
0711-
130
PANEL; SHUTTER NOISE
1-53192-308-3
01
1
0711-
130
PANEL; SHUTTER NOISE
1-53192-305-2
01
1
0711-
131
BOLT; PANEL
M6X20 W/LK&PL WASHER
8-94279-203-0
08
1
0711-
175
NUT; STAY FIX
M8 FLANGE
0-91180-108-0
04
1
0711-
218
FASTENER; RUBBER
1-09470-001-0
08
1
0711-
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
02
1
0711-
227
SEAL; MUD GUARD
1-79938-953-1
01
1
0711-
228
FASTENER; MUD GUARD SEAL
D8X13.5
1-09987-248-1
04
1
0711-
238
SCREW; MUD GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
01
1
0711-
304
BOLT; SPLASH GUARD
M6X20 W/LK&PL WASHER
8-94279-203-0
02
1
0711-
305
FASTENER; SPLASH GUARD
D8X13.5
1-09987-248-1
06
1
0711-
308
FASTENER; MUD GUARD
M6X22
1-65481-386-0
04
1
0711-
