2 |

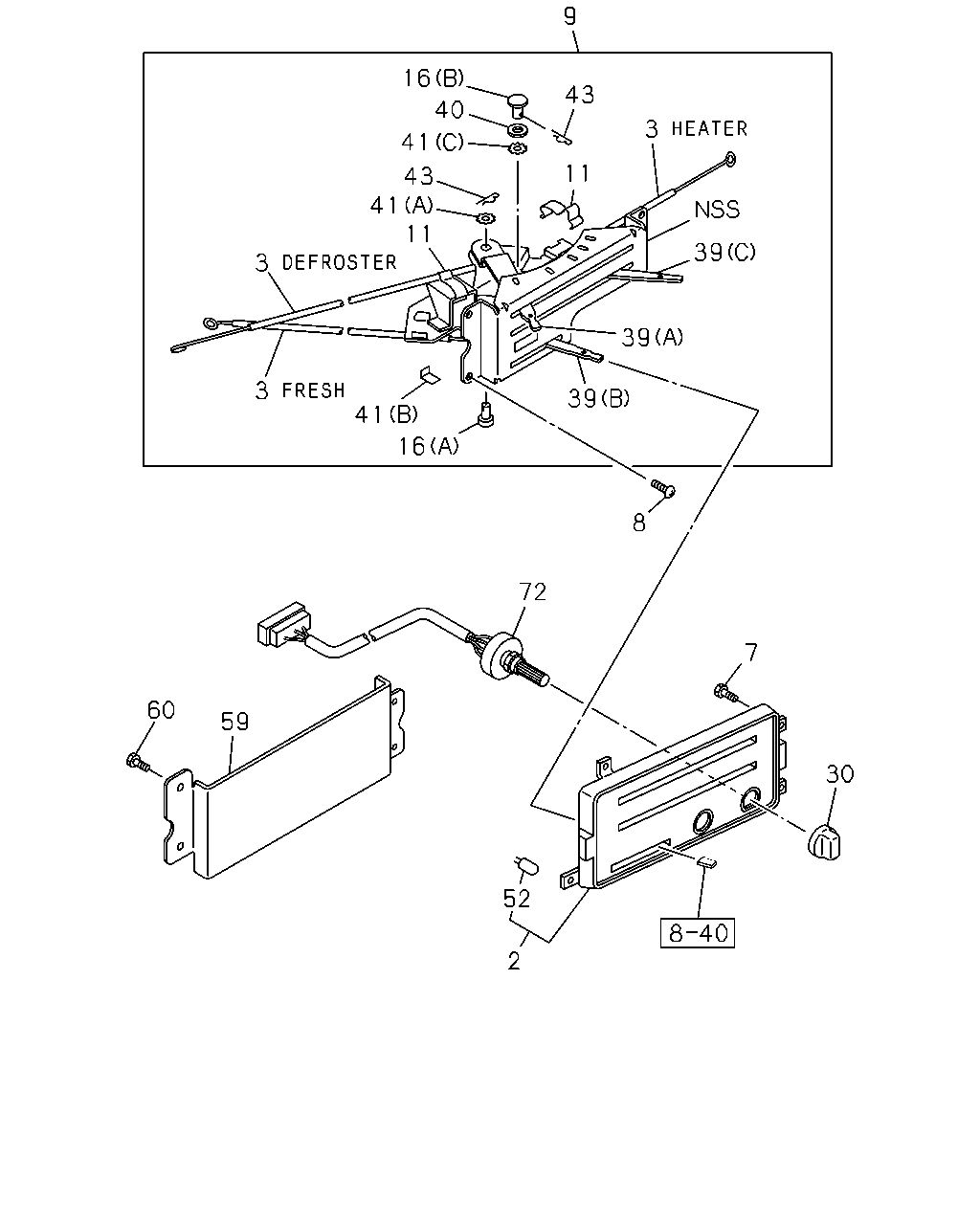

PANEL ASM; CONT,ILLUMINATION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-72410-155-2 |
01 |
1 |
9204- |
| |
2 |
PANEL ASM; CONT,ILLUMINATION
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-72410-156-1 |
01 |
1 |
9204- |
| |
3 |
CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
HEATER
|
1-83579-148-1 |
01 |
1 |
9204- |
| |
3 |
CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
DEFROSTER
|
1-83579-147-2 |
01 |
1 |
9204- |
| |
3 |
CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
FRESH
|
1-83579-149-2 |
01 |
1 |
9204- |
| |
7 |
SCREW; ILLUMINATION PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X14 W/PL WASHER
|
5-09981-050-0 |
04 |
1 |
9204- |
| |
8 |
SCREW; CONT LVR TO INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X14 W/PL WASHER
|
5-09981-050-0 |
03 |
1 |
9204- |
| |
9 |
LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83513-088-5 |
01 |
1 |
9204- |
| |
9 |
LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83513-089-3 |
01 |
1 |
9204- |
| |
11 |
CLIP; CABLE,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83574-127-0 |
03 |
1 |
9204- |
| |
11 |
CLIP; CABLE,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83574-127-0 |
02 |
1 |
9204- |
| |
16 |
PIN; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83579-459-0 |
01 |
1 |
9204- |
| |
16 |
PIN; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83579-460-0 |
01 |
1 |
9204- |
| |
30 |
KNOB; FAN SW
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-82336-006-0 |
01 |
1 |
9204- |
| |
39 |
LEVER; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(A)?(C)
|
1-83564-286-0 |
02 |
1 |
9204- |
| |
39 |
LEVER; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83564-287-0 |
01 |
1 |
9204- |
| |
39 |
LEVER; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83564-286-0 |
01 |
1 |
9204- |
| |
40 |
COLLAR; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
|
1-83579-121-0 |
01 |
1 |
9204- |
| |
40 |
COLLAR; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-83579-461-0 |
01 |
1 |
9204- |
| |
41 |
SPRING; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60)
(C)
|
1-83579-462-0 |
01 |
1 |
9204- |
| |
41 |
SPRING; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(A)
|
1-83579-118-0 |
02 |
1 |
9204- |
| |
41 |
SPRING; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83579-463-0 |
02 |
1 |
9204- |
| |
43 |
PIN; HTR CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
5-83519-020-0 |
02 |
1 |
9204- |
| |
52 |
BULB; PANEL ILLUMINATION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
24V 1.2W
|
1-82194-045-0 |
02 |
1 |
9204- |
| |
59 |
PANEL; BLIND,HTR CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-72437-012-2 |
01 |
1 |
9204- |
| |
60 |
SCREW; BLIND PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
M5X14 W/PL WASHER
|
5-09981-050-0 |
04 |
1 |
9204- |
| |
72 |
SWITCH; FAN MOTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
|
1-82380-082-1 |
01 |
1 |
9204- |
