Isuzu WW
▶
TRUCKS
▶
FTR
▶
11126 - FTR(INDONESIA)6HH1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

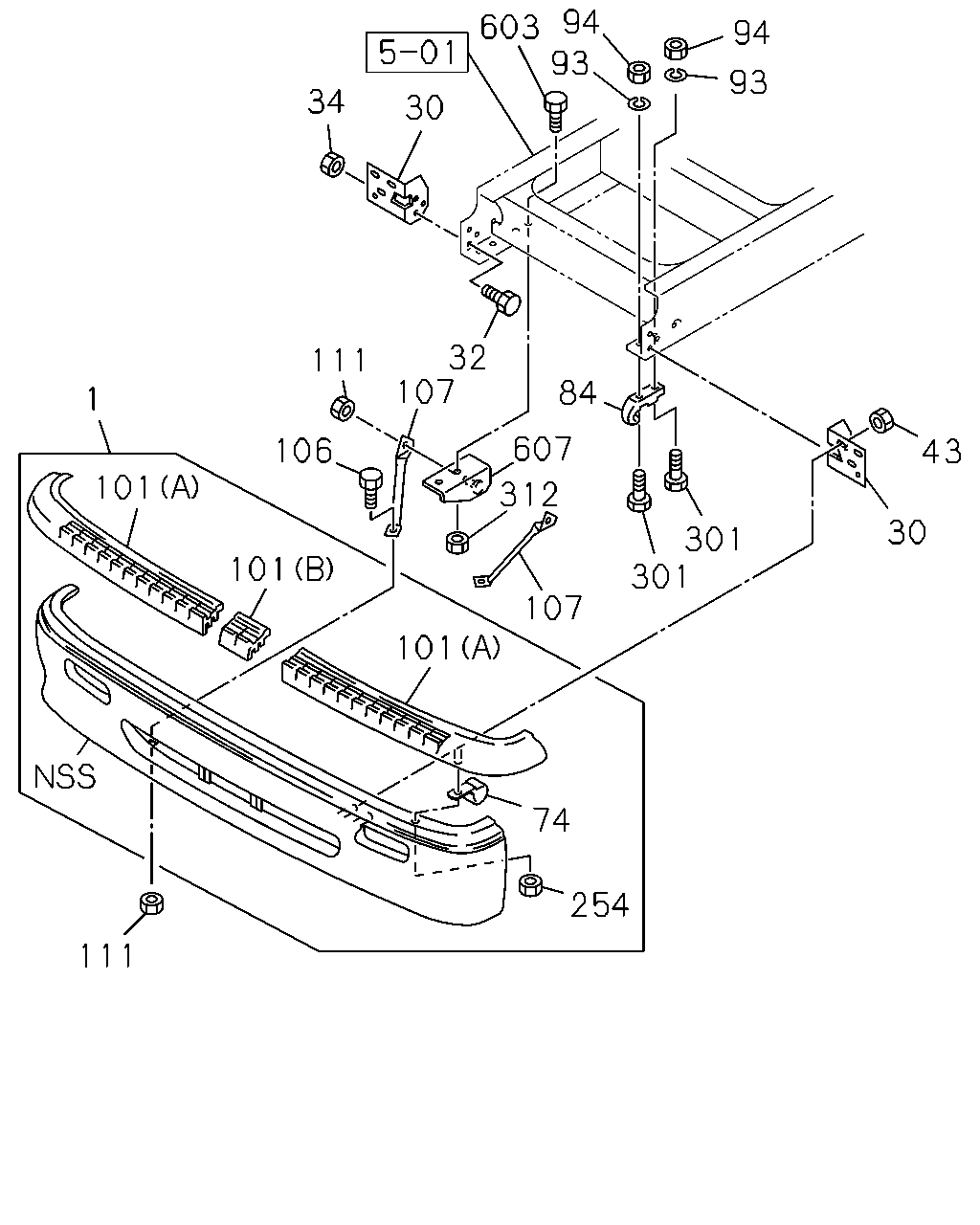

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#13656) — 24 parça
603
94
93
94
93
34
30
32
107
111
84
607
106
43
101
312
30
301
301
101
107
101
74
254
111
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
1-71210-661-2
01
1
0711-
30
BRACKET; FRT BUMPER
1-71230-208-3
01
1
0711-
30
BRACKET; FRT BUMPER
1-71230-568-1
01
1
0711-
32
BOLT; BRKT,BUMPER
M10X30 FLANGE
0-28651-030-0
06
1
0711-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
06
1
0711-
43
NUT; BRKT TO BUMPER
M10 FLANGE
0-91180-210-0
06
1
0711-
74
CLIP; FOG LAMP HARNESS
1-09701-203-0
05
1
0711-
84
HOOK
1-57181-027-1
01
1
0711-
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
0711-
94
NUT; HOOK
M16
0-91110-516-0
02
1
0711-
101
STEP; BUMPER
(A)
1-71260-080-1
01
1
0711-
101
STEP; BUMPER
(A)
1-71260-081-1
01
1
0711-
101
STEP; BUMPER
(B)
1-71260-082-1
01
1
0711-
106
BOLT; AIR DAM
M10X25 FLANGE IDN
0-28651-025-0
02
1
0711-
107
STAY; AIR DAM
1-71260-132-1
01
1
0711-
107
STAY; AIR DAM
1-71260-131-1
01
1
0711-
111
NUT; STAY
M10 FLANGE
0-91180-210-0
04
1
0711-
254
NUT; STEP
M8 FLANGE
0-91180-108-0
11
1
0711-
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
01
1
0711-
301
BOLT; HOOK TO FRAME
M16X50
0-20851-650-0
01
1
0711-
312
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
0711-
603
BOLT; BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0711-
607
BRACKET
1-47477-689-0
01
1
0711-
607
BRACKET
1-47477-690-0
01
1
0711-
