Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#136481) — 243 parça

38 38 139 150 150 466 38 242 38 358 377 38 242 377 386 38 242 386 490 38 38 86 139 242 313 38 139 423 525 515 340 294 219 524 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE THA	0-28050-610-0	01	1	1403-
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE THA	0-28050-812-0	02	1	1403-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1403-
38	BOLT; CLIP,HARNESS (F) M8X18 FLANGE	0-28080-818-0	01	1	1403-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE THA	0-28650-820-0	04	1	1403-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE THA	0-28650-825-0	06	1	1403-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE THA	0-28650-830-0	09	1	1403-
38	BOLT; CLIP,HARNESS (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1403-
86	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1403-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1403-
139	BOLT; BRKT (B) M8X12 FLANGE THA	0-28050-812-0	01	1	1403-
139	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-
139	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	08	1	1403-
139	BOLT; BRKT (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-
150	BOLT; CLIP (B) M8X12 FLANGE THA	0-28050-812-0	02	1	1403-
150	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	08	1	1403-
219	NUT M8 FLANGE THA	0-91180-108-0	08	1	1403-
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	1403-
219	NUT M8 FLANGE THA	0-91180-108-0	01	1	1403-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1403-
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1403-
294	NUT M8 FLANGE THA	0-91180-108-0	06	1	1403-
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	1403-
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	1403-
294	NUT M8 FLANGE THA	0-91180-108-0	01	1	1403-
313	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	08	1	1403-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE THA	0-91180-108-0	03	1	1403-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1403-
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1403-
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1403-
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1403-
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1403-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1403-
466	BOLT; HEAT PROTECTOR M8X16 FLANGE THA	0-28050-816-0	02	1	1403-
490	BOLT; CLIP,RELAY BOX M8X20 FLANGE THA	0-28650-820-0	01	1	1403-
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1403-
515	NUT; BRKT M8 FLANGE THA	0-91180-108-0	09	1	1403-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1403-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	1403-

16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 104 48 81 213 380 306 373 48 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

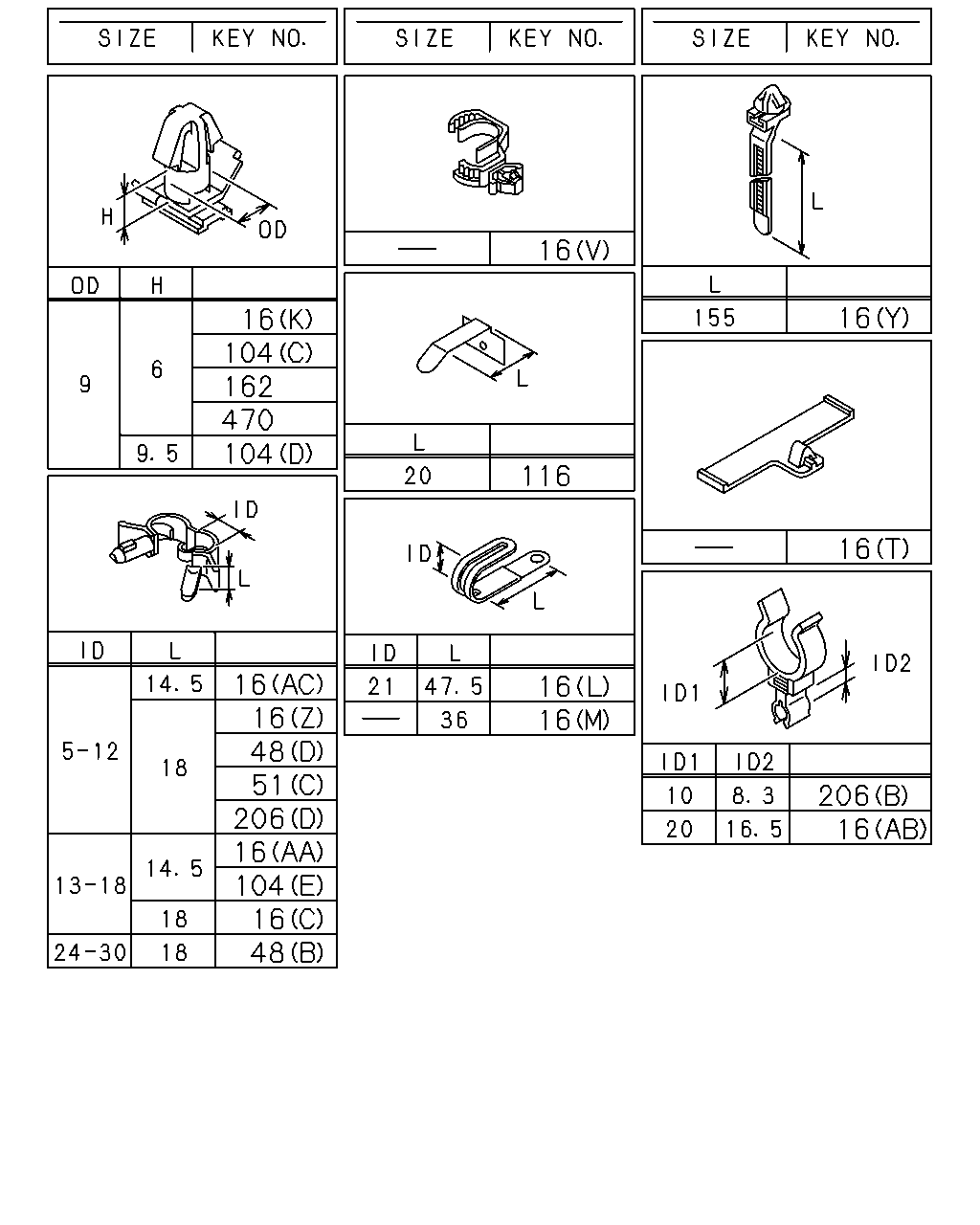

16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1403-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1403-
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1403-
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1403-
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1403-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1403-
16	CLIP; HARNESS (N) ID=18 H=23 L=28	1-09700-860-0	01	1	1403-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1403-
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1403-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1403-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1403-
16	CLIP; HARNESS (G) ID=18 L=40	1-09701-111-0	01	1	1403-
16	CLIP; HARNESS (D) ID=15 L=22 H=30	1-09701-215-1	01	1	1403-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1403-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1403-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	03	1	1403-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1403-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	13	1	1403-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	05	1	1403-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1403-
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1403-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1403-
16	CLIP; HARNESS (V) ID=10 & 16	8-94413-325-0	01	1	1403-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1403-
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1403-
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1403-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1403-
16	CLIP; HARNESS (AE) L=140 THA	8-97920-656-0	04	1	1403-
16	CLIP; HARNESS (S) ID=11 H=20 L=20	8-98033-780-0	01	1	1403-
16	CLIP; HARNESS (T) THA	8-98052-679-0	02	1	1403-
16	CLIP; HARNESS (O) ID=14 L=44	9-09917-427-0	03	1	1403-
16	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	02	1	1403-
48	CLIP; FRAME HARNESS (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1403-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1403-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	10	1	1403-
48	CLIP; FRAME HARNESS (D) ID=5-12 L=18	1-09709-287-0	04	1	1403-
48	CLIP; FRAME HARNESS (B) ID=24-30 L=18	1-09709-297-0	01	1	1403-
81	CLIP; HARNESS ID=39 L=33	8-98009-359-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1403-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1403-
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	1403-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1403-
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1403-
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1403-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1403-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1403-

16 104 162 470 104 16 16 48 51 206 16 104 16 48 16 116 16 16 16 16 206 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1403-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1403-
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1403-
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1403-
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1403-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1403-
16	CLIP; HARNESS (N) ID=18 H=23 L=28	1-09700-860-0	01	1	1403-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1403-
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1403-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1403-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1403-
16	CLIP; HARNESS (G) ID=18 L=40	1-09701-111-0	01	1	1403-
16	CLIP; HARNESS (D) ID=15 L=22 H=30	1-09701-215-1	01	1	1403-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1403-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1403-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	03	1	1403-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1403-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	13	1	1403-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	05	1	1403-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1403-
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1403-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1403-
16	CLIP; HARNESS (V) ID=10 & 16	8-94413-325-0	01	1	1403-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1403-
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1403-
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1403-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1403-
16	CLIP; HARNESS (AE) L=140 THA	8-97920-656-0	04	1	1403-
16	CLIP; HARNESS (S) ID=11 H=20 L=20	8-98033-780-0	01	1	1403-
16	CLIP; HARNESS (T) THA	8-98052-679-0	02	1	1403-
16	CLIP; HARNESS (O) ID=14 L=44	9-09917-427-0	03	1	1403-
16	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	02	1	1403-
48	CLIP; FRAME HARNESS (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1403-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1403-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	10	1	1403-
48	CLIP; FRAME HARNESS (D) ID=5-12 L=18	1-09709-287-0	04	1	1403-
48	CLIP; FRAME HARNESS (B) ID=24-30 L=18	1-09709-297-0	01	1	1403-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1403-
51	CLIP; COOLER CMPR (B) L=350	1-09707-183-0	01	1	1403-
51	CLIP; COOLER CMPR (C) ID=5-12 L=18	1-09709-287-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1403-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1403-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1403-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1403-
206	CLIP; FUEL TANK HARNESS (C) L=350	1-09707-183-0	01	1	1403-
206	CLIP; FUEL TANK HARNESS (D) ID=5-12 L=18	1-09709-287-0	02	1	1403-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1403-
206	CLIP; FUEL TANK HARNESS (A) L=140 THA	8-97920-656-0	02	1	1403-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1403-

1 194 16 14 51 48 104 194 171 206 369 380 51 538 16 16 530 194 206 178 178 178 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER ID=38.1 L=50	5-09360-835-0	01	1	1403-
14	CLIP; BAND,HARNESS L=350	1-09707-183-0	01	1	1403-
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1403-
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1403-
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1403-
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1403-
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1403-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1403-
16	CLIP; HARNESS (N) ID=18 H=23 L=28	1-09700-860-0	01	1	1403-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1403-
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1403-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1403-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1403-
16	CLIP; HARNESS (G) ID=18 L=40	1-09701-111-0	01	1	1403-
16	CLIP; HARNESS (D) ID=15 L=22 H=30	1-09701-215-1	01	1	1403-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	06	1	1403-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1403-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	03	1	1403-
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1403-
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	13	1	1403-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	05	1	1403-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1403-
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1403-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1403-
16	CLIP; HARNESS (V) ID=10 & 16	8-94413-325-0	01	1	1403-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1403-
16	CLIP; HARNESS (Y) L=155 THA	8-97173-307-0	18	1	1403-
16	CLIP; HARNESS (E) L=40.6 THA	8-97229-357-0	02	1	1403-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1403-
16	CLIP; HARNESS (AE) L=140 THA	8-97920-656-0	04	1	1403-
16	CLIP; HARNESS (S) ID=11 H=20 L=20	8-98033-780-0	01	1	1403-
16	CLIP; HARNESS (T) THA	8-98052-679-0	02	1	1403-
16	CLIP; HARNESS (O) ID=14 L=44	9-09917-427-0	03	1	1403-
16	CLIP; HARNESS (I) ID=20 L=50	9-09917-430-0	02	1	1403-
48	CLIP; FRAME HARNESS (E) ID=20 H=23 L=27	1-09700-861-0	01	1	1403-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1403-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1403-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	10	1	1403-
48	CLIP; FRAME HARNESS (D) ID=5-12 L=18	1-09709-287-0	04	1	1403-
48	CLIP; FRAME HARNESS (B) ID=24-30 L=18	1-09709-297-0	01	1	1403-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1403-
51	CLIP; COOLER CMPR (B) L=350	1-09707-183-0	01	1	1403-
51	CLIP; COOLER CMPR (C) ID=5-12 L=18	1-09709-287-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1403-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1403-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1403-
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1403-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-126-0	01	1	1403-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1403-
178	GROMMET; HARNESS (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1403-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1403-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	01	1	1403-
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1403-
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1403-
194	CLIP; BAND (C) L=140 THA	8-97920-656-0	02	1	1403-
206	CLIP; FUEL TANK HARNESS (C) L=350	1-09707-183-0	01	1	1403-
206	CLIP; FUEL TANK HARNESS (D) ID=5-12 L=18	1-09709-287-0	02	1	1403-
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1403-
206	CLIP; FUEL TANK HARNESS (A) L=140 THA	8-97920-656-0	02	1	1403-
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1403-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1403-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1403-
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1403-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1403-

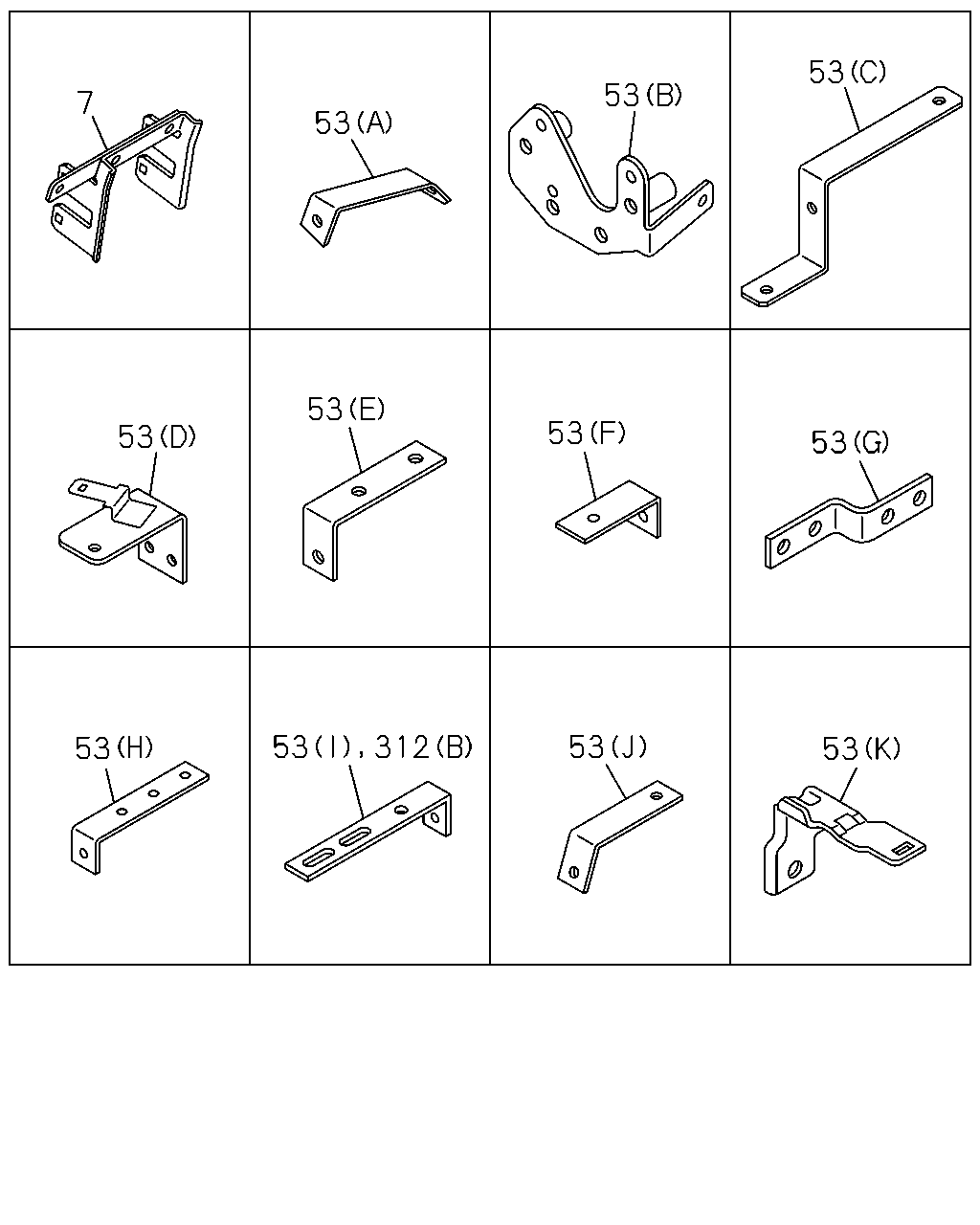

53 53 312 53 53 53 7 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1403-
53	BRACKET; HARNESS (I) L=100 H=30	1-47477-645-2	01	1	1403-
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1403-1404
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1403-
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1403-
53	BRACKET; HARNESS (A)	1-47479-537-0	09	1	1403-
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1403-
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1403-
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1403-
53	BRACKET; HARNESS (B)	8-97611-413-0	01	1	1403-
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1403-
53	BRACKET; HARNESS (C)	8-98078-801-0	01	1	1403-
53	BRACKET; HARNESS (D)	8-98102-490-0	01	1	1403-
312	BRACKET; CLIP HARNESS (B) L=100 H=30	1-47477-645-2	01	1	1403-
312	BRACKET; CLIP HARNESS (A) L=120	8-97619-440-0	01	1	1403-

312 375 375 335 600 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS (B) L=100 H=30	1-47477-645-2	01	1	1403-
312	BRACKET; CLIP HARNESS (A) L=120	8-97619-440-0	01	1	1403-
335	BRACKET; CONNECTOR	1-82698-358-0	01	1	1403-
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1403-
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1403-
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1403-
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1403-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
