◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11590 - FYH(THAILAND)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#136458) — 62 parça

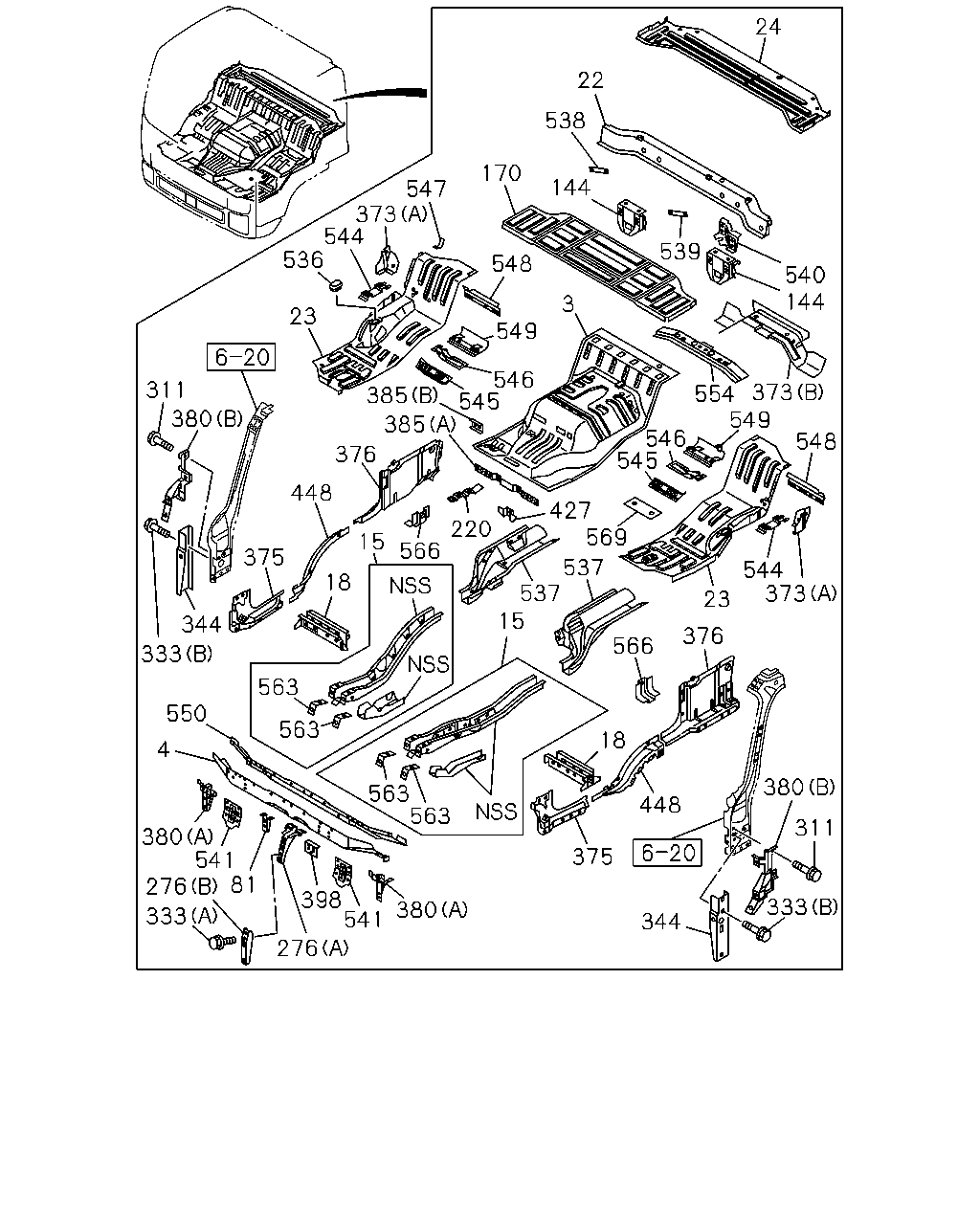

çizim 413865
24 22 538 170 144 539 540 144 373 554 549 548 546 545 544 373 23 376 566 569 427 3 548 547 373 544 536 23 385 549 546 545 385 376 220 566 15 448 311 380 375 344 18 333 550 4 563 563 380 541 81 276 333 398 541 380 276 563 563 18 15 448 375 380 311 333 344 537 537
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98046-585-7 01 1 1403-
4 FRAME; FLOOR,FRT 8-98079-820-1 01 1 1403-
15 FRAME; UNDER 8-98055-645-2 01 1 1403-
15 FRAME; UNDER 8-98055-646-2 01 1 1403-
18 FRAME; FLOOR,CENTER SIDE 8-98067-904-1 01 1 1403-
18 FRAME; FLOOR,CENTER SIDE 8-98072-101-2 01 1 1403-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1403-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1403-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1403-
24 PANEL; BED PAN 8-97584-378-6 01 1 1403-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1403-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1403-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1403-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1403-
220 PATCH 8-98053-088-0 01 1 1403-
276 BRACKET; RAD GRILLE
(B) 		8-98059-816-2 01 1 1403-
276 BRACKET; RAD GRILLE
(A) 		8-98076-126-0 01 1 1403-
311 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 04 1 1403-
333 BOLT; BRKT
(B) M6X16 FLANGE THA 		0-28650-616-0 04 1 1403-
333 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1403-
344 BRACKET; FRT PNL SIDE,LWR 8-98059-821-1 01 1 1403-
344 BRACKET; FRT PNL SIDE,LWR 8-98059-819-1 01 1 1403-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1403-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1403-
373 REINFORCEMENT; SEAT BELT
(B) THA 		8-98046-586-2 01 1 1403-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1403-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1403-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1403-1403
376 CLOSING; PILLAR,LWR
THA 		8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR
THA 		8-97589-556-5 01 1 1403-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-053-0 01 1 1403-
380 BRACKET; HEAD LAMP
(A) THA 		8-97924-054-0 01 1 1403-
380 BRACKET; HEAD LAMP
(B) 		8-98059-825-1 01 1 1403-
380 BRACKET; HEAD LAMP
(B) 		8-98059-824-1 01 1 1403-
385 BRACKET
(A) 		8-97588-840-4 01 1 1403-
385 BRACKET
(B) 		8-98053-825-1 01 1 1403-
398 BRACKET; PIPE SUPPORT
THA 		8-97948-272-0 01 1 1403-
427 BRACKET; CABLE 8-98053-090-2 01 1 1403-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1403-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1403-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1403-
537 SUPPORT ASM; MTG RR 8-98046-599-2 01 1 1403-
537 SUPPORT ASM; MTG RR 8-98046-600-2 01 1 1403-
538 REINFORCEMENT ASM; AIR INT DUCT 8-98098-707-1 01 1 1403-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1403-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1403-
541 REINFORCEMENT; MTG,FRT 8-98076-127-0 02 1 1403-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1403-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1403-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1403-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1403-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1403-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1403-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1403-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1403-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1403-
549 BRACKET; SEAT RR 8-98094-836-2 01 1 1403-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1403-
554 REINFORCEMENT; FLOOR CENTER 8-98046-589-0 01 1 1403-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1403-
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1403-
569 REINFORCEMENT; FRT,ENG HOOD
THA 		8-98108-382-0 01 1 1403-
