Isuzu WW
▶
TRUCKS
▶
FYH
▶
11590 - FYH(THAILAND)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#136455) — 63 parça
◀

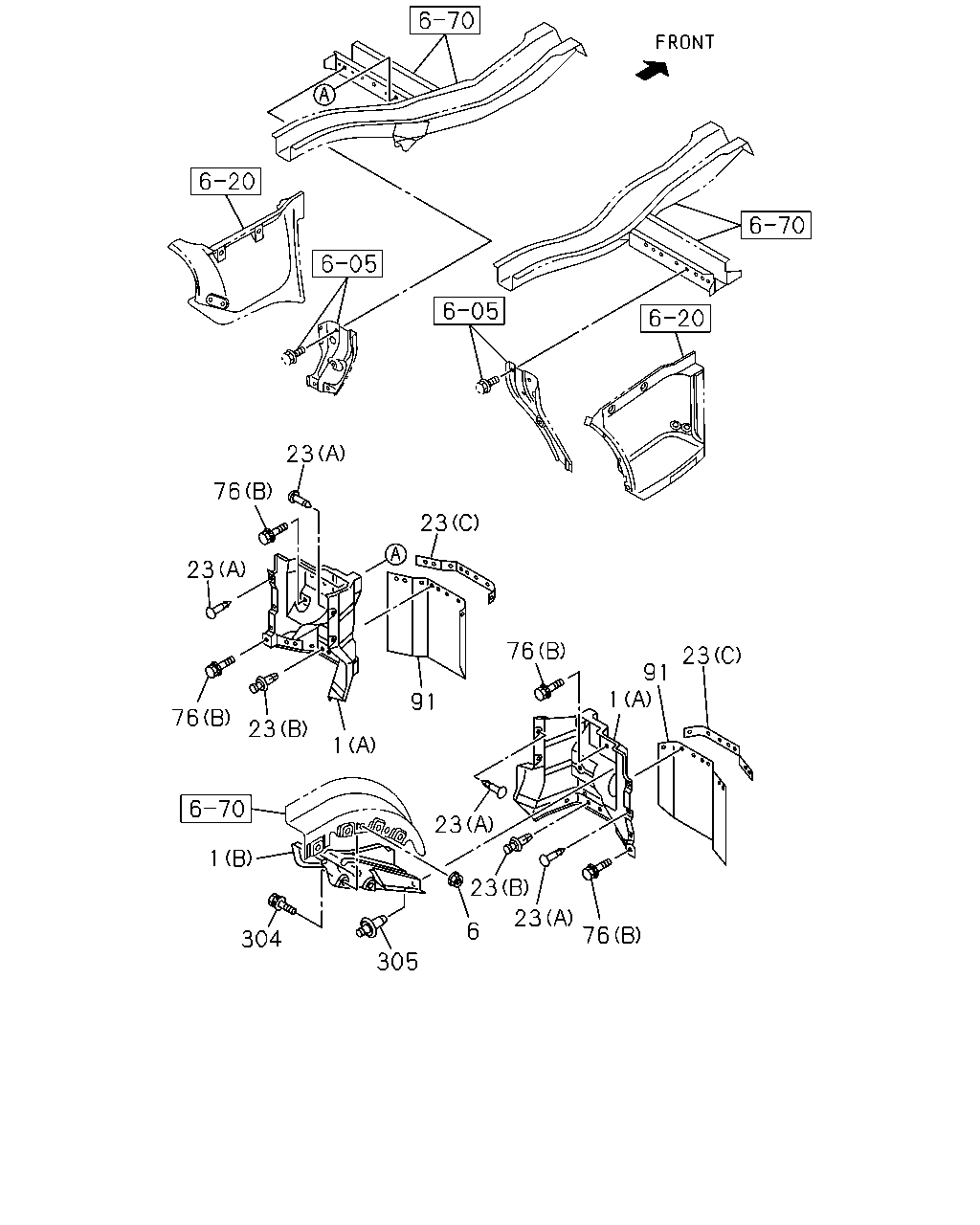

[647A] MUD GUARD;FRONT (12 parça)

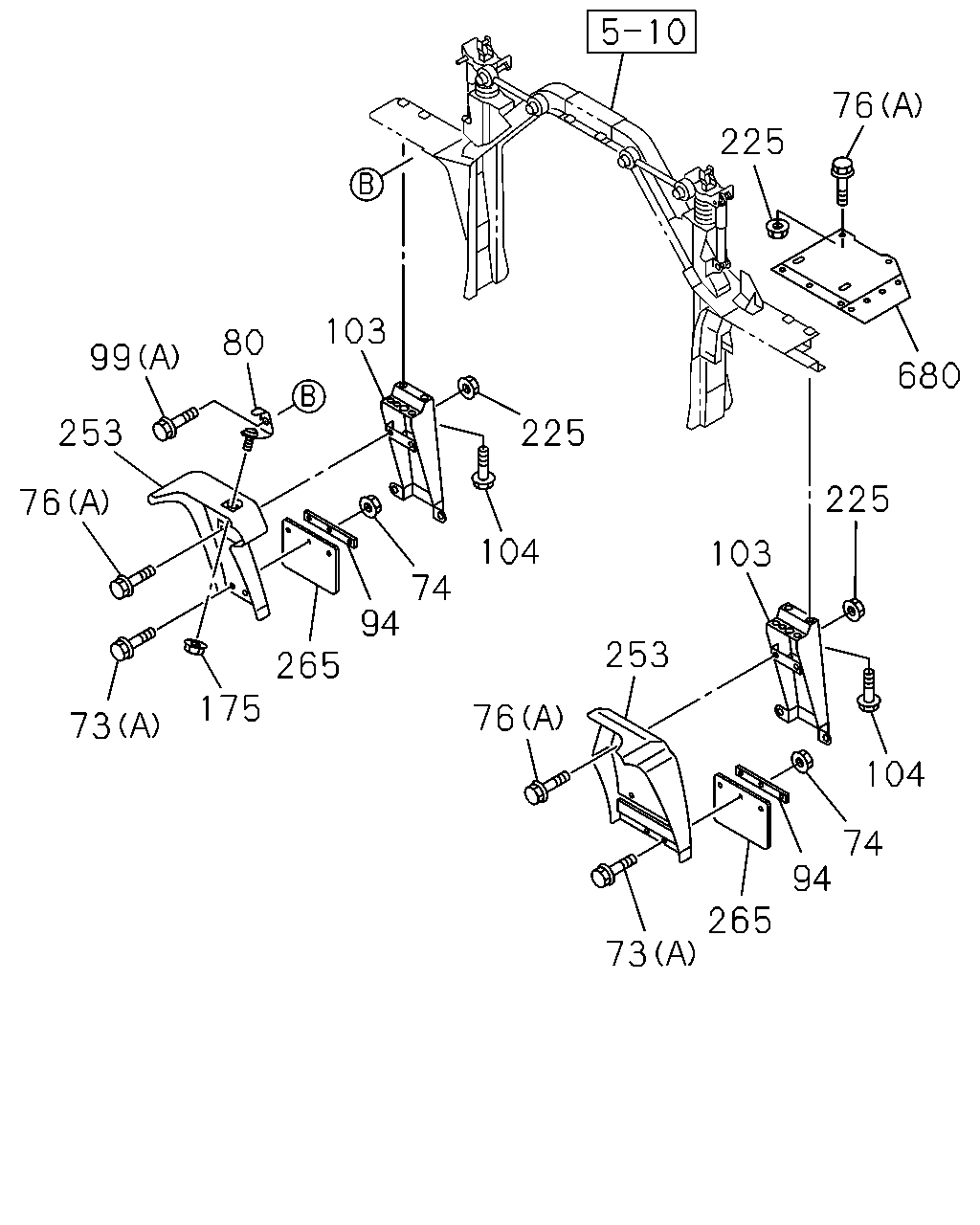

[647A] MUD GUARD;REAR (20 parça)

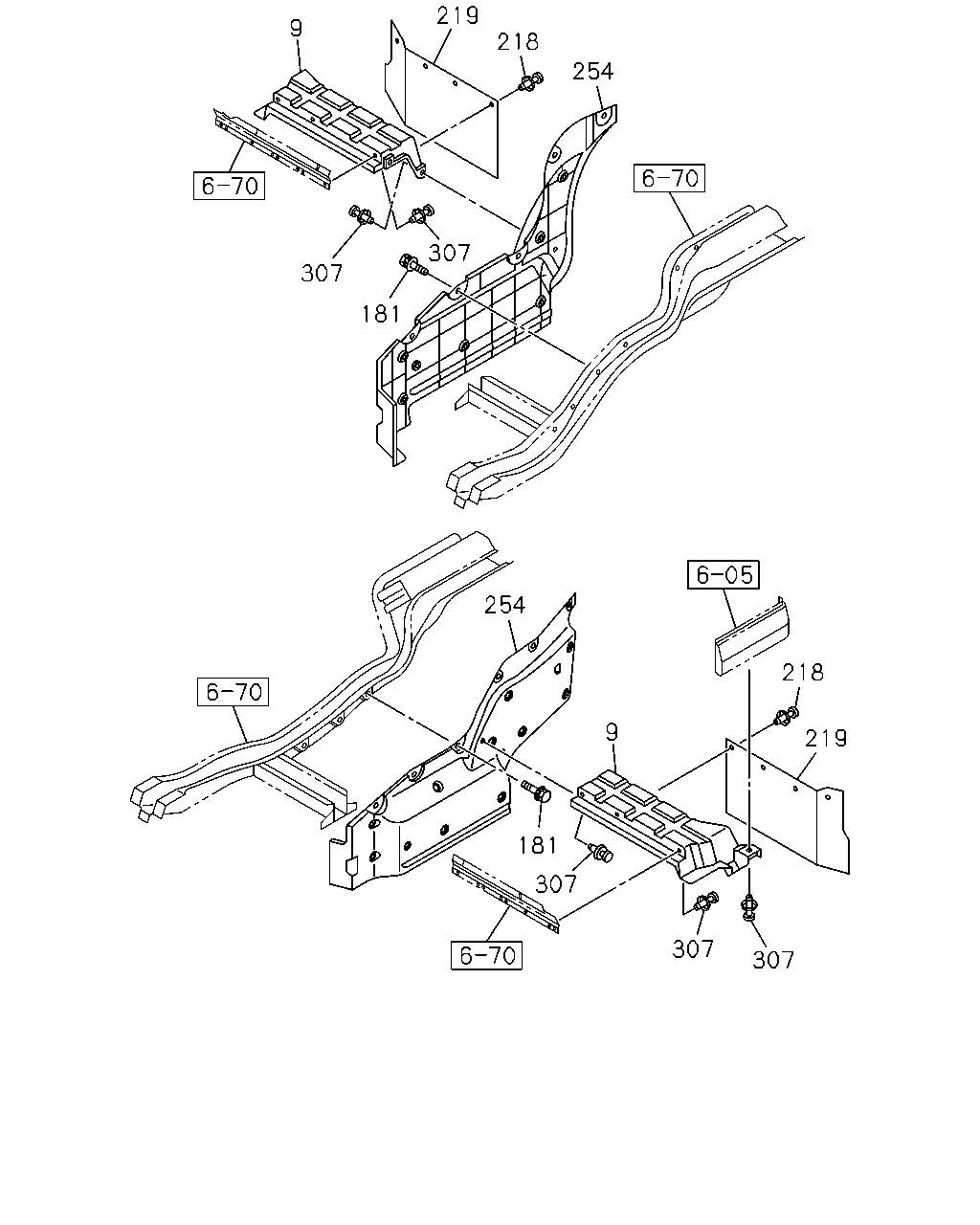

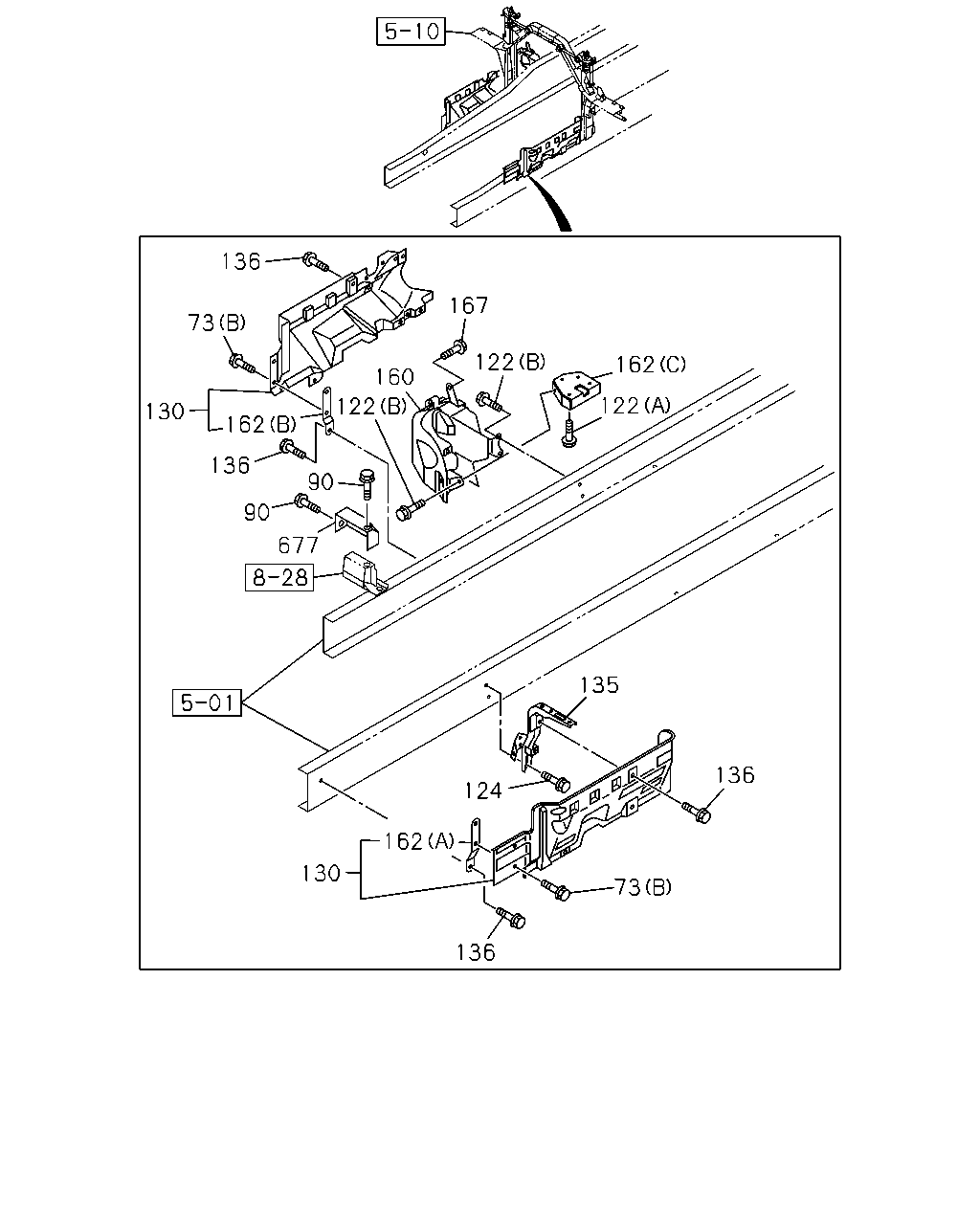

[647A] FIXING;PANEL (19 parça)

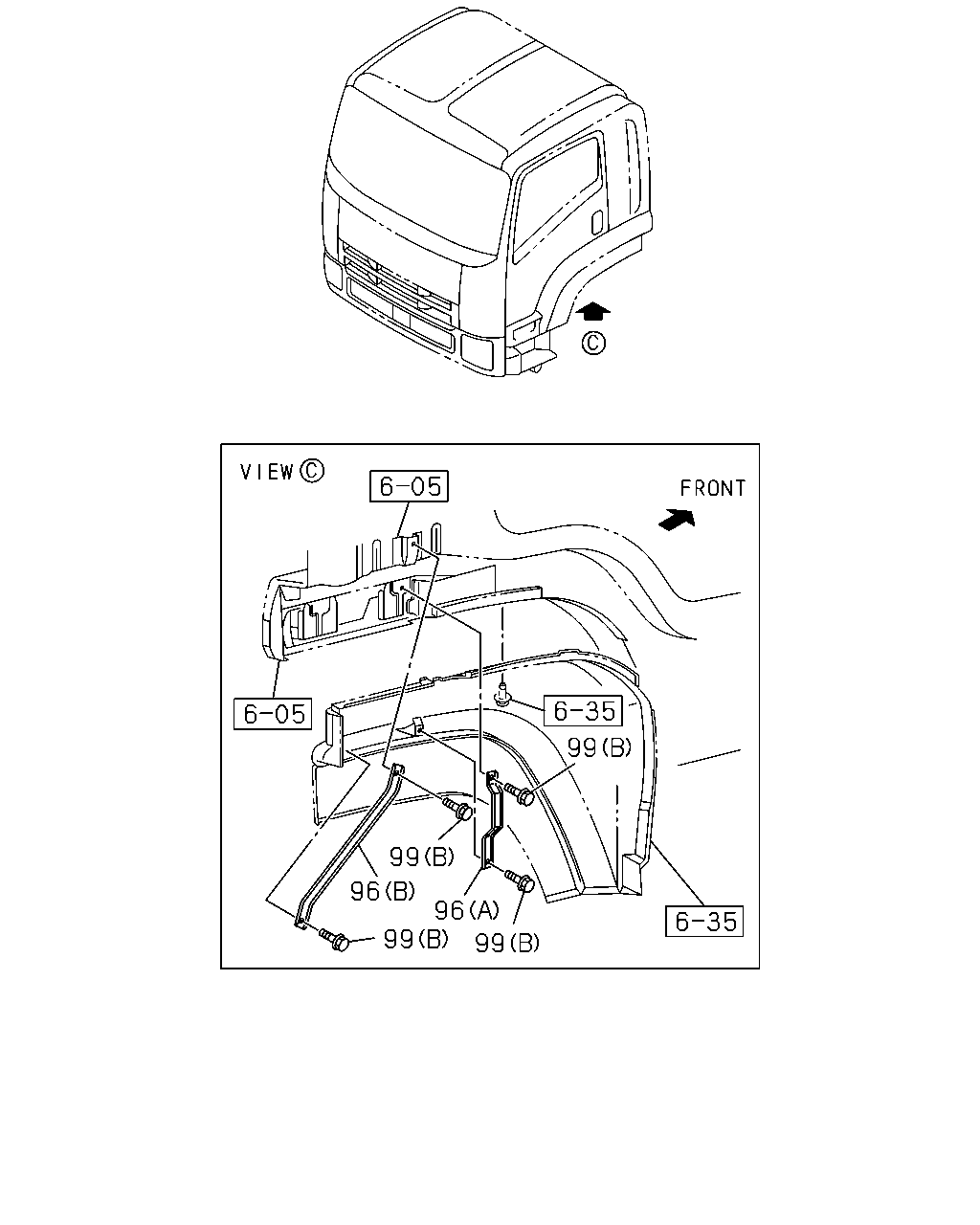

[647A] MUD COVER AND PANEL (8 parça)
[647A] OTHER PARTS (4 parça)
▶
76
23
23
76
76
76
23
23
23
23
23
23
1
1
1
91
304
305
91
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
(A)
8-97617-152-0
01
1
1403-
1
GUARD; MUD,FRT
(A)
8-97617-151-0
01
1
1403-
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98076-271-0
01
1
1403-
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1403-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
10
1
1403-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
08
1
1403-
23
FASTENER; MUD COVER
(C)
8-98060-235-0
02
1
1403-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
12
1
1403-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
8-94331-747-1
06
1
1403-
91
COVER; MUD,FRT
8-98136-553-0
02
1
1403-
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1403-
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1403-
225
76
680
225
103
253
104
74
94
265
175
73
76
253
99
80
103
225
76
73
94
265
74
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1403-
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1403-
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1403-
74
NUT
M8 FLANGE THA
0-91180-108-0
06
1
1403-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
12
1
1403-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
8-94331-747-1
06
1
1403-
80
BRACKET; MUD GUARD STAY
8-98057-793-0
01
1
1403-
94
RETAINER; FLAP RUBBER
1-79931-091-2
01
1
1403-
94
RETAINER; FLAP RUBBER
8-98038-675-0
01
1
1403-
99
BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA
0-28650-616-0
08
1
1403-
99
BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA
0-28050-825-0
01
1
1403-
103
BRACKET ASM; RR MUD FLAP
THA
8-97948-677-0
02
1
1403-
104
BOLT; BRKT
M10X25 FLANGE THA
0-28651-025-0
08
1
1403-
175
NUT; STAY FIX
M8 W/DISHED WASHER
8-97329-625-0
01
1
1403-
225
NUT; MUD GUARD
M8 FLANGE THA
0-91180-108-0
12
1
1403-
253
GUARD; MUD
8-98057-779-1
01
1
1403-
253
GUARD; MUD
8-98057-778-1
01
1
1403-
265
RUBBER; FLAP,REAR
1-79930-978-0
01
1
1403-
265
RUBBER; FLAP,REAR
8-98106-956-0
01
1
1403-
680
GUARD; MUD,UPPER
8-98060-251-0
01
1
1403-
136
73
122
160
167
122
162
122
90
90
162
130
136
677
135
136
73
124
162
130
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1403-
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1403-
73
BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
02
1
1403-
90
BOLT; COVER
M8X20 FLANGE THA
0-28650-820-0
02
1
1403-
122
BOLT
(A) M10X40 FLANGE THA
0-28051-040-0
02
1
1403-
122
BOLT
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1403-
124
BOLT; BRKT
M8X25 FLANGE THA
0-28650-825-0
02
1
1403-
124
BOLT; BRKT
M12X25 FLANGE THA
0-28051-225-0
02
1
1403-
130
PANEL; SHUTTER NOISE
8-98088-647-0
01
1
1403-
130
PANEL; SHUTTER NOISE
8-98170-253-2
01
1
1403-
135
BRACKET; SIDE PANEL
THA
8-97926-594-0
01
1
1403-
136
BOLT
M8X30 W/LK&PL WASHER
1-09030-095-0
04
1
1403-
136
BOLT
M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1403-
160
COVER ASM; EXH
8-98122-557-1
01
1
1403-
162
BRACKET
(C) THA
8-98059-845-1
01
1
1403-
162
BRACKET
(A)
8-98055-601-0
01
1
1403-
162
BRACKET
(B)
8-98092-305-0
01
1
1403-
167
BOLT; EXH COVER
M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
677
COVER; MAG VLV
8-98014-736-0
01
1
1403-
219
9
218
254
307
307
181
254
218
219
9
181
307
307
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GUARD; SPLASH,WHEEL HOUSE
8-97617-133-1
01
1
1403-
9
GUARD; SPLASH,WHEEL HOUSE
8-97617-132-1
01
1
1403-
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
11
1
1403-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1403-
219
FLAP; MUD GUARD
8-97617-139-0
02
1
1403-
254
COVER; MUD,VALANCE
8-98169-313-0
01
1
1403-
254
COVER; MUD,VALANCE
8-97617-143-1
01
1
1403-
307
RETAINER
D8X13.5
1-09987-248-1
12
1
1403-
99
96
96
99
99
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
96
STAY; MUD GUARD
(A)
8-98057-075-0
02
1
1403-
96
STAY; MUD GUARD
(B) THA
8-98082-316-0
02
1
1403-
99
BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA
0-28650-616-0
08
1
1403-
99
BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA
0-28050-825-0
01
1
1403-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
