◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11126 - FTR(INDONESIA)6HH1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#13644) — 63 parça

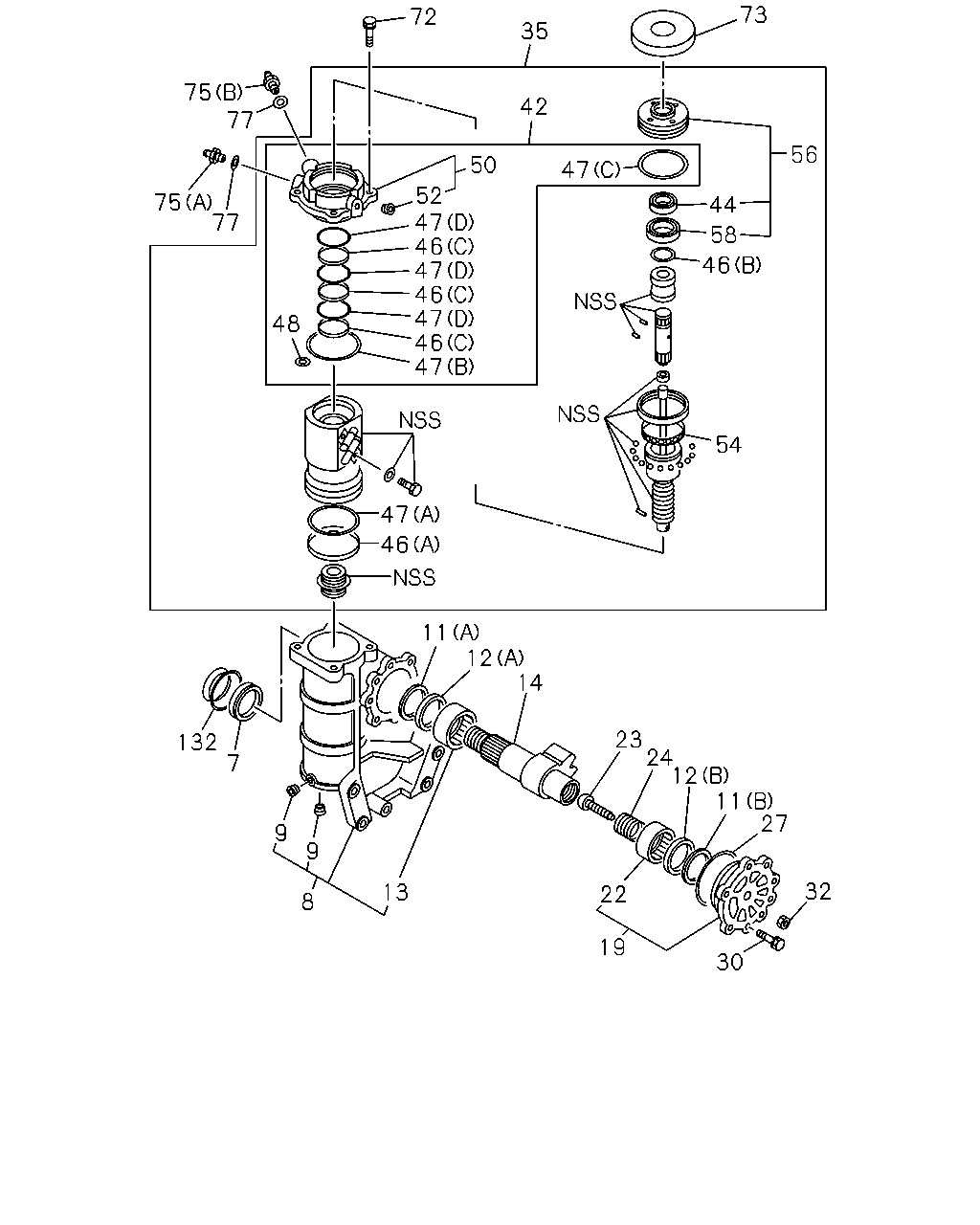

çizim 143456
73 72 35 75 77 42 56 50 47 52 47 46 47 46 47 46 47 75 77 44 58 46 48 54 47 46 11 12 14 23 24 12 11 27 132 7 9 9 32 13 22 8 19 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44240-110-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98159-754-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44249-038-0 01 1 -1002
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44260-019-0 01 1 -1002
19 COVER; SIDE STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-105-0 01 1 -1002
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44279-012-0 08 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44150-065-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), IDN ASM PART: A = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), IDN ASM PART: A = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), IDN ASM PART: A = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-834-4 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-834-4 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44519-227-0 01 1 -

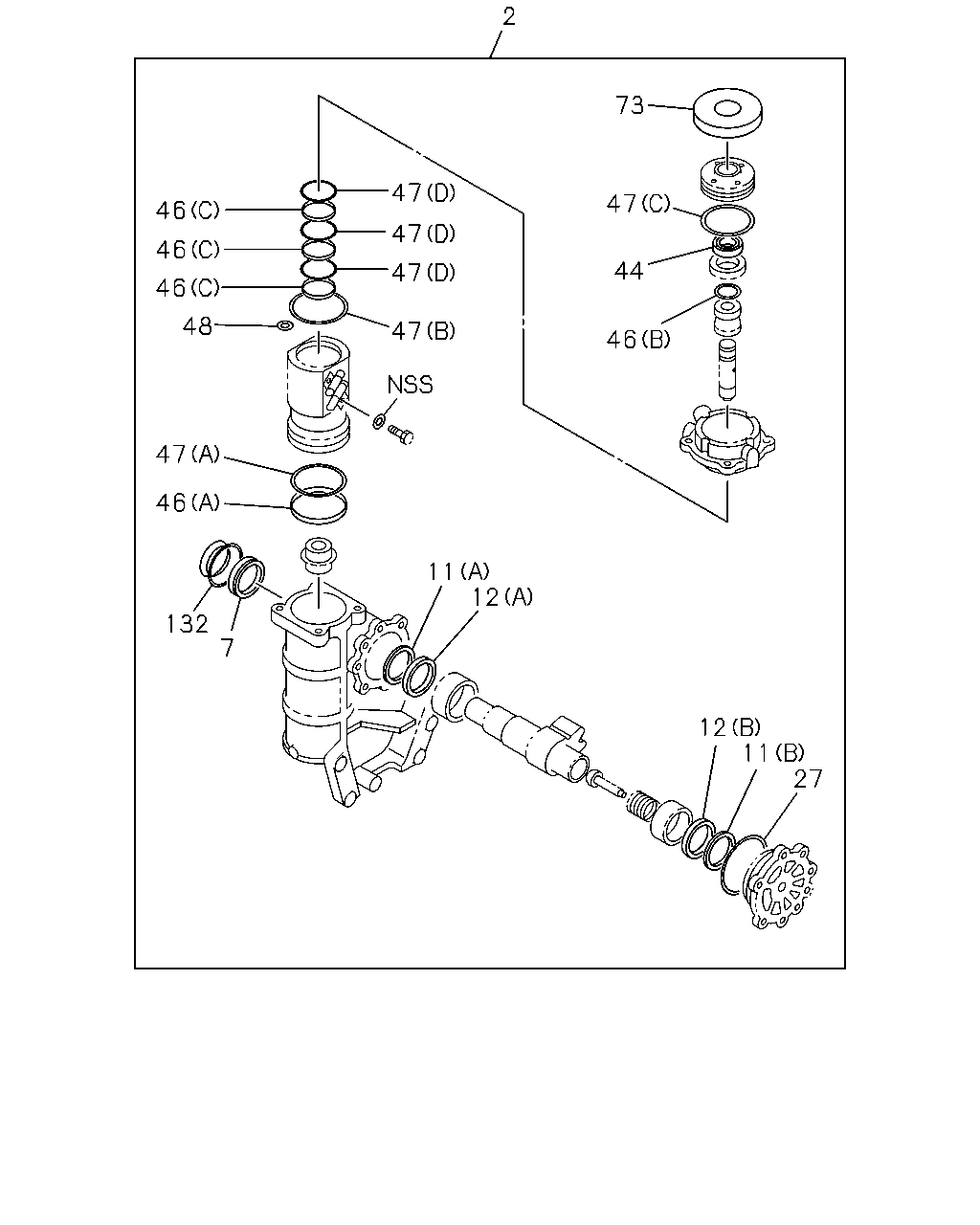

çizim 143461
2 73 47 47 46 47 46 44 47 46 48 47 46 47 46 11 12 132 7 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-834-4 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-834-4 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		8-98159-116-0 01 1 1003-
11 RING; BACKUP,STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), IDN ASM PART: A = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A), IDN ASM PART: A = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), IDN ASM PART: A = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B), IDN ASM PART: A = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), IDN ASM PART: A = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-834-4 		1-44519-227-0 01 1 -
