4-80 — ROAD WHEEL (#136437) — 50 parça

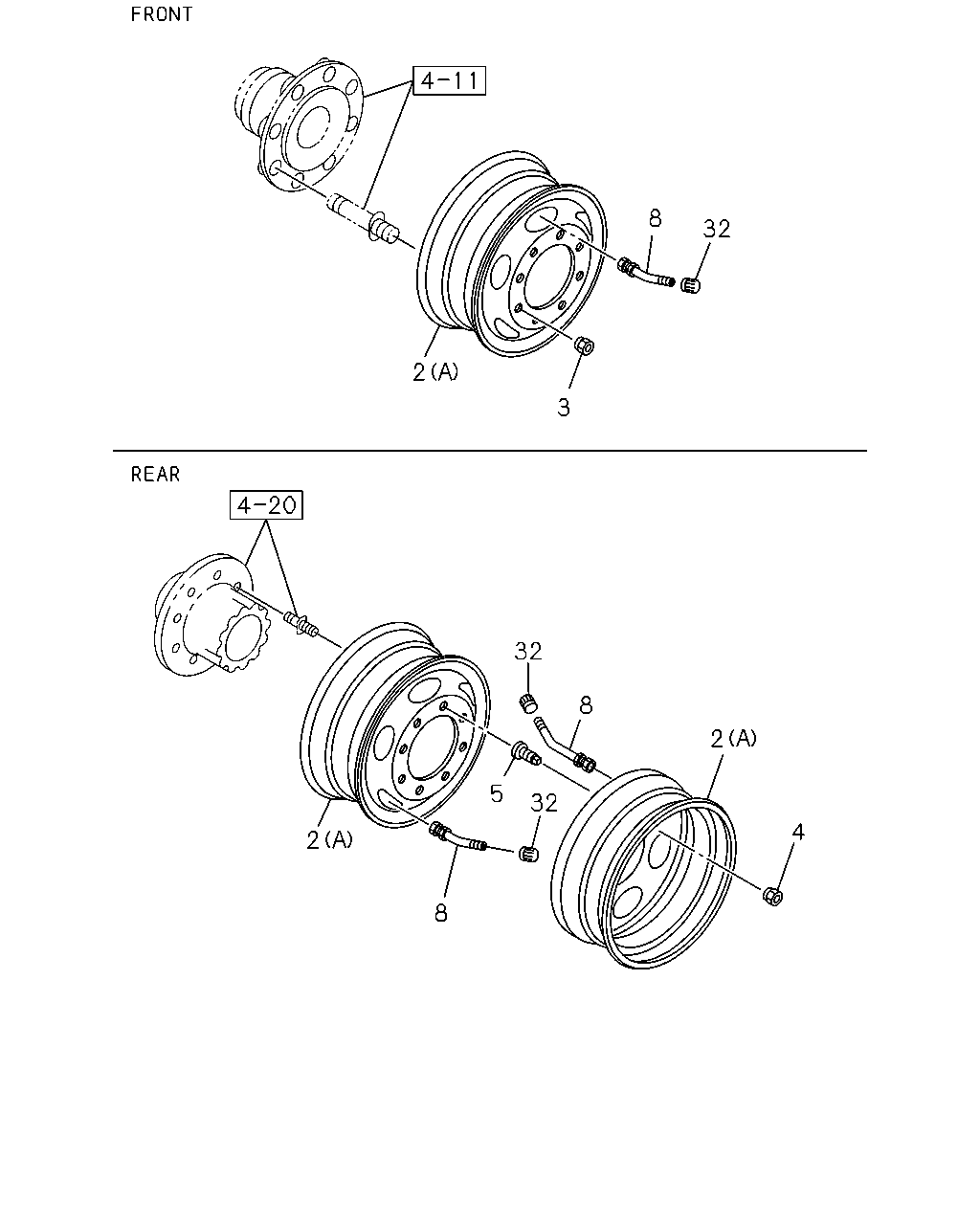

8 2 3 32 2 8 5 32 8 32 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-98257-427-0	04	1	1403-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-97520-624-0	04	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-98257-427-0	08	1	1403-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-97520-624-0	08	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-98257-427-0	01	1	1403-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-97520-624-0	01	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-98257-428-0	01	1	1403-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-97520-623-0	01	1	1408-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT IMA	8-97520-631-0	04	1	1403-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR IMA	8-97520-631-0	08	1	1403-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE IMA	8-97520-631-0	01	1	1403-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-98257-428-0	04	1	1403-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-97520-623-0	04	1	1408-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-98257-428-0	08	1	1403-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-97520-623-0	08	1	1408-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	16	1	1403-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	16	1	1403-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	16	1	1403-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	16	1	1403-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1403-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1403-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	04	1	1403-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1403-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1403-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	13	1	1403-

2 31 3 32 2 31 31 2 32 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-98257-427-0	04	1	1403-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) FRONT THA	8-97520-624-0	04	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-98257-427-0	08	1	1403-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) REAR THA	8-97520-624-0	08	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-98257-427-0	01	1	1403-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (A) SPARE THA	8-97520-624-0	01	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-98257-428-0	01	1	1403-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE THA	8-97520-623-0	01	1	1408-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT IMA	8-97520-631-0	04	1	1403-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR IMA	8-97520-631-0	08	1	1403-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE IMA	8-97520-631-0	01	1	1403-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-98257-428-0	04	1	1403-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT THA	8-97520-623-0	04	1	1408-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-98257-428-0	08	1	1403-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR THA	8-97520-623-0	08	1	1408-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-3	16	1	1403-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-3	16	1	1403-
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	16	1	1403-
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	16	1	1403-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	1403-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	1403-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT THA	8-97520-654-0	04	1	1403-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR THA	8-97520-654-0	08	1	1403-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> SPARE THA	8-97520-654-0	01	1	1403-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	13	1	1403-
